maserati 4200 spyder (2003) front bumber parts diagram

105 - FRONT BUMBER

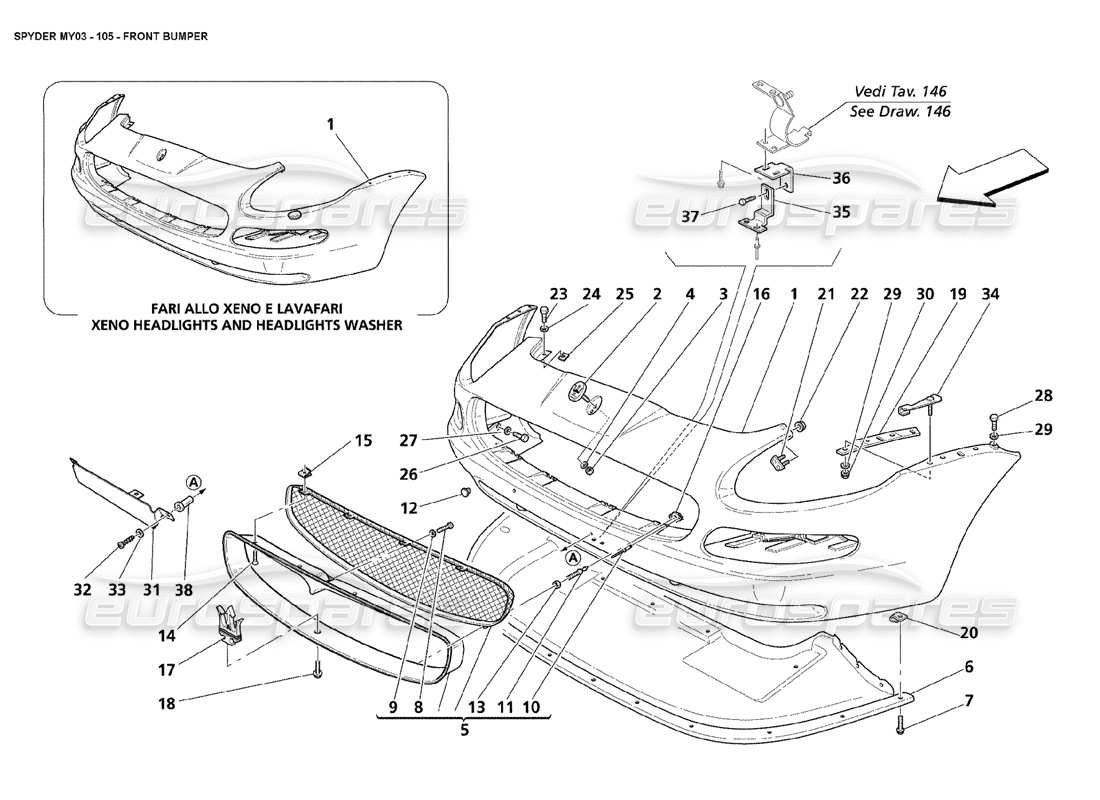

Maserati 4200 Spyder (2003) Front Bumber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 980001063
                                                                          CPL. FRONT BUMPER
                                                                          - Standard - Not for USA and CDN
                                                                          from £703.14
                                                                          from £703.14
                                                                          # 001
                                                                          MPN: 980001064
                                                                          COMPLETE FRONT BUMPER
                                                                          - Optional - Xeno Headlights and Headlights Washer - Not for USA and CDN
                                                                          from £896.91
                                                                          from £896.91
                                                                          # 001
                                                                          MPN: 980001065
                                                                          COMPLETE FRONT BUMPER
                                                                          - Standard - Valid for USA and CDN
                                                                          from £896.91
                                                                          from £896.91
                                                                          # 001
                                                                          MPN: 980001066
                                                                          COMPLETE FRONT BUMPER
                                                                          - Optional - Xeno Headlights and Headlights Washer - Valid for USA and CDN
                                                                          from £1,262.34
                                                                          from £1,262.34
                                                                          # 002
                                                                          MPN: 67389900
                                                                          Maserati MARK
                                                                          Supersession
                                                                          Supersession
                                                                          # 003
                                                                          MPN: 10794014
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 004
                                                                          MPN: 12642801
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 005
                                                                          MPN: 66663700
                                                                          COMPLETE REMOVABLE CALENDER
                                                                          - Standard
                                                                          from £377.92
                                                                          from £377.92
                                                                          # 006
                                                                          MPN: 66232900
                                                                          SHIELD FRONT UNDER THE BODY SHELL
                                                                          from £166.81
                                                                          from £166.81
                                                                          # 007
                                                                          MPN: 16296924
                                                                          SCREW
                                                                          from £0.49
                                                                          from £0.49
                                                                          # 008
                                                                          MPN: 13272416
                                                                          SCREW
                                                                          from £2.86
                                                                          from £2.86
                                                                          # 009
                                                                          MPN: 12642878
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 010
                                                                          MPN: 372580638
                                                                          RIVET
                                                                          from £4.57
                                                                          from £4.57
                                                                          # 011
                                                                          MPN: 386100385
                                                                          THREADED PIN
                                                                          from £17.97
                                                                          from £17.97
                                                                          # 012
                                                                          MPN: 67118900
                                                                          PLUG FOR TOW HOOK HOLE
                                                                          from £1.55
                                                                          from £1.55
                                                                          # 013
                                                                          MPN: 10794011
                                                                          NUT
                                                                          from £0.29
                                                                          from £0.29
                                                                          This part replaces part number 10794040
                                                                          # 014
                                                                          MPN: 15693504
                                                                          SCREW
                                                                          from £1.08
                                                                          from £1.08
                                                                          # 015
                                                                          MPN: 14369179
                                                                          FIXING BRACKET
                                                                          from £3.63
                                                                          from £3.63
                                                                          # 016
                                                                          MPN: 61529200
                                                                          FIXING CLIP
                                                                          from £3.37
                                                                          from £3.37
                                                                          This part replaces part number 94074075 which we have in stock
                                                                          # 017
                                                                          MPN: 67365200
                                                                          EMBLEM
                                                                          from £205.69
                                                                          from £205.69
                                                                          This part replaces part number 66608700
                                                                          # 018
                                                                          MPN: 46401657
                                                                          SCREW
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 019
                                                                          MPN: 66370800
                                                                          RH SIDE BRACKET
                                                                          from £19.39
                                                                          from £19.39
                                                                          # 019
                                                                          MPN: 66370900
                                                                          LH SIDE BRACKET
                                                                          from £19.39
                                                                          from £19.39
                                                                          # 020
                                                                          MPN: 14189071
                                                                          BRACKET
                                                                          from £0.49
                                                                          from £0.49
                                                                          # 021
                                                                          MPN: 66494700
                                                                          RH BRACKET
                                                                          from £22.95
                                                                          from £22.95
                                                                          # 021
                                                                          MPN: 66494800
                                                                          LH BRACKET
                                                                          from £21.10
                                                                          from £21.10
                                                                          # 022
                                                                          MPN: 13831811
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 023
                                                                          MPN: 10902387
                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 024
                                                                          MPN: 10523478
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 025
                                                                          MPN: 66361500
                                                                          ADJUSTING PLATE
                                                                          from £3.16
                                                                          from £3.16
                                                                          # 026
                                                                          MPN: 16043321
                                                                          SCREW
                                                                          from £1.08
                                                                          from £1.08
                                                                          # 027
                                                                          MPN: 163020080
                                                                          WASHER
                                                                          from £1.08
                                                                          from £1.08
                                                                          # 028
                                                                          MPN: 10902834
                                                                          SCREW
                                                                          from £0.50
                                                                          from £0.50
                                                                          # 029
                                                                          MPN: 10523424
                                                                          WASHER
                                                                          from £0.51
                                                                          from £0.51
                                                                          # 030
                                                                          MPN: 14059211
                                                                          NUT
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 675000181
                                                                          # 031
                                                                          MPN: 66361600
                                                                          SUPPORT FOR FRONT PLATE HOLDER
                                                                          from £51.16
                                                                          from £51.16
                                                                          # 032
                                                                          MPN: 13283217
                                                                          SCREW
                                                                          from £1.55
                                                                          from £1.55
                                                                          # 033
                                                                          MPN: 12637807
                                                                          WASHER
                                                                          from £0.52
                                                                          from £0.52
                                                                          # 034
                                                                          MPN: 386300132
                                                                          RH FRONT BRACKET
                                                                          from £30.14
                                                                          from £30.14
                                                                          # 034
                                                                          MPN: 386300133
                                                                          LH FRONT BRACKET
                                                                          from £51.32
                                                                          from £51.32
                                                                          # 035
                                                                          MPN: 67257300
                                                                          LOWER BRACKET
                                                                          from £68.71
                                                                          from £68.71
                                                                          # 036
                                                                          MPN: 67257400
                                                                          UPPER BRACKET
                                                                          from £5.57
                                                                          from £5.57
                                                                          # 037
                                                                          MPN: 11730626
                                                                          SCREW
                                                                          from £1.85
                                                                          from £1.85
                                                                          # 038
                                                                          MPN: 66412700
                                                                          BUSHING
                                                                          from £1.93
                                                                          from £1.93
