maserati 4200 spyder (2003) rear bumper parts diagram

106 - REAR BUMPER

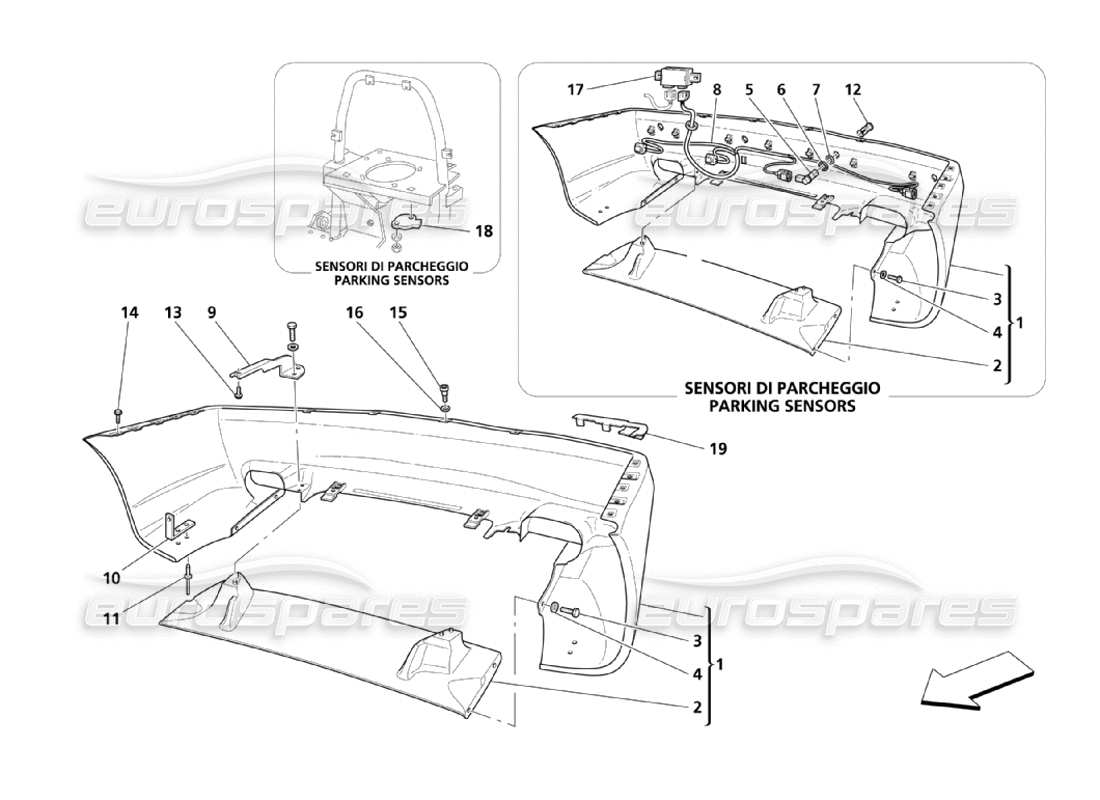

Maserati 4200 Spyder (2003) Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 980001067
                      COMPLETE REAR BUMPER
                      - Standard - Not for USA and CDN
                      from £677.60
                      from £677.60
                      # 001
                      MPN: 980001068
                      COMPLETE REAR BUMPER
                      - Optional - Parking sensor - Not for USA and CDN
                      from £801.57
                      from £801.57
                      # 001
                      MPN: 980001069
                      COMPLETE REAR BUMPER
                      - Standard - Valid for USA and CDN
                      from £824.85
                      from £824.85
                      # 001
                      MPN: 980001070
                      COMPLETE REAR BUMPER
                      - Optional - Parking sensor - Valid for USA and CDN
                      from £987.82
                      from £987.82
                      # 002
                      MPN: 980001048
                      FRONT SPOILER
                      from £254.20
                      from £254.20
                      # 003
                      MPN: 14305321
                      SCREW
                      Supersession
                      Supersession
                      # 004
                      MPN: 12648221
                      WASHER
                      from £0.47
                      from £0.47
                      # 005
                      MPN: 184929
                      PARKING SENSOR
                      - Optional - Parking sensor
                      from £127.87
                      from £127.87
                      # 006
                      MPN: 187677
                      RING NUT
                      - Optional - Parking sensor
                      from £25.89
                      from £25.89
                      # 007
                      MPN: 187678
                      SPACER
                      - Optional - Parking sensor
                      from £10.05
                      from £10.05
                      # 008
                      MPN: 186662
                      BUMPER PARKING SENSOR CABLE
                      - Optional - Parking sensor - Not for USA and CDN - Valid till stock exhaustion
                      Supersession
                      Supersession
                      # 008
                      MPN: 186663
                      SIDE MARKERS AND PARKING SENSOR CABLE
                      - Optional - Parking sensor - Valid for USA and CDN
                      from £290.93
                      from £290.93
                      # 008
                      MPN: 200505
                      BUMPER PARKING SENSOR CABLE
                      - Optional - Parking sensor - Not for USA and CDN - Valid after stock exhaustion of 186662
                      from £114.74
                      from £114.74
                      This part replaces part number 186662 - and 1 more. Click to view details
                      # 009
                      MPN: 66605300
                      RH BRACKET
                      from £17.10
                      from £17.10
                      # 009
                      MPN: 66605400
                      LH BRACKET
                      from £16.64
                      from £16.64
                      # 010
                      MPN: 66494900
                      BRACKET
                      from £7.70
                      from £7.70
                      # 011
                      MPN: 7765139
                      RIVET
                      from £2.52
                      from £2.52
                      # 012
                      MPN: 187679
                      OUTER SLEEVE
                      - Optional - Parking sensor
                      from £24.56
                      from £24.56
                      # 012
                      MPN: 187680
                      INNER SLEEVE
                      - Optional - Parking sensor
                      from £18.95
                      from £18.95
                      # 013
                      MPN: 16288321
                      SCREW
                      from £0.53
                      from £0.53
                      # 014
                      MPN: 7739729
                      SCREW
                      from £1.55
                      from £1.55
                      # 015
                      MPN: 46419734
                      SCREW
                      not as spare part - use part number: 51810310
                      Supersession
                      Supersession
                      # 016
                      MPN: 312552529
                      GASKET
                      Supersession
                      Supersession
                      # 017
                      MPN: 193437
                      PARKING SENSOR CONTROL UNIT
                      - Optional - Parking sensor
                      from £169.59
                      from £169.59
                      This part replaces part number 184927 - and 1 more. Click to view details
                      # 018
                      MPN: 223469
                      BUZZER
                      - Optional - Parking sensor
                      from £14.71
                      from £14.71
                      This part replaces part number 184928 - and 1 more. Click to view details
                      # 019
                      MPN: 382500540
                      RH PLATE
                      from £39.29
                      from £39.29
                      # 019
                      MPN: 382500541
                      LH PLATE
                      from £39.29
                      from £39.29
