maserati 4200 spyder (2003) passenger compartment upholstery accessories parts diagram

109 - Passenger Compartment Upholstery Accessories

Maserati 4200 Spyder (2003) Passenger Compartment Upholstery Accessories Parts Diagram

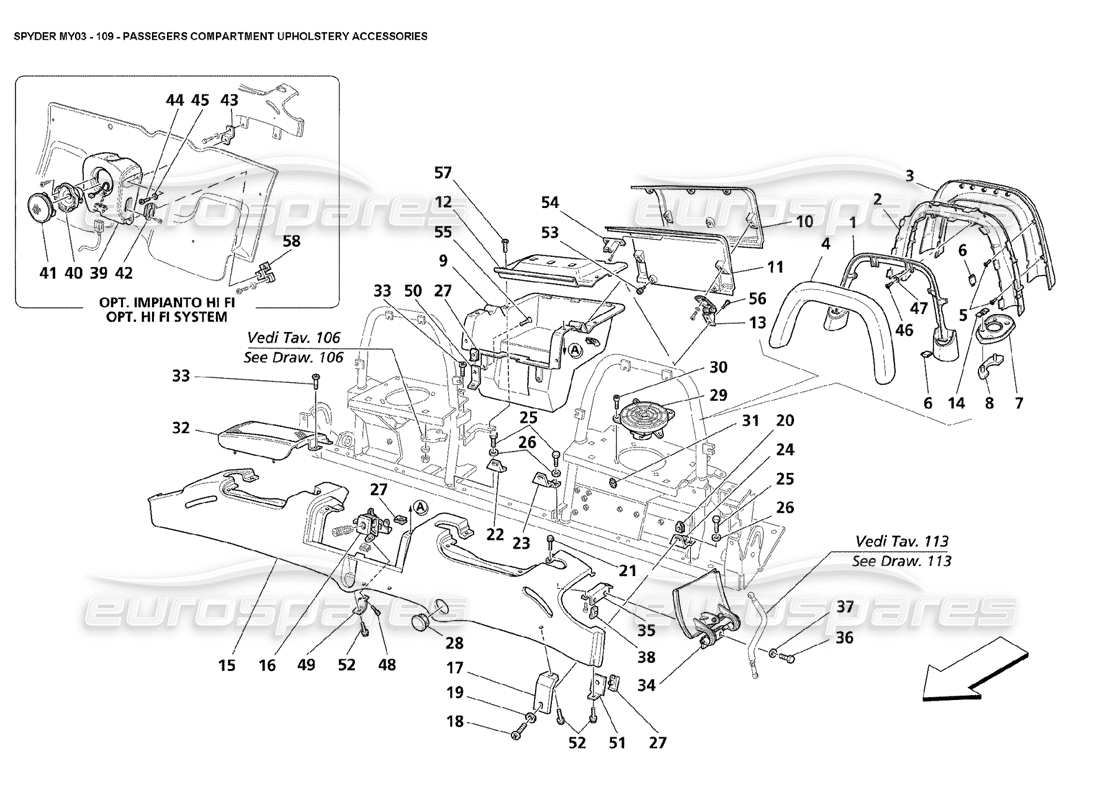

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 980001162
                                                                                          FRONT INNER MOLDING KIT
                                                                                          -Supplyed only couple-
                                                                                          from £49.51
                                                                                          from £49.51
                                                                                          # 002
                                                                                          MPN: 980001163
                                                                                          REAR INNER MOLDING KIT
                                                                                          -Supplyed only couple-
                                                                                          from £56.53
                                                                                          from £56.53
                                                                                          # 003
                                                                                          MPN: 980001164
                                                                                          REAR OUTER COVERING KIT
                                                                                          -Supplyed only couple-
                                                                                          from £44.85
                                                                                          from £44.85
                                                                                          # 004
                                                                                          MPN: 9811049..
                                                                                          FRONT UPHOLSTERED OUTER COVERING KIT
                                                                                          -Supplyed only couple-
                                                                                          from £210.00
                                                                                          from £210.00
                                                                                          # 005
                                                                                          MPN: 12678870
                                                                                          SCREW
                                                                                          from £1.35
                                                                                          from £1.35
                                                                                          # 005
                                                                                          MPN: 15914670
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 006
                                                                                          MPN: 66419500
                                                                                          CLIP
                                                                                          from £3.71
                                                                                          from £3.71
                                                                                          # 007
                                                                                          MPN: 980001165
                                                                                          BAR KIT
                                                                                          from £52.35
                                                                                          from £52.35
                                                                                          # 008
                                                                                          MPN: 66738800
                                                                                          BAR SEAL
                                                                                          from £86.62
                                                                                          from £86.62
                                                                                          # 009
                                                                                          MPN: 66720500
                                                                                          REAR DRAWER
                                                                                          from £284.81
                                                                                          from £284.81
                                                                                          # 010
                                                                                          MPN: 66720201
                                                                                          CENTER DOOR
                                                                                          from £64.20
                                                                                          from £64.20
                                                                                          # 011
                                                                                          MPN: 66720300
                                                                                          CENTER DOOR FRAME
                                                                                          from £35.95
                                                                                          from £35.95
                                                                                          # 012
                                                                                          MPN: 66720400
                                                                                          REAR COVER
                                                                                          from £17.85
                                                                                          from £17.85
                                                                                          # 013
                                                                                          MPN: 66720600
                                                                                          BOX HINGE
                                                                                          from £6.55
                                                                                          from £6.55
                                                                                          # 014
                                                                                          MPN: 14227776
                                                                                          PLATE
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 015
                                                                                          MPN: 667201..
                                                                                          SEAT BACK MOULDING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 015
                                                                                          MPN: 66720100
                                                                                          SEAT BACK MOULDING
                                                                                          Black
                                                                                          from £1,589.90
                                                                                          from £1,589.90
                                                                                          This part replaces part number 667201..
                                                                                          # 016
                                                                                          MPN: 67023100
                                                                                          REAR DRAWER LOCK
                                                                                          from £65.46
                                                                                          from £65.46
                                                                                          # 017
                                                                                          MPN: 66720700
                                                                                          BRACKET
                                                                                          from £7.34
                                                                                          from £7.34
                                                                                          # 018
                                                                                          MPN: 13274014
                                                                                          SCREW
                                                                                          from £3.54
                                                                                          from £3.54
                                                                                          # 019
                                                                                          MPN: 12637801
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 020
                                                                                          MPN: 66914000
                                                                                          BRACKET
                                                                                          from £2.92
                                                                                          from £2.92
                                                                                          # 021
                                                                                          MPN: 13274177
                                                                                          SCREW
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          # 022
                                                                                          MPN: 66399000
                                                                                          RH BRACKET
                                                                                          from £3.32
                                                                                          from £3.32
                                                                                          # 023
                                                                                          MPN: 66424100
                                                                                          LH BRACKET
                                                                                          from £3.32
                                                                                          from £3.32
                                                                                          # 024
                                                                                          MPN: 66486300
                                                                                          BRACKET
                                                                                          from £3.32
                                                                                          from £3.32
                                                                                          # 025
                                                                                          MPN: 13274011
                                                                                          SCREW
                                                                                          from £1.10
                                                                                          from £1.10
                                                                                          # 027
                                                                                          MPN: 14371271
                                                                                          BRACKET
                                                                                          from £1.10
                                                                                          from £1.10
                                                                                          # 028
                                                                                          MPN: 66423500
                                                                                          PLUG
                                                                                          from £3.32
                                                                                          from £3.32
                                                                                          This part replaces part number 67901200
                                                                                          # 029
                                                                                          MPN: 184106
                                                                                          REAR LOUD SPEAKER WOOFER
                                                                                          -Standard-
                                                                                          from £57.12
                                                                                          from £57.12
                                                                                          This part replaces part number 185973 - and 1 more. Click to view details
                                                                                          # 029
                                                                                          MPN: 185974
                                                                                          REAR LOUD SPEAKER WOOFER
                                                                                          -Optional - HI FI System-
                                                                                          from £85.54
                                                                                          from £85.54
                                                                                          # 030
                                                                                          MPN: 15688875
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 031
                                                                                          MPN: 66738400
                                                                                          BRACKET
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 032
                                                                                          MPN: 66139900
                                                                                          GRILLE FOR RH LOUD SPEAKER
                                                                                          from £18.01
                                                                                          from £18.01
                                                                                          # 032
                                                                                          MPN: 66392900
                                                                                          GRILLE FOR LH LOUD SPEAKER
                                                                                          from £18.01
                                                                                          from £18.01
                                                                                          # 033
                                                                                          MPN: 13274177
                                                                                          SCREW
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          # 034
                                                                                          MPN: 981105000
                                                                                          PAIR BLACK CAPOTE COVERS
                                                                                          from £498.65
                                                                                          from £498.65
                                                                                          # 035
                                                                                          MPN: 66735700
                                                                                          RH BRACKET
                                                                                          from £8.38
                                                                                          from £8.38
                                                                                          # 035
                                                                                          MPN: 66735800
                                                                                          LH BRACKET
                                                                                          from £8.38
                                                                                          from £8.38
                                                                                          # 036
                                                                                          MPN: 14305224
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 037
                                                                                          MPN: 10519424
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10519421 - and 1 more. Click to view details
                                                                                          # 038
                                                                                          MPN: 62766300
                                                                                          CLIP
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 039
                                                                                          MPN: 9811061..
                                                                                          SUBWOOFER BOX
                                                                                          -Optional -HI FI system-
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 039
                                                                                          MPN: 981106101
                                                                                          SUBWOOFER BOX
                                                                                          Optional - HI FI system -Beige
                                                                                          from £650.42
                                                                                          from £650.42
                                                                                          This part replaces part number 66706201 - and 1 more. Click to view details
                                                                                          # 040
                                                                                          MPN: 189405
                                                                                          LOUD SPEAKER SUBWOOFER
                                                                                          -Optional -HI FI system-
                                                                                          from £211.33
                                                                                          from £211.33
                                                                                          # 041
                                                                                          MPN: 192241
                                                                                          GRILL FOR LOUD-SPEAKER
                                                                                          -Optional- -HI FI system-
                                                                                          from £31.81
                                                                                          from £31.81
                                                                                          # 042
                                                                                          MPN: 66706300
                                                                                          Frame
                                                                                          -Optional- -HI FI system-
                                                                                          from £7.90
                                                                                          from £7.90
                                                                                          # 043
                                                                                          MPN: 66916600
                                                                                          UPPER BRACKET FOR FIXING SUBWOOFER
                                                                                          -Optional- -HI FI system-
                                                                                          from £17.53
                                                                                          from £17.53
                                                                                          # 044
                                                                                          MPN: 14304421
                                                                                          SCREW
                                                                                          -Optional- -HI FI system-
                                                                                          from £1.10
                                                                                          from £1.10
                                                                                          # 045
                                                                                          MPN: 10730014
                                                                                          WASHER
                                                                                          -Optional- -HI FI system-
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          # 046
                                                                                          MPN: 13272017
                                                                                          SCREW
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          # 047
                                                                                          MPN: 14497701
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 048
                                                                                          MPN: 13270670
                                                                                          SCREW
                                                                                          from £0.87
                                                                                          from £0.87
                                                                                          This part replaces part number 10373221
                                                                                          # 049
                                                                                          MPN: 66720800
                                                                                          BRACKET
                                                                                          from £18.48
                                                                                          from £18.48
                                                                                          # 050
                                                                                          MPN: 66720900
                                                                                          BRACKET
                                                                                          from £17.46
                                                                                          from £17.46
                                                                                          # 051
                                                                                          MPN: 66721000
                                                                                          BRACKET
                                                                                          from £4.26
                                                                                          from £4.26
                                                                                          # 053
                                                                                          MPN: 66736200
                                                                                          RUBBER FOR END OF STROKE
                                                                                          from £60.17
                                                                                          from £60.17
                                                                                          This part replaces part number 67714200
                                                                                          # 054
                                                                                          MPN: 67021000
                                                                                          DOOR CLOSING STRIKER
                                                                                          from £10.66
                                                                                          from £10.66
                                                                                          # 055
                                                                                          MPN: 13299411
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 056
                                                                                          MPN: 13274211
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 057
                                                                                          MPN: 13299477
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 058
                                                                                          MPN: 66916700
                                                                                          LOWER BRACKET FOR FIXING SUBWOOFER
                                                                                          -Optional- -HI FI system-
                                                                                          from £22.98
                                                                                          from £22.98
