maserati 4200 spyder (2003) shields and finishing parts diagram

134 - Shields and Finishing

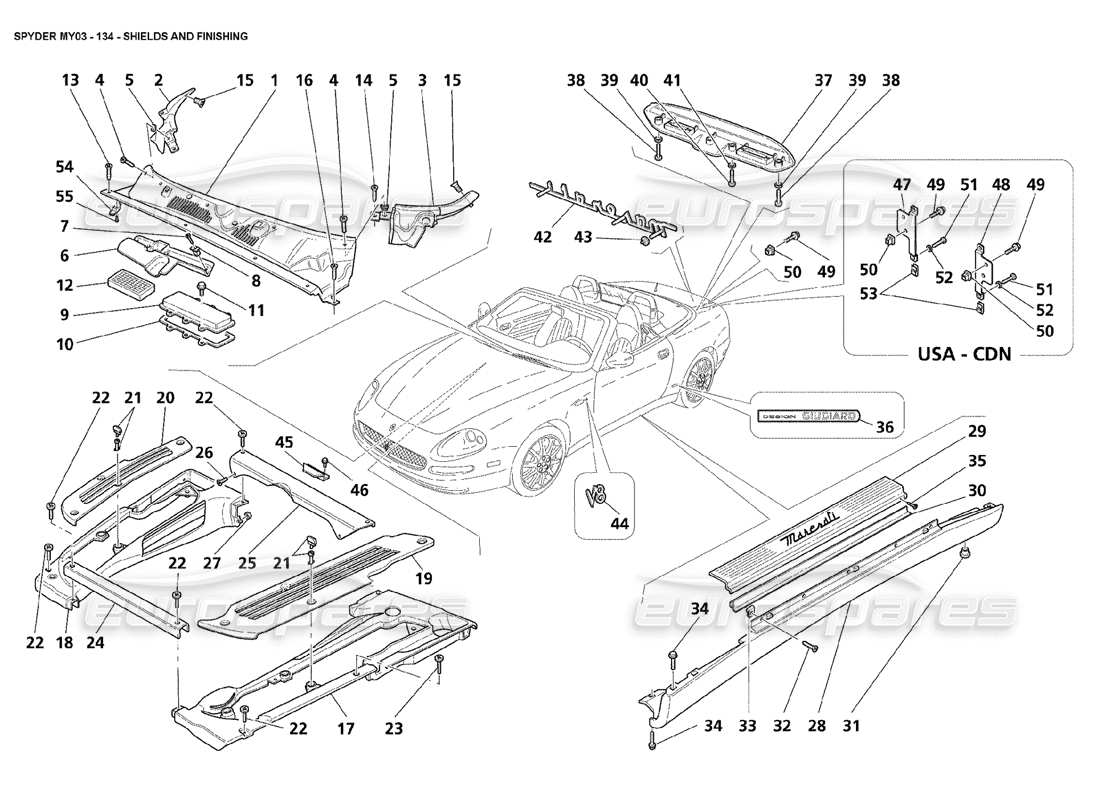

Maserati 4200 Spyder (2003) Shields and Finishing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 66365800
                                                                                    CENTRAL UNDER WINDSHIELD PLATE
                                                                                    - Not for GD
                                                                                    from £16.94
                                                                                    from £16.94
                                                                                    # 001
                                                                                    MPN: 66664400
                                                                                    CENTRAL UNDER WINDSHIELD PLATE
                                                                                    - Valid for GD
                                                                                    from £41.21
                                                                                    from £41.21
                                                                                    # 002
                                                                                    MPN: 66373400
                                                                                    RH UNDER WINDSHIELD PLATE
                                                                                    - Not for GD
                                                                                    from £8.20
                                                                                    from £8.20
                                                                                    # 002
                                                                                    MPN: 66664200
                                                                                    RH UNDER WINDSHIELD PLATE
                                                                                    - Valid for GD
                                                                                    from £31.74
                                                                                    from £31.74
                                                                                    # 003
                                                                                    MPN: 66373600
                                                                                    LH UNDER WINDSHIELD PLATE
                                                                                    - Not for GD
                                                                                    from £4.19
                                                                                    from £4.19
                                                                                    # 003
                                                                                    MPN: 66664300
                                                                                    LH UNDER WINDSHIELD PLATE
                                                                                    - Valid for GD
                                                                                    from £33.46
                                                                                    from £33.46
                                                                                    # 004
                                                                                    MPN: 15672777
                                                                                    SCREW
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 005
                                                                                    MPN: 7754387
                                                                                    BLOCK
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 006
                                                                                    MPN: 66413900
                                                                                    SHIELD FOR WATER
                                                                                    - Not for GD
                                                                                    from £25.82
                                                                                    from £25.82
                                                                                    # 006
                                                                                    MPN: 66664500
                                                                                    SHIELD FOR WATER
                                                                                    - Valid for GD
                                                                                    from £16.43
                                                                                    from £16.43
                                                                                    # 007
                                                                                    MPN: 15783377
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 008
                                                                                    MPN: 14214880
                                                                                    BLOCK
                                                                                    from £0.50
                                                                                    from £0.50
                                                                                    # 009
                                                                                    MPN: 388100435
                                                                                    ANTIPOLLEN FILTER SHIELD
                                                                                    - Not for GD
                                                                                    from £13.41
                                                                                    from £13.41
                                                                                    # 009
                                                                                    MPN: 388110436
                                                                                    ANTIPOLLEN FILTER SHIELD
                                                                                    - Valid for GD
                                                                                    from £7.42
                                                                                    from £7.42
                                                                                    This part replaces part number 388110435 - and 1 more. Click to view details
                                                                                    # 010
                                                                                    MPN: 388300489
                                                                                    GASKET
                                                                                    from £4.66
                                                                                    from £4.66
                                                                                    # 011
                                                                                    MPN: 10711227
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 012
                                                                                    MPN: 386100170
                                                                                    AIR INTAKE GRILL
                                                                                    - Not for GD
                                                                                    from £39.99
                                                                                    from £39.99
                                                                                    # 012
                                                                                    MPN: 386110170
                                                                                    AIR INTAKE GRILL
                                                                                    - Valid for GD
                                                                                    from £20.82
                                                                                    from £20.82
                                                                                    # 013
                                                                                    MPN: 15783377
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 014
                                                                                    MPN: 15783377
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 015
                                                                                    MPN: 15917217
                                                                                    SCREW
                                                                                    from £1.08
                                                                                    from £1.08
                                                                                    # 016
                                                                                    MPN: 15783377
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 017
                                                                                    MPN: 67247500
                                                                                    LH Side Cover
                                                                                    - Not for GD
                                                                                    from £36.01
                                                                                    from £36.01
                                                                                    # 017
                                                                                    MPN: 67402000
                                                                                    LH Side Cover
                                                                                    - Valid for GD
                                                                                    from £40.97
                                                                                    from £40.97
                                                                                    # 018
                                                                                    MPN: 67240000
                                                                                    RH SIDE COVER
                                                                                    - Not for GD
                                                                                    from £54.02
                                                                                    from £54.02
                                                                                    # 018
                                                                                    MPN: 67401900
                                                                                    RH SIDE COVER
                                                                                    - Valid for GD
                                                                                    from £40.97
                                                                                    from £40.97
                                                                                    # 019
                                                                                    MPN: 67247600
                                                                                    LH GRILL
                                                                                    from £71.72
                                                                                    from £71.72
                                                                                    This part replaces part number 66492600
                                                                                    # 020
                                                                                    MPN: 66492500
                                                                                    RH GRILL
                                                                                    from £168.92
                                                                                    from £168.92
                                                                                    # 021
                                                                                    MPN: 68503400
                                                                                    PIN
                                                                                    from £5.51
                                                                                    from £5.51
                                                                                    This part replaces part number 66603000
                                                                                    # 021
                                                                                    MPN: 68503400
                                                                                    PIN
                                                                                    from £5.51
                                                                                    from £5.51
                                                                                    This part replaces part number 66603000
                                                                                    # 022
                                                                                    MPN: 67194000
                                                                                    SCREW
                                                                                    from £2.79
                                                                                    from £2.79
                                                                                    # 023
                                                                                    MPN: 67194100
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 024
                                                                                    MPN: 66069100
                                                                                    ENGINE COMPARTMENT FRONT COVER
                                                                                    from £36.01
                                                                                    from £36.01
                                                                                    # 025
                                                                                    MPN: 66110800
                                                                                    ENGINE COMPARTMENT REAR COVER
                                                                                    from £36.01
                                                                                    from £36.01
                                                                                    # 026
                                                                                    MPN: 13299177
                                                                                    SCREW
                                                                                    from £1.86
                                                                                    from £1.86
                                                                                    # 028
                                                                                    MPN: 980001071
                                                                                    LH LATERAL SHIELD
                                                                                    from £228.15
                                                                                    from £228.15
                                                                                    This part replaces part number 66582700 - and 1 more. Click to view details
                                                                                    # 028
                                                                                    MPN: 980001072
                                                                                    RH LATERAL SHIELD
                                                                                    from £228.15
                                                                                    from £228.15
                                                                                    This part replaces part number 66582600 - and 1 more. Click to view details
                                                                                    # 029
                                                                                    MPN: 386100313
                                                                                    LH UNDER DOOR MOULDING
                                                                                    from £137.50
                                                                                    from £137.50
                                                                                    # 029
                                                                                    MPN: 386100314
                                                                                    RH UNDER DOOR MOULDING
                                                                                    from £137.50
                                                                                    from £137.50
                                                                                    # 030
                                                                                    MPN: 386100345
                                                                                    GASKET
                                                                                    from £10.09
                                                                                    from £10.09
                                                                                    # 031
                                                                                    MPN: 66582800
                                                                                    PLUG
                                                                                    from £28.40
                                                                                    from £28.40
                                                                                    # 032
                                                                                    MPN: 15532677
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 033
                                                                                    MPN: 7663916
                                                                                    BLOCK
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 034
                                                                                    MPN: 11730624
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 035
                                                                                    MPN: 12678870
                                                                                    SCREW
                                                                                    from £1.32
                                                                                    from £1.32
                                                                                    # 036
                                                                                    MPN: 67027100
                                                                                    GIUGIARO DESIGN PLATE
                                                                                    from £10.76
                                                                                    from £10.76
                                                                                    # 037
                                                                                    MPN: 980001202
                                                                                    PLATE
                                                                                    In Primer
                                                                                    from £139.95
                                                                                    from £139.95
                                                                                    # 039
                                                                                    MPN: 12643724
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 040
                                                                                    MPN: 13283514
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 041
                                                                                    MPN: 12638124
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 042
                                                                                    MPN: 67197600
                                                                                    Maserati MARK
                                                                                    from £39.62
                                                                                    from £39.62
                                                                                    # 044
                                                                                    MPN: 67559200
                                                                                    ORNAMENT
                                                                                    from £18.31
                                                                                    from £18.31
                                                                                    # 045
                                                                                    MPN: 67032700
                                                                                    BRACKET
                                                                                    from £5.12
                                                                                    from £5.12
                                                                                    # 046
                                                                                    MPN: 10711227
                                                                                    SCREW
                                                                                    from £1.55
                                                                                    from £1.55
                                                                                    # 047
                                                                                    MPN: 67516600
                                                                                    RH BRACKET FOR FIXING NUMBER PLATE
                                                                                    - Valid for USA and CDN
                                                                                    from £31.89
                                                                                    from £31.89
                                                                                    # 048
                                                                                    MPN: 67516700
                                                                                    LH BRACKET FOR FIXING NUMBER PLATE
                                                                                    - Valid for USA and CDN
                                                                                    from £34.53
                                                                                    from £34.53
                                                                                    # 049
                                                                                    MPN: 15688070
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 050
                                                                                    MPN: 319220324
                                                                                    CLIP
                                                                                    from £0.64
                                                                                    from £0.64
                                                                                    This part replaces part number 82457087
                                                                                    # 051
                                                                                    MPN: 14775211
                                                                                    SCREW
                                                                                    - Valid for USA and CDN
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 052
                                                                                    MPN: 12642801
                                                                                    WASHER
                                                                                    - Valid for USA and CDN
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 053
                                                                                    MPN: 14370571
                                                                                    BRACKET
                                                                                    - Valid for USA and CDN
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 054
                                                                                    MPN: 66058000
                                                                                    BRACKET
                                                                                    from £2.33
                                                                                    from £2.33
                                                                                    # 055
                                                                                    MPN: 15918177
                                                                                    SCREW
                                                                                    from £1.32
                                                                                    from £1.32
