maserati 4200 spyder (2004) fuel tanks and union parts diagram

010 - Fuel Tanks and Union

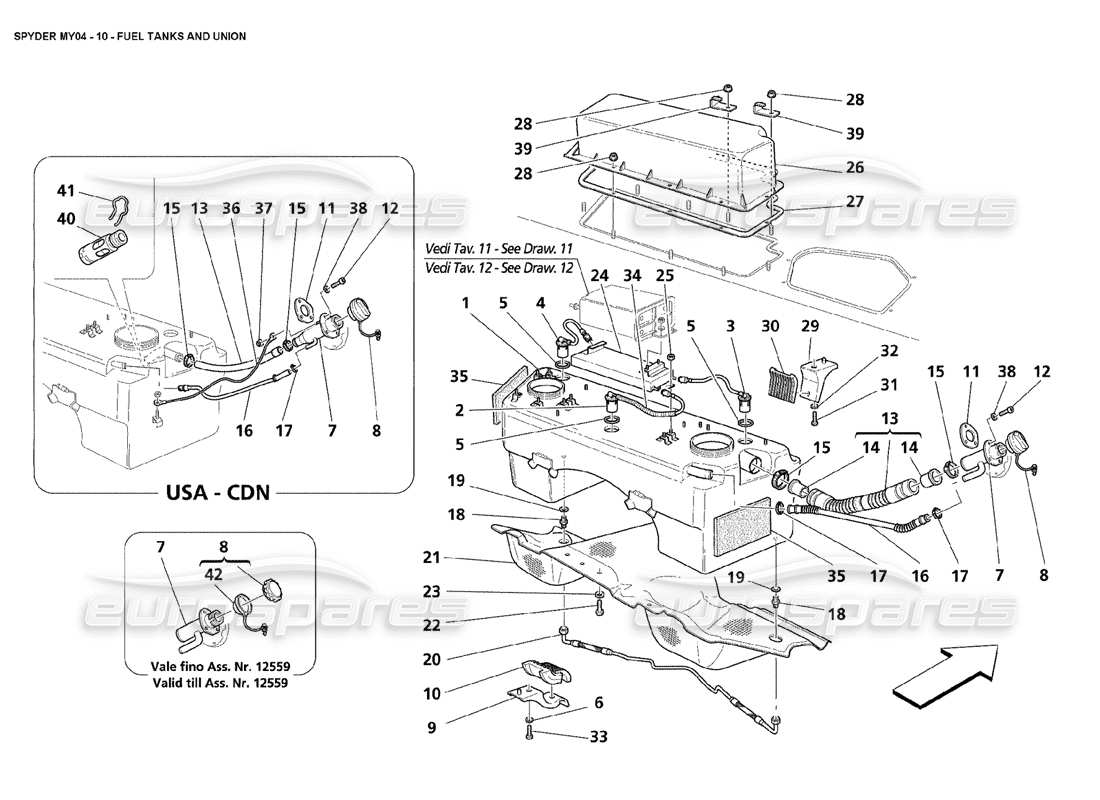

Maserati 4200 Spyder (2004) Fuel Tanks and Union Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price

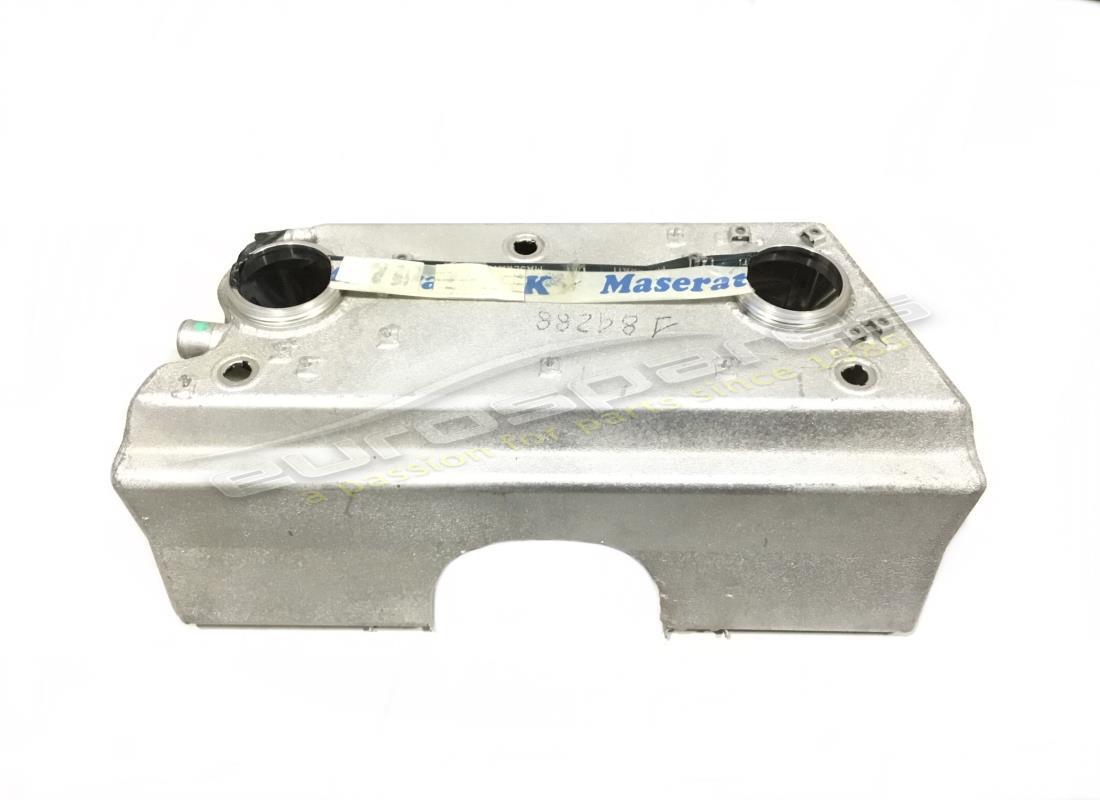

                                                # 001
                                                MPN: 184288
                                                FUEL TANK
                                                - Not for USA and CDN
                                                from £1,369.88
                                                from £1,369.88
                                                # 001
                                                MPN: 184732
                                                FUEL TANK
                                                - Valid for USA and CDN - Valid till car Ass. Nr. 11186
                                                from £1,541.15
                                                from £1,541.15
                                                # 001
                                                MPN: 193834
                                                FUEL TANK
                                                - Valid for USA and CDN - Valid from car Ass. Nr. 11187
                                                from £1,603.39
                                                from £1,603.39
                                                # 002
                                                MPN: 184908
                                                CENTRAL FLOAT VALVLE WHIT PIPE
                                                from £332.12
                                                from £332.12
                                                # 003
                                                MPN: 184349
                                                RH FLOAT VALVE WITH PIPE
                                                from £31.54
                                                from £31.54
                                                # 004
                                                MPN: 184907
                                                LH FLOAT VALVE WITH PIPE
                                                from £34.13
                                                from £34.13
                                                # 005
                                                MPN: 169938
                                                GASKET FOR VALVE
                                                - Valid till stock exhaustion
                                                Supersession
                                                Supersession
                                                # 005
                                                MPN: 195049
                                                GASKET FOR VALVE
                                                - Valid after stock exhaustion of 169938
                                                from £2.47
                                                from £2.47
                                                This part replaces part number 169938
                                                # 006
                                                MPN: 12626224
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                # 007
                                                MPN: 190203
                                                FUEL UNION
                                                - Not for USA and CDN
                                                from £42.88
                                                from £42.88
                                                # 007
                                                MPN: 194101
                                                FUEL UNION
                                                - Valid for USA and CDN - Valid till car Ass. Nr. 11991
                                                Supersession
                                                Supersession
                                                # 007
                                                MPN: 201347
                                                FUEL UNION
                                                - Valid for USA and CDN - Valid from car Ass. Nr. 11992
                                                from £631.70
                                                from £631.70
                                                This part replaces part number 194101
                                                # 008
                                                MPN: 190154
                                                COMPLETE PLUG
                                                - For versions USA and CDN - valid till car Ass. Nr. 11991
                                                from £170.08
                                                from £170.08
                                                This part replaces part number 186866 which we have in stock
                                                # 008
                                                MPN: 190154
                                                COMPLETE PLUG
                                                - Valid for USA and CDN - Valid from car Ass. Nr. 11992
                                                from £170.08
                                                from £170.08
                                                This part replaces part number 186866 which we have in stock
                                                # 009
                                                MPN: 184298
                                                FUEL TANK FIXING BRACKET
                                                from £8.09
                                                from £8.09
                                                # 010
                                                MPN: 186986
                                                RUBBER REAR SPACER
                                                from £4.11
                                                from £4.11

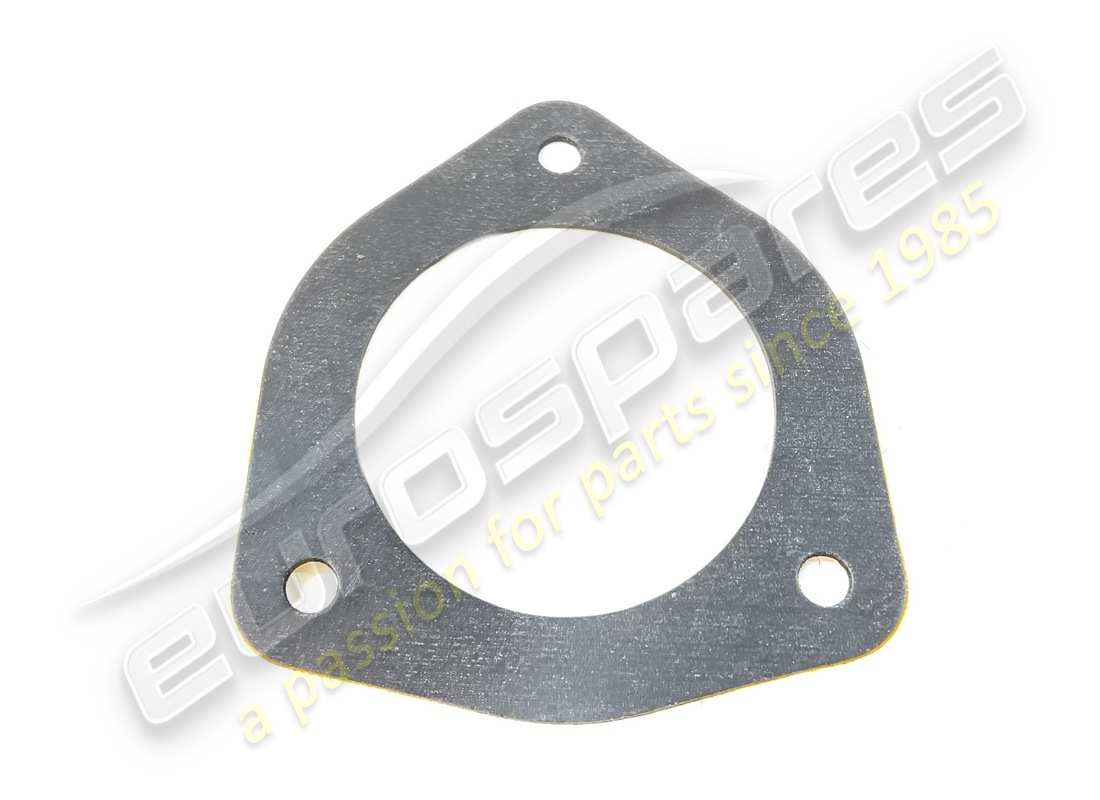

                                                # 011
                                                MPN: 190141
                                                GASKET FOR UNION
                                                from £5.93
                                                from £5.93
                                                # 012
                                                MPN: 14778017
                                                SCREW
                                                - Valid for USA and CDN
                                                from £1.55
                                                from £1.55
                                                # 012
                                                MPN: 62926700
                                                SCREW
                                                - Not for USA and CDN
                                                from £0.71
                                                from £0.71
                                                # 013
                                                MPN: 189733
                                                UNION TANK CONNECTING PIPE
                                                -Valid for USA and CDN
                                                from £103.71
                                                from £103.71
                                                # 013
                                                MPN: 191617
                                                UNION TANK CONNECTING PIPE
                                                -Not for USA and CDN
                                                from £57.34
                                                from £57.34
                                                # 014
                                                MPN: 191618
                                                GASKET
                                                - Not for USA and CDN
                                                from £30.43
                                                from £30.43
                                                # 015
                                                MPN: 13000590
                                                SCREW COLLAR
                                                - Valid for USA and CDN
                                                from £0.47
                                                from £0.47
                                                # 015
                                                MPN: 13000790
                                                SCREW COLLAR
                                                - Not for USA and CDN
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 312420106
                                                # 016
                                                MPN: 190150
                                                VAPOR RECYCLING PIPE
                                                - Valid for USA and CDN
                                                from £22.72
                                                from £22.72
                                                # 016
                                                MPN: 190164
                                                COMPLETE VENT PIPE FROM TANK TO UNION
                                                - Not for USA and CDN
                                                from £28.26
                                                from £28.26
                                                # 017
                                                MPN: 13000390
                                                SCREW COLLAR
                                                - Not for USA and CDN
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 13121170 - and 1 more. Click to view details
                                                # 017
                                                MPN: 13432070
                                                COLLAR FOR SLEEVE
                                                - Valid for USA and CDN
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 13434670
                                                # 018
                                                MPN: 188548
                                                NIPPLO
                                                - Not for USA and CDN
                                                from £98.84
                                                from £98.84
                                                # 018
                                                MPN: 193689
                                                NIPPLO
                                                - Valid for USA and CDN
                                                from £27.34
                                                from £27.34
                                                # 019
                                                MPN: 675000691
                                                GASKET
                                                from £1.08
                                                from £1.08
                                                This part replaces part number 10257060 which we have in stock

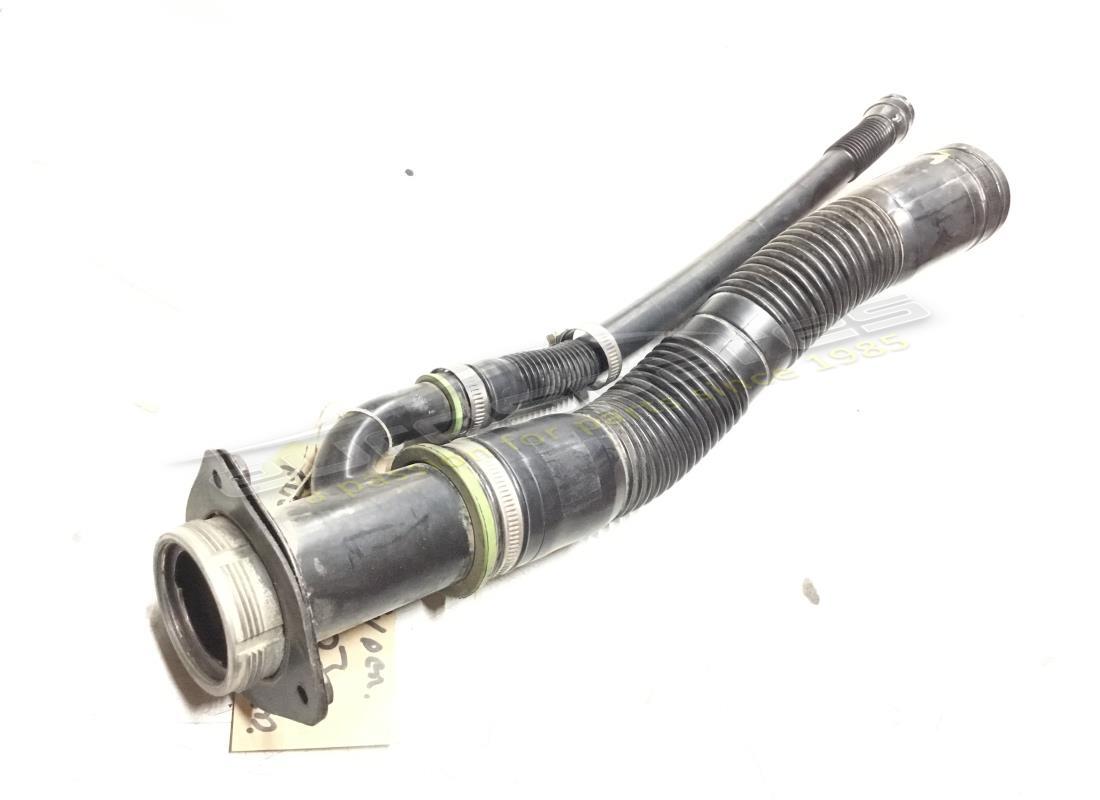

                                                # 020
                                                MPN: 189875
                                                TANK CONNECTING PIPE
                                                - Not for USA and CDN - Valid till stock exhaustion
                                                from £132.60
                                                from £132.60
                                                # 020
                                                MPN: 193688
                                                TANK CONNECTING PIPE
                                                - Valid for USA and CDN - Valid for all versions - after exhaustion of 189875
                                                from £140.86
                                                from £140.86
                                                # 021
                                                MPN: 66065600
                                                UNDERTANK HEAT SHIELD
                                                from £78.77
                                                from £78.77
                                                # 022
                                                MPN: 10902224
                                                SCREW
                                                from £0.49
                                                from £0.49
                                                # 023
                                                MPN: 10523424
                                                WASHER
                                                from £0.49
                                                from £0.49
                                                # 024
                                                MPN: 187466
                                                DISAREATOR
                                                - Not for USA and CDN
                                                from £67.45
                                                from £67.45
                                                # 024
                                                MPN: 187467
                                                DISAREATOR
                                                - Valid for USA and CDN
                                                from £277.56
                                                from £277.56
                                                # 025
                                                MPN: 12574211
                                                NUT
                                                from £0.71
                                                from £0.71
                                                This part replaces part number 128300060
                                                # 026
                                                MPN: 67239500
                                                ANTIEVAPORATION DEVICE COVER
                                                from £23.78
                                                from £23.78
                                                This part replaces part number 66360800 which we have in stock - and 1 more. Click to view details
                                                # 027
                                                MPN: 66360700
                                                GASKET
                                                from £27.34
                                                from £27.34
                                                # 028
                                                MPN: 14059217
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 029
                                                MPN: 184297
                                                FUEL TANK FIXING BRACKET
                                                from £7.89
                                                from £7.89
                                                # 030
                                                MPN: 186985
                                                RUBBER FRONT SPACER
                                                from £4.11
                                                from £4.11
                                                # 031
                                                MPN: 14307524
                                                SCREW
                                                from £0.85
                                                from £0.85
                                                # 032
                                                MPN: 12626224
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                # 033
                                                MPN: 14307524
                                                SCREW
                                                - Supplied in meters - (Minimum quantity 1m. or multiples)
                                                from £0.85
                                                from £0.85
                                                # 034
                                                MPN: 318720333
                                                PIPE
                                                from £5.10
                                                from £5.10
                                                # 035
                                                MPN: 371530464
                                                PROTECTION
                                                from £23.04
                                                from £23.04
                                                # 036
                                                MPN: 194102
                                                GROUND CABLE
                                                - Valid for USA and CDN
                                                Supersession
                                                Supersession
                                                # 037
                                                MPN: 14059214
                                                NUT M6
                                                - Valid for USA and CDN
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 12578121
                                                # 038
                                                MPN: 12605374
                                                WASHER
                                                from £0.71
                                                from £0.71
                                                # 039
                                                MPN: 179996
                                                CONNECTOR FIXING BRACKET
                                                from £2.85
                                                from £2.85
                                                # 040
                                                MPN: 181929
                                                FUEL INTERCEPTION VALVE
                                                - Valid for USA and CDN
                                                from £159.04
                                                from £159.04
                                                # 041
                                                MPN: 181930
                                                CLIP
                                                - Valid for USA and CDN
                                                from £10.01
                                                from £10.01
                                                # 042
                                                MPN: 980138218
                                                FUEL PLUG GASKET KIT
                                                - For versions USA and CDN - valid till car Ass. Nr. 11991
                                                from £37.97
                                                from £37.97
