maserati 4200 spyder (2004) inner gearbox controls parts diagram

032 - Inner Gearbox Controls

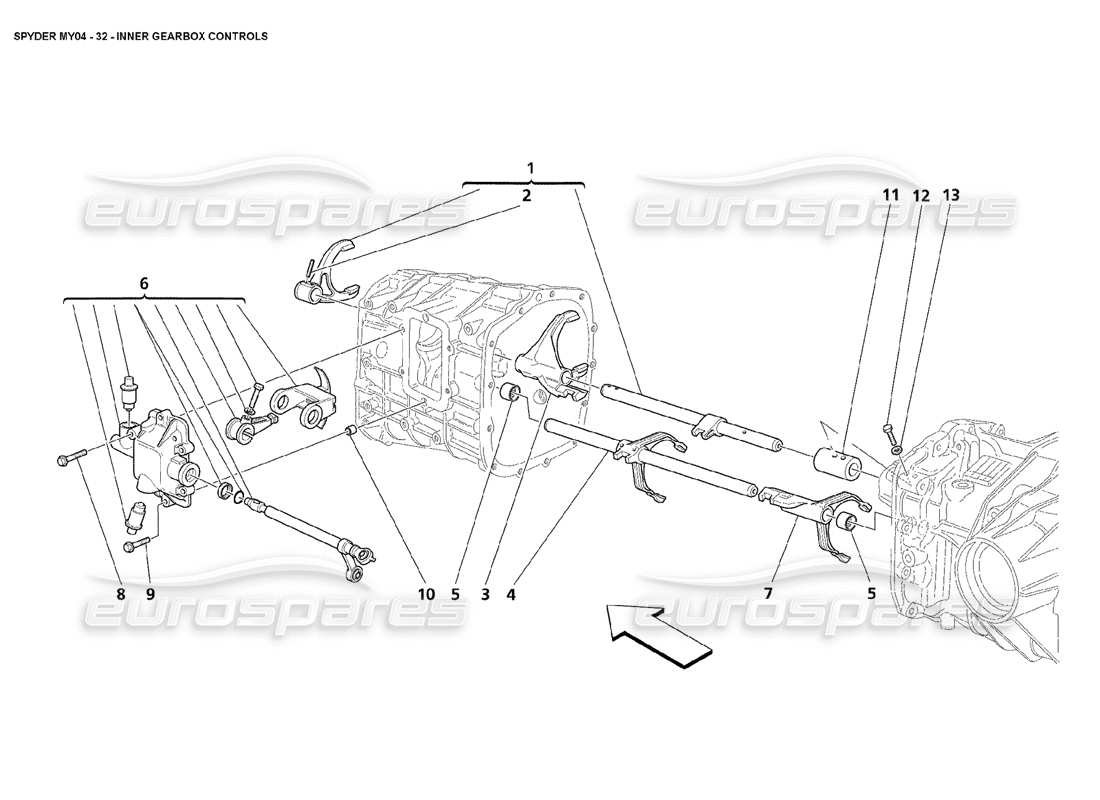

Maserati 4200 Spyder (2004) Inner Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 185708
              COMPLETE ROD FOR 1ST 2ND GEAR AND REVERSE
              - Valid for F1
              from £740.14
              from £740.14
              # 001
              MPN: 193944
              COMPLETE ROD FOR 1ST 2ND GEAR AND REVERSE
              - Not for F1
              from £323.38
              from £323.38
              # 002
              MPN: 13910470

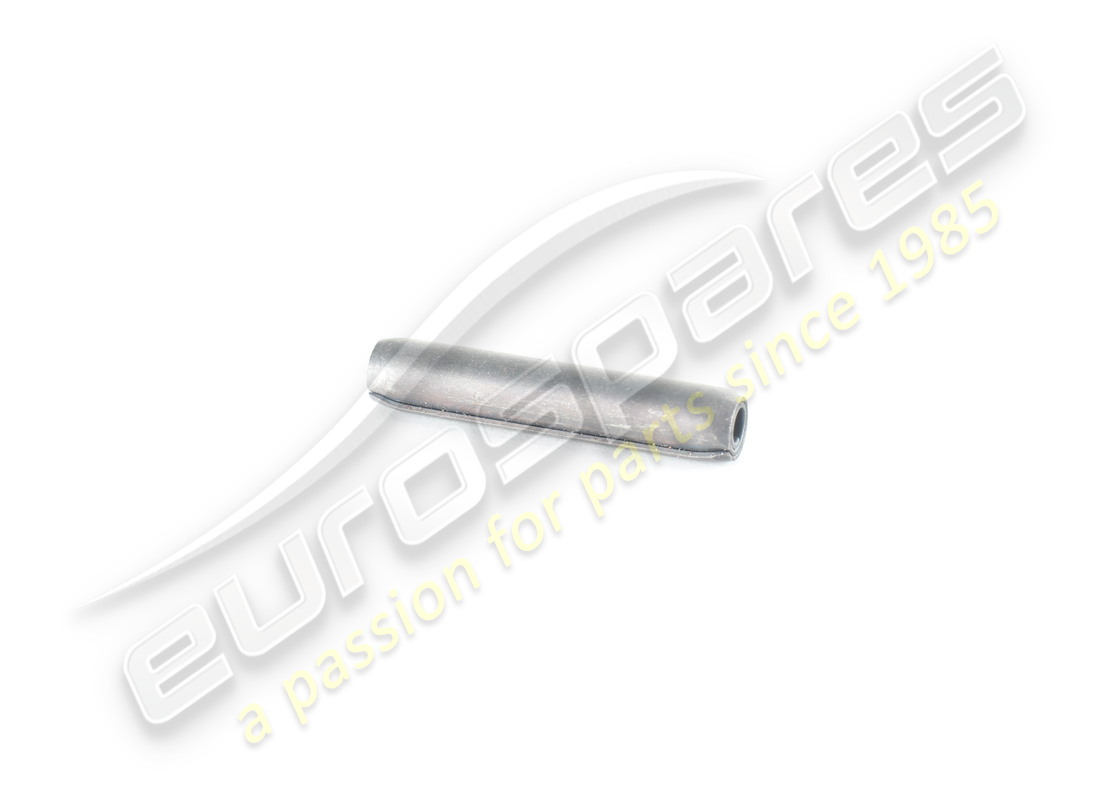

              FLEXIBLE PIN
              from £1.17
              from £1.17
              # 003
              MPN: 183953
              CONTROL FORK FOR 1ST AND 2ND GEAR
              - Valid for F1
              from £109.92
              from £109.92
              # 003
              MPN: 189369
              CONTROL FORK FOR 1ST AND 2ND GEAR
              - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018
              from £65.86
              from £65.86
              # 003
              MPN: 203071
              CONTROL FORK FOR 1ST AND 2ND GEAR
              - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
              Supersession
              Supersession
              # 004
              MPN: 183955
              COMPLETE ROD FOR 5TH AND 6TH GEAR
              - Valid for F1
              from £229.31
              from £229.31
              # 004
              MPN: 189371
              COMPLETE ROD FOR 5TH AND 6TH GEAR
              - Not for F1
              from £193.79
              from £193.79
              # 005
              MPN: 183982

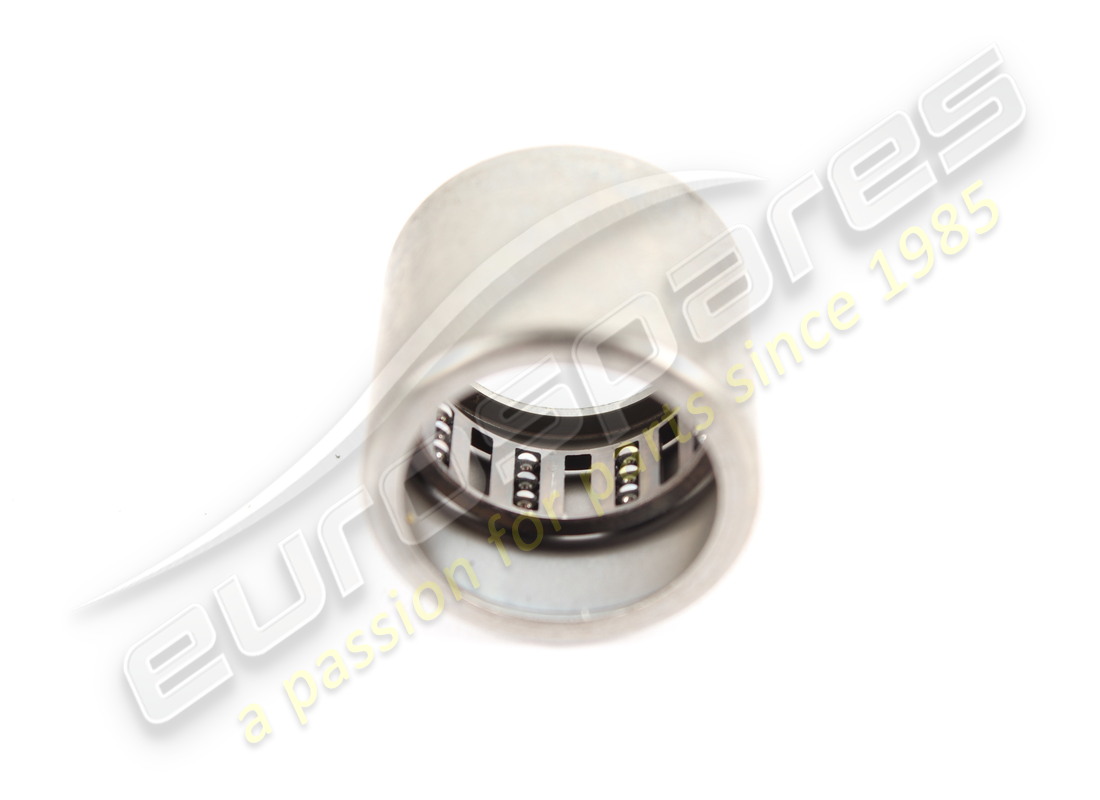

              BEARING BUSH
              from £22.02
              from £22.02
              # 006
              MPN: 198268
              COMPLETE OUTER CONTROL
              - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018
              Supersession
              Supersession
              This part replaces part number 190667
              # 006
              MPN: 203081
              COMPLETE OUTER CONTROL
              - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
              from £936.69
              from £936.69
              This part replaces part number 198268
              # 007
              MPN: 189372
              CONTROL FORK FOR 3RD AND 4TH GEAR
              - Not for F1
              from £95.53
              from £95.53
              # 007
              MPN: 211473
              CONTROL FORK FOR 3RD AND 4TH GEAR
              - Valid for F1
              from £218.56
              from £218.56
              This part replaces part number 184646
              # 008
              MPN: 16286721
              SCREW
              - Not for F1
              from £0.58
              from £0.58
              # 009
              MPN: 16286321
              SCREW
              - Not for F1
              from £0.51
              from £0.51
              # 010
              MPN: 145992
              CENTERING DOWEL
              from £41.69
              from £41.69
              # 011
              MPN: 185707
              BUSHING
              from £69.33
              from £69.33
              # 012
              MPN: 10902224
              SCREW
              from £0.53
              from £0.53
              # 013
              MPN: 11194377
              WASHER
              from £0.71
              from £0.71
