maserati 4200 spyder (2004) outer gearbox controls parts diagram

033 - Outer Gearbox Controls

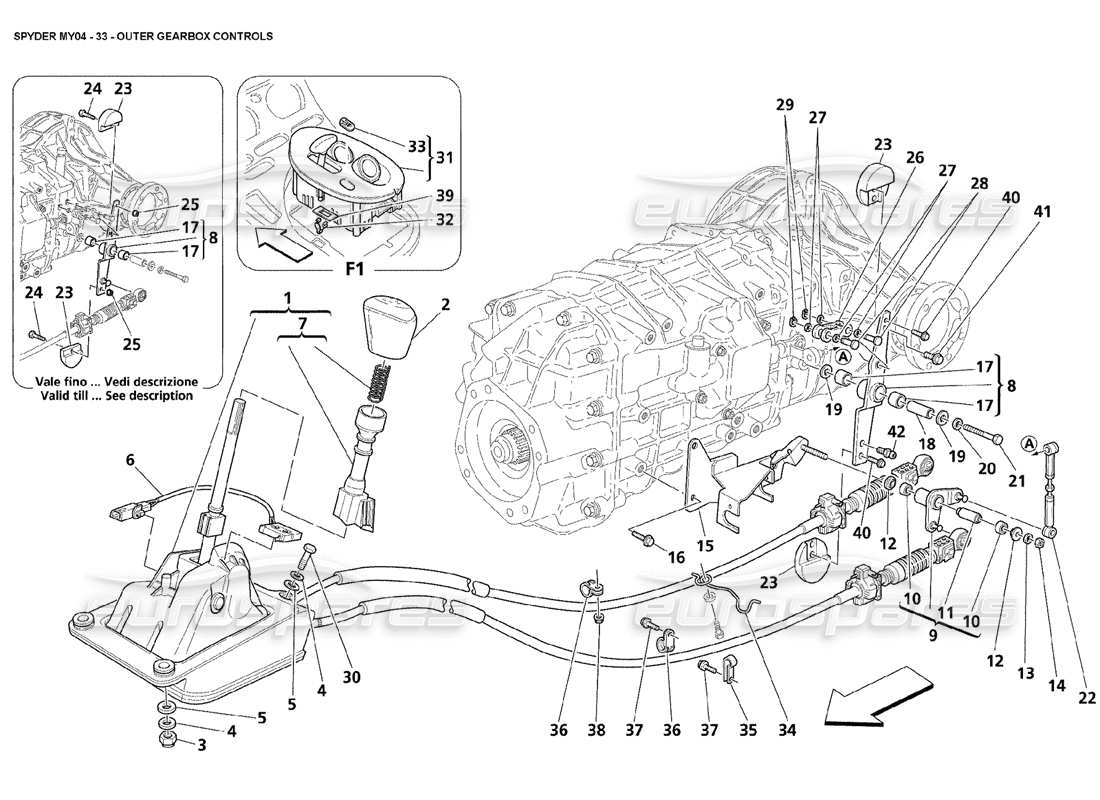

Maserati 4200 Spyder (2004) Outer Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 198245
    GEARBOX CONTROL ASSEMBLY
    - Not for F1
    from £178.61
    from £178.61
    This part replaces part number 194730
    # 002
    MPN: 186122
    GEARBOX CONTROL KNOB
    (manual)
    from £1,500.78
    from £1,500.78
    # 002
    MPN: 186123
    GEARBOX CONTROL KNOB
    - Optional - Brier - Not for F1
    from £1,062.06
    from £1,062.06
    # 002
    MPN: 186124
    GEARBOX CONTROL KNOB
    - Optional - Carbon - Not for F1
    from £1,062.06
    from £1,062.06
    # 002
    MPN: 197106
    GEARBOX CONTROL KNOB
    - Optional - Leather drilled - Not for F1
    from £496.89
    from £496.89
    # 003
    MPN: 16100814
    NUT
    - Not for F1
    from £0.71
    from £0.71
    # 004
    MPN: 12601374
    WASHER
    - Not for F1
    from £0.47
    from £0.47
    # 005
    MPN: 12625224
    WASHER
    - Not for F1
    from £0.47
    from £0.47
    This part replaces part number 12625221
    # 006
    MPN: 980001109
    MICROSWITCH KIT
    - Not for F1
    from £15.54
    from £15.54
    # 007
    MPN: 980001110
    GEARBOX CONTROL SLEEVE KIT
    - Not for F1
    from £8.67
    from £8.67
    # 008
    MPN: 185807
    COMPLETE GEAR COUPLING CABLE
    - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018
    from £588.31
    from £588.31
    # 008
    MPN: 208630
    COMPLETE GEAR COUPLING CABLE
    - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
    from £263.82
    from £263.82
    # 009
    MPN: 196876
    COMPLETE GEARSHIFT ROCKER ARM
    - Not for F1
    from £255.97
    from £255.97
    This part replaces part number 186780 which we have in stock
    # 010
    MPN: 196878
    BALL BEARING
    - Not for F1
    from £88.35
    from £88.35
    # 011
    MPN: 196877
    SPACER
    - Not for F1
    from £367.95
    from £367.95
    # 012
    MPN: 198381
    WASHER
    - Not for F1
    from £11.58
    from £11.58
    # 013
    MPN: 12604474
    WASHER
    - Not for F1
    from £0.47
    from £0.47
    This part replaces part number 12604479
    # 014
    MPN: 14075811
    NUT
    - Not for F1
    from £1.67
    from £1.67
    This part replaces part number 314632309
    # 015
    MPN: 186780

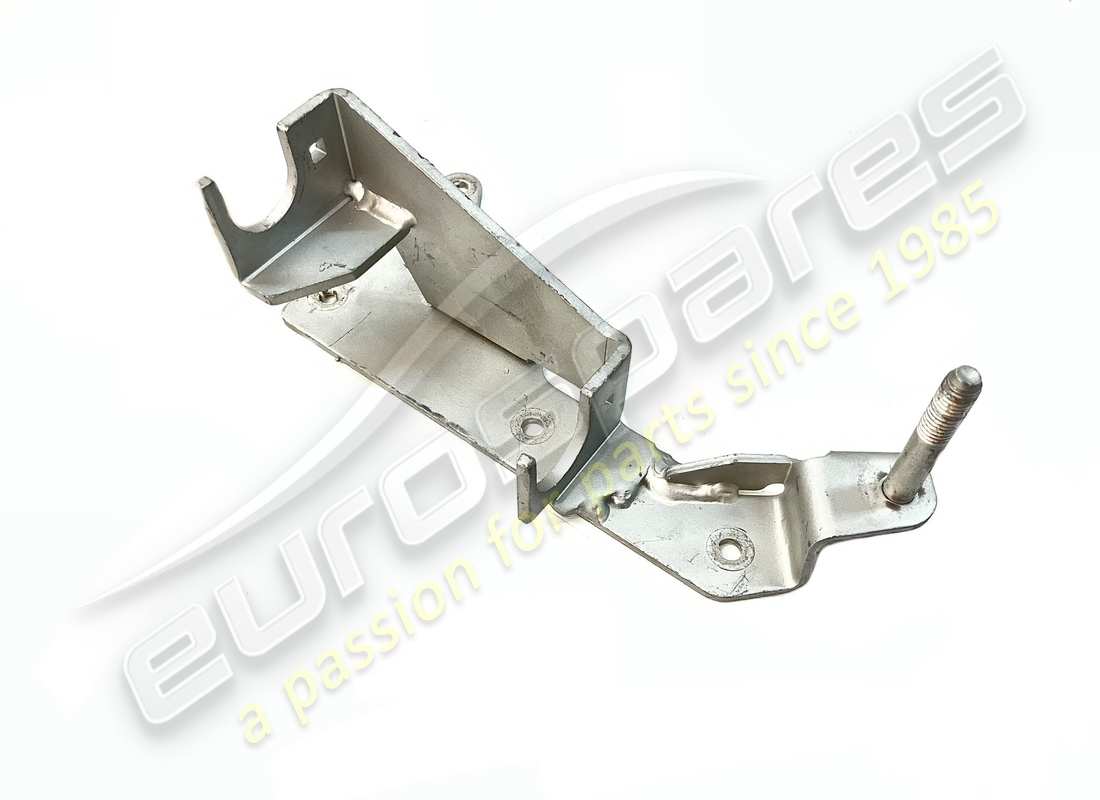

    BRACKET FOR GEARBOX CABLE FIXING
    - Not for F1
    from £280.55
    from £280.55
    # 016
    MPN: 16296921
    SCREW
    - Not for F1
    from £1.59
    from £1.59
    # 017
    MPN: 103226

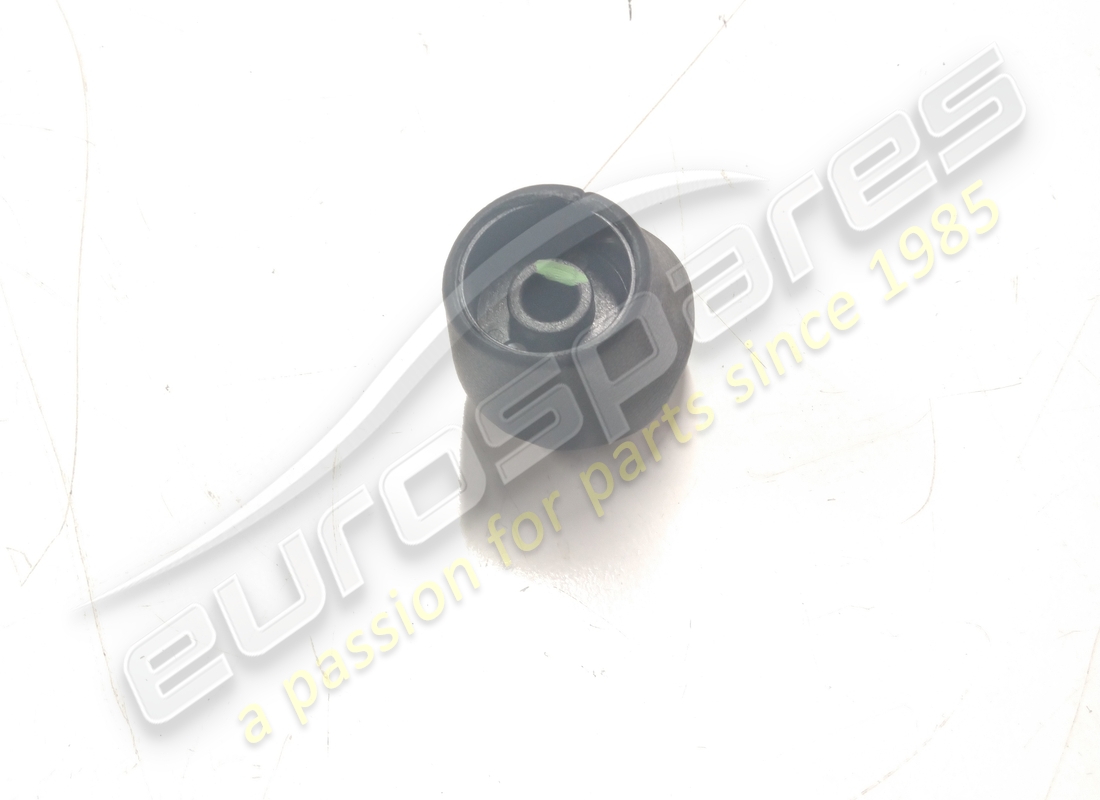

    SELF LUBRICATING BUSHING
    - Not for F1
    from £2.38
    from £2.38
    # 018
    MPN: 183396
    BUSHING
    - Not for F1
    from £34.02
    from £34.02
    # 019
    MPN: 184525
    WASHER
    - Not for F1
    from £3.25
    from £3.25
    # 020
    MPN: 12604574
    WASHER
    - Not for F1
    from £0.47
    from £0.47
    # 021
    MPN: 15888724
    SCREW
    - Not for F1
    from £0.54
    from £0.54
    # 022
    MPN: 185976
    COMPLETE TIE ROD FOR GEARSHIFT
    - Not for F1 - WEIGHT - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018 - WEIGHT - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
    from £47.36
    from £47.36
    # 023
    MPN: 183738
    COUNTER
    from £50.04
    from £50.04
    # 023
    MPN: 208631
    COUNTER
    from £121.25
    from £121.25
    # 024
    MPN: 16286224
    SCREW
    - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018
    from £1.33
    from £1.33
    # 025
    MPN: 14058419
    NUT
    - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203018
    from £0.47
    from £0.47
    # 026
    MPN: 174912
    FORK FOR GEARBOX CONTROL COUPLING
    - Not for F1
    from £97.02
    from £97.02
    # 027
    MPN: 171673
    SPACER
    - Not for F1
    from £3.74
    from £3.74
    # 028
    MPN: 174974
    PIN
    - Not for F1
    from £10.78
    from £10.78
    # 029
    MPN: 11065674
    SEEGER RING
    - Not for F1
    from £0.53
    from £0.53
    # 030
    MPN: 16135724
    SCREW
    - Not for F1
    from £1.90
    from £1.90
    # 031
    MPN: 67604226

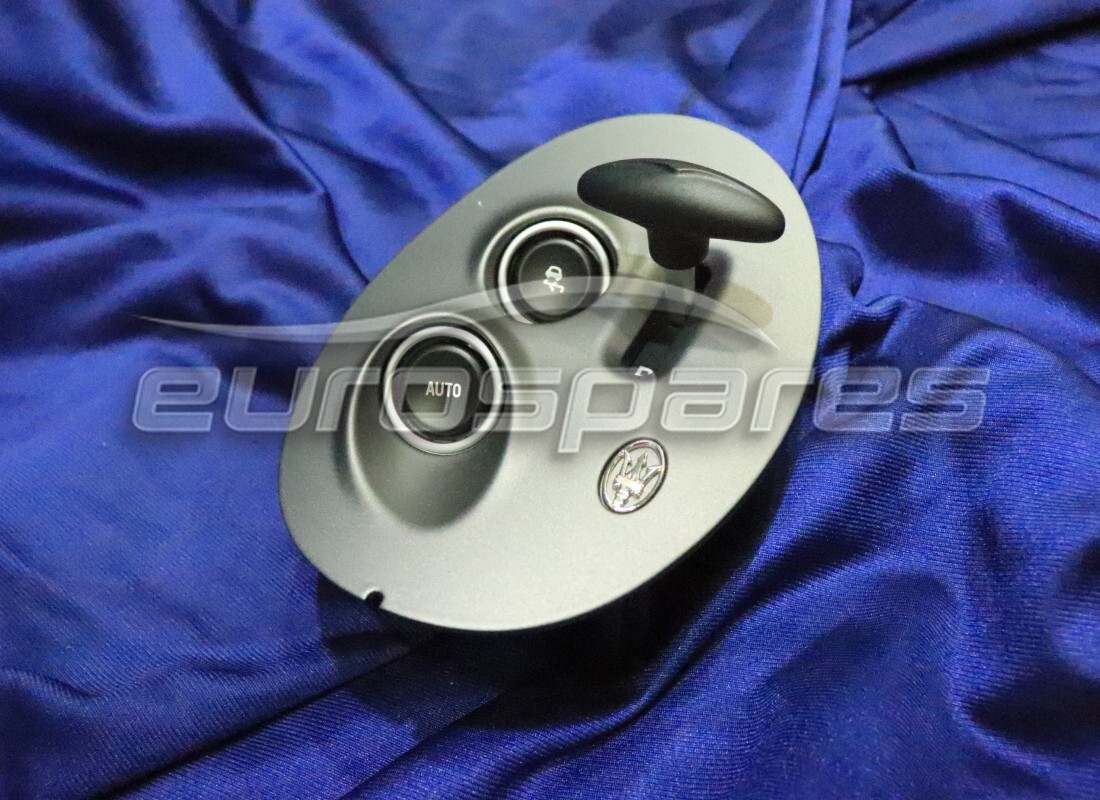

    F1 CONTROL DASHBOARD
    - Valid for F1 - Not for USA, CDN and GD - Bordeaux color
    from £1,196.82
    from £1,196.82
    # 031
    MPN: 67604227
    F1 CONTROL DASHBOARD
    - Valid for F1 - Not for USA, CDN and GD - Aluminium color
    from £1,090.64
    from £1,090.64
    This part replaces part number 67604228
    # 031
    MPN: 67604326
    F1 CONTROL DASHBOARD
    - Valid for F1 - Valid for GD - Bordeaux color
    from £1,297.90
    from £1,297.90
    # 031
    MPN: 67604327
    F1 CONTROL DASHBOARD
    - Valid for F1 - Valid for GD - Gray color
    from £1,297.90
    from £1,297.90
    This part replaces part number 67604328
    # 031
    MPN: 67604328
    F1 CONTROL DASHBOARD
    - Valid for F1 - Valid for GD - Aluminium color
    Supersession
    Supersession
    # 031
    MPN: 67734326
    F1 CONTROL DASHBOARD
    - Valid for F1 - Valid for USA and CDN - Bordeaux color
    from £4,103.44
    from £4,103.44
    # 031
    MPN: 67734327
    F1 CONTROL DASHBOARD
    - Valid for F1 - Valid for USA and CDN - Gray color
    from £1,154.69
    from £1,154.69
    # 031
    MPN: 67734328
    F1 CONTROL DASHBOARD
    - Valid for F1 - Valid for USA and CDN - Aluminium color
    from £951.58
    from £951.58

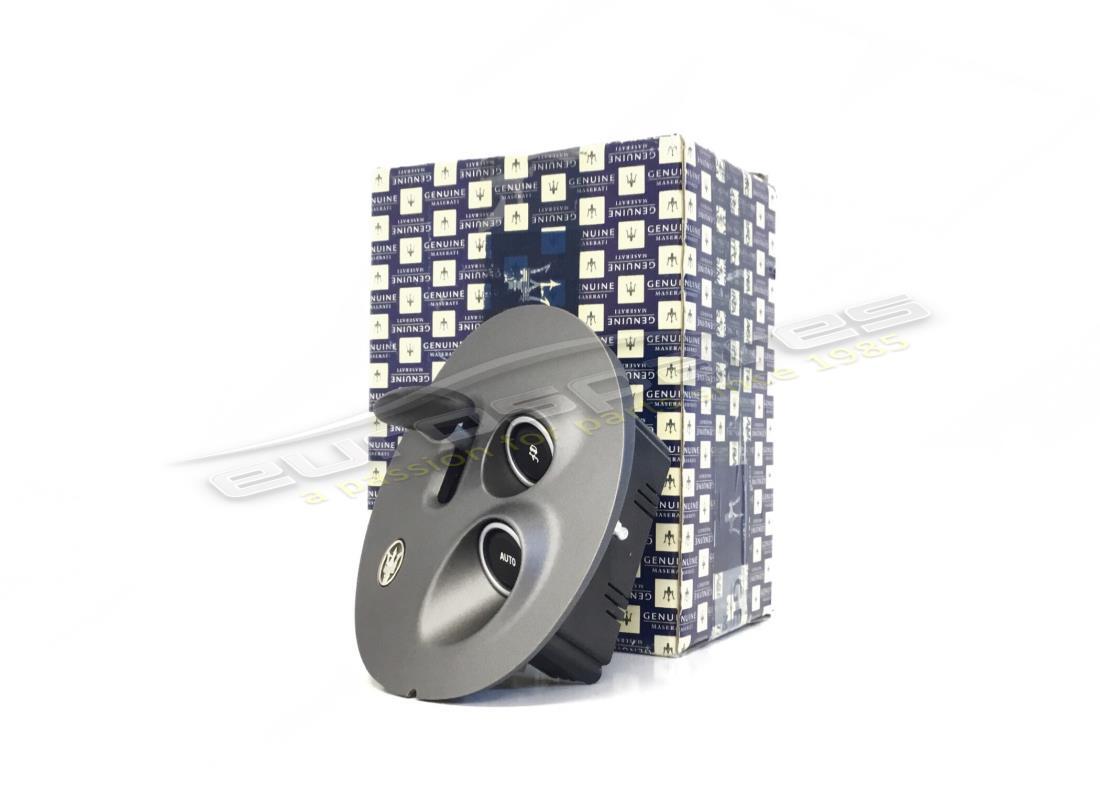

    F1 CONTROL SWITCH PANEL Genuine Maserati Part - New (to order)
    Valid for F1 - Not for GD - Aluminium color
    # 032
    MPN: 67968400
    FIXING CLIP
    - Valid for F1 - Valid till car Ass. Nr. 12244
    from £2.38
    from £2.38
    This part replaces part number 65048300
    # 032
    MPN: 67968400
    FIXING CLIP
    - Valid for F1 - Valid from car Ass. Nr. 12245
    from £2.38
    from £2.38
    This part replaces part number 65048300
    # 033
    MPN: 66951200
    Maserati MARK
    - Valid for F1
    from £36.10
    from £36.10
    # 034
    MPN: 193299
    SUPPORT FOR CABLE
    - Not for F1
    from £15.15
    from £15.15
    # 035
    MPN: 312020432
    CLAMP
    - Not for F1
    from £1.98
    from £1.98
    # 036
    MPN: 10441690
    BRACKET WITH SHEATH
    - Not for F1
    from £1.10
    from £1.10
    # 037
    MPN: 10711227
    SCREW
    - Not for F1
    from £1.59
    from £1.59
    # 038
    MPN: 13831811
    NUT
    - Not for F1
    from £0.47
    from £0.47
    # 039
    MPN: 67968500
    SMALL PLATE
    - Valid for F1 - Valid from car Ass. Nr. 12245
    from £2.38
    from £2.38
    # 040
    MPN: 208635
    SCREW
    - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
    from £6.82
    from £6.82
    # 041
    MPN: 208634
    SCREW
    - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
    from £1.59
    from £1.59
    # 042
    MPN: 208633
    PIN
    - Included in the gear coupling cable (Pos. 8) - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203018
    from £37.51
    from £37.51
