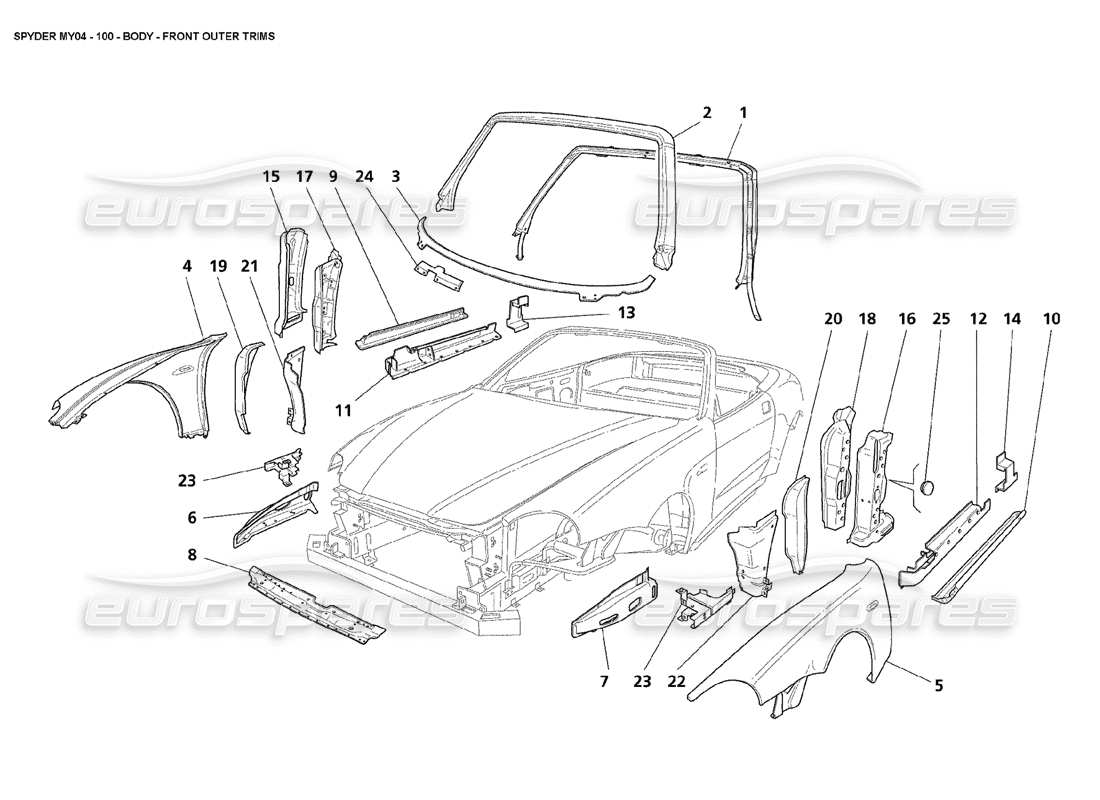

Maserati 4200 Spyder (2004) Body Front Outer Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980001041
COMPLETE WINDSCREEN FRAME
from £640.15
from £640.15
# 002
MPN: 980001042
WINDSCREEN FRAME LINING
from £890.71
from £890.71
# 003
MPN: 66736500
COMPLETE UNDERWINDSCREEN FRAME
from £209.91
from £209.91
This part replaces part number 66196200
# 004
MPN: 66605500

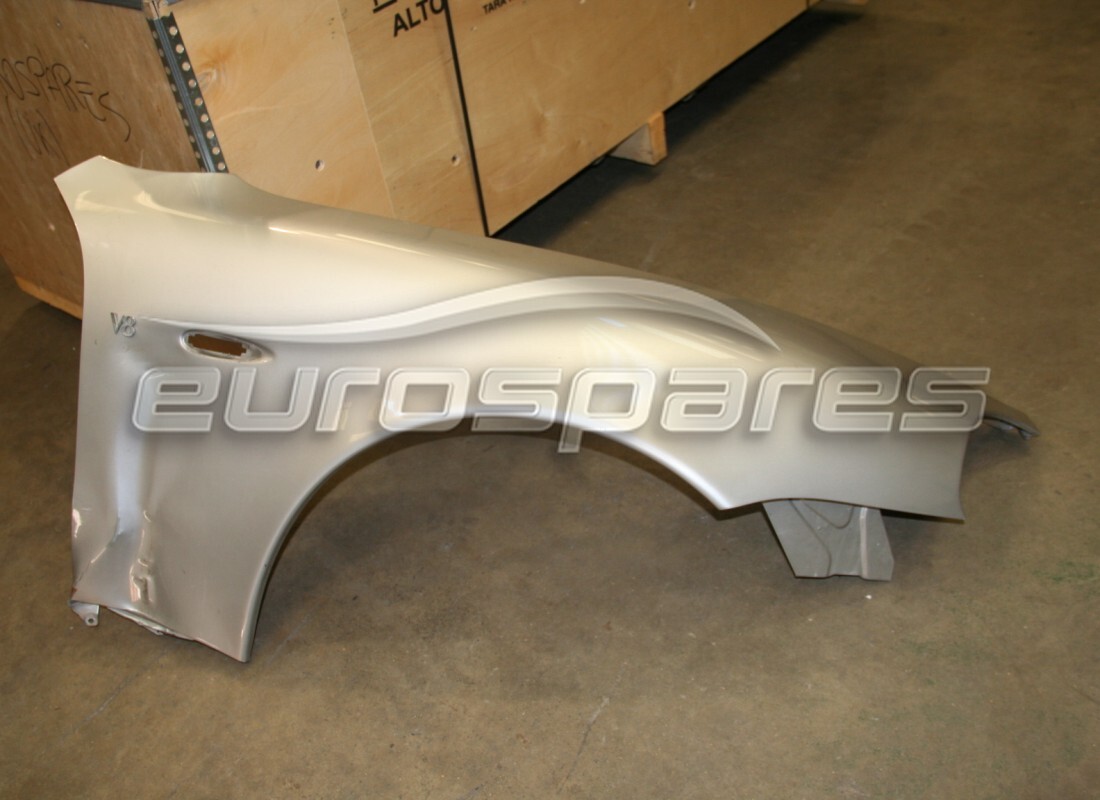

RH COMPLETE FENDER
STANDARD
from £467.25
from £467.25
This part replaces part number 65966800 - and 1 more. Click to view details
# 004
MPN: 67813700
RH COMPLETE FENDER
- Optional - Vintage version
from £735.07
from £735.07
# 005
MPN: 65966900
LH COMPLETE FENDER
STANDARD
from £2,502.74
from £2,502.74
# 005
MPN: 67813800
LH COMPLETE FENDER
- Optional - Vintage version
from £1,345.32
from £1,345.32
# 006
MPN: 67236200
RH COMPLETE FRONT SPRAG
from £852.17
from £852.17
This part replaces part number 382500306
# 007
MPN: 67236300
LH COMPLETE FRONT SPRAG
from £852.17
from £852.17
This part replaces part number 382501305
# 008
MPN: 980001047
COMPLETE FRONT CROSS MEMBER
from £444.96
from £444.96
# 009
MPN: 67515900
RH OUTER LONGITUDINAL MEMBER REINCFORCEMENT
from £359.28
from £359.28
# 010
MPN: 67516000
LH OUTER LONGITUDINAL MEMBER REINFORCEMENT
from £3,262.25
from £3,262.25
# 011
MPN: 66055900
RH FRONT OUTER LONGITUDINAL MEMBER
from £327.08
from £327.08
# 012
MPN: 66056000
LH FRONT OUTER LONGITUDINAL MEMBER
from £305.60
from £305.60
# 013
MPN: 66055700
RH OUTER LONGITUDINAL MEMBER REAR PART
from £68.98
from £68.98
# 014
MPN: 66055800
LH OUTER LONGITUDINAL MEMBER REAR PART
from £68.98
from £68.98
# 015
MPN: 67236400
RH FRONT ROD
from £131.00
from £131.00
# 016
MPN: 67236500
LH FRONT ROD
from £131.00
from £131.00
# 017
MPN: 65825300
RH FRONT INNER ROD REINFORCEMENT
from £154.73
from £154.73
# 018
MPN: 65825400
LH FRONT INNER ROD REINFORCEMENT
from £154.73
from £154.73
# 019
MPN: 382500308
RH FRONT FENDER LINKING
from £139.44
from £139.44
# 020
MPN: 382500307
LH FRONT FENDER LINKING
from £121.12
from £121.12
# 021
MPN: 980001174
COMPLETE RH FRONT ROD REINFORCEMENT
from £255.84
from £255.84
This part replaces part number 65957700
# 022
MPN: 980001173
COMPLETE LH FRONT ROD REINFORCEMENT
from £272.69
from £272.69
This part replaces part number 65957800
# 023
MPN: 66247000
BRACKET FOR LONGITUDINAL MEMBER
from £131.54
from £131.54
# 024
MPN: 66414000
SHIELD FOR WATER FIXING PLATE
- Not for GD
from £18.77
from £18.77
# 024
MPN: 66726500
SHIELD FOR WATER FIXING PLATE
- Valid for GD
from £18.77
from £18.77
# 025
MPN: 14507687
PLUG
from £0.51
from £0.51
