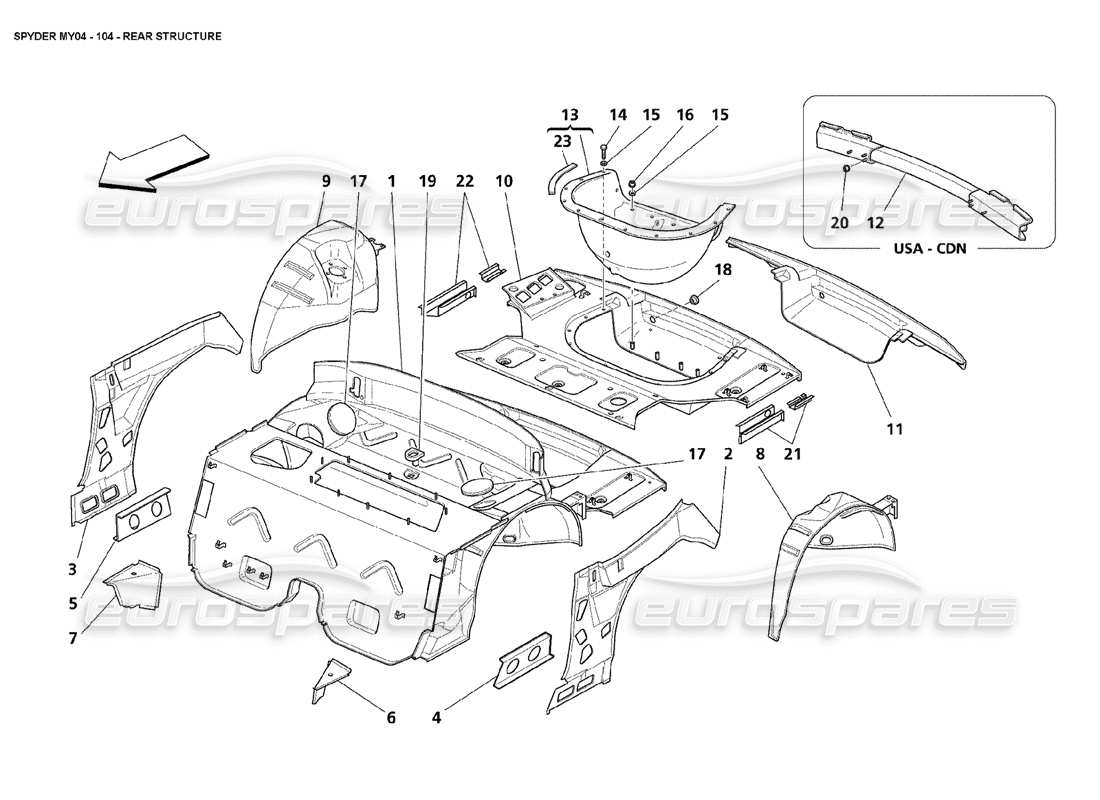

![maserati 4200 spyder (2004) rear structure parts diagram](/img/CxEAAETdFtvnwBItZcgZiKColiEahQaZrqe5_POCRNNxgqXG2DYAAw%3D%3D/maserati-4200-spyder-(2004)-part-diagram-104.webp)
104 - rear structure
Maserati 4200 Spyder (2004) Rear Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980001058
COMPLETE REAR CENTRAL FLOOR
from £4,613.47
from £4,613.47
# 002
MPN: 980001151
COMPLETE LH REAR DIAPHRAGM
from £106.36
from £106.36
# 003
MPN: 980001152
COMPLETE RH REAR DIAPHRAGM
from £93.58
from £93.58
# 004
MPN: 66249200
LH REAR LONGITUDINAL MEMBER REINFORCEMENT
from £16.99
from £16.99
# 005
MPN: 66249100
RH REAR LONGITUDINAL MEMBER REINFORCEMENT
from £16.99
from £16.99
# 006
MPN: 65962700
LH OUTER ANGULAR REINFORCEMENT
from £15.99
from £15.99
# 007
MPN: 65962600
RH OUTER ANGULAR REINFORCEMENT
from £15.99
from £15.99
# 008
MPN: 980001061
COMPLETE INNER LH REAR WHEEL HOUSE
from £433.74
from £433.74
# 009
MPN: 980001062
COMPLETE INNER RH REAR WHEEL HOUSE
from £433.74
from £433.74
# 010
MPN: 980001059
COMPLETE TRUNK FLOOR
from £603.06
from £603.06
# 011
MPN: 980001060
COMPLETE REAR WALL
from £133.29
from £133.29
# 012
MPN: 66300700
REAR BULL BAR
- Valid for USA
from £451.05
from £451.05
# 012
MPN: 67021800
REAR BULL BAR
- Valid for CDN
from £464.90
from £464.90
# 013
MPN: 67245900
COMPLETE WHEEL HOUSING
from £279.17
from £279.17
This part replaces part number 66491000
# 014
MPN: 13274611
SCREW
from £0.71
from £0.71
This part replaces part number 13274517
# 015
MPN: 12638170
WASHER
from £1.09
from £1.09
# 016
MPN: 14058311
NUT
from £0.47
from £0.47
# 017
MPN: 66428200
PLUG
from £8.27
from £8.27
# 018
MPN: 14506987
PLUG
from £1.95
from £1.95
# 019
MPN: 385500300
EXHAUST TERMINAL
from £6.86
from £6.86
# 020
MPN: 14040715
NUT
- Valid for USA and CDN
from £1.09
from £1.09
# 021
MPN: 980138023
COMPLETE LH SIDE RAIL
from £83.28
from £83.28
# 022
MPN: 980138024
COMPLETE RH SIDE RAIL
from £79.65
from £79.65
# 023
MPN: 66134100
WHEEL HOUSING GASKET
from £120.02
from £120.02
