maserati 4200 spyder (2004) capote cloth gasket parts diagram

111 - Capote Cloth Gasket

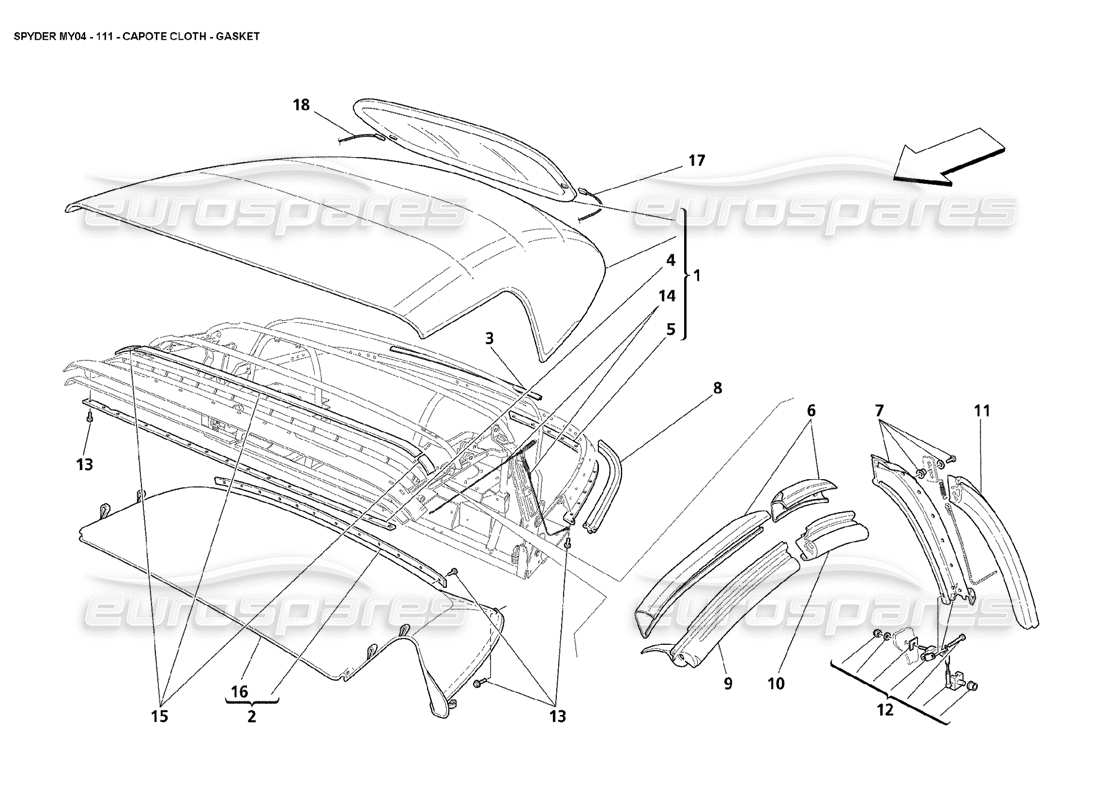

Maserati 4200 Spyder (2004) Capote Cloth Gasket Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 67241004

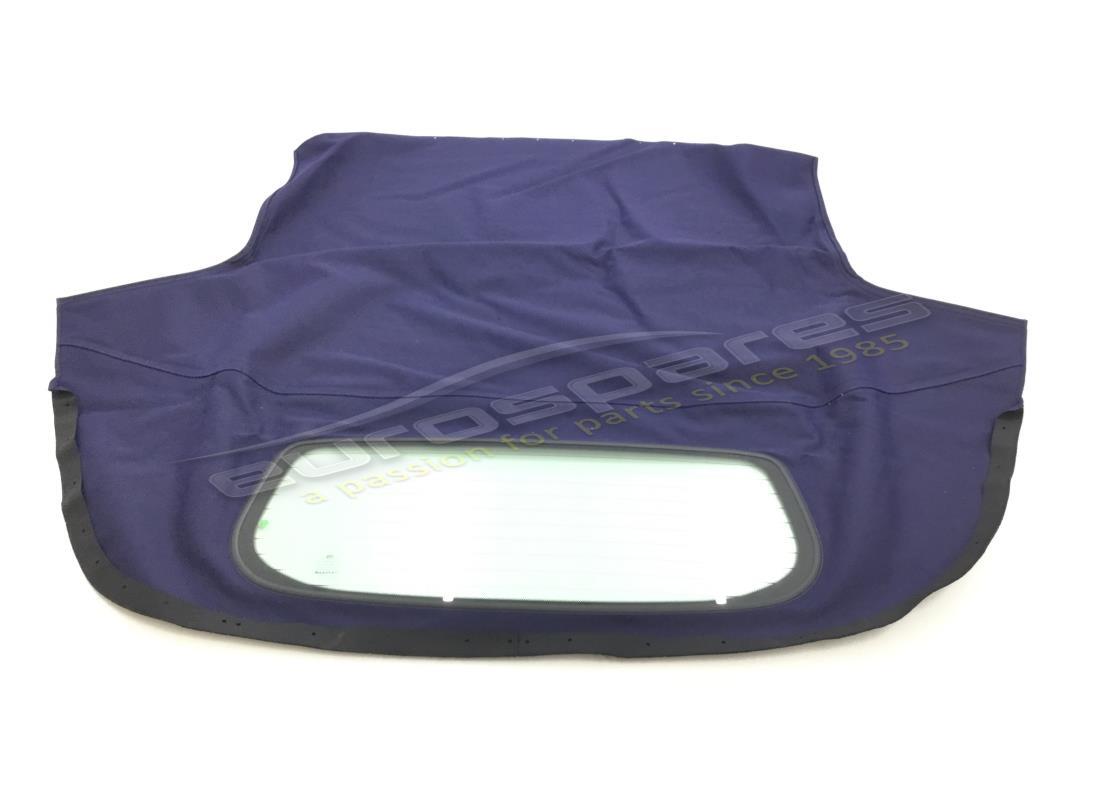

                                    CAPOTE LINING WITH REAR WINDOW IN BLUE
                                    - Valid from capote Nr. 1733 in BLUE
                                    from £3,995.00
                                    from £3,995.00
                                    # 001
                                    MPN: 675194..
                                    CAPOTE LINING WITH REAR WINDOW
                                    Supersession
                                    Supersession
                                    # 002
                                    MPN: 67241100
                                    COMPLETE ROOF
                                    from £763.14
                                    from £763.14
                                    # 003
                                    MPN: 67519200
                                    RUBBER CAPOTE ARCH
                                    from £46.37
                                    from £46.37
                                    # 004
                                    MPN: 66100900
                                    CLOTH FIXING PLATE
                                    from £35.35
                                    from £35.35
                                    # 005
                                    MPN: 66101300
                                    CLOTH FIXING PLATE
                                    from £77.81
                                    from £77.81
                                    # 006
                                    MPN: 980001081
                                    LH FRONT GASKET HOLDER
                                    from £103.99
                                    from £103.99
                                    # 006
                                    MPN: 980001082
                                    RH FRONT GASKET HOLDER
                                    from £98.84
                                    from £98.84
                                    # 007
                                    MPN: 980002021
                                    LH REAR GASKET HOLDER
                                    from £185.80
                                    from £185.80
                                    # 007
                                    MPN: 980002022
                                    RH REAR GASKET HOLDER
                                    from £185.80
                                    from £185.80
                                    # 008
                                    MPN: 66366600
                                    CAPOTE ARCH GASKET
                                    from £119.98
                                    from £119.98
                                    This part replaces part number 66104500 - and 1 more. Click to view details
                                    # 009
                                    MPN: 66366000
                                    RH FRONT GASKET
                                    from £153.28
                                    from £153.28
                                    # 009
                                    MPN: 66366100
                                    LH FRONT GASKET
                                    from £153.28
                                    from £153.28
                                    # 010
                                    MPN: 66366200
                                    RH CENTRAL GASKET
                                    from £220.61
                                    from £220.61
                                    # 010
                                    MPN: 66366300
                                    LH CENTRAL GASKET
                                    from £301.89
                                    from £301.89
                                    # 011
                                    MPN: 66366400
                                    RH REAR GASKET
                                    from £262.91
                                    from £262.91
                                    # 011
                                    MPN: 66366500
                                    LH REAR GASKET
                                    from £127.69
                                    from £127.69
                                    # 012
                                    MPN: 980001085
                                    LH GASKET HOLDER MOVEMENT KIT
                                    from £301.04
                                    from £301.04
                                    # 012
                                    MPN: 980001086
                                    RH GASKET HOLDER MOVEMENT KIT
                                    from £279.46
                                    from £279.46
                                    # 013
                                    MPN: 980001088
                                    ROOF AND CLOTH FIXING KIT
                                    from £68.48
                                    from £68.48
                                    # 014
                                    MPN: 66101000
                                    TIGHTENER KIT
                                    from £117.25
                                    from £117.25
                                    # 015
                                    MPN: 66194100
                                    VELCRO KIT
                                    from £38.61
                                    from £38.61
                                    # 016
                                    MPN: 67241200
                                    PLATE
                                    from £130.25
                                    from £130.25
                                    # 017
                                    MPN: 197697
                                    POSITIVE CABLE FOR DEFROSTER REAR WINDOW
                                    from £25.26
                                    from £25.26
                                    # 018
                                    MPN: 197698
                                    NEGATIVE CABLE FOR DEFROSTER REAR WINDOW
                                    from £16.58
                                    from £16.58
