maserati 4200 spyder (2004) capote front closing parts diagram

112 - Capote Front Closing

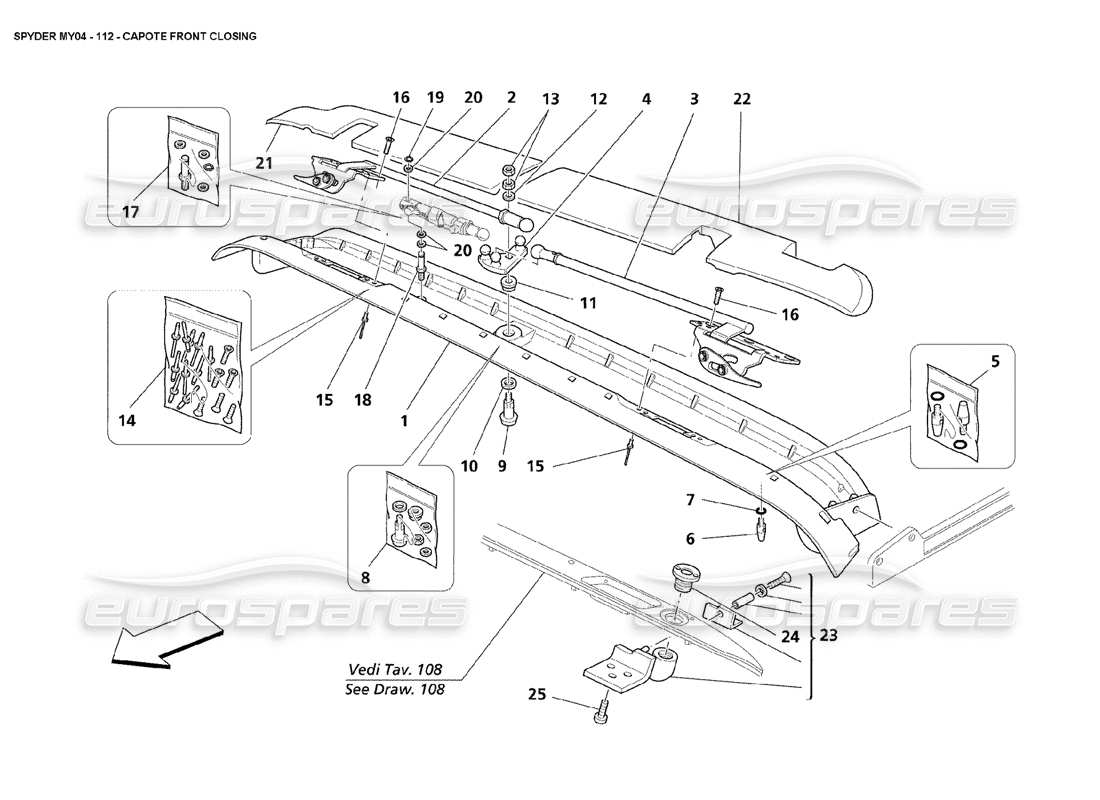

Maserati 4200 Spyder (2004) Capote Front Closing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 000
                        MPN: 66104700
                        COMPLETE FRONT CROSS MEMBER
                        from £1,103.62
                        from £1,103.62
                        # 001
                        MPN: 66118300
                        PAINTED CROSS MEMBER
                        from £1,299.75
                        from £1,299.75
                        # 002
                        -
                        RH FRONT SEAL
                        - Not as spare part - With complete cross member
                        # 003
                        -
                        LH FRONT SEAL
                        - Not as spare part - Whith complete cross member
                        # 004
                        MPN: 66117100
                        CENTER ROCKER
                        from £40.68
                        from £40.68
                        # 005
                        MPN: 980001080
                        CROSS MEMBER CENTERING PIN KIT
                        from £67.25
                        from £67.25
                        # 006
                        -
                        CENTERING PIN
                        - Not as spare part - Supplied With cross member - centering kit
                        # 007
                        -
                        O.R.GASKET
                        - Not as spare part - Supplied With cross member - centering kit
                        # 008
                        MPN: 980001078
                        LEVER PIN KIT
                        from £52.61
                        from £52.61
                        # 009
                        -
                        PIN
                        - Not as spare part - Supplied with lever pin kit
                        # 010
                        -
                        WASHER
                        - Not as spare part - Supplied with lever pin kit
                        # 011
                        -
                        BUSH
                        - Not as spare part - Supplied with lever pin kit
                        # 012
                        -
                        WASHER
                        - Not as spare part - Supplied with lever pin kit
                        # 013
                        -
                        NUT
                        - Not as spare part - Supplied with lever pin kit
                        # 014
                        MPN: 980001077
                        FRONT CROSS MEMBER FIXING KIT
                        from £20.19
                        from £20.19
                        # 015
                        -
                        RIVET
                        - Not as spare part - Supplied with cross member fixing kit
                        # 016
                        -
                        SCREW
                        - Not as spare part - Supplied with cross member fixing kit
                        # 017
                        MPN: 980001079
                        HYDRAULIC CYLINDER PIN KIT
                        from £17.10
                        from £17.10
                        # 018
                        -
                        PIN
                        - Not as spare part - Supplied with hydraulic cylinder pin kit
                        # 019
                        -
                        STOP RING
                        - Not as spare part - Supplied with hydraulic cylinder pin kit
                        # 020
                        -
                        WHASHER
                        - Not as spare part - Supplied with hydraulic cylinder pin kit
                        # 021
                        MPN: 66729600
                        RH CROSS MEMBER LOCK COVER
                        from £69.72
                        from £69.72
                        # 022
                        MPN: 66729700
                        LH CROSS MEMBER LOCK COVER
                        from £69.72
                        from £69.72

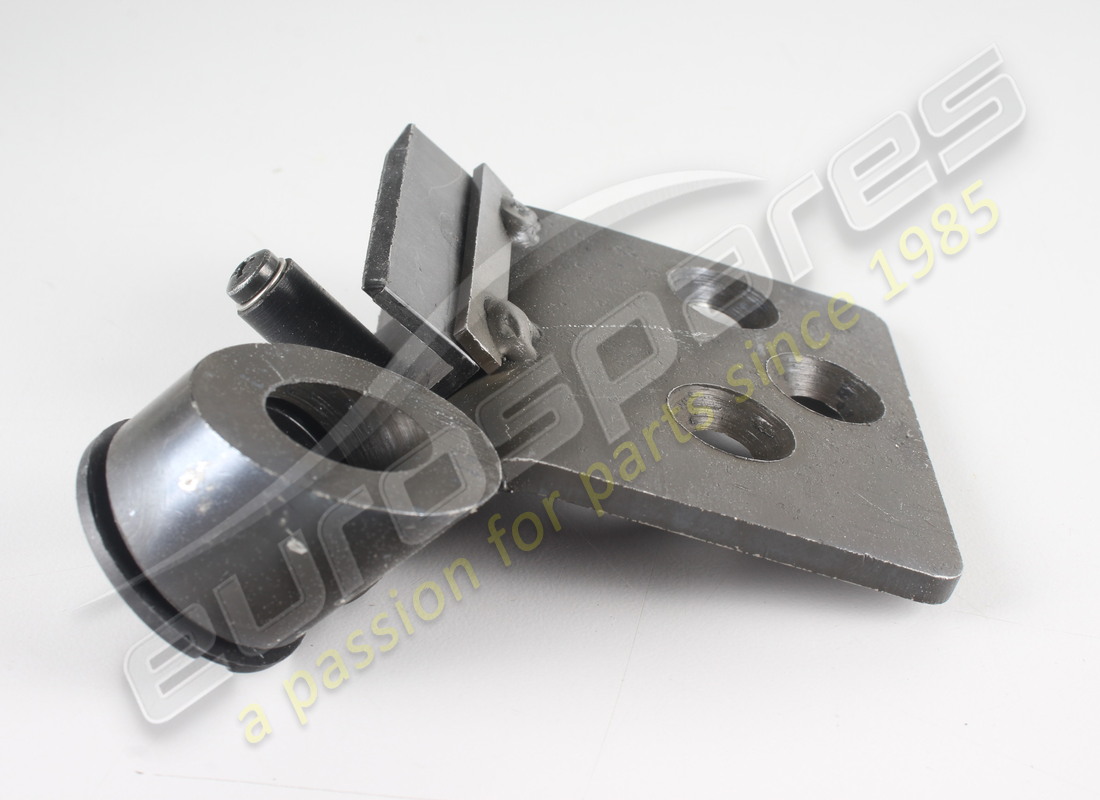

                        # 023
                        MPN: 66106500
                        RH CAPOTE HOOK SUPPORT
                        from £53.78
                        from £53.78
                        This part replaces part number 66609800
                        # 023
                        MPN: 66106600
                        LH CAPOTE HOOK SUPPORT
                        from £53.78
                        from £53.78
                        This part replaces part number 66609900
                        # 024
                        MPN: 66607100
                        RING NUT
                        use : RH 66106500 - LH 66106600
                        from £5.54
                        from £5.54

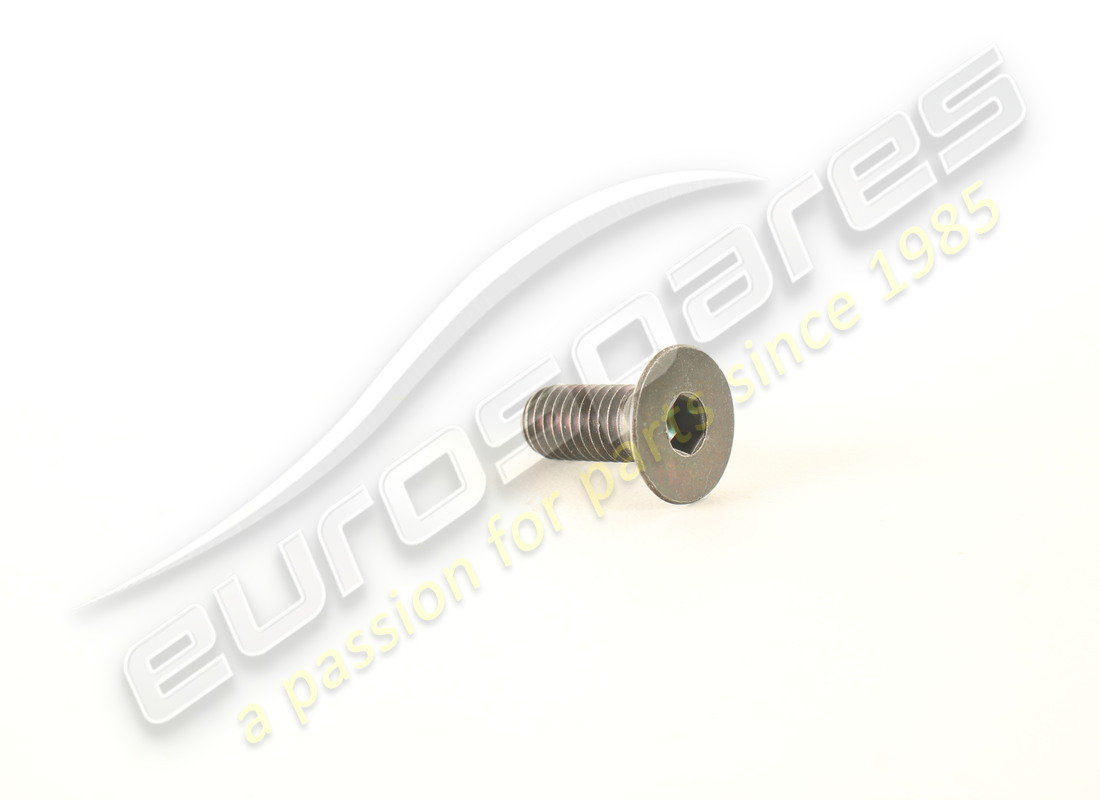

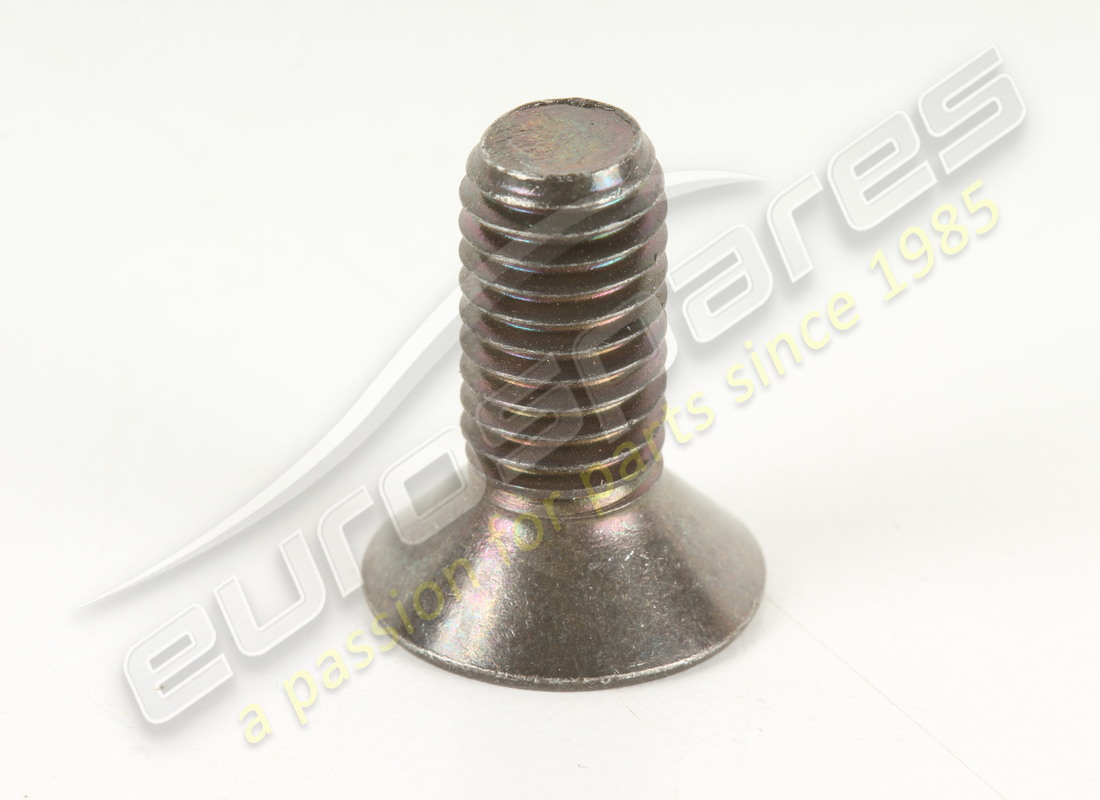

                        # 025
                        MPN: 14442021
                        SCREW
                        from £0.52
                        from £0.52
                        This part replaces part number 14442020
