maserati 4200 spyder (2004) capote closings and cover parts diagram

116 - Capote Closings and Cover

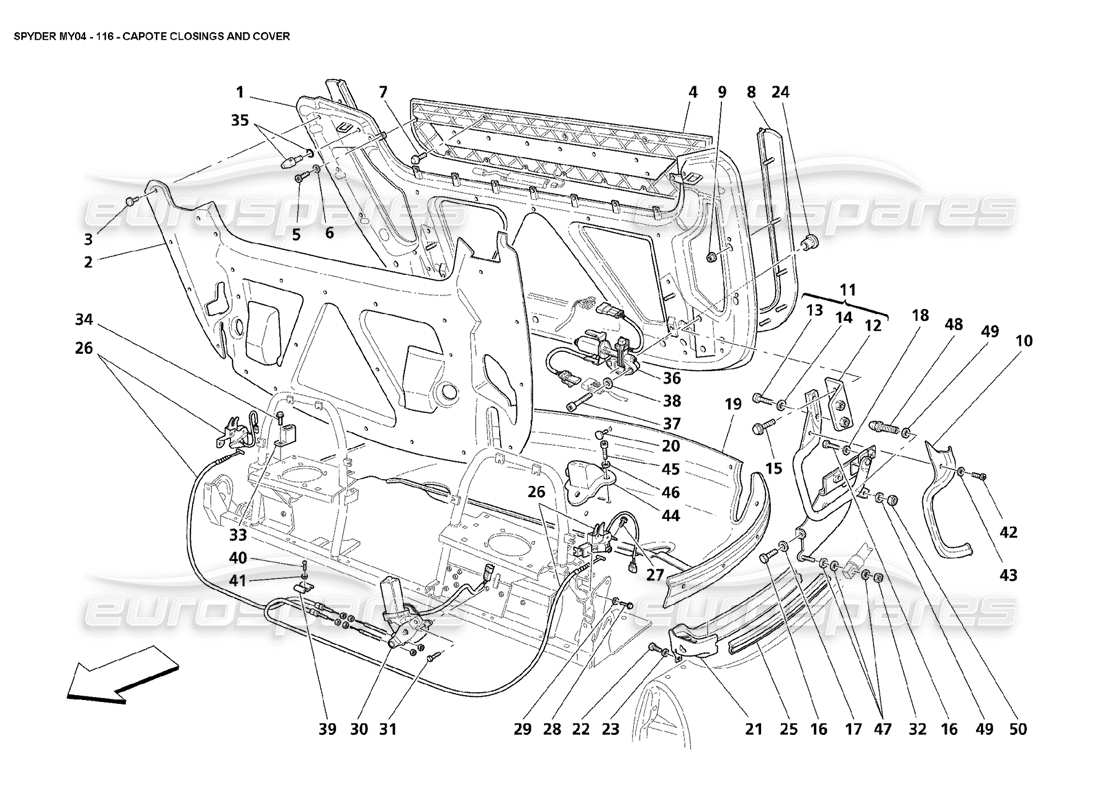

Maserati 4200 Spyder (2004) Capote Closings and Cover Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 980002009
                                                                                                      COMPLETE CAPOTE COVER HOOD
                                                                                                      from £1,015.76
                                                                                                      from £1,015.76
                                                                                                      This part replaces part number 66100800 - and 1 more. Click to view details
                                                                                                      # 002
                                                                                                      MPN: 66727100
                                                                                                      INNER COVER MOULDING
                                                                                                      from £29.80
                                                                                                      from £29.80
                                                                                                      # 003
                                                                                                      MPN: 7560860
                                                                                                      FIXING BUTTON
                                                                                                      from £1.70
                                                                                                      from £1.70
                                                                                                      # 004
                                                                                                      MPN: 676961..
                                                                                                      CAPOTE COVER MOULDING
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 005
                                                                                                      MPN: 13273811
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 006
                                                                                                      MPN: 12638101
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      This part replaces part number 12638121
                                                                                                      # 007
                                                                                                      MPN: 66736100
                                                                                                      PIN
                                                                                                      from £5.38
                                                                                                      from £5.38
                                                                                                      # 008
                                                                                                      MPN: 66107600
                                                                                                      GASKET
                                                                                                      from £395.34
                                                                                                      from £395.34
                                                                                                      # 009
                                                                                                      MPN: 14059111
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 010
                                                                                                      MPN: 66956200
                                                                                                      RH HINGE COVER
                                                                                                      from £9.15
                                                                                                      from £9.15
                                                                                                      # 010
                                                                                                      MPN: 66956300
                                                                                                      LH HINGE COVER
                                                                                                      from £16.64
                                                                                                      from £16.64
                                                                                                      # 011
                                                                                                      MPN: 980002010
                                                                                                      COMPLETE RH HINGE
                                                                                                      from £83.92
                                                                                                      from £83.92
                                                                                                      This part replaces part number 66103100 - and 1 more. Click to view details
                                                                                                      # 011
                                                                                                      MPN: 980002011
                                                                                                      COMPLETE LH HINGE
                                                                                                      from £83.92
                                                                                                      from £83.92
                                                                                                      This part replaces part number 66103200 - and 1 more. Click to view details
                                                                                                      # 012
                                                                                                      MPN: 980002012
                                                                                                      RH HINGE FIXING BRACKET
                                                                                                      from £36.13
                                                                                                      from £36.13
                                                                                                      This part replaces part number 66651100
                                                                                                      # 012
                                                                                                      MPN: 980002013
                                                                                                      LH HINGE FIXING BRACKET
                                                                                                      from £36.13
                                                                                                      from £36.13
                                                                                                      This part replaces part number 66651200
                                                                                                      # 013
                                                                                                      MPN: 16043624
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 014
                                                                                                      MPN: 14496501
                                                                                                      WASHER
                                                                                                      from £0.85
                                                                                                      from £0.85
                                                                                                      # 015
                                                                                                      MPN: 16297921
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 016
                                                                                                      MPN: 10902324
                                                                                                      SCREW
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      # 017
                                                                                                      MPN: 12643701
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 018
                                                                                                      MPN: 12648901
                                                                                                      WASHER
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 019
                                                                                                      MPN: 66583200
                                                                                                      CAPOTE LINING
                                                                                                      from £83.62
                                                                                                      from £83.62
                                                                                                      This part replaces part number 66650000
                                                                                                      # 020
                                                                                                      MPN: 14593487
                                                                                                      FIXING BUTTON
                                                                                                      from £10.56
                                                                                                      from £10.56
                                                                                                      # 021
                                                                                                      MPN: 66429200
                                                                                                      COVER GASKET
                                                                                                      from £51.98
                                                                                                      from £51.98
                                                                                                      # 022
                                                                                                      MPN: 13274211
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 023
                                                                                                      MPN: 12637801
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 024
                                                                                                      MPN: 66102600
                                                                                                      RH PLATE FOR COVER
                                                                                                      from £2.24
                                                                                                      from £2.24
                                                                                                      # 024
                                                                                                      MPN: 66102700
                                                                                                      LH PLATE FOR COVER
                                                                                                      from £2.85
                                                                                                      from £2.85
                                                                                                      # 025
                                                                                                      MPN: 66429300
                                                                                                      RH GASKET
                                                                                                      from £36.13
                                                                                                      from £36.13
                                                                                                      # 025
                                                                                                      MPN: 66650800
                                                                                                      LH GASKET
                                                                                                      from £36.13
                                                                                                      from £36.13
                                                                                                      # 026
                                                                                                      MPN: 980001075
                                                                                                      LH LOCK WITH BOWDEN
                                                                                                      from £436.15
                                                                                                      from £436.15
                                                                                                      # 026
                                                                                                      MPN: 980001076
                                                                                                      RH LOCK WITH BOWDEN
                                                                                                      from £564.79
                                                                                                      from £564.79
                                                                                                      # 027
                                                                                                      MPN: 16296924
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 028
                                                                                                      MPN: 16286124
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 029
                                                                                                      MPN: 12640601
                                                                                                      WASHER
                                                                                                      from £3.16
                                                                                                      from £3.16
                                                                                                      # 030
                                                                                                      MPN: 66193500
                                                                                                      CONTROL MOTOR
                                                                                                      from £472.59
                                                                                                      from £472.59
                                                                                                      # 031
                                                                                                      MPN: 14306021
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 032
                                                                                                      MPN: 104030
                                                                                                      NUT
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 033
                                                                                                      MPN: 66315700
                                                                                                      BLOCK FOR COVER
                                                                                                      from £6.40
                                                                                                      from £6.40
                                                                                                      # 034
                                                                                                      MPN: 10902411
                                                                                                      SCREW
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 035
                                                                                                      MPN: 980001080
                                                                                                      PIN KIT
                                                                                                      from £67.25
                                                                                                      from £67.25
                                                                                                      # 036
                                                                                                      MPN: 66103700
                                                                                                      RH PULL DOWN ENGINE
                                                                                                      from £584.12
                                                                                                      from £584.12
                                                                                                      # 036
                                                                                                      MPN: 66103800
                                                                                                      LH PULL DOWN ENGINE
                                                                                                      from £584.12
                                                                                                      from £584.12
                                                                                                      # 037
                                                                                                      MPN: 14306424
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 14306421
                                                                                                      # 038
                                                                                                      MPN: 12642724
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 039
                                                                                                      MPN: 66669700
                                                                                                      BRACKET
                                                                                                      from £3.24
                                                                                                      from £3.24
                                                                                                      # 040
                                                                                                      MPN: 14303021
                                                                                                      SCREW
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 041
                                                                                                      MPN: 14446821
                                                                                                      WASHER
                                                                                                      from £9.79
                                                                                                      from £9.79
                                                                                                      # 042
                                                                                                      MPN: 13274077
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 043
                                                                                                      MPN: 13577778
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 044
                                                                                                      MPN: 67020400
                                                                                                      CAPOTE ARCH SMALL BLOCK
                                                                                                      from £9.17
                                                                                                      from £9.17
                                                                                                      # 045
                                                                                                      MPN: 14433121
                                                                                                      SCREW
                                                                                                      from £1.14
                                                                                                      from £1.14
                                                                                                      # 046
                                                                                                      MPN: 12648201
                                                                                                      WASHER
                                                                                                      from £1.39
                                                                                                      from £1.39
                                                                                                      # 047
                                                                                                      MPN: 67016000
                                                                                                      SPACER FOR COVER HINGE
                                                                                                      from £1.92
                                                                                                      from £1.92
                                                                                                      # 048
                                                                                                      MPN: 67377400
                                                                                                      PIN
                                                                                                      from £12.64
                                                                                                      from £12.64
                                                                                                      This part replaces part number 66430000
                                                                                                      # 049
                                                                                                      MPN: 14496501
                                                                                                      WASHER
                                                                                                      from £0.85
                                                                                                      from £0.85
                                                                                                      # 050
                                                                                                      MPN: 16104421
                                                                                                      NUT
                                                                                                      from £0.81
                                                                                                      from £0.81
