maserati 4200 spyder (2004) shields and finishing parts diagram

134 - Shields and Finishing

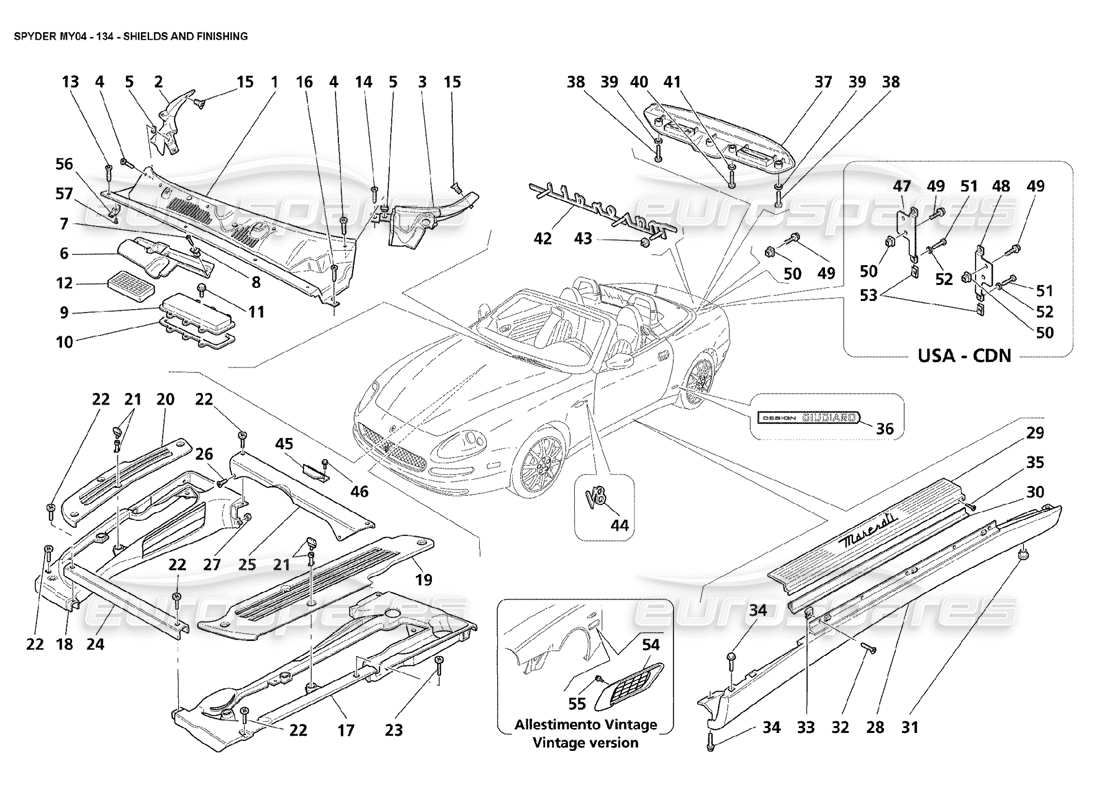

Maserati 4200 Spyder (2004) Shields and Finishing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 66365800
                                                                                  CENTRAL UNDER WINDSHIELD PLATE
                                                                                  - Not for GD
                                                                                  from £16.81
                                                                                  from £16.81
                                                                                  # 001
                                                                                  MPN: 66664400
                                                                                  CENTRAL UNDER WINDSHIELD PLATE
                                                                                  - Valid for GD
                                                                                  from £40.89
                                                                                  from £40.89
                                                                                  # 002
                                                                                  MPN: 66373400
                                                                                  RH UNDER WINDSHIELD PLATE
                                                                                  - Not for GD
                                                                                  from £8.13
                                                                                  from £8.13
                                                                                  # 002
                                                                                  MPN: 66664200
                                                                                  RH UNDER WINDSHIELD PLATE
                                                                                  - Valid for GD
                                                                                  from £31.48
                                                                                  from £31.48
                                                                                  # 003
                                                                                  MPN: 66373600
                                                                                  LH UNDER WINDSHIELD PLATE
                                                                                  - Not for GD
                                                                                  from £4.19
                                                                                  from £4.19
                                                                                  # 003
                                                                                  MPN: 66664300
                                                                                  LH UNDER WINDSHIELD PLATE
                                                                                  - Valid for GD
                                                                                  from £33.20
                                                                                  from £33.20
                                                                                  # 004
                                                                                  MPN: 15672777
                                                                                  SCREW
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 005
                                                                                  MPN: 7754387
                                                                                  BLOCK
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 006
                                                                                  MPN: 66413900
                                                                                  SHIELD FOR WATER
                                                                                  - Not for GD
                                                                                  from £25.61
                                                                                  from £25.61
                                                                                  # 006
                                                                                  MPN: 66664500
                                                                                  SHIELD FOR WATER
                                                                                  - Valid for GD
                                                                                  from £16.31
                                                                                  from £16.31
                                                                                  # 007
                                                                                  MPN: 15783377
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 008
                                                                                  MPN: 14214880
                                                                                  BLOCK
                                                                                  from £0.50
                                                                                  from £0.50
                                                                                  # 009
                                                                                  MPN: 388100435
                                                                                  ANTIPOLLEN FILTER SHIELD
                                                                                  - Not for GD
                                                                                  from £13.31
                                                                                  from £13.31
                                                                                  # 009
                                                                                  MPN: 388110436
                                                                                  ANTIPOLLEN FILTER SHIELD
                                                                                  - Valid for GD
                                                                                  from £7.56
                                                                                  from £7.56
                                                                                  This part replaces part number 388110435 - and 1 more. Click to view details
                                                                                  # 010
                                                                                  MPN: 388300489
                                                                                  GASKET
                                                                                  from £4.63
                                                                                  from £4.63
                                                                                  # 011
                                                                                  MPN: 10711227
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 012
                                                                                  MPN: 386100170
                                                                                  AIR INTAKE GRILL
                                                                                  - Not for GD
                                                                                  from £39.69
                                                                                  from £39.69
                                                                                  # 012
                                                                                  MPN: 386110170
                                                                                  AIR INTAKE GRILL
                                                                                  - Valid for GD
                                                                                  from £20.66
                                                                                  from £20.66
                                                                                  # 013
                                                                                  MPN: 15783377
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 014
                                                                                  MPN: 15783377
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 015
                                                                                  MPN: 15917217
                                                                                  SCREW
                                                                                  from £1.08
                                                                                  from £1.08
                                                                                  # 016
                                                                                  MPN: 15783377
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 017
                                                                                  MPN: 67247500
                                                                                  LH Side Cover
                                                                                  - Not for GD
                                                                                  from £35.74
                                                                                  from £35.74
                                                                                  # 017
                                                                                  MPN: 67402000
                                                                                  LH Side Cover
                                                                                  - Valid for GD
                                                                                  from £40.68
                                                                                  from £40.68
                                                                                  # 018
                                                                                  MPN: 67240000
                                                                                  RH SIDE COVER
                                                                                  - Not for GD
                                                                                  from £35.74
                                                                                  from £35.74
                                                                                  # 018
                                                                                  MPN: 67401900
                                                                                  RH SIDE COVER
                                                                                  - Valid for GD
                                                                                  from £40.68
                                                                                  from £40.68
                                                                                  # 019
                                                                                  MPN: 67247600
                                                                                  LH GRILL
                                                                                  from £47.44
                                                                                  from £47.44
                                                                                  This part replaces part number 66492600
                                                                                  # 020
                                                                                  MPN: 66492500
                                                                                  RH GRILL
                                                                                  from £45.24
                                                                                  from £45.24
                                                                                  # 021
                                                                                  MPN: 68503400

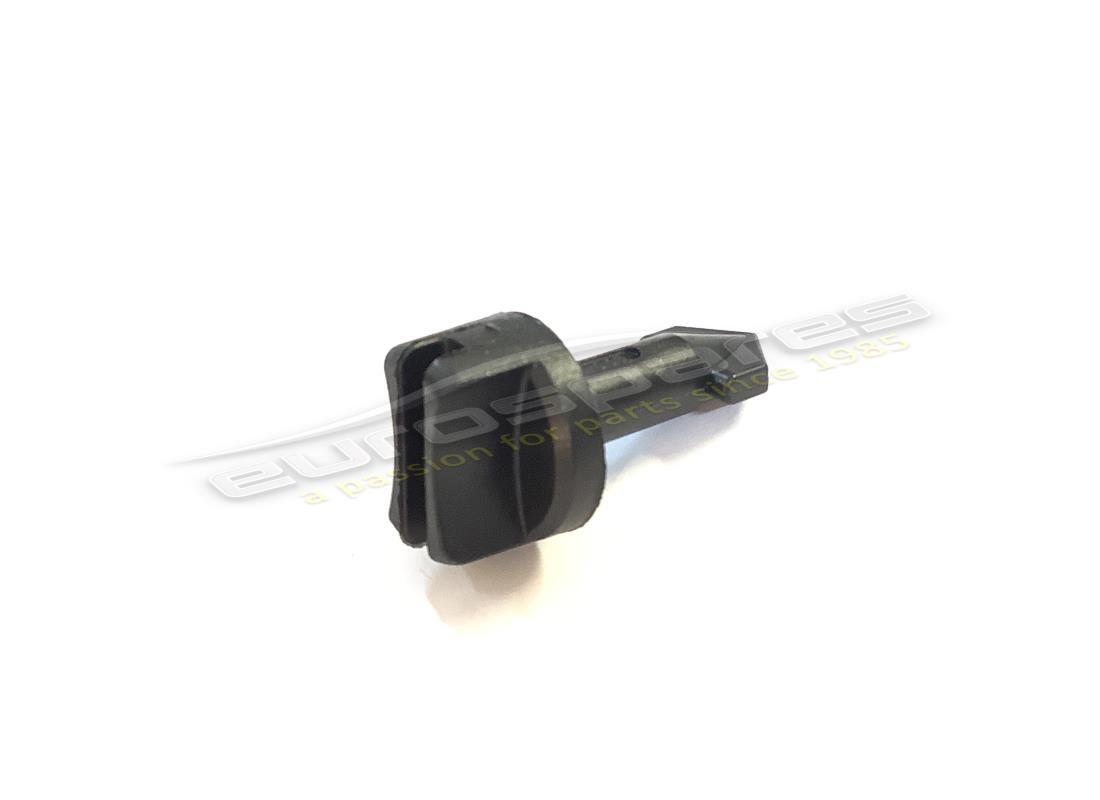

                                                                                  PIN
                                                                                  from £5.51
                                                                                  from £5.51
                                                                                  This part replaces part number 66603000
                                                                                  # 021
                                                                                  MPN: 68503400
                                                                                  PIN
                                                                                  from £5.51
                                                                                  from £5.51
                                                                                  This part replaces part number 66603000
                                                                                  # 022
                                                                                  MPN: 67194000
                                                                                  SCREW
                                                                                  from £1.85
                                                                                  from £1.85
                                                                                  # 023
                                                                                  MPN: 67194100
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 024
                                                                                  MPN: 66069100
                                                                                  ENGINE COMPARTMENT FRONT COVER
                                                                                  from £35.74
                                                                                  from £35.74
                                                                                  # 025
                                                                                  MPN: 66110800
                                                                                  ENGINE COMPARTMENT REAR COVER
                                                                                  from £35.74
                                                                                  from £35.74
                                                                                  # 026
                                                                                  MPN: 13299177
                                                                                  SCREW
                                                                                  from £1.85
                                                                                  from £1.85
                                                                                  # 028
                                                                                  MPN: 980001071
                                                                                  LH LATERAL SHIELD
                                                                                  from £226.35
                                                                                  from £226.35
                                                                                  This part replaces part number 66582700 - and 1 more. Click to view details
                                                                                  # 028
                                                                                  MPN: 980001072
                                                                                  RH LATERAL SHIELD
                                                                                  from £226.35
                                                                                  from £226.35
                                                                                  This part replaces part number 66582600 - and 1 more. Click to view details
                                                                                  # 029
                                                                                  MPN: 386100313

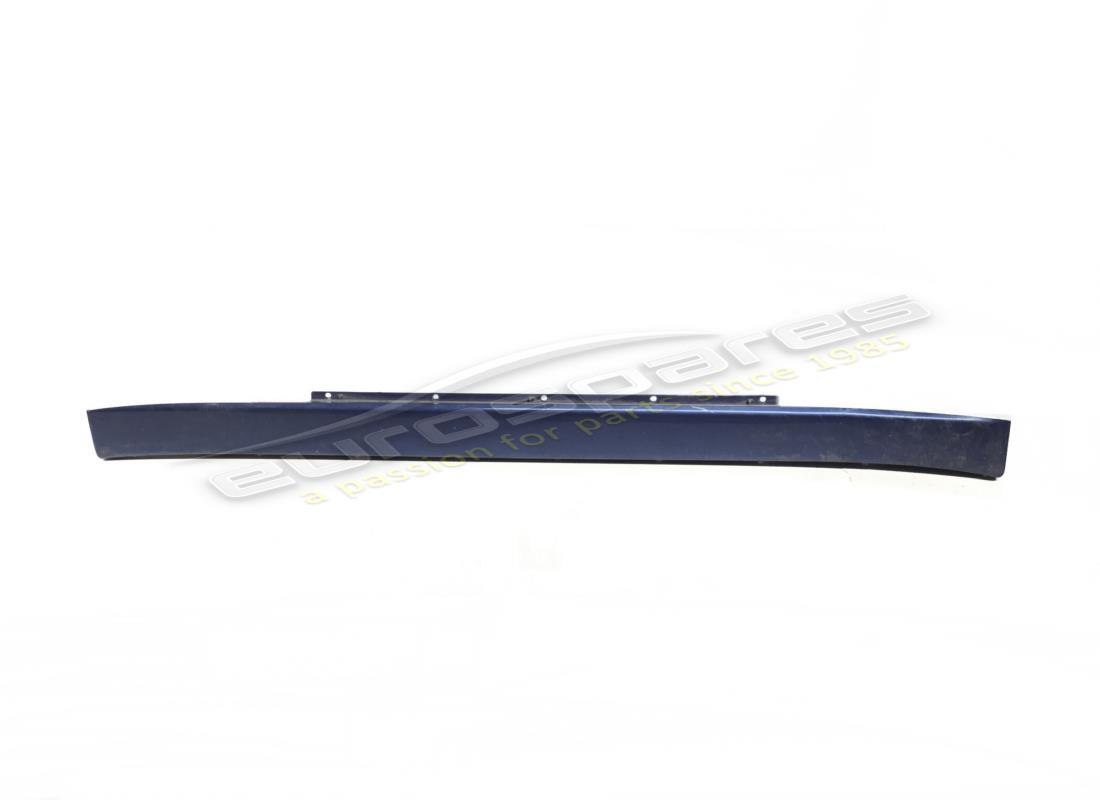

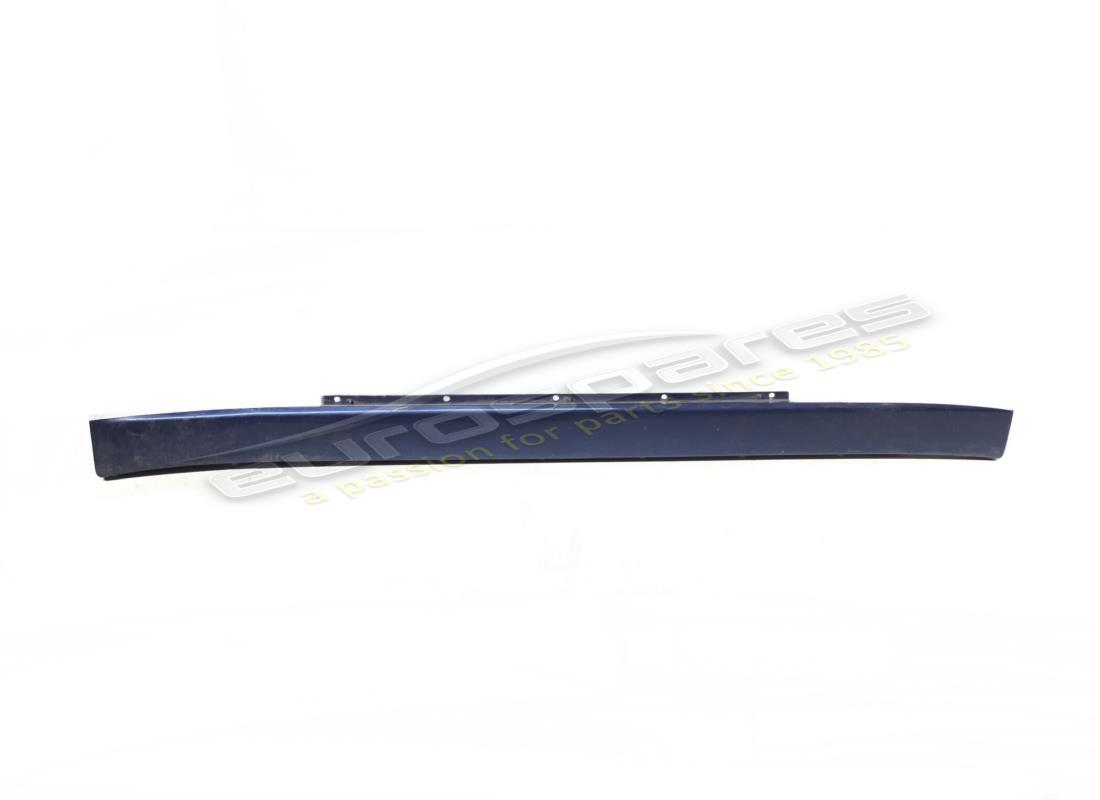

                                                                                  LH UNDER DOOR MOULDING
                                                                                  - Standard
                                                                                  from £136.43
                                                                                  from £136.43
                                                                                  # 029
                                                                                  MPN: 386100314
                                                                                  RH UNDER DOOR MOULDING
                                                                                  - Standard
                                                                                  from £136.43
                                                                                  from £136.43
                                                                                  # 029
                                                                                  MPN: 386100393

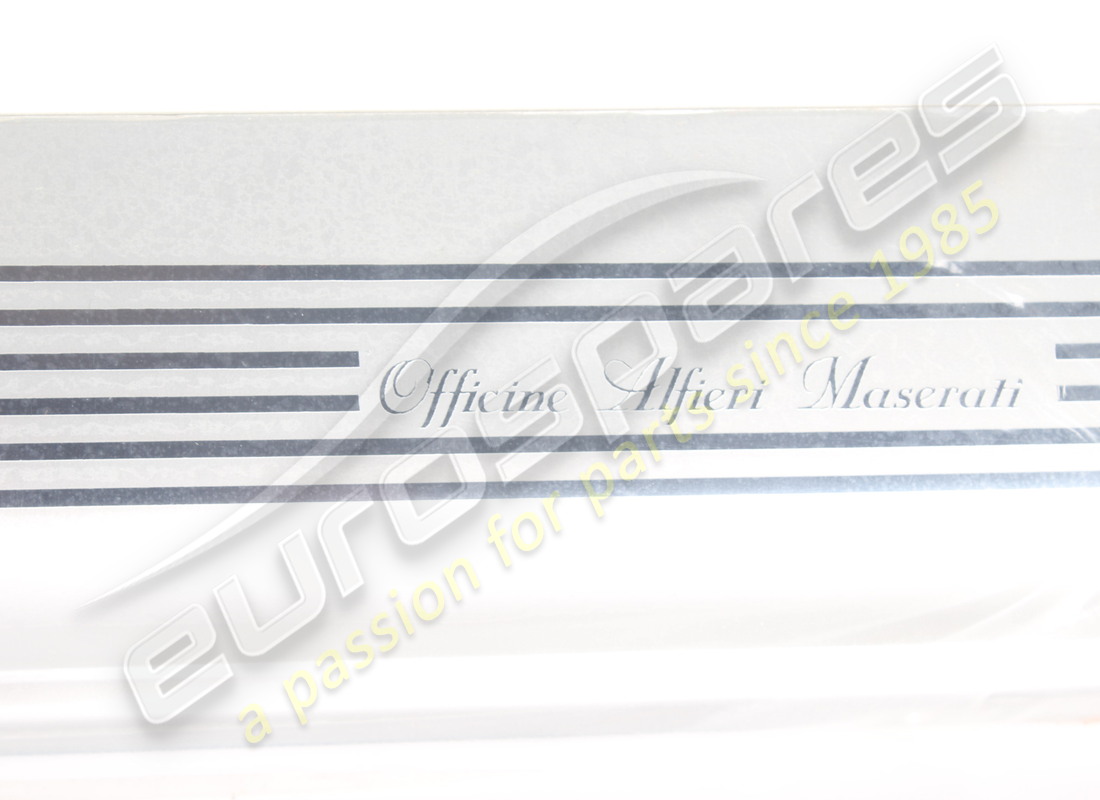

                                                                                  LH UNDER DOOR MOULDING

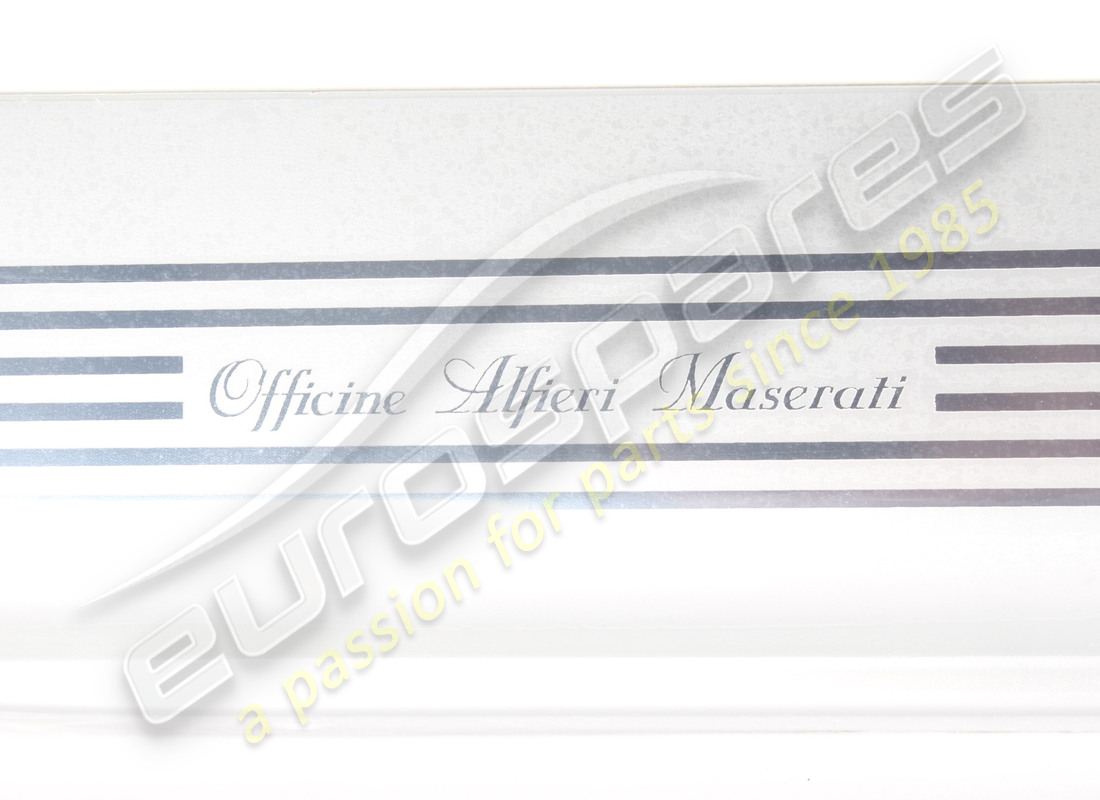

                                                                                  - Optional - Customized silk screen process
                                                                                  from £776.58
                                                                                  from £776.58
                                                                                  # 029
                                                                                  MPN: 386100394
                                                                                  RH UNDER DOOR MOULDING
                                                                                  - Optional - Customized silk screen process
                                                                                  from £776.58
                                                                                  from £776.58
                                                                                  # 029
                                                                                  MPN: 67690900
                                                                                  RH UNDER DOOR MOULDING
                                                                                  - Optional - Carbon
                                                                                  from £787.16
                                                                                  from £787.16
                                                                                  # 029
                                                                                  MPN: 67691000
                                                                                  LH UNDER DOOR MOULDING
                                                                                  - Optional - Carbon
                                                                                  from £787.16
                                                                                  from £787.16
                                                                                  # 030
                                                                                  MPN: 386100345
                                                                                  GASKET
                                                                                  from £10.01
                                                                                  from £10.01
                                                                                  # 031
                                                                                  MPN: 66582800
                                                                                  PLUG
                                                                                  from £28.20
                                                                                  from £28.20
                                                                                  # 032
                                                                                  MPN: 15532677
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 033
                                                                                  MPN: 7663916
                                                                                  BLOCK
                                                                                  from £0.70
                                                                                  from £0.70
                                                                                  # 034
                                                                                  MPN: 11730624
                                                                                  SCREW
                                                                                  from £0.51
                                                                                  from £0.51
                                                                                  # 035
                                                                                  MPN: 12678870
                                                                                  SCREW
                                                                                  from £1.31
                                                                                  from £1.31
                                                                                  # 036
                                                                                  MPN: 67027100

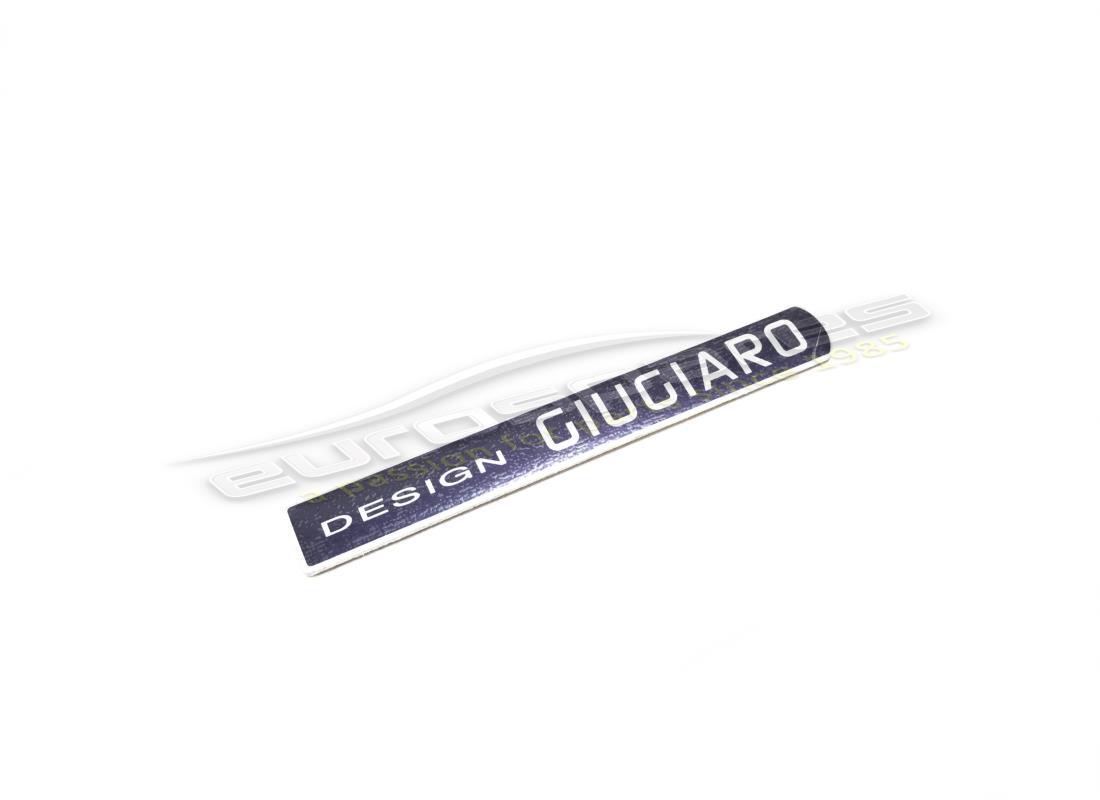

                                                                                  GIUGIARO DESIGN PLATE
                                                                                  from £7.11
                                                                                  from £7.11
                                                                                  # 037
                                                                                  MPN: 980001202
                                                                                  PLATE
                                                                                  In Primer
                                                                                  from £138.33
                                                                                  from £138.33
                                                                                  # 038
                                                                                  MPN: 13274214
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 039
                                                                                  MPN: 12643724
                                                                                  WASHER
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 040
                                                                                  MPN: 13283514
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 041
                                                                                  MPN: 12638124
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 042
                                                                                  MPN: 67197600

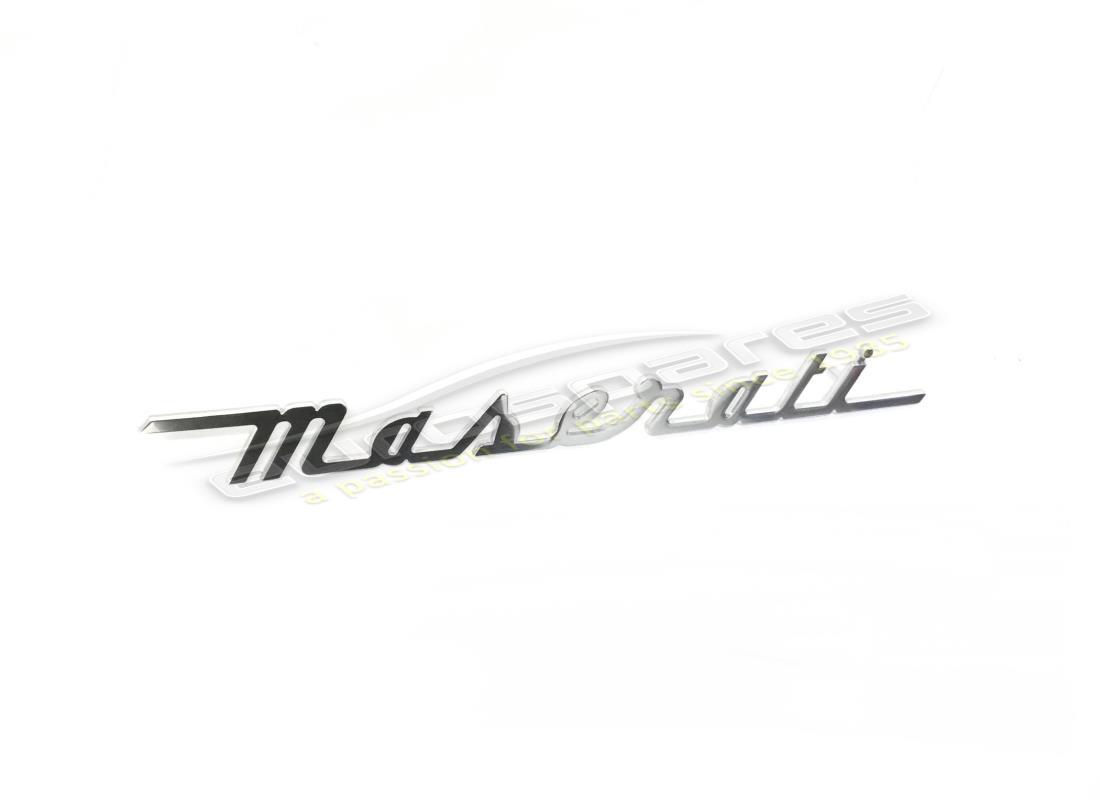

                                                                                  Maserati MARK
                                                                                  from £39.30
                                                                                  from £39.30
                                                                                  # 043
                                                                                  MPN: 60324506
                                                                                  CLIP
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 044
                                                                                  MPN: 67559200

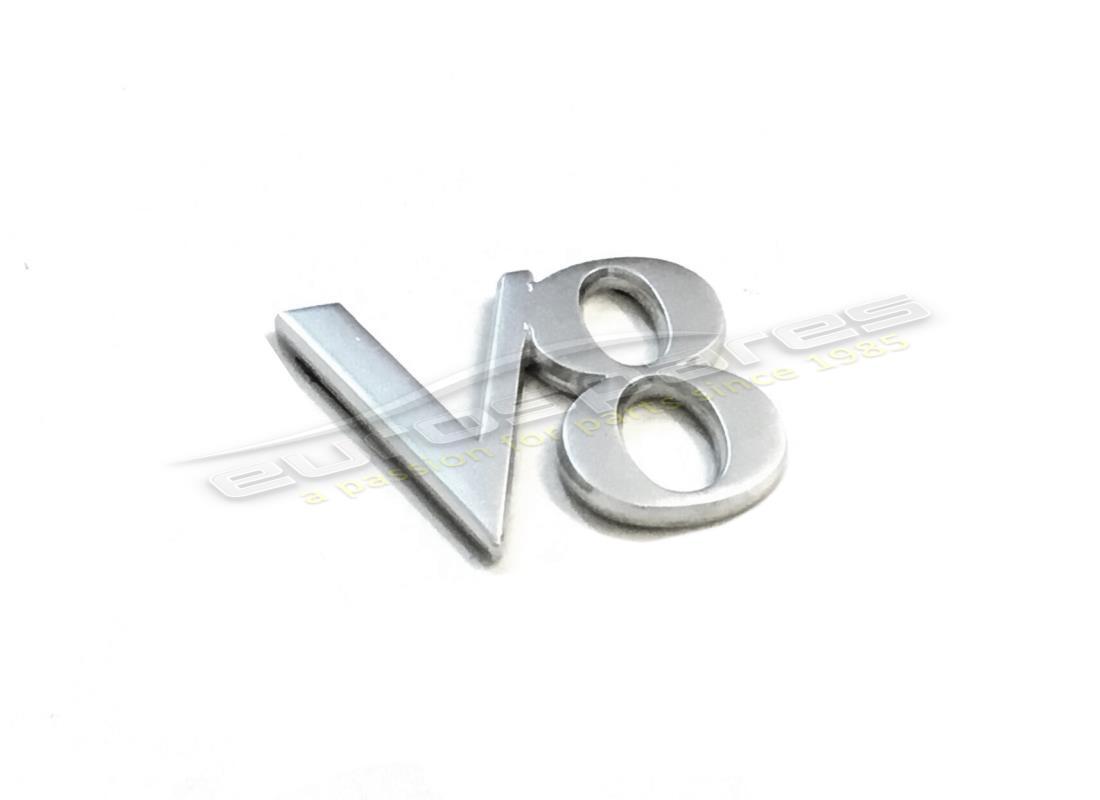

                                                                                  ORNAMENT
                                                                                  from £18.16
                                                                                  from £18.16
                                                                                  # 045
                                                                                  MPN: 67032700
                                                                                  BRACKET
                                                                                  from £5.08
                                                                                  from £5.08
                                                                                  # 046
                                                                                  MPN: 10711227
                                                                                  SCREW
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 047
                                                                                  MPN: 67516600
                                                                                  RH BRACKET FOR FIXING NUMBER PLATE
                                                                                  - Valid for USA and CDN
                                                                                  from £31.67
                                                                                  from £31.67
                                                                                  # 048
                                                                                  MPN: 67516700
                                                                                  LH BRACKET FOR FIXING NUMBER PLATE
                                                                                  - Valid for USA and CDN
                                                                                  from £34.27
                                                                                  from £34.27
                                                                                  # 049
                                                                                  MPN: 15688070
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 050
                                                                                  MPN: 319220324
                                                                                  CLIP
                                                                                  - Valid for USA and CDN
                                                                                  from £0.62
                                                                                  from £0.62
                                                                                  This part replaces part number 82457087
                                                                                  # 051
                                                                                  MPN: 14775211
                                                                                  SCREW
                                                                                  - Valid for USA and CDN
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 052
                                                                                  MPN: 12642801
                                                                                  WASHER
                                                                                  - Valid for USA and CDN
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 053
                                                                                  MPN: 14370571
                                                                                  BRACKET
                                                                                  - Optional - Vintage version
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 054
                                                                                  MPN: 980138219

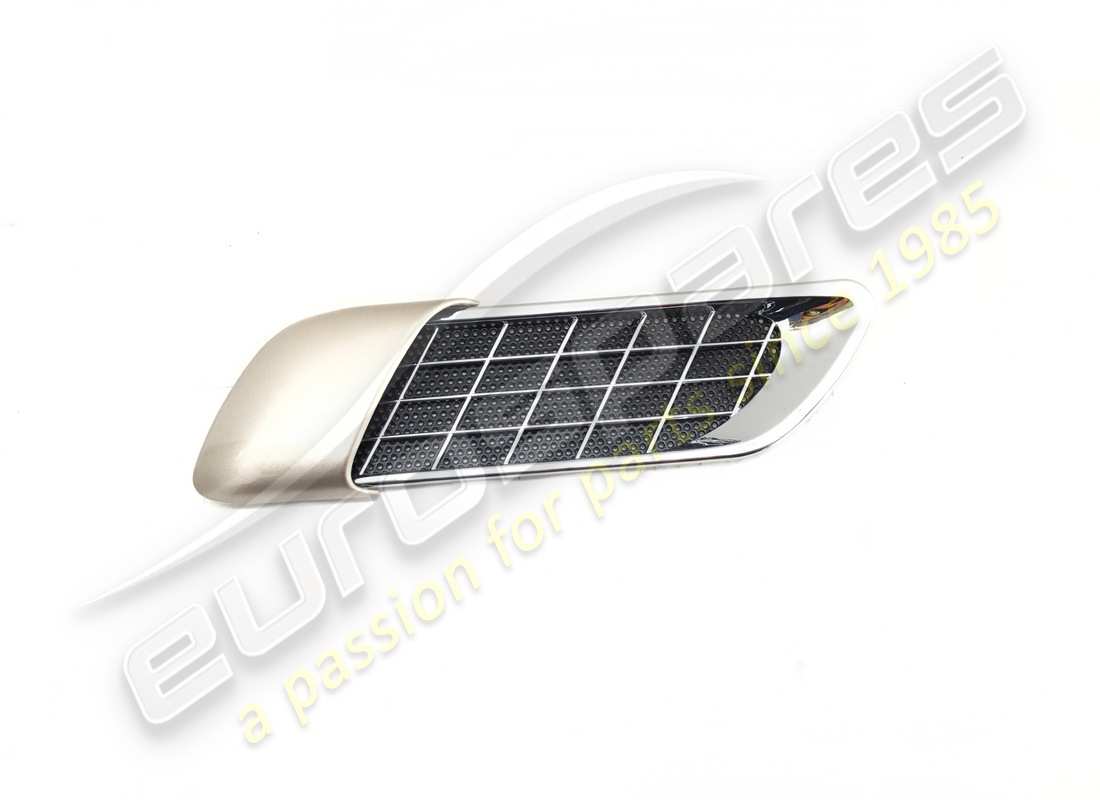

                                                                                  LH GRILL FOR AIR OUTLET
                                                                                  - Optional - Vintage version
                                                                                  from £234.66
                                                                                  from £234.66
                                                                                  # 054
                                                                                  MPN: 980138220
                                                                                  RH GRILL FOR AIR OUTLET
                                                                                  - Optional - Vintage version
                                                                                  from £234.66
                                                                                  from £234.66
                                                                                  # 055
                                                                                  MPN: 15688875
                                                                                  SCREW
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 056
                                                                                  MPN: 66058000
                                                                                  BRACKET
                                                                                  from £2.31
                                                                                  from £2.31
                                                                                  # 057
                                                                                  MPN: 15918177
                                                                                  SCREW
                                                                                  from £1.31
                                                                                  from £1.31
