143 - Anti Theft Electrical Boards and Devices

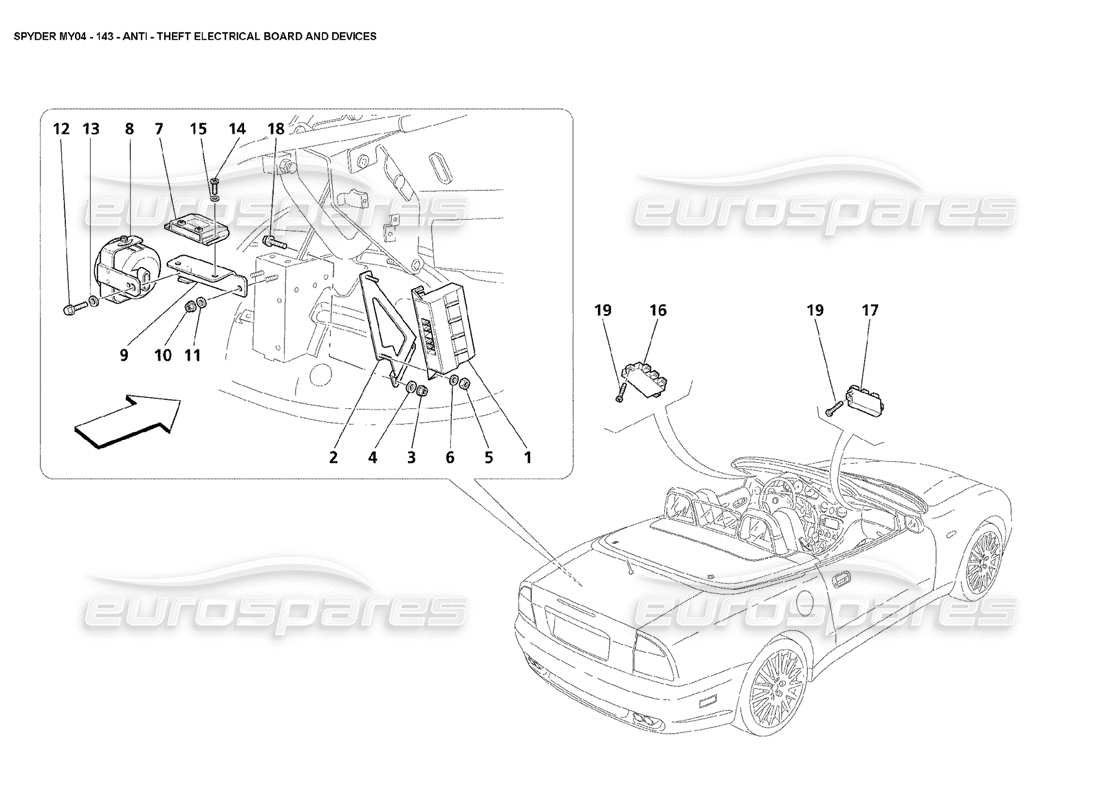

Maserati 4200 Spyder (2004) Anti Theft Electrical Boards and Devices Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
ALARM CONTROL STATION
- Not as spare parts supplyed in the alarm kit - (See draw 144)
# 002
MPN: 186707
CONTROL STATION FIXING BRACKET
from £5.54
from £5.54
# 003
MPN: 15896211
NUT
Supersession
Supersession
# 004
MPN: 13579224
WASHER
from £0.53
from £0.53
# 005
MPN: 10794014
NUT
from £0.51
from £0.51
# 006
MPN: 12642801
WASHER
from £0.54
from £0.54
# 007
MPN: 186594
ANTILIFTING SENSOR
from £135.28
from £135.28
# 008
MPN: 186593
SYREN ALARM
from £131.25
from £131.25
# 009
MPN: 67668200
BRACKET
from £10.48
from £10.48
# 010
MPN: 10788811
NUT
from £0.71
from £0.71
# 011
MPN: 12637801
WASHER
from £0.53
from £0.53
# 012
MPN: 10977724
SCREW
from £0.53
from £0.53
# 013
MPN: 13577707
WASHER
from £0.71
from £0.71
# 014
MPN: 14303124
SCREW
from £0.47
from £0.47
# 015
MPN: 14497704
WASHER
from £0.53
from £0.53
# 016
MPN: 186595

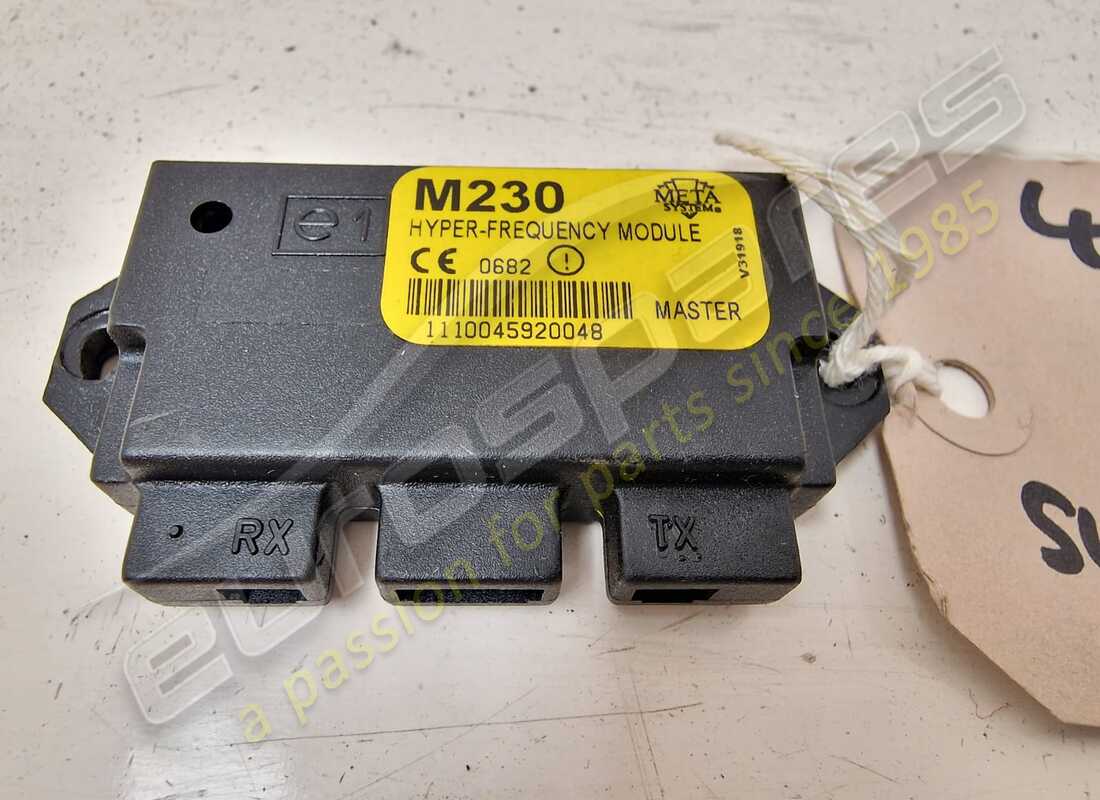

MASTER SUPERHIGH FREQUENCY SENSOR
from £62.63
from £62.63
# 017
MPN: 186596
SLAVE SUPERHIGH FREQUENCY SENSOR
from £74.37
from £74.37
# 018
MPN: 11730624
SCREW
from £0.53
from £0.53
# 019
MPN: 13272017
SCREW
from £0.53
from £0.53
