003 - RH cylinder head

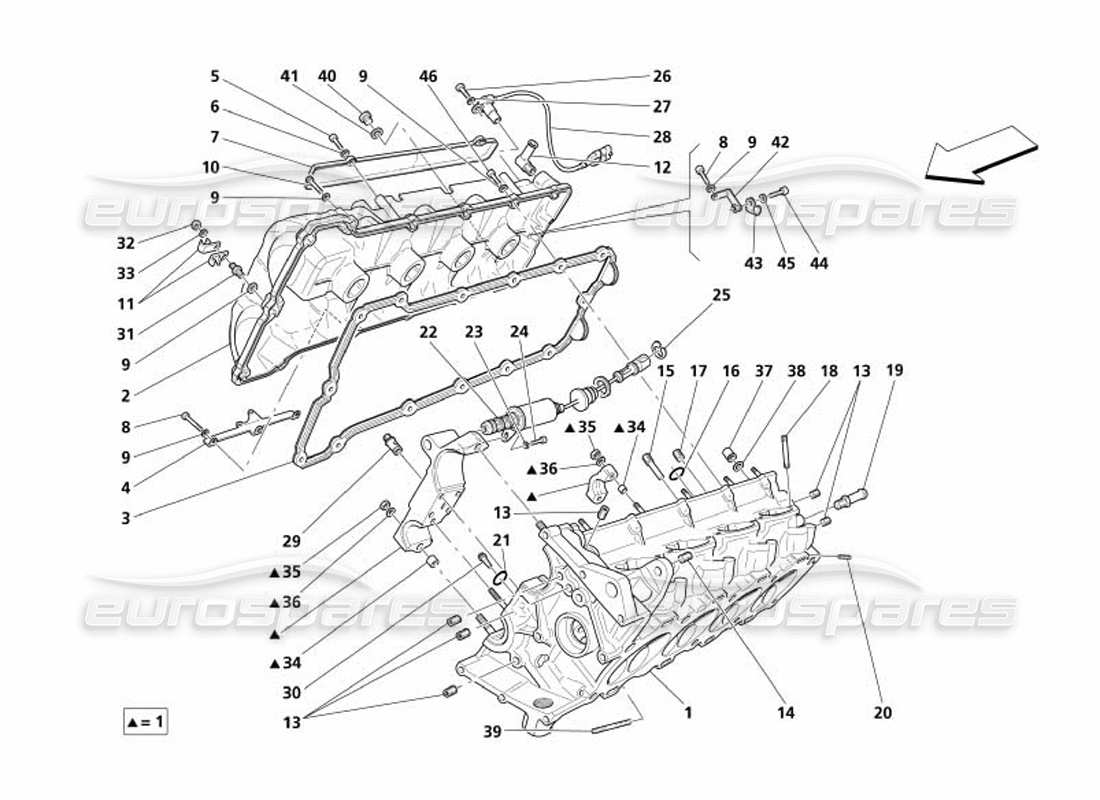

Maserati 4200 Spyder (2005) R.H. Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 189359
COMPLETE RH HEAD
from £2,036.70
from £2,036.70
This part replaces part number 187998 - and 5 more. Click to view details
# 002
MPN: 187815
RH CYLINDERS HEAD COVER
from £169.82
from £169.82
# 003
MPN: 198927
RH HEAD COVER GASKET
Supplied also in the cover gasketrevision kit (cod. 980020000)
from £31.50
from £31.50
# 004
MPN: 192390
SECONDARY AIR VALVE FIX. BRACKET
from £44.21
from £44.21
# 005
MPN: 14304424
SCREW
from £0.52
from £0.52
# 006
MPN: 14497878
WASHER
from £0.52
from £0.52
# 007
MPN: 185276
RH HARNESS SMALL COVER
from £19.27
from £19.27
# 008
MPN: 156834
SCREW
from £1.55
from £1.55
# 009
MPN: 11197774
WASHER
from £0.52
from £0.52
# 010
MPN: 156830
SCREW
from £0.57
from £0.57
# 011
MPN: 187713
CLIP
from £3.16
from £3.16
This part replaces part number 98055
# 012
MPN: 124342
THREADED UNION
from £3.56
from £3.56
# 013
MPN: 14326050
THREADED PLUG
from £0.94
from £0.94
# 014
MPN: 140135
THREADED INSERT
from £1.74
from £1.74
# 015
MPN: 183447
THREADED PLUG
from £4.63
from £4.63
# 016
MPN: 187706
GASKET
from £3.24
from £3.24
# 017
MPN: 164400
THREADED PLUG
from £2.16
from £2.16
# 018
MPN: 13541224
STUD
from £34.93
from £34.93
# 019
MPN: 191633
UNION
from £48.20
from £48.20
This part replaces part number 188602
# 020
MPN: 141563
THREADED PLUG
from £1.00
from £1.00

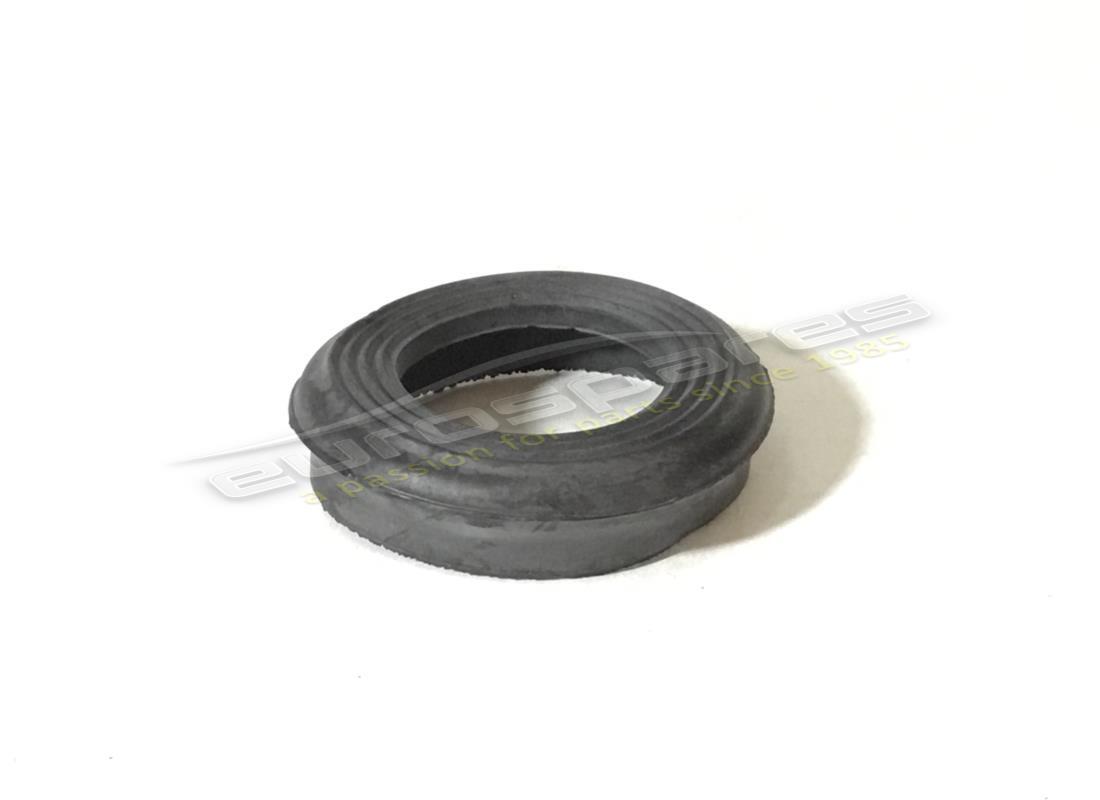

# 021
MPN: 134233
GASKET
Supplied also in the cover gasketrevision kit (cod. 980020000)
from £0.53
from £0.53
# 022
MPN: 212423
VARIATOR CONTROL SOLENOID VALVE
from £418.39
from £418.39
This part replaces part number 186563 - and 2 more. Click to view details
# 023
MPN: 11197774
WASHER
from £0.54
from £0.54
# 024
MPN: 14433124
SCREW
from £0.53
from £0.53
# 025
MPN: 11087376
FLEXIBLE RING
from £0.53
from £0.53
# 026
MPN: 14305224
SCREW
from £0.53
from £0.53
# 027
MPN: 11197774
WASHER
from £0.54
from £0.54

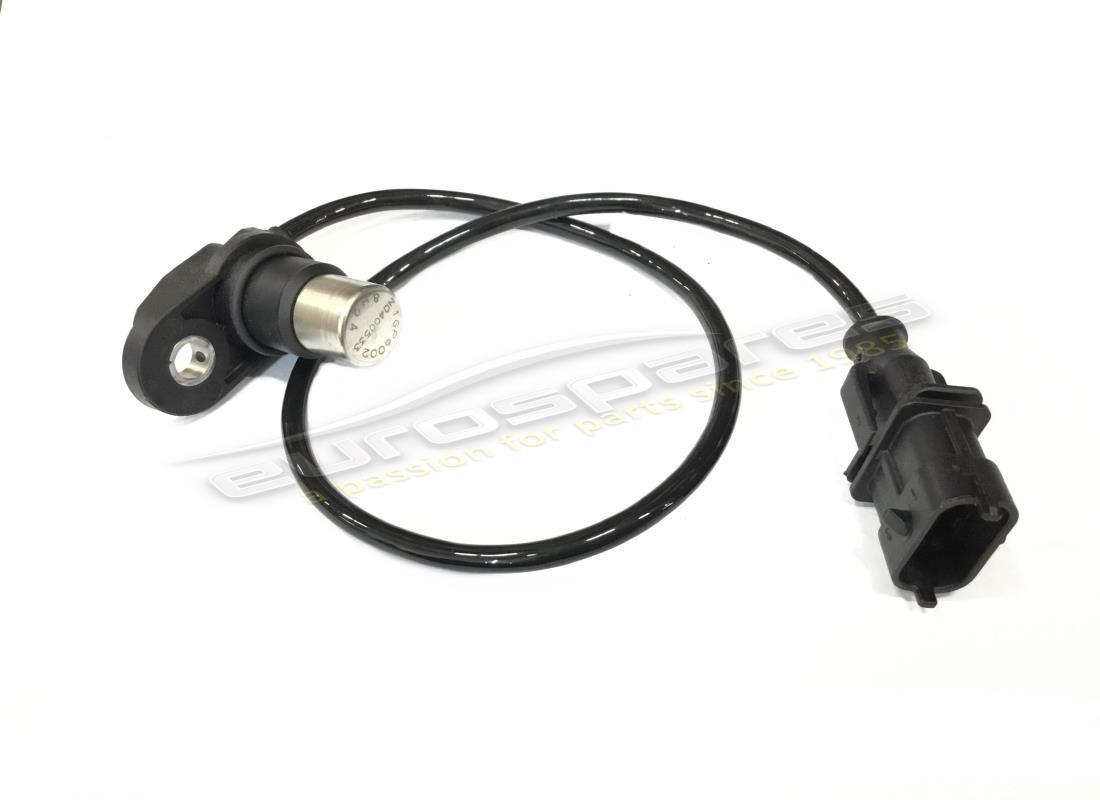

# 028
MPN: 177673
PHASE SENSOR
from £67.30
from £67.30
# 029
MPN: 184681
OIL PRESSURE CHECK VALVE
from £237.18
from £237.18
# 030
MPN: 180266
OIL FILTER
Supplied also in the cover gasketrevision kit (cod. 980020000)
Supersession
Supersession
# 031
MPN: 187711
STUD
from £52.12
from £52.12
# 032
MPN: 12575411
NUT
Supersession
Supersession
# 033
MPN: 12639724
WASHER
from £0.54
from £0.54
# 034
MPN: 102725
CENTERING DOWEL
from £0.60
from £0.60
# 035
MPN: 15896211
NUT
Supersession
Supersession
# 036
MPN: 11197774
WASHER
from £0.51
from £0.51
# 037
MPN: 183524
NUT
from £1.20
from £1.20
# 038
MPN: 151117
WASHER
from £0.31
from £0.31
This part replaces part number 300266 - and 1 more. Click to view details
# 039
MPN: 13543424
STUD
from £1.04
from £1.04
# 040
MPN: 187963
PLUG
from £3.63
from £3.63
# 041
MPN: 10263360
GASKET
from £0.54
from £0.54
# 042
MPN: 185471
BRACKET
from £2.85
from £2.85
# 043
MPN: 10441190
BRACKET WITH SHEATH
from £0.54
from £0.54
# 044
MPN: 14305024
SCREW
from £0.54
from £0.54
# 045
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519421 - and 1 more. Click to view details
# 046
MPN: 157218
SCREW
from £0.52
from £0.52
