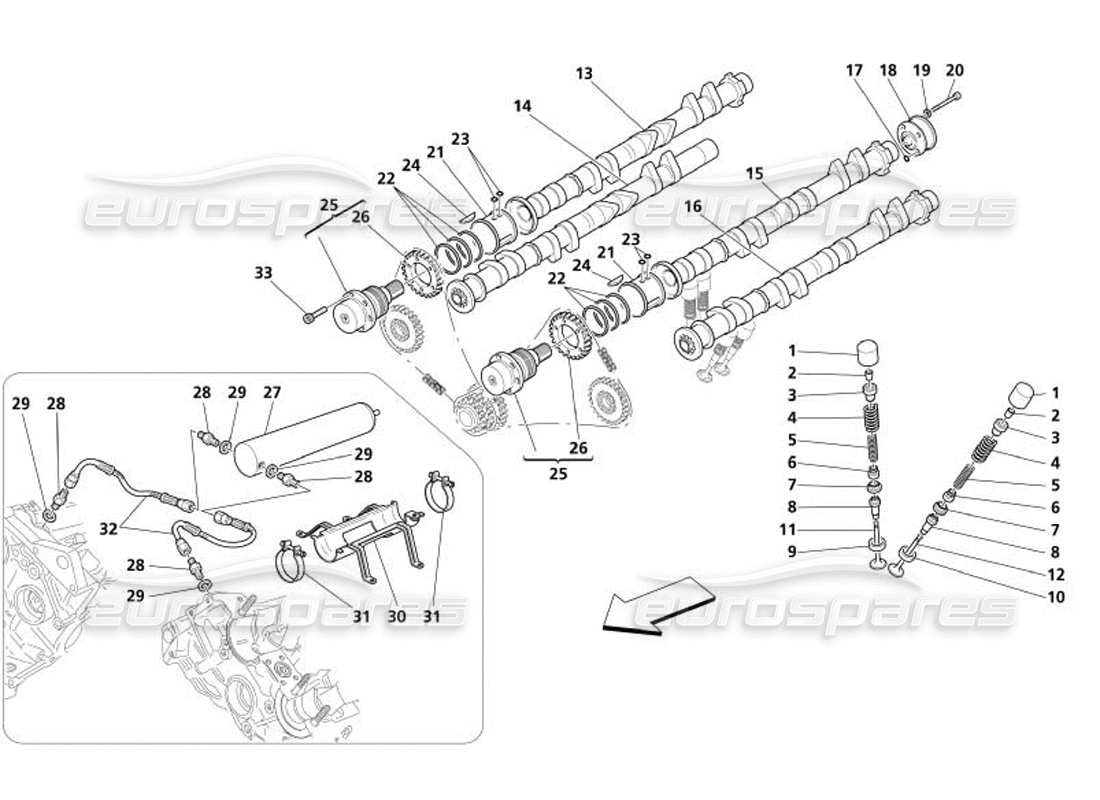

Maserati 4200 Spyder (2005) Timing - Tappets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 194700
                                                              TAPPET FOR VALVE CONTROL
                                                              from £21.00
                                                              from £21.00
                                                              This part replaces part number 187657 - and 3 more. Click to view details
                                                              # 002
                                                              MPN: 179763
                                                              COTTER FOR VALVE SPRING
                                                              from £0.27
                                                              from £0.27
                                                              # 003
                                                              MPN: 187489
                                                              UPPER CUP
                                                              from £4.91
                                                              from £4.91
                                                              # 004
                                                              MPN: 184054
                                                              OUTER SPRING FOR VALVE RETURN
                                                              from £6.86
                                                              from £6.86
                                                              # 005
                                                              MPN: 184055
                                                              INNER SPRING FOR VALVE RETURN
                                                              from £27.30
                                                              from £27.30
                                                              # 006
                                                              MPN: 148153
                                                              OIL RING
                                                              Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                              from £1.92
                                                              from £1.92
                                                              # 007
                                                              MPN: 190388
                                                              LOWER CUP
                                                              from £4.24
                                                              from £4.24
                                                              This part replaces part number 184594 which we have in stock
                                                              # 007
                                                              MPN: 190408
                                                              LOWER CUP
                                                              OVERSIZED
                                                              from £35.85
                                                              from £35.85
                                                              This part replaces part number 184596
                                                              # 008
                                                              MPN: 172452
                                                              INTAKE VALVE GUIDE
                                                              OVERSIZED
                                                              Supersession
                                                              Supersession
                                                              # 008
                                                              MPN: 176437
                                                              INTAKE VALVE GUIDE
                                                              from £48.00
                                                              from £48.00
                                                              This part replaces part number 172328
                                                              # 009
                                                              MPN: 175381
                                                              INTAKE VALVE SEAT
                                                              from £7.88
                                                              from £7.88
                                                              # 010
                                                              MPN: 179959
                                                              EXHAUST VALVE SEAT
                                                              Supersession
                                                              Supersession
                                                              # 011
                                                              MPN: 175395
                                                              INTAKE VALVE
                                                              from £5.78
                                                              from £5.78
                                                              # 012
                                                              MPN: 189351
                                                              EXHAUST VALVE
                                                              from £60.57
                                                              from £60.57
                                                              This part replaces part number 181568 which we have in stock
                                                              # 013
                                                              MPN: 188192
                                                              RH INDUCTION DISTRIBUTION CAM SHAFT
                                                              from £571.57
                                                              from £571.57
                                                              # 014
                                                              MPN: 186216
                                                              RH EXHAUST CAM SHAFT
                                                              from £564.11
                                                              from £564.11
                                                              # 015
                                                              MPN: 188193
                                                              LH INDUCTION DISTRIBUTION CAM SHAFT
                                                              from £571.57
                                                              from £571.57
                                                              # 016
                                                              MPN: 186217
                                                              LH EXHAUST CAM SHAFT
                                                              from £564.11
                                                              from £564.11
                                                              # 017
                                                              MPN: 134701
                                                              O.R. GASKET
                                                              from £0.47
                                                              from £0.47
                                                              # 018
                                                              MPN: 189541
                                                              OIL PUMP VARIATOR
                                                              from £54.20
                                                              from £54.20
                                                              This part replaces part number 185409 - and 1 more. Click to view details
                                                              # 019
                                                              MPN: 184731
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 020
                                                              MPN: 14303523
                                                              SCREW
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 14303526
                                                              # 021
                                                              MPN: 198668
                                                              PHASE VARIATOR SUPPORTNG BUSHING
                                                              from £173.92
                                                              from £173.92
                                                              This part replaces part number 190393
                                                              # 022
                                                              MPN: 214742
                                                              RING
                                                              from £13.68
                                                              from £13.68
                                                              This part replaces part number 179926
                                                              # 023
                                                              MPN: 134701
                                                              O.R. GASKET
                                                              from £0.47
                                                              from £0.47
                                                              # 024
                                                              MPN: 10617520
                                                              Key
                                                              from £2.31
                                                              from £2.31
                                                              This part replaces part number 10617580
                                                              # 025
                                                              MPN: 190012
                                                              PHASE VARIATOR
                                                              from £602.24
                                                              from £602.24
                                                              # 026
                                                              MPN: 189576
                                                              TOOTHED WHEEL
                                                              from £202.64
                                                              from £202.64
                                                              This part replaces part number 188357
                                                              # 027
                                                              MPN: 190163
                                                              OIL ACCUMULATOR FOR VARIATOR
                                                              from £388.14
                                                              from £388.14
                                                              This part replaces part number 185334 - and 2 more. Click to view details
                                                              # 028
                                                              MPN: 193738
                                                              THREADED UNION
                                                              from £4.51
                                                              from £4.51
                                                              # 029
                                                              MPN: 10261060
                                                              GASKET
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 274036
                                                              # 030
                                                              MPN: 193406
                                                              OIL ACCUMULATOR SEAT
                                                              from £40.76
                                                              from £40.76
                                                              This part replaces part number 189950 - and 2 more. Click to view details
                                                              # 032
                                                              MPN: 194710
                                                              PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
                                                              from £37.81
                                                              from £37.81
                                                              This part replaces part number 189949 - and 1 more. Click to view details
                                                              # 033
                                                              MPN: 94077843
                                                              SCREW
                                                              from £11.05
                                                              from £11.05
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
