maserati 4200 spyder (2005) antievaporation device -valid for usa and cdn- parts diagram

012 - Antievaporation Device -Valid for USA and CDN-

Maserati 4200 Spyder (2005) Antievaporation Device -Valid for USA and CDN- Parts Diagram

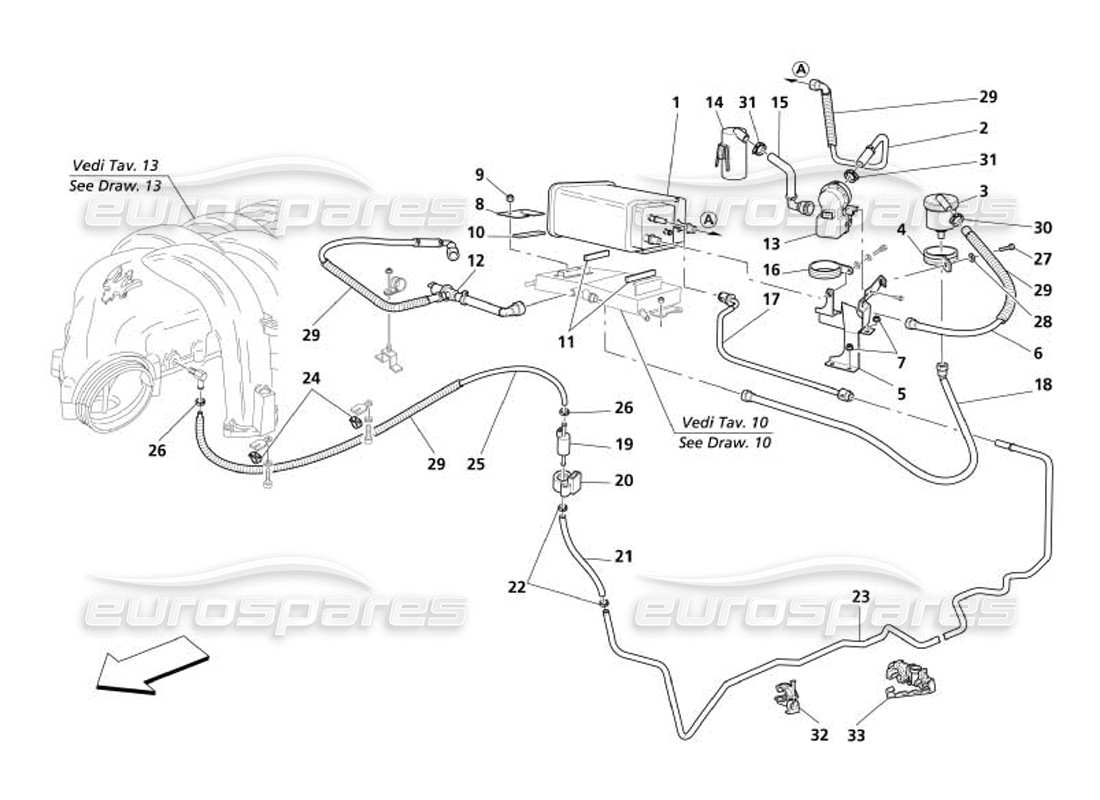

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 220074
                                                              FUEL VAPOR FILTER
                                                              from £61.53
                                                              from £61.53
                                                              This part replaces part number 212961 - and 1 more. Click to view details
                                                              # 002
                                                              MPN: 184555
                                                              PIPE FROM CANISTER TO PUMP
                                                              from £130.46
                                                              from £130.46
                                                              # 003
                                                              MPN: 180573
                                                              ROLL-OVER VALVE
                                                              from £37.85
                                                              from £37.85
                                                              # 004
                                                              MPN: 189894
                                                              BRACKET
                                                              from £176.40
                                                              from £176.40
                                                              # 005
                                                              MPN: 189895
                                                              BRACKET
                                                              from £97.02
                                                              from £97.02
                                                              # 006
                                                              MPN: 184553
                                                              PIPE FROM ROLL OVER TO CANISTER
                                                              from £18.94
                                                              from £18.94
                                                              # 007
                                                              MPN: 12574211
                                                              NUT
                                                              from £0.71
                                                              from £0.71
                                                              This part replaces part number 128300060
                                                              # 008
                                                              MPN: 186920
                                                              FUEL VAPOR FILTER BRACKET
                                                              from £3.25
                                                              from £3.25
                                                              # 009
                                                              MPN: 12574211
                                                              NUT
                                                              from £0.71
                                                              from £0.71
                                                              This part replaces part number 128300060
                                                              # 010
                                                              MPN: 184766
                                                              RUBBER THICKNESS
                                                              from £7.73
                                                              from £7.73
                                                              # 011
                                                              MPN: 184221
                                                              RUBBER THICKNESS
                                                              from £2.31
                                                              from £2.31
                                                              # 012
                                                              MPN: 186003
                                                              PIERBURG VALVE COMPLETE TUBE
                                                              from £159.28
                                                              from £159.28
                                                              # 013
                                                              MPN: 185405
                                                              DIAGNOSIS PUMP
                                                              from £148.01
                                                              from £148.01
                                                              # 015
                                                              MPN: 184554
                                                              UNIONS COMPLETE TUBE
                                                              from £312.50
                                                              from £312.50
                                                              # 016
                                                              MPN: 189893
                                                              BRACKET
                                                              from £38.09
                                                              from £38.09
                                                              # 017
                                                              MPN: 184557
                                                              PIPE FROM CANISTER TO UNDERFLOOR
                                                              from £15.71
                                                              from £15.71
                                                              # 018
                                                              MPN: 187468
                                                              PIPE FROM DISAREATOR TO ROLL-OVER
                                                              from £171.88
                                                              from £171.88
                                                              # 019
                                                              MPN: 180861
                                                              WASHING VALVE
                                                              from £53.01
                                                              from £53.01
                                                              # 021
                                                              MPN: 181703
                                                              WASHING VALVE INLET TUBE
                                                              from £5.92
                                                              from £5.92
                                                              # 022
                                                              MPN: 13432070
                                                              SCREW COLLAR
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 13434670
                                                              # 023
                                                              MPN: 190518
                                                              COMPLETE UNDERFLOOR TUBE
                                                              from £20.92
                                                              from £20.92
                                                              # 024
                                                              MPN: 178430
                                                              CLIP
                                                              from £0.47
                                                              from £0.47
                                                              # 025
                                                              MPN: 181704
                                                              WASHING VALVE OUTLET PIPE
                                                              from £21.35
                                                              from £21.35
                                                              # 026
                                                              MPN: 190471
                                                              FIXING CLIP
                                                              from £1.93
                                                              from £1.93
                                                              # 027
                                                              MPN: 10902021
                                                              SCREW
                                                              from £1.21
                                                              from £1.21
                                                              # 028
                                                              MPN: 14499324
                                                              WASHER
                                                              from £0.51
                                                              from £0.51
                                                              # 029
                                                              MPN: 318720333
                                                              PIPE
                                                              Supplied in meters - (Minimum quantity 1m. or multiples)
                                                              from £5.14
                                                              from £5.14
                                                              # 030
                                                              MPN: 13433370
                                                              COLLAR FOR SLEEVE
                                                              from £0.47
                                                              from £0.47
                                                              # 031
                                                              MPN: 13000390
                                                              SCREW COLLAR
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 13121170 - and 1 more. Click to view details
                                                              # 032
                                                              MPN: 187840
                                                              CLIP
                                                              (Quantity defined duringat assembly)
                                                              from £0.69
                                                              from £0.69
                                                              # 033
                                                              MPN: 190409
                                                              CLIP
                                                              (Quantity defined during at assembly)
                                                              from £3.25
                                                              from £3.25
