maserati 4200 spyder (2005) gearbox - cover - gearbox oil radiator parts diagram

028 - Gearbox - Cover - Gearbox Oil Radiator

Maserati 4200 Spyder (2005) Gearbox - Cover - Gearbox Oil Radiator Parts Diagram

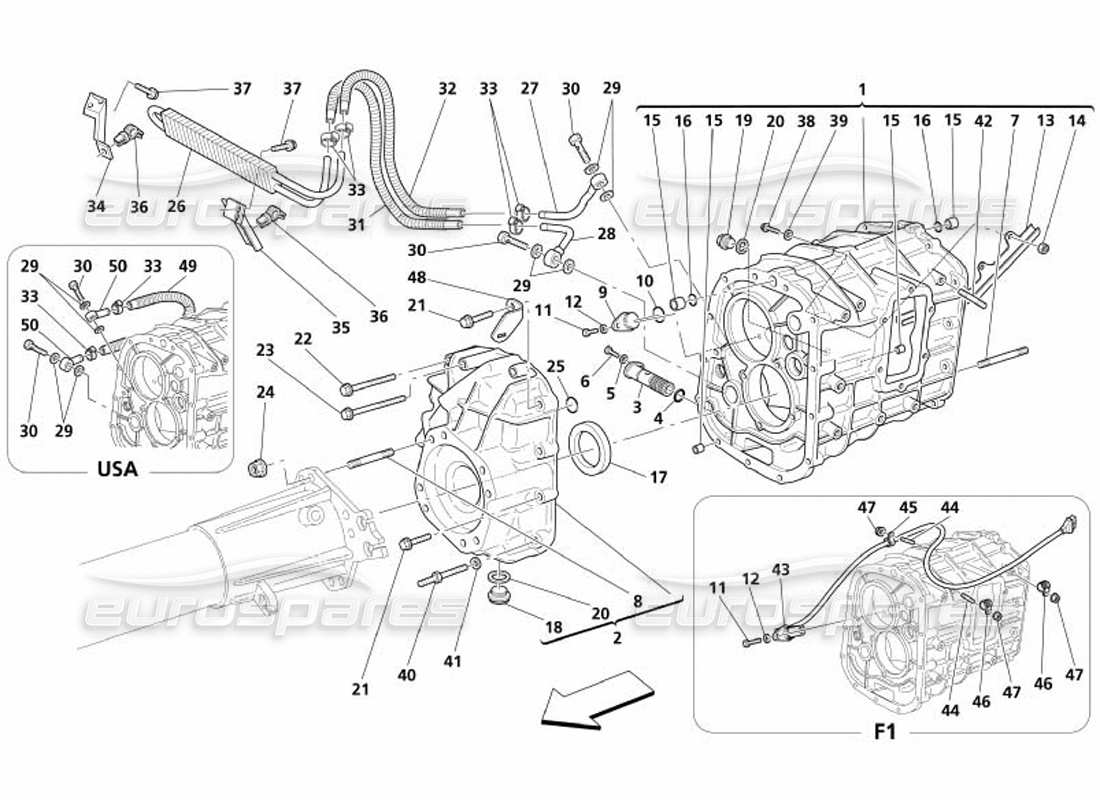

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 192736
                                                              GEARBOX CASING
                                                              from £546.41
                                                              from £546.41
                                                              This part replaces part number 184518
                                                              # 002
                                                              MPN: 192734
                                                              COMPLETE FRONT COVER
                                                              from £315.32
                                                              from £315.32
                                                              This part replaces part number 184773
                                                              # 003
                                                              MPN: 182416
                                                              OIL FILTER
                                                              from £63.77
                                                              from £63.77
                                                              # 004
                                                              MPN: 182119
                                                              O.R. GASKET
                                                              from £2.50
                                                              from £2.50
                                                              # 005
                                                              MPN: 11199277
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 006
                                                              MPN: 10977624
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 007
                                                              MPN: 13543624
                                                              STUD
                                                              from £0.47
                                                              from £0.47
                                                              # 008
                                                              MPN: 13546334
                                                              STUD
                                                              from £0.58
                                                              from £0.58
                                                              # 009
                                                              MPN: 185721
                                                              PLUG
                                                              Not for F1
                                                              from £2.84
                                                              from £2.84
                                                              # 010
                                                              MPN: 254644
                                                              O.R. GASKET
                                                              Not for F1
                                                              from £0.47
                                                              from £0.47
                                                              # 011
                                                              MPN: 10902224
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 012
                                                              MPN: 11194377
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 013
                                                              MPN: 185714
                                                              OIL TILE
                                                              from £9.89
                                                              from £9.89
                                                              # 015
                                                              MPN: 150957
                                                              CENTERING DOWEL
                                                              from £5.39
                                                              from £5.39
                                                              # 016
                                                              MPN: 14456981
                                                              O.R. GASKET
                                                              from £0.61
                                                              from £0.61
                                                              # 017
                                                              MPN: 185719
                                                              OIL RING
                                                              from £30.14
                                                              from £30.14
                                                              # 018
                                                              MPN: 183962
                                                              MAGNETIC PLUG
                                                              from £14.38
                                                              from £14.38
                                                              This part replaces part number 4123120
                                                              # 019
                                                              MPN: 10305111
                                                              THREADED PLUG
                                                              from £4.33
                                                              from £4.33
                                                              # 020
                                                              MPN: 10263460
                                                              GASKET
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 10261830
                                                              # 021
                                                              MPN: 16287521
                                                              SCREW
                                                              from £0.77
                                                              from £0.77
                                                              # 022
                                                              MPN: 16287731
                                                              SCREW
                                                              from £1.36
                                                              from £1.36
                                                              # 023
                                                              MPN: 16288121
                                                              SCREW
                                                              from £2.47
                                                              from £2.47
                                                              # 025
                                                              MPN: 14453581
                                                              O.R. GASKET
                                                              from £2.58
                                                              from £2.58
                                                              # 026
                                                              MPN: 214366
                                                              OIL RADIATOR
                                                              Not for USA and CDN
                                                              from £177.38
                                                              from £177.38
                                                              This part replaces part number 188308 - and 1 more. Click to view details
                                                              # 027
                                                              MPN: 189289
                                                              UNION
                                                              Not for USA and CDN
                                                              from £10.50
                                                              from £10.50
                                                              # 028
                                                              MPN: 188316
                                                              UNION
                                                              Not for USA and CDN
                                                              from £42.98
                                                              from £42.98
                                                              # 029
                                                              MPN: 10280060
                                                              GASKET
                                                              from £0.47
                                                              from £0.47
                                                              # 030
                                                              MPN: 178719
                                                              UNION
                                                              from £3.04
                                                              from £3.04
                                                              # 031
                                                              MPN: 189457
                                                              OIL DELIVERY TUBE
                                                              Not for USA and CDN
                                                              from £13.88
                                                              from £13.88
                                                              # 032
                                                              MPN: 189458
                                                              OIL RETURN TUBE
                                                              Not for USA and CDN
                                                              from £11.06
                                                              from £11.06
                                                              # 033
                                                              MPN: 13000290
                                                              SCREW COLLAR
                                                              (Quantity 2 for USA and CDN)
                                                              from £0.49
                                                              from £0.49
                                                              # 034
                                                              MPN: 187892
                                                              COIL SUPPORTING RH BRACKET
                                                              Not for USA and CDN
                                                              from £4.63
                                                              from £4.63
                                                              # 035
                                                              MPN: 187894
                                                              COIL SUPPORTING LH BRACKET
                                                              Not for USA and CDN
                                                              from £10.97
                                                              from £10.97
                                                              # 036
                                                              MPN: 181756
                                                              ELEMENT FOR FIXING QUICK
                                                              Not for USA and CDN
                                                              from £2.85
                                                              from £2.85
                                                              # 037
                                                              MPN: 11730624
                                                              SCREW
                                                              Not for USA and CDN
                                                              from £0.47
                                                              from £0.47
                                                              # 038
                                                              MPN: 16286121
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 039
                                                              MPN: 10297760
                                                              GASKET
                                                              from £0.47
                                                              from £0.47
                                                              # 040
                                                              MPN: 188077
                                                              STUD
                                                              from £5.09
                                                              from £5.09
                                                              # 041
                                                              MPN: 12601374
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 042
                                                              MPN: 11500024
                                                              STUD
                                                              from £1.55
                                                              from £1.55
                                                              # 043
                                                              MPN: 168729
                                                              ELECTRO-MAGNETIC SENSOR
                                                              Valid for F1
                                                              from £70.27
                                                              from £70.27
                                                              # 044
                                                              MPN: 11500024
                                                              STUD
                                                              Valid for F1
                                                              from £1.55
                                                              from £1.55
                                                              # 045
                                                              MPN: 10441190
                                                              BRACKET WITH SHEATH
                                                              Valid for F1
                                                              from £0.47
                                                              from £0.47
                                                              # 046
                                                              MPN: 10441490
                                                              BRACKET WITH SHEATH
                                                              Valid for F1
                                                              from £0.47
                                                              from £0.47
                                                              # 047
                                                              MPN: 14058411
                                                              NUT
                                                              Valid for F1
                                                              from £0.47
                                                              from £0.47
                                                              # 048
                                                              MPN: 188004
                                                              CONNECTOR SUPPORT BRACKET
                                                              Valid for F1
                                                              from £10.51
                                                              from £10.51
                                                              # 049
                                                              MPN: 193583
                                                              OIL RECYCLING PIPE
                                                              Valid for USA and CDN
                                                              from £16.77
                                                              from £16.77
                                                              # 050
                                                              MPN: 193594
                                                              UNION FOR RECYCLING PIPE
                                                              Valid for USA and CDN
                                                              Supersession
                                                              Supersession
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
