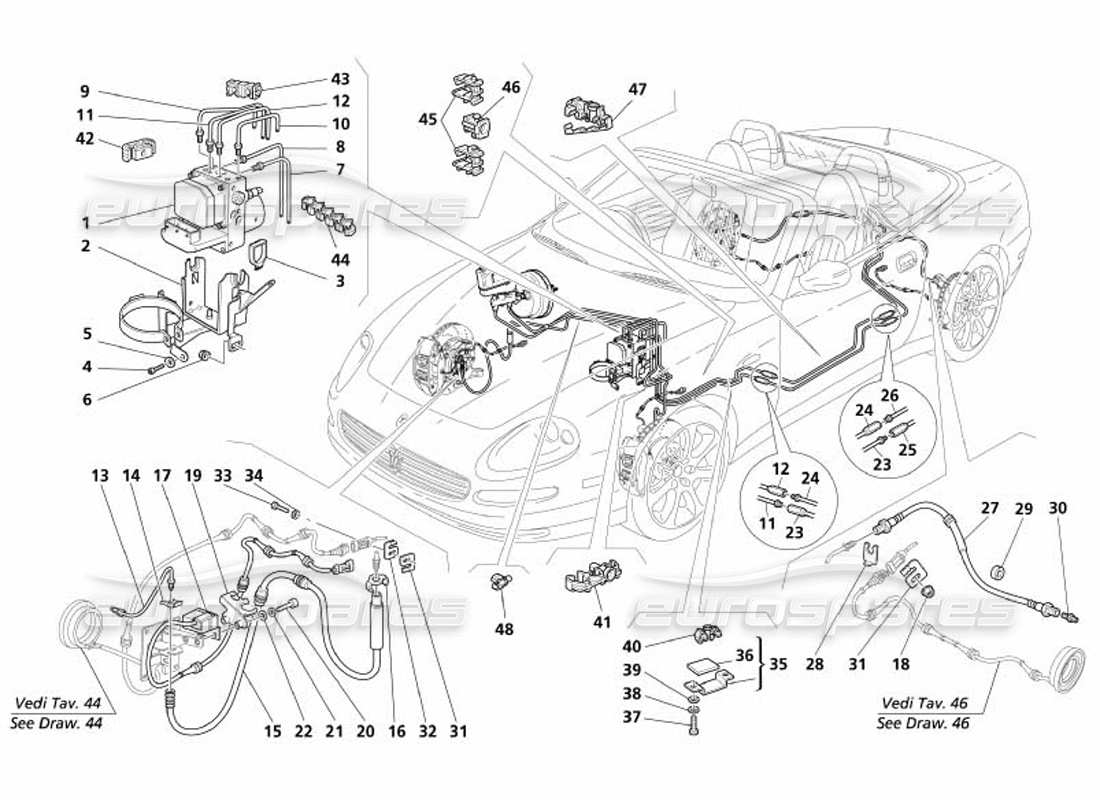

038 - Braking System -Valid for GD-

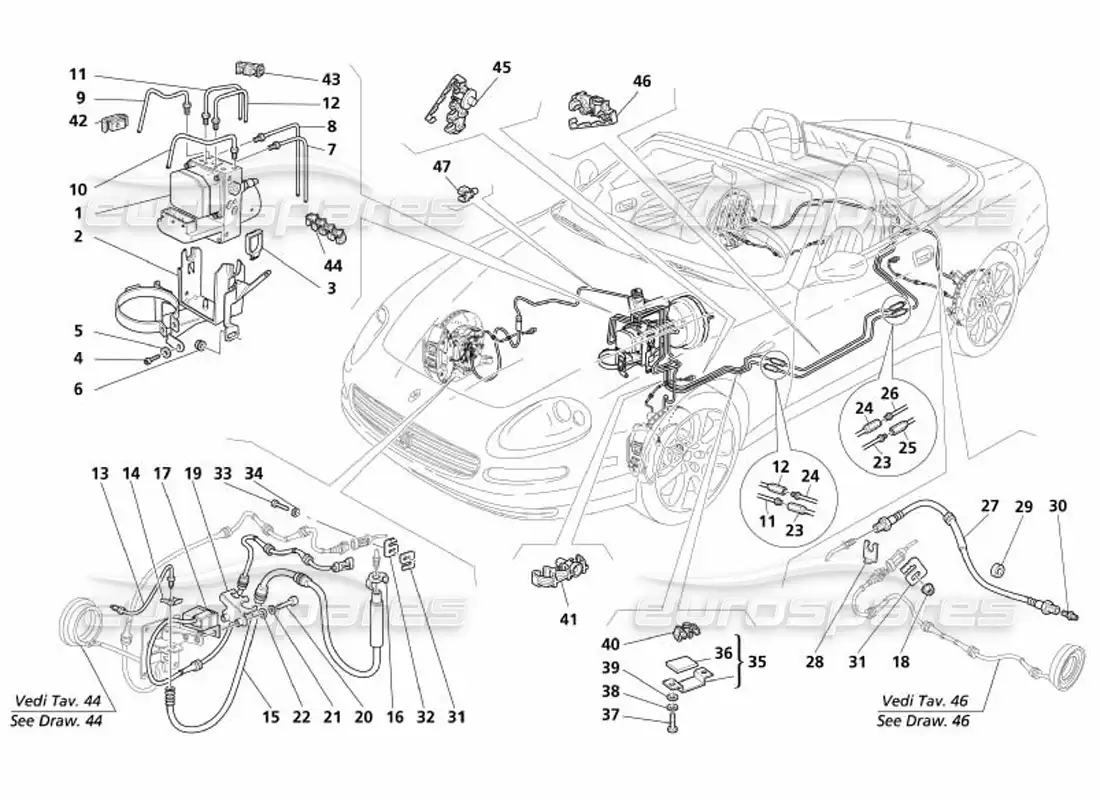

Maserati 4200 Spyder (2005) Braking System -Valid for GD- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 192444
hydraulic unit
Not for F1
from £2,904.55
from £2,904.55
This part replaces part number 192443
# 001
MPN: 198983
hydraulic unit
Valid for F1
from £2,440.24
from £2,440.24
# 002
MPN: 195570
CONTROL UNIT FIXING BRACKET
from £31.51
from £31.51
# 003
MPN: 193877
CONTROL UNIT FIXING CLIP
from £0.47
from £0.47
# 004
MPN: 14433124
SCREW
from £0.47
from £0.47
# 005
MPN: 12646604
WASHER
from £0.47
from £0.47
# 006
MPN: 14040611
NUT
from £0.54
from £0.54
# 007
MPN: 207998
BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
from £11.01
from £11.01
This part replaces part number 196616
# 008
MPN: 208018
RH FRONT BRAKE PIPE
from £28.49
from £28.49
This part replaces part number 195800
# 009
MPN: 208020
FRONT BRAKE PIPE FROM PUMP TO UNIT
from £59.75
from £59.75
This part replaces part number 196845
# 010
MPN: 208019
REAR BRAKE PIPE FROM PUMP TO UNIT
from £64.38
from £64.38
This part replaces part number 196844
# 011
MPN: 208011
LH REAR BRAKE PIPE
from £18.68
from £18.68
# 012
MPN: 208012
RH REAR BRAKE PIPE
from £15.93
from £15.93
# 013
MPN: 202776
LH FRONT CALIPER RIGID PIPE
from £34.60
from £34.60
# 013
MPN: 202777
RH FRONT CALIPER RIGID PIPE
from £51.90
from £51.90
# 014
MPN: 181897
CLIP
from £1.09
from £1.09
This part replaces part number 252814
# 015
MPN: 185956
BRAKE FLEXIBLE PIPE TO FRONT CALIPERS
from £99.83
from £99.83
# 016
MPN: 228185
CLIP
from £2.88
from £2.88
This part replaces part number 387400301
# 017
MPN: 232160
VERTICAL ACCELERATION SENSOR
Optional - Sport version
from £125.61
from £125.61
This part replaces part number 183580
# 018
MPN: 14084111
NUT
from £0.47
from £0.47
# 019
MPN: 202762
LH BRAKE PIPE SUPPORT BRACKET
from £5.36
from £5.36
# 019
MPN: 202763
RH BRAKE PIPE SUPPORT BRACKET
from £9.28
from £9.28
# 020
MPN: 14305324
SCREW
from £0.47
from £0.47
This part replaces part number 14305321
# 021
MPN: 12604274
WASHER
from £0.47
from £0.47
# 022
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496421
# 023
MPN: 208021
LH REAR CALIPER INTERMEDIATE BRAKE PIPE
from £6.82
from £6.82
# 024
MPN: 208022
RH REAR CALIPER INTERMEDIATE BRAKE PIPE
from £7.10
from £7.10
# 025
MPN: 208013
LH REAR CALIPER RIGID PIPE
from £34.18
from £34.18
This part replaces part number 190512
# 026
MPN: 208015
RH REAR CALIPER RIGID PIPE
from £11.01
from £11.01
This part replaces part number 190513
# 027
MPN: 387401155
BRAKE FLEXIBLE PIPE TO REAR CALIPERS
from £153.83
from £153.83
This part replaces part number 387400155
# 028
MPN: 181897
CLIP
from £1.09
from £1.09
This part replaces part number 252814
# 029
MPN: 327456313
SPACER RING
from £1.09
from £1.09
# 030
MPN: 387400330
UNION
from £17.29
from £17.29
This part replaces part number 387400333
# 031
MPN: 162606
CLIP
from £0.76
from £0.76
# 032
MPN: 156198
CLIP
from £8.53
from £8.53
# 033
MPN: 10977687
SCREW
from £0.47
from £0.47
# 034
MPN: 12638177
WASHER
from £1.09
from £1.09
# 035
MPN: 187464
PIPES PROTECTION BRACKET
from £8.27
from £8.27
This part replaces part number 387400102
# 036
MPN: 387400402
GASKET
from £1.56
from £1.56
# 037
MPN: 10977824
SCREW
from £1.03
from £1.03
This part replaces part number 16130321 which we have in stock
# 038
MPN: 11181574
WASHER
from £0.54
from £0.54
# 039
MPN: 14447025
WASHER
from £1.40
from £1.40
# 040
MPN: 379200408
CLIP
from £1.09
from £1.09
# 041
MPN: 188335
CLIP
from £0.83
from £0.83
# 042
MPN: 169476
CLIP
(Quantity defined duringat assembly)
from £1.51
from £1.51
# 043
MPN: 377430340
BLOCK
(Quantity defined duringat assembly)
from £0.70
from £0.70
# 044
MPN: 198641
CLIP
from £3.67
from £3.67
# 045
MPN: 377400341
CLIP
from £1.09
from £1.09
# 046
MPN: 155781
ANCHORAGE FOR CLIP
from £0.47
from £0.47
# 047
MPN: 190409
CLIP
(Quantity defined duringat assembly)
from £3.27
from £3.27
# 048
MPN: 377430346
CLIP
from £1.09
from £1.09
