040 - Hand-Brake Control

Maserati 4200 Spyder (2005) Hand-Brake Control Parts Diagram

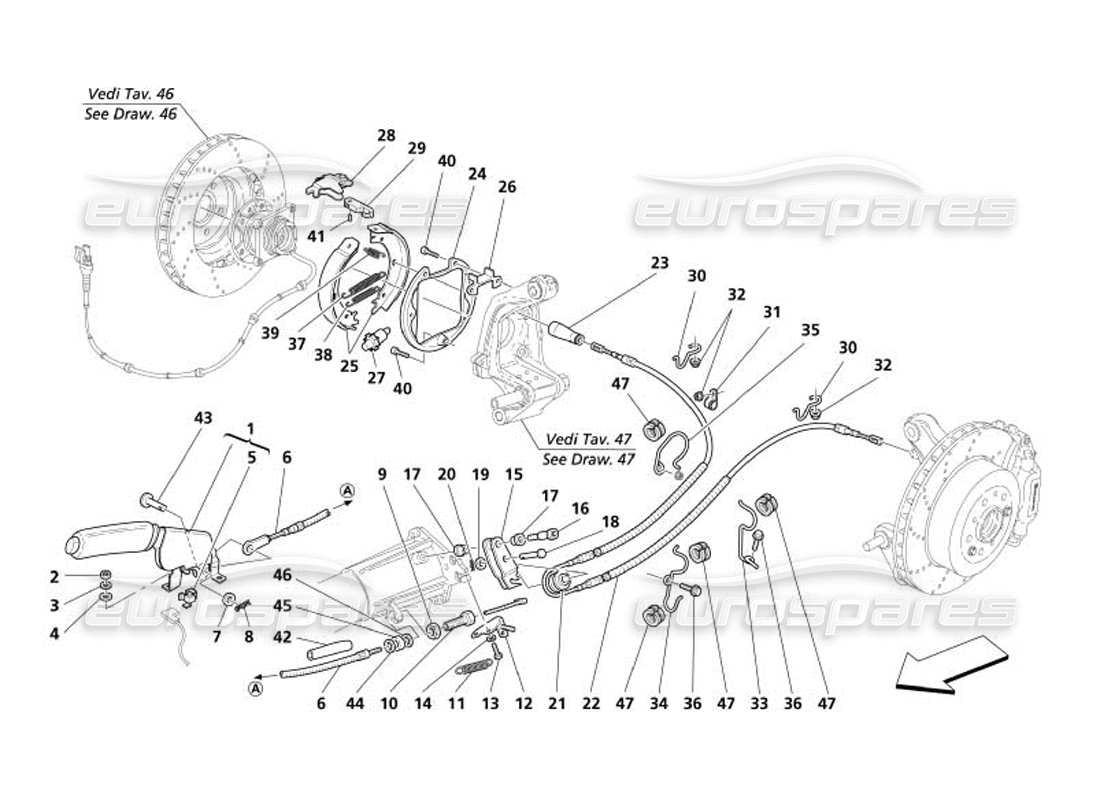

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 200889
                                                                                        COMPLETE HAND BRAKE LEVER
                                                                                        from £50.40
                                                                                        from £50.40
                                                                                        # 003
                                                                                        MPN: 14496521
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 004
                                                                                        MPN: 12628924
                                                                                        WASHER
                                                                                        from £1.85
                                                                                        from £1.85
                                                                                        # 006
                                                                                        MPN: 200778
                                                                                        FRONT CABLE
                                                                                        from £43.35
                                                                                        from £43.35
                                                                                        # 007
                                                                                        MPN: 12646604
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 008
                                                                                        MPN: 10734101
                                                                                        SPLIT PIN
                                                                                        from £1.55
                                                                                        from £1.55
                                                                                        # 009
                                                                                        MPN: 10726824
                                                                                        NUT
                                                                                        from £3.17
                                                                                        from £3.17
                                                                                        # 010
                                                                                        MPN: 185282
                                                                                        CABLE TIGHTENER
                                                                                        from £11.86
                                                                                        from £11.86
                                                                                        # 012
                                                                                        MPN: 186208
                                                                                        BRACKET FOR SPRING
                                                                                        from £8.20
                                                                                        from £8.20
                                                                                        # 013
                                                                                        MPN: 10902024
                                                                                        SCREW
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 014
                                                                                        MPN: 11199674
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 015
                                                                                        MPN: 188588
                                                                                        BRAKE TRANSMISSION LEVER
                                                                                        from £14.76
                                                                                        from £14.76
                                                                                        # 016
                                                                                        MPN: 185278
                                                                                        TRANSMISSION LEVER PIN
                                                                                        from £14.76
                                                                                        from £14.76
                                                                                        # 020
                                                                                        MPN: 10734301
                                                                                        SPLIT PIN
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 021
                                                                                        MPN: 188587
                                                                                        CABLE TRANSMISSION PULLEY
                                                                                        from £10.97
                                                                                        from £10.97
                                                                                        # 022
                                                                                        MPN: 194875
                                                                                        REAR CABLE
                                                                                        from £69.45
                                                                                        from £69.45
                                                                                        This part replaces part number 186867
                                                                                        # 023
                                                                                        MPN: 143938
                                                                                        CABLE SHEATH
                                                                                        from £16.30
                                                                                        from £16.30
                                                                                        This part replaces part number 388000341
                                                                                        # 024
                                                                                        MPN: 186574
                                                                                        SHOES SUPPORT SPACER
                                                                                        from £43.14
                                                                                        from £43.14
                                                                                        # 025
                                                                                        -
                                                                                        COMPLETE BRAKE SHOE SET
                                                                                        # 025
                                                                                        MPN: 248418
                                                                                        HAND BRAKE SHOE
                                                                                        from £96.30
                                                                                        from £96.30
                                                                                        This part replaces part number 235894
                                                                                        # 026
                                                                                        MPN: 190814
                                                                                        SMALL BLOCK
                                                                                        from £37.66
                                                                                        from £37.66
                                                                                        # 027
                                                                                        MPN: 186572
                                                                                        REGISTER FOR HAND BRAKE
                                                                                        from £22.61
                                                                                        from £22.61
                                                                                        This part replaces part number 388000113
                                                                                        # 028
                                                                                        MPN: 190782
                                                                                        HAND BRAKE CONTROL DEVICE
                                                                                        from £24.34
                                                                                        from £24.34
                                                                                        This part replaces part number 388001155
                                                                                        # 029
                                                                                        MPN: 105270
                                                                                        FORK
                                                                                        from £14.83
                                                                                        from £14.83
                                                                                        This part replaces part number 388000364
                                                                                        # 030
                                                                                        MPN: 186933
                                                                                        LH AND RH BRAKE CABLE SPRING
                                                                                        from £1.41
                                                                                        from £1.41
                                                                                        # 031
                                                                                        MPN: 10441190
                                                                                        BRACKET WITH SHEATH
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 032
                                                                                        MPN: 14058411
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 033
                                                                                        MPN: 204538
                                                                                        BRAKE CABLE SPRING
                                                                                        from £3.32
                                                                                        from £3.32
                                                                                        # 034
                                                                                        MPN: 204536
                                                                                        BRAKE CABLE FRONT SPRING
                                                                                        Valid for F1
                                                                                        from £4.72
                                                                                        from £4.72
                                                                                        # 035
                                                                                        MPN: 204537
                                                                                        BRAKE CABLE REAR SPRING
                                                                                        Valid for F1
                                                                                        from £2.96
                                                                                        from £2.96
                                                                                        # 036
                                                                                        MPN: 11730624
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 037
                                                                                        MPN: 190776
                                                                                        RETURN SPRING FOR BRAKE SHOES
                                                                                        from £9.57
                                                                                        from £9.57
                                                                                        # 038
                                                                                        MPN: 190779
                                                                                        RETURN SPRING FOR BRAKE SHOES
                                                                                        from £1.86
                                                                                        from £1.86
                                                                                        # 039
                                                                                        MPN: 190780
                                                                                        SPRING FOR SHOES
                                                                                        from £1.71
                                                                                        from £1.71
                                                                                        # 040
                                                                                        MPN: 190870
                                                                                        SCREW
                                                                                        from £1.15
                                                                                        from £1.15
                                                                                        This part replaces part number 193737 - and 1 more. Click to view details
                                                                                        # 042
                                                                                        MPN: 199471
                                                                                        SILENCER
                                                                                        Valid for F1
                                                                                        from £0.84
                                                                                        from £0.84
                                                                                        # 043
                                                                                        MPN: 200774
                                                                                        PIN
                                                                                        from £6.03
                                                                                        from £6.03
                                                                                        # 044
                                                                                        MPN: 204412
                                                                                        FRONT SPACER
                                                                                        from £8.28
                                                                                        from £8.28
                                                                                        # 045
                                                                                        MPN: 204413
                                                                                        RUBBER SPACER
                                                                                        from £4.09
                                                                                        from £4.09
                                                                                        # 046
                                                                                        MPN: 204410
                                                                                        REAR SPACER
                                                                                        from £12.90
                                                                                        from £12.90
                                                                                        # 047
                                                                                        MPN: 184519
                                                                                        PAD
                                                                                        from £1.53
                                                                                        from £1.53
