maserati 4200 spyder (2005) body - front outer trims parts diagram

100 - body - front outer trims

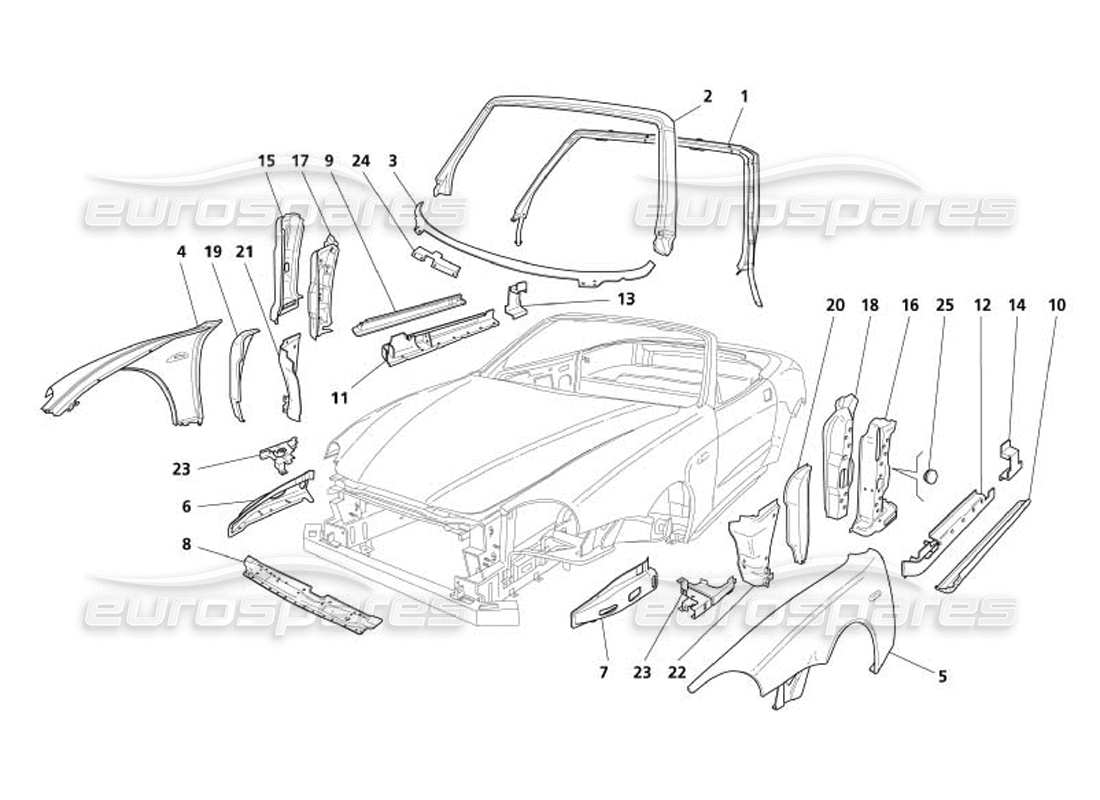

Maserati 4200 Spyder (2005) Body - Front Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 980001041
                                              COMPLETE WINDSCREEN FRAME
                                              from £640.01
                                              from £640.01
                                              # 002
                                              MPN: 980001042
                                              WINDSCREEN FRAME LINING
                                              from £890.51
                                              from £890.51
                                              # 003
                                              MPN: 66736500
                                              COMPLETE UNDERWINDSCREEN FRAME
                                              from £209.86
                                              from £209.86
                                              This part replaces part number 66196200
                                              # 004
                                              MPN: 66605500
                                              RH COMPLETE FENDER
                                              STANDARD
                                              from £467.25
                                              from £467.25
                                              This part replaces part number 65966800 - and 1 more. Click to view details
                                              # 004
                                              MPN: 67813700
                                              RH COMPLETE FENDER
                                              Optional - Vintage version
                                              from £734.91
                                              from £734.91
                                              # 005
                                              MPN: 65966900
                                              LH COMPLETE FENDER
                                              STANDARD
                                              from £917.47
                                              from £917.47
                                              # 005
                                              MPN: 67813800
                                              LH COMPLETE FENDER
                                              Optional - Vintage version
                                              from £1,345.02
                                              from £1,345.02
                                              # 006
                                              MPN: 67236200
                                              RH COMPLETE FRONT SPRAG
                                              from £851.98
                                              from £851.98
                                              This part replaces part number 382500306
                                              # 007
                                              MPN: 67236300
                                              LH COMPLETE FRONT SPRAG
                                              from £851.98
                                              from £851.98
                                              This part replaces part number 382501305
                                              # 008
                                              MPN: 980001047
                                              COMPLETE FRONT CROSS MEMBER
                                              from £444.86
                                              from £444.86
                                              # 009
                                              MPN: 67515900
                                              RH OUTER LONGITUDINAL MEMBER REINCFORCEMENT
                                              from £359.20
                                              from £359.20
                                              # 010
                                              MPN: 67516000
                                              LH OUTER LONGITUDINAL MEMBER REINFORCEMENT
                                              from £3,261.52
                                              from £3,261.52
                                              # 011
                                              MPN: 66055900
                                              RH FRONT OUTER LONGITUDINAL MEMBER
                                              from £327.01
                                              from £327.01
                                              # 012
                                              MPN: 66056000
                                              LH FRONT OUTER LONGITUDINAL MEMBER
                                              from £305.53
                                              from £305.53
                                              # 013
                                              MPN: 66055700
                                              RH OUTER LONGITUDINAL MEMBER REAR PART
                                              from £68.97
                                              from £68.97
                                              # 014
                                              MPN: 66055800
                                              LH OUTER LONGITUDINAL MEMBER REAR PART
                                              from £68.97
                                              from £68.97
                                              # 015
                                              MPN: 67236400
                                              RH FRONT ROD
                                              from £130.96
                                              from £130.96
                                              # 016
                                              MPN: 67236500
                                              LH FRONT ROD
                                              from £130.96
                                              from £130.96
                                              # 017
                                              MPN: 65825300
                                              RH FRONT INNER ROD REINFORCEMENT
                                              from £154.70
                                              from £154.70
                                              # 018
                                              MPN: 65825400
                                              LH FRONT INNER ROD REINFORCEMENT
                                              from £154.70
                                              from £154.70
                                              # 019
                                              MPN: 382500308
                                              RH FRONT FENDER LINKING
                                              from £139.41
                                              from £139.41
                                              # 020
                                              MPN: 382500307
                                              LH FRONT FENDER LINKING
                                              from £121.09
                                              from £121.09
                                              # 021
                                              MPN: 980001174
                                              COMPLETE RH FRONT ROD REINFORCEMENT
                                              from £255.79
                                              from £255.79
                                              This part replaces part number 65957700
                                              # 022
                                              MPN: 980001173
                                              COMPLETE LH FRONT ROD REINFORCEMENT
                                              from £272.63
                                              from £272.63
                                              This part replaces part number 65957800
                                              # 023
                                              MPN: 66247000
                                              BRACKET FOR LONGITUDINAL MEMBER
                                              from £131.51
                                              from £131.51
                                              # 024
                                              MPN: 66414000
                                              SHIELD FOR WATER FIXING PLATE
                                              Not for GD
                                              from £18.76
                                              from £18.76
                                              # 024
                                              MPN: 66726500
                                              SHIELD FOR WATER FIXING PLATE
                                              Valid for GD
                                              from £18.76
                                              from £18.76
                                              # 025
                                              MPN: 14507687
                                              PLUG
                                              from £0.47
                                              from £0.47
