maserati 4200 spyder (2005) glasses windshield - gaskets and inner rearwiew mirror parts diagram

122 - Glasses Windshield - Gaskets and Inner Rearwiew Mirror

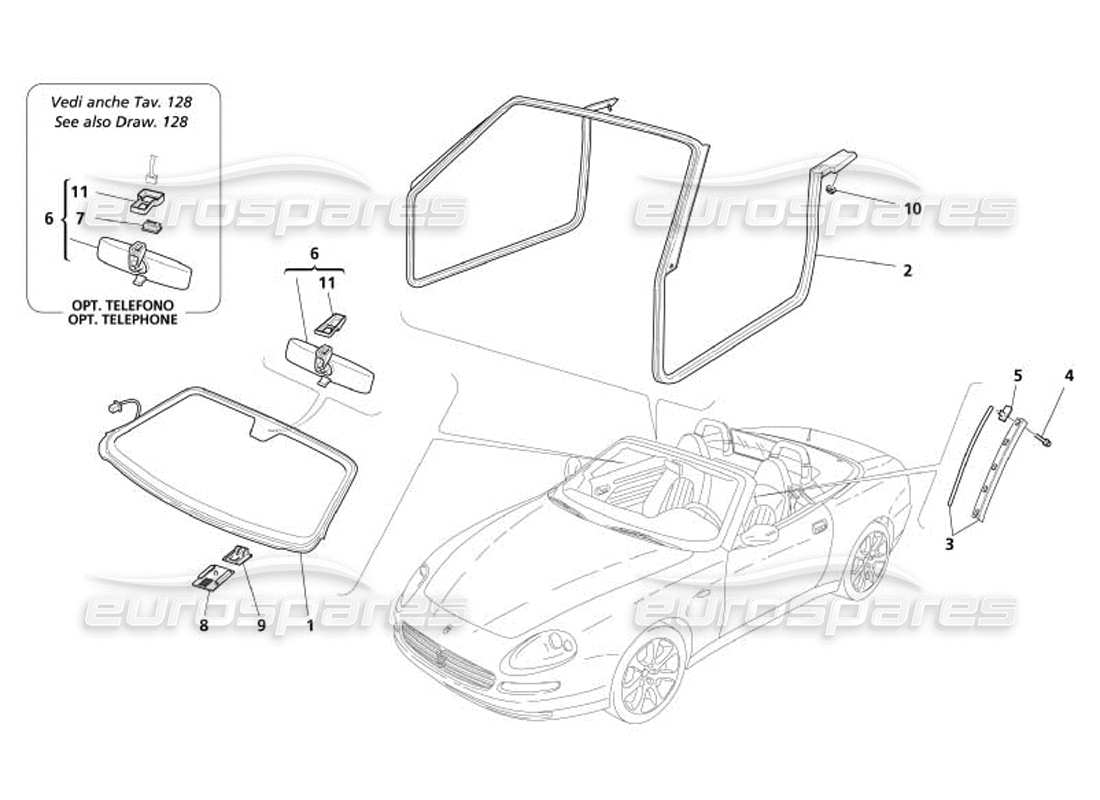

Maserati 4200 Spyder (2005) Glasses Windshield - Gaskets and Inner Rearwiew Mirror Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 67746100
                COMPLETE WINDSCREEN GLASS
                Not for USA, CDN and GD
                from £1,385.86
                from £1,385.86
                # 001
                MPN: 67746200
                COMPLETE WINDSCREEN GLASS
                Valid for USA and CDN
                from £1,122.44
                from £1,122.44
                # 001
                MPN: 67746400
                COMPLETE WINDSCREEN GLASS
                Valid for GD
                from £962.20
                from £962.20
                This part replaces part number 66664100 - and 1 more. Click to view details
                # 002
                MPN: 66365900
                GASKET FOR DOOR OPENING AND PILLAR
                from £1,309.80
                from £1,309.80
                # 003
                MPN: 65956100
                COMPLETE RH PILLAR EAVES STRUCTURAL SHAPE
                from £120.98
                from £120.98
                # 003
                MPN: 65956200
                COMPLETE LH PILLAR EAVES STRUCTURAL SHAPE
                from £75.49
                from £75.49
                # 004
                MPN: 16083501
                SCREW
                from £0.47
                from £0.47
                # 005
                MPN: 64569500
                FIXING CLIP
                from £2.07
                from £2.07
                This part replaces part number 386100308
                # 006
                MPN: 66139700
                INNER REAR VIEW MIRROR
                Standard - Not for USA and CDN
                from £77.42
                from £77.42
                # 006
                MPN: 66182900
                INNER REAR VIEW MIRROR
                Optional - Electrochromic - Standard for cars USA and CDN
                from £137.65
                from £137.65
                # 006
                MPN: 67035700
                INNER REAR VIEW MIRROR
                Optional - Telephone - Not for USA, CDN and J
                from £59.32
                from £59.32
                This part replaces part number 66308100 which we have in stock - and 1 more. Click to view details
                # 006
                MPN: 67035800
                INNER REAR VIEW MIRROR
                Optional - Electrochromic and telephone - Not for USA, CDN and J
                from £336.10
                from £336.10
                This part replaces part number 66308200
                # 007
                MPN: 183670
                MICROPHONE
                Optional - Telephone - Not for USA, CDN and J
                from £90.62
                from £90.62
                # 008
                MPN: 60545263
                BLOCK FOR WINDSCREEN
                from £0.71
                from £0.71
                # 009
                MPN: 60545262
                SLIDER FOR WINDSCREEN BLOCK
                from £1.11
                from £1.11
                # 010
                MPN: 14059111
                NUT
                from £0.47
                from £0.47
                # 011
                MPN: 67035900
                PLATE
                Valid for cars with opt. telephone
                from £78.14
                from £78.14
                # 011
                MPN: 67036000
                PLATE
                Not for cars with opt. telephone
                from £14.49
                from £14.49
