126 - Dashboard -Valid for GD-

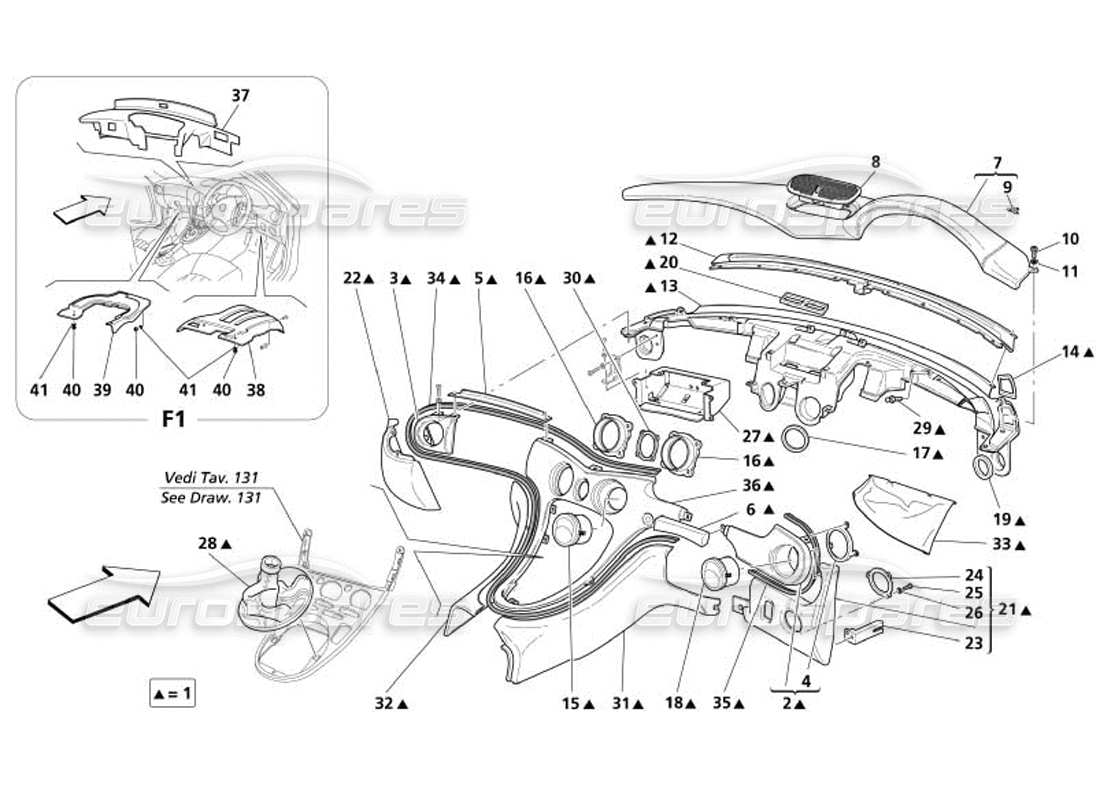

Maserati 4200 Spyder (2005) Dashboard -Valid for GD- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9811031..
COMPLETE DASHBOARD
Standard - For order specify car number
Supersession
Supersession
# 001
MPN: 9811032..
COMPLETE DASHBOARD
Optional - Xeno Headlight - For order specify car number
Supersession
Supersession
# 002
MPN: 9811038..
RH LATERAL BODY IN THE DASHBOARD
For order specify car number
Supersession
Supersession
# 003
MPN: 9811037..
LH LATERAL BODY IN THE DASHBOARD
For order specify car number
Supersession
Supersession
# 004
MPN: 382300427
PLATE
from £6.49
from £6.49
# 005
MPN: 382310395
CROSS MEMBER
from £162.41
from £162.41
# 006
MPN: 9811040..
SUBINSTRUMENT
For order specify car number
from £414.75
from £414.75
# 007
MPN: 9810004..
COMPLETE UPPER INSERT IN THE DASHBOARD
For order specify car number
from £446.25
from £446.25
# 008
MPN: 382300805
AIR DIFFUSER
from £238.52
from £238.52
This part replaces part number 382300325
# 009
MPN: 382300415
CLIP
Supersession
Supersession
# 010
MPN: 13274077
SCREW
from £0.53
from £0.53
# 010
MPN: 13274177
SCREW
from £0.53
from £0.53
# 011
MPN: 12637821
WASHER
from £0.85
from £0.85
# 012
MPN: 67293500
UPPER FRAME
from £136.44
from £136.44
This part replaces part number 382310614
# 013
MPN: 67239600
COMPLETE AIR DUCTING
from £345.42
from £345.42
This part replaces part number 382300006 - and 1 more. Click to view details
# 014
MPN: 382300602
RH AUTO-ADHESIVE SPONGE
from £1.99
from £1.99
# 014
MPN: 382300603
LH AUTO-ADHESIVE SPONGE
from £1.99
from £1.99
# 015
MPN: 382300800
CENTRAL OPENING IN THE DASHBOARD
from £149.22
from £149.22
This part replaces part number 382300318
# 016
MPN: 382300803
CHROME AIR VENT SURROUND
from £80.58
from £80.58
This part replaces part number 382300444
# 017
MPN: 382300372
GASKET
from £2.32
from £2.32
# 018
MPN: 382300802
LATERAL OPENING IN THE DASHBOARD
from £122.55
from £122.55
This part replaces part number 382300596
# 019
MPN: 382300371
GASKET
from £14.49
from £14.49
# 020
MPN: 382300374
GASKET
from £2.85
from £2.85
# 021
MPN: 666958..
COMPLETE RH LATERAL INSERT
Optional - Xeno headlights - For order specify car number
Supersession
Supersession
# 021
MPN: 666966..
COMPLETE RH LATERAL INSERT
Standard - For order specify car number
Supersession
Supersession
# 022
MPN: 9811042..
COMPLETE LH LATERAL INSERT
For order specify car number
from £78.75
from £78.75
# 023
MPN: 382300319
BRACKET
from £81.68
from £81.68
# 024
MPN: 66306900
RING NUT
from £68.71
from £68.71
# 025
MPN: 10977524
SCREW
from £0.52
from £0.52
# 026
MPN: 10519378
WASHER
from £0.54
from £0.54
# 027
MPN: 382310283
COMPLETE AIR BAG FRAMEWORK
from £24.17
from £24.17
# 028
MPN: 672339..
COMPLETE BOOT
Not for F1
Supersession
Supersession
# 029
MPN: 66224800
PIN
Supersession
Supersession
# 030
MPN: 382300512
PLATE
from £5.18
from £5.18
# 031
MPN: 9810010..
COMPLETE RH LOWER DASHBOARD COVER
For order specify car number
Supersession
Supersession
# 032
MPN: 9810009..
COMPLETE LH LOWER DASHBOARD COVER
For order specify car number
Supersession
Supersession
# 033
MPN: 9810011..
STEERING COLUMN BELLOWS LEATHER
For order specify car number
Supersession
Supersession
# 034
MPN: 9811043..
CENTRAL GASKET
For order specify car number
Supersession
Supersession
# 035
MPN: 9811044..
LATERAL GASKET
For order specify car number
Supersession
Supersession
# 036
MPN: 666954..
CENTRAL BODY IN THE DASHBOARD
For order specify car number
Supersession
Supersession
# 037
MPN: 67526900
REAR DASHBOARD SILENCER
Valid for F1
from £102.03
from £102.03
# 038
MPN: 67524600
RH SILENCER FOR UNDER DASHBOARD
Valid for F1
from £29.45
from £29.45
# 039
MPN: 67524700
LH SILENCER FOR UNDER DASHBOARD
Valid for F1
from £33.04
from £33.04
# 040
MPN: 14059111
NUT
Valid for F1
from £0.47
from £0.47
# 041
MPN: 12638101
WASHER
Valid for F1
from £0.71
from £0.71
This part replaces part number 12638121
