0007 - INJECTION SYSTEM - IGNITION

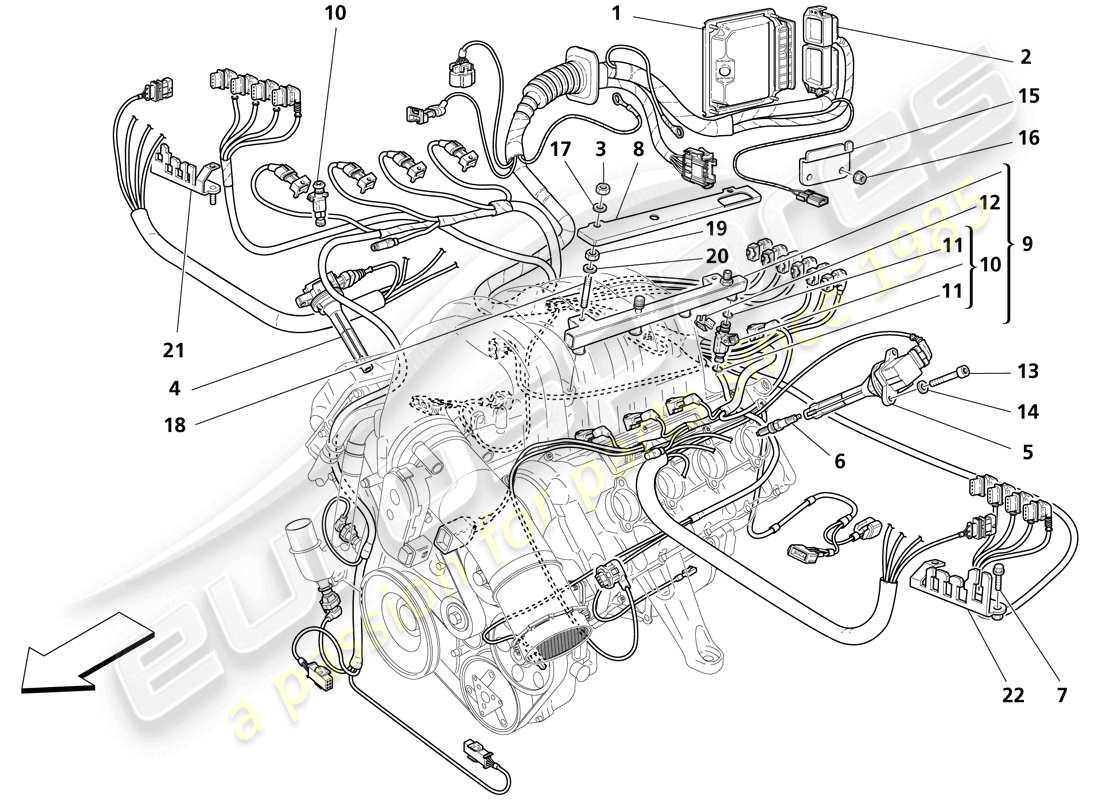

Maserati Trofeo INJECTION SYSTEM - IGNITION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 197238
CONTROL UNIT IGNITION
from £784.25
from £784.25
# 002
MPN: 198374
INJECTION DEVICE CABLES
# 003
MPN: 14042321
CAP NUT
from £1.42
from £1.42
This part replaces part number 14042311
# 004
MPN: 188504
FRONT IGNITION COIL
Complete of cable
from £62.84
from £62.84
# 005
MPN: 186914
REAR IGNITION COIL
Complete of cable
from £62.84
from £62.84
# 006
MPN: 168325
SPARK PLUG
from £14.07
from £14.07
This part replaces part number 585088400
# 007
MPN: 18750121
SCREW
from £0.47
from £0.47
# 008
MPN: 189123
RH FLAUTES FUEL COVER
from £12.42
from £12.42
This part replaces part number 187172 - and 1 more. Click to view details
# 008
MPN: 189124
LH FLAUTES FUEL COVER
from £12.42
from £12.42
This part replaces part number 187171 - and 1 more. Click to view details
# 009
MPN: 197845
COMPLETE LH INJECTORS PIPE
Supersession
Supersession
# 009
MPN: 197846
COMPLETE RH INJECTORS PIPE
Supersession
Supersession
# 010
MPN: 197808
ELECTRO-INJECTOR
from £156.91
from £156.91
This part replaces part number 171723 which we have in stock
# 011
MPN: 133902
O.R. GASKET
from £3.29
from £3.29
# 012
MPN: 144730
INJECTORS RETAINING CLIP
from £2.24
from £2.24
# 013
MPN: 14305324
SCREW
from £0.48
from £0.48
This part replaces part number 14305321
# 014
MPN: 11197774
WASHER
from £0.52
from £0.52
# 015
MPN: 66313100
MOTRONIC BRACKET
from £3.90
from £3.90
# 016
MPN: 14084211
NUT
from £0.71
from £0.71
This part replaces part number 14084217
# 017
MPN: 11193874
WASHER
from £0.53
from £0.53
# 018
MPN: 13516924
STUD
from £1.31
from £1.31
# 019
MPN: 16102314
NUT
from £0.53
from £0.53
# 020
MPN: 12604474
WASHER
from £0.53
from £0.53
This part replaces part number 12604479
# 021
MPN: 190009
RH BRACKET FOR COIL CABLES
from £6.99
from £6.99
# 022
MPN: 1900010
LH BRACKET FOR COIL CABLES
