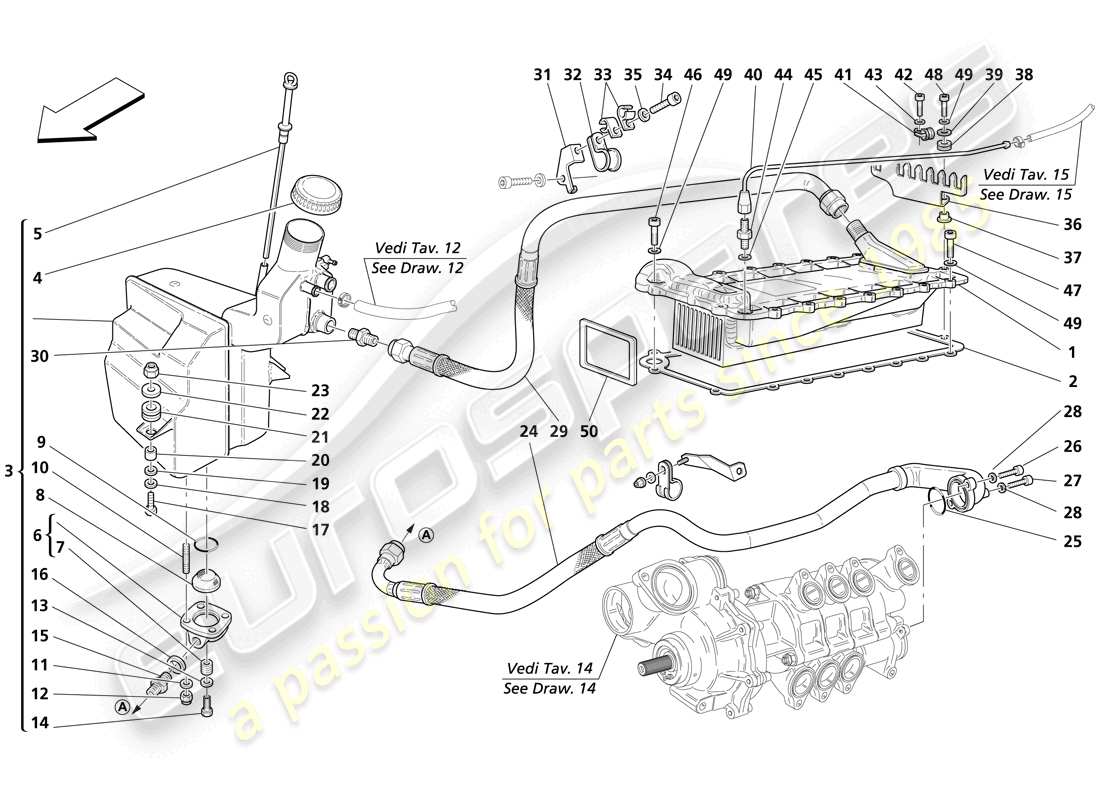

0013 - Lubrication System - Tank - Heater Exchanger

Maserati Trofeo LUBRICATION SYSTEM - TANK - HEATER EXCHANGER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 186356
                                                                                          WATER AND OIL EXCHANGER
                                                                                          from £2,655.00
                                                                                          from £2,655.00
                                                                                          # 002
                                                                                          MPN: 185581
                                                                                          GASKET
                                                                                          Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                                                                          from £26.18
                                                                                          from £26.18
                                                                                          # 003
                                                                                          MPN: 197262
                                                                                          COMPLETE OIL TANK
                                                                                          from £553.87
                                                                                          from £553.87
                                                                                          # 004
                                                                                          MPN: 189116
                                                                                          PLUG
                                                                                          from £63.92
                                                                                          from £63.92
                                                                                          This part replaces part number 113401
                                                                                          # 005
                                                                                          MPN: 192510
                                                                                          OIL LEVEL ROD
                                                                                          from £5.85
                                                                                          from £5.85
                                                                                          This part replaces part number 188627 - and 1 more. Click to view details
                                                                                          # 006
                                                                                          MPN: 151684
                                                                                          OIL SUCTION FAN
                                                                                          from £102.81
                                                                                          from £102.81
                                                                                          # 007
                                                                                          MPN: 111352
                                                                                          THREADED INSERT
                                                                                          from £67.48
                                                                                          from £67.48
                                                                                          # 008
                                                                                          MPN: 100332
                                                                                          OIL SUCTION FILTER
                                                                                          from £9.15
                                                                                          from £9.15
                                                                                          # 010
                                                                                          MPN: 11500424
                                                                                          STUD
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          # 011
                                                                                          MPN: 12601274
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 12601270
                                                                                          # 012
                                                                                          MPN: 102948
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 013
                                                                                          MPN: 10257060
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 014
                                                                                          MPN: 10300711
                                                                                          THREADED PLUG
                                                                                          from £0.69
                                                                                          from £0.69
                                                                                          # 015
                                                                                          MPN: 186746
                                                                                          THREADED UNION
                                                                                          from £42.07
                                                                                          from £42.07
                                                                                          # 016
                                                                                          MPN: 144485
                                                                                          GASKET
                                                                                          from £12.40
                                                                                          from £12.40
                                                                                          # 017
                                                                                          MPN: 16043834
                                                                                          SCREW
                                                                                          from £0.52
                                                                                          from £0.52
                                                                                          This part replaces part number 16043824
                                                                                          # 018
                                                                                          MPN: 14496524
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 019
                                                                                          MPN: 127496
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 384600330
                                                                                          # 020
                                                                                          MPN: 107980
                                                                                          SPACER
                                                                                          from £1.55
                                                                                          from £1.55
                                                                                          # 021
                                                                                          MPN: 184519
                                                                                          PAD
                                                                                          from £1.53
                                                                                          from £1.53
                                                                                          # 022
                                                                                          MPN: 107979
                                                                                          CUP
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          # 023
                                                                                          MPN: 16104411
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 024
                                                                                          MPN: 197261
                                                                                          PIPE FROM TANK TO PUMP
                                                                                          from £571.94
                                                                                          from £571.94
                                                                                          # 025
                                                                                          MPN: 109649
                                                                                          GASKET
                                                                                          Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                                                                          from £0.70
                                                                                          from £0.70
                                                                                          # 026
                                                                                          MPN: 14305424
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 027
                                                                                          MPN: 14303824
                                                                                          SCREW
                                                                                          from £1.28
                                                                                          from £1.28
                                                                                          # 028
                                                                                          MPN: 11197774
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 029
                                                                                          MPN: 186060
                                                                                          PIPE FROM HEAT EXCHANGER TO OIL TANK
                                                                                          from £131.88
                                                                                          from £131.88
                                                                                          # 030
                                                                                          MPN: 170157
                                                                                          UNION
                                                                                          from £27.69
                                                                                          from £27.69
                                                                                          # 031
                                                                                          MPN: 184821
                                                                                          BRACKET
                                                                                          from £9.20
                                                                                          from £9.20
                                                                                          # 032
                                                                                          MPN: 10441890
                                                                                          BRACKET WITH SHEATH
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 033
                                                                                          MPN: 187713
                                                                                          CLIP
                                                                                          from £3.16
                                                                                          from £3.16
                                                                                          This part replaces part number 98055
                                                                                          # 034
                                                                                          MPN: 14305724
                                                                                          SCREW
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 035
                                                                                          MPN: 11197774
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 036
                                                                                          MPN: 191396
                                                                                          BRACKET
                                                                                          from £4.51
                                                                                          from £4.51
                                                                                          # 037
                                                                                          MPN: 149707
                                                                                          SPACER
                                                                                          from £0.78
                                                                                          from £0.78
                                                                                          # 038
                                                                                          MPN: 177576
                                                                                          CABLE GROMMET
                                                                                          from £1.48
                                                                                          from £1.48
                                                                                          # 039
                                                                                          MPN: 12643724
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 040
                                                                                          MPN: 185469
                                                                                          COMPLETE VENT PIPE
                                                                                          from £126.76
                                                                                          from £126.76
                                                                                          # 041
                                                                                          MPN: 10440890
                                                                                          BRACKET WITH SHEATH
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 042
                                                                                          MPN: 14305024
                                                                                          SCREW
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 043
                                                                                          MPN: 11197774
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 044
                                                                                          MPN: 182496
                                                                                          UNION
                                                                                          from £34.45
                                                                                          from £34.45
                                                                                          # 045
                                                                                          MPN: 10284460
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 046
                                                                                          MPN: 14305524
                                                                                          SCREW
                                                                                          M 6X30
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 047
                                                                                          MPN: 14305424
                                                                                          SCREW
                                                                                          M 6X25
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 047
                                                                                          MPN: 14432224
                                                                                          SCREW
                                                                                          M 6X22
                                                                                          from £0.49
                                                                                          from £0.49
                                                                                          # 048
                                                                                          MPN: 14305624
                                                                                          SCREW
                                                                                          M 6X35
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 049
                                                                                          MPN: 11197774
                                                                                          WASHER
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          # 050
                                                                                          MPN: 174600
                                                                                          GASKET
                                                                                          Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                                                                          from £4.48
                                                                                          from £4.48
