0021 - Gearbox - Cover - Gearbox Oil Radiator

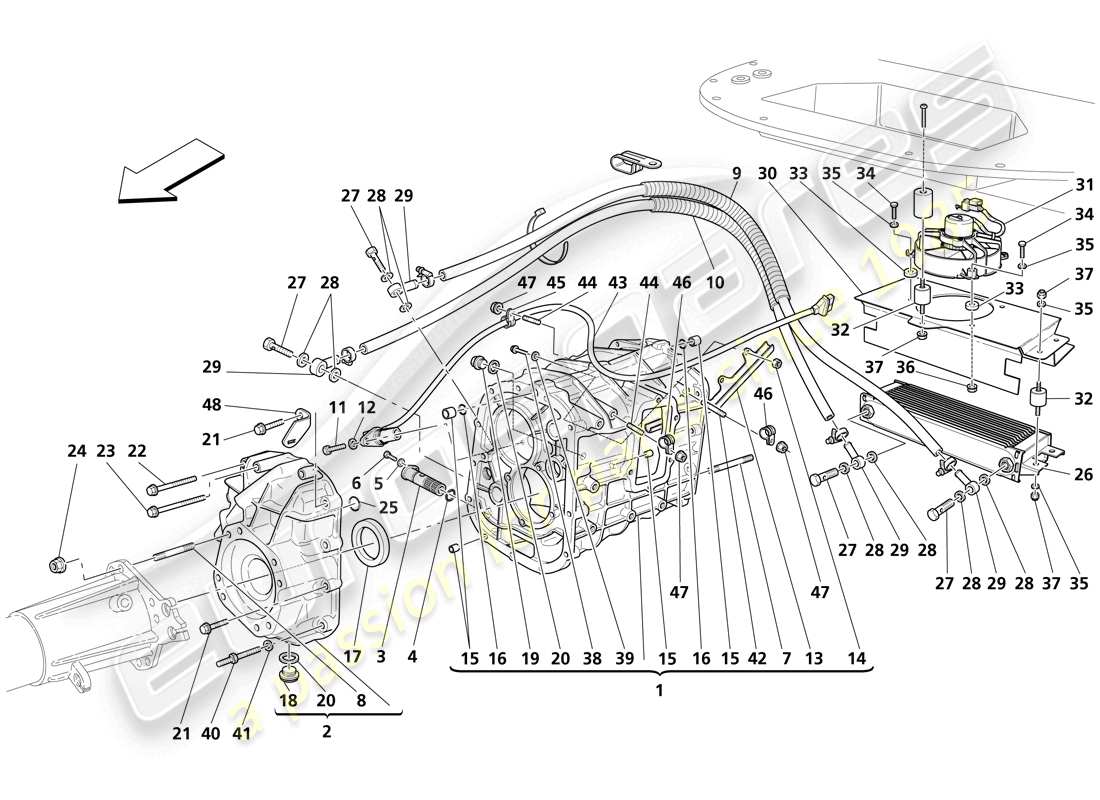

Maserati Trofeo GEARBOX - COVER - GEARBOX OIL RADIATOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 192736
COMPLETE GEARBOX
from £566.53
from £566.53
This part replaces part number 184518
# 002
MPN: 192734
COMPLETE FRONT COVER
from £320.16
from £320.16
This part replaces part number 184773
# 003
MPN: 182416
OIL FILTER
from £66.04
from £66.04
# 004
MPN: 182119
O.R. GASKET
from £2.54
from £2.54
# 005
MPN: 11199277
WASHER
from £1.96
from £1.96
# 006
MPN: 10977624
SCREW
from £0.53
from £0.53
# 007
MPN: 13543624
STUD
from £0.51
from £0.51
# 008
MPN: 13546334
STUD
from £0.62
from £0.62
# 009
MPN: 198776
GEARBOX RADIATOR PIPE
L. 1320 mm.
from £104.52
from £104.52
# 010
MPN: 198777
GEARBOX RADIATOR PIPE
L. 1080 mm.
from £101.06
from £101.06
# 011
MPN: 10902224
SCREW
from £0.53
from £0.53
# 012
MPN: 11194377
WASHER
from £0.71
from £0.71
# 013
MPN: 185714
OIL TILE
from £10.49
from £10.49
# 014
MPN: 15896211
NUT
Supersession
Supersession
# 015
MPN: 150957
CENTERING DOWEL
from £4.55
from £4.55
# 016
MPN: 14456981
O.R. GASKET
from £0.56
from £0.56
# 017
MPN: 185719
OIL RING
from £47.93
from £47.93
# 018
MPN: 183962
MAGNETIC PLUG
from £15.25
from £15.25
This part replaces part number 4123120
# 019
MPN: 10305111
THREADED PLUG
from £3.65
from £3.65
# 020
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 10261830
# 021
MPN: 16287521
SCREW
from £0.75
from £0.75
# 022
MPN: 16287731
SCREW
from £1.22
from £1.22
# 023
MPN: 16288121
SCREW
from £2.63
from £2.63
# 024
MPN: 156462
NUT
Supersession
Supersession
# 025
MPN: 14453581
O.R. GASKET
from £2.74
from £2.74
# 026
MPN: 198427
OIL RADIATOR
from £519.09
from £519.09
# 027
MPN: 178719
UNION
from £3.20
from £3.20
# 028
MPN: 10280060
GASKET
from £0.48
from £0.48
# 029
MPN: 193594
UNION
Supersession
Supersession
# 030
MPN: 197272
CONVEYOR SUPPORT
from £118.30
from £118.30
# 031
MPN: 197273
BLOWER
from £226.42
from £226.42
# 032
MPN: 198781
SILENTBLOCK
from £8.50
from £8.50
# 038
MPN: 16286121
SCREW
from £0.53
from £0.53
# 039
MPN: 10297760
GASKET
from £0.53
from £0.53
# 040
MPN: 188077
STUD
from £5.41
from £5.41
# 041
MPN: 12601374
WASHER
from £0.53
from £0.53
# 042
MPN: 11500024
STUD
from £1.64
from £1.64
# 043
MPN: 168729
ELECTRO-MAGNETIC SENSOR
from £77.38
from £77.38
# 044
MPN: 11500024
STUD
from £1.64
from £1.64
# 045
MPN: 10441190
BRACKET WITH SHEATH
from £0.54
from £0.54
# 046
MPN: 10441490
BRACKET WITH SHEATH
from £0.51
from £0.51
# 047
MPN: 14058411
NUT
from £0.53
from £0.53
# 048
MPN: 188004
CONNECTOR SUPPORT BRACKET
from £11.14
from £11.14
