0029 - Braking system

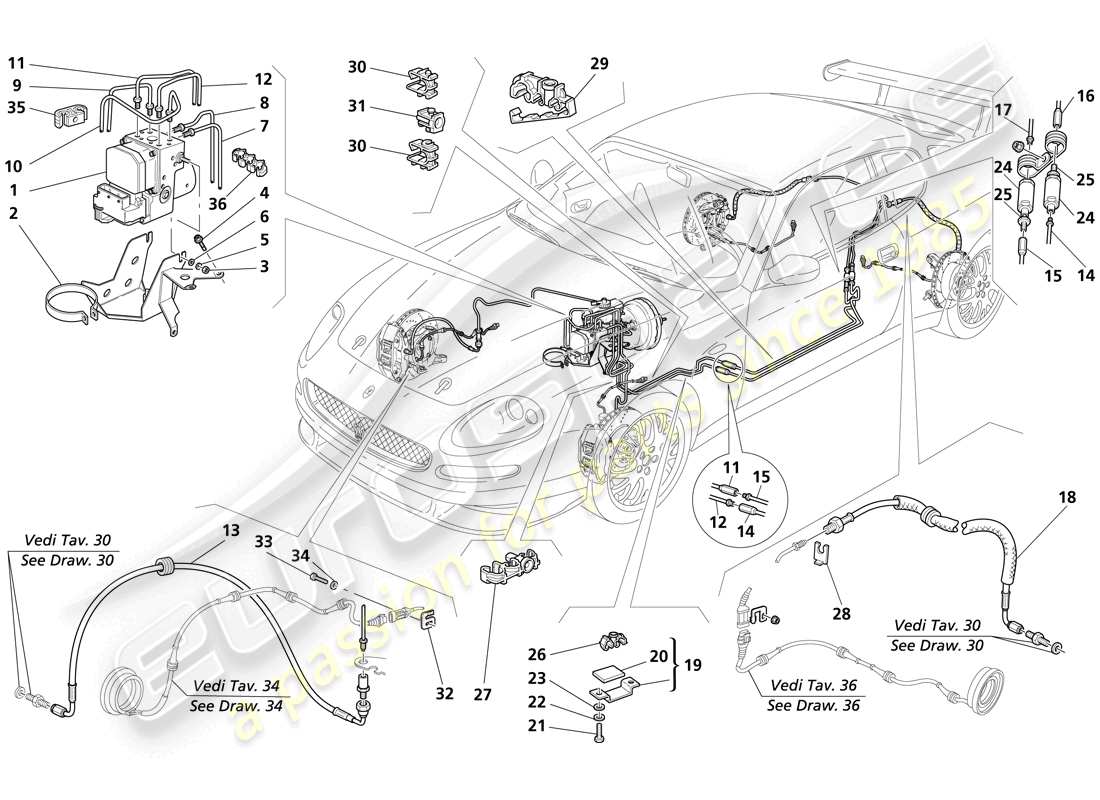

Maserati Trofeo BRAKING SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 184827
hydraulic unit
Supersession
Supersession
# 002
MPN: 186860
CONTROL UNIT FIXING BRACKET
from £28.92
from £28.92
# 003
MPN: 16100814
NUT
from £0.71
from £0.71
# 004
MPN: 11730624
SCREW
from £0.53
from £0.53
# 005
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 384600330
# 006
MPN: 12638524
WASHER
from £0.54
from £0.54
# 007
MPN: 3874000143
BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
# 008
MPN: 184181
RH FRONT BRAKE PIPE
from £8.71
from £8.71
# 009
MPN: 185823
FRONT BRAKE PIPE FROM PUMP TO UNIT
from £4.62
from £4.62
# 010
MPN: 185822
REAR BRAKE PIPE FROM PUMP TO UNIT
from £5.43
from £5.43
# 011
MPN: 184180
RH REAR BRAKE PIPE
from £10.63
from £10.63
# 012
MPN: 184178
LH REAR BRAKE PIPE
from £10.41
from £10.41
# 013
MPN: 197282
RH FRONT BRAKE PIPE
Supersession
Supersession
# 013
MPN: 197283
LH FRONT BRAKE PIPE
Supersession
Supersession
# 014
MPN: 198912
LH REAR CALIPER INTERMEDIATE BRAKE PIPE
from £40.59
from £40.59
# 015
MPN: 198913
RH REAR CALIPER INTERMEDIATE BRAKE PIPE
from £40.59
from £40.59
# 016
MPN: 198790
LH REAR CALIPER RIGID PIPE
from £43.97
from £43.97
# 017
MPN: 198791
RH REAR CALIPER RIGID PIPE
from £43.97
from £43.97
# 018
MPN: 197284
RH REAR BRAKE PIPE
# 018
MPN: 197285
LH REAR BRAKE PIPE
from £265.01
from £265.01
# 019
MPN: 187464
PIPES PROTECTION BRACKET
from £8.68
from £8.68
This part replaces part number 387400102
# 020
MPN: 387400402
GASKET
from £1.64
from £1.64
# 021
MPN: 10977824
SCREW
from £1.14
from £1.14
This part replaces part number 16130321 which we have in stock
# 022
MPN: 11181574
WASHER
from £0.54
from £0.54
# 023
MPN: 14447025
WASHER
from £1.47
from £1.47
# 024
MPN: 131322
BRAKING REGULATOR
from £114.66
from £114.66
# 025
MPN: 387400330
UNION
from £18.19
from £18.19
This part replaces part number 387400333
# 026
MPN: 379200408
CLIP
from £1.14
from £1.14
# 027
MPN: 188335
CLIP
from £1.02
from £1.02
# 028
MPN: 181897
CLIP
from £1.14
from £1.14
This part replaces part number 252814
# 029
MPN: 190409
CLIP
from £3.43
from £3.43
# 030
MPN: 377400341
BLOCK
(Quantity defined during at assembly)
from £1.14
from £1.14
# 031
MPN: 155781
ANCHORAGE FOR CLIP
(Quantity defined during at assembly)
from £0.47
from £0.47
# 032
MPN: 162606
CLIP
from £0.88
from £0.88
# 033
MPN: 10977687
SCREW
from £0.53
from £0.53
# 034
MPN: 12638177
WASHER
from £1.14
from £1.14
# 035
MPN: 169476
CLIP
from £1.70
from £1.70
# 036
MPN: 377419334
CLIP
from £1.64
from £1.64
