0035 - FRONT SUSPENSION - WASHBONES AND STABILIZER BAR

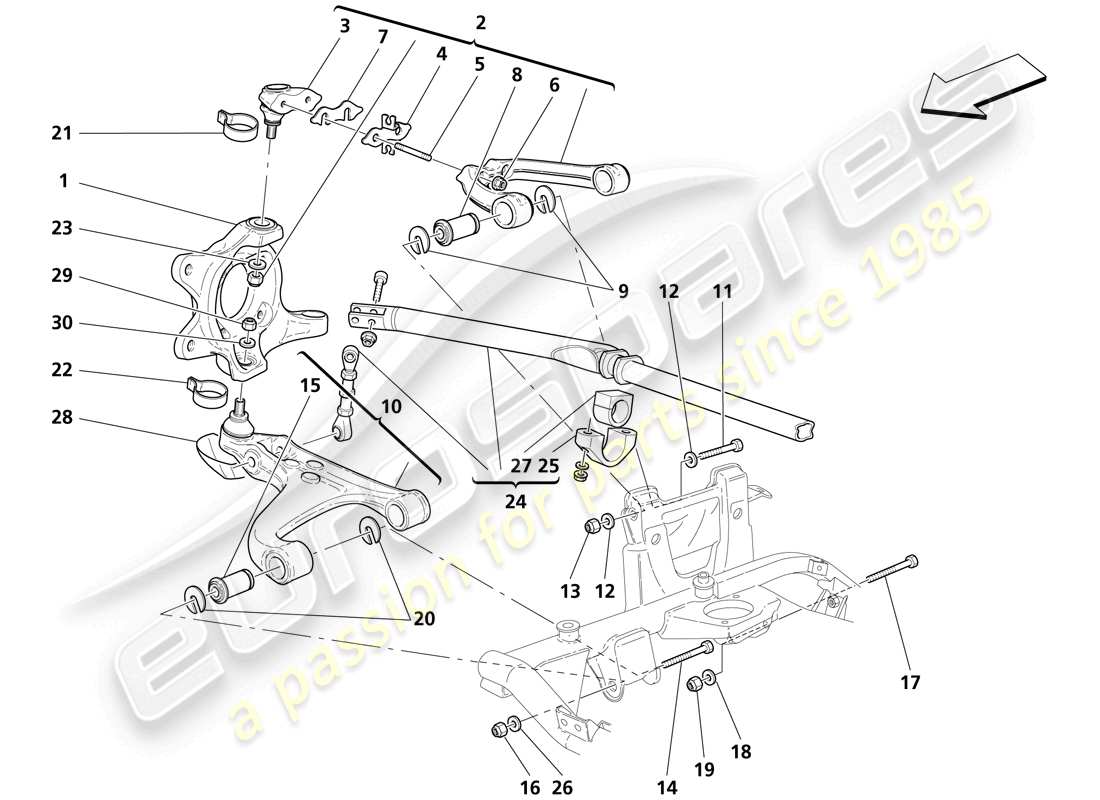

Maserati Trofeo FRONT SUSPENSION - WASHBONES AND STABILIZER BAR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 189328
RH FRONT HUB HOLDER
Valid for MY 2003Valid for MY 2004Valid till stock exhaustion
from £677.08
from £677.08
# 001
MPN: 189329
LH FRONT HUB HOLDER
Valid for MY 2003Valid for MY 2004Valid till stock exhaustion
from £677.08
from £677.08
# 001
MPN: 216640
RH FRONT HUB HOLDER
Valid for MY 2005
# 001
MPN: 216641
LH FRONT HUB HOLDER
Valid for MY 2005
# 002
MPN: 197632
COMPLETE RH UPPER LEVER
from £585.62
from £585.62
# 002
MPN: 197638
COMPLETE LH UPPER LEVER
from £585.62
from £585.62
# 003
MPN: 3866000129
JOINT FOR UPPER LEVER
# 004
MPN: 190691
RH CABLES SUPPORTING BRACKET
from £10.93
from £10.93
# 004
MPN: 190692
LH CABLES SUPPORTING BRACKET
from £11.95
from £11.95
# 006
MPN: 14058521
NUT
from £1.04
from £1.04
# 007
MPN: 386600411
ADJUSTMENT TICKNESS
mm. 0,5
from £3.12
from £3.12
# 007
MPN: 386600412
ADJUSTMENT TICKNESS
MM. 1
from £3.12
from £3.12
# 007
MPN: 386600413
ADJUSTMENT TICKNESS
mm. 2,5
from £2.52
from £2.52
# 008
MPN: 197451
FRONT BUSHING
# 009
MPN: 386600425
WASHER
Thickness mm. 0,5
from £5.89
from £5.89
This part replaces part number 66667900
# 009
MPN: 386600426
WASHER
Tickness mm. 0,75
from £2.52
from £2.52
# 009
MPN: 386600427
WASHER
THICKNESS MM. 1
from £2.02
from £2.02
This part replaces part number 66668000
# 009
MPN: 386600428
WASHER
Tickness mm. 1,75
from £2.52
from £2.52
# 009
MPN: 386600429
WASHER
Tickness mm. 3
from £2.02
from £2.02
# 010
MPN: 197631
COMPLETE RH LOWER LEVER
Valid for MY 2003Valid for MY 2004Valid till stock exhaustion
from £592.85
from £592.85
# 010
MPN: 197637
COMPLETE LH LOWER LEVER
Valid for MY 2003Valid for MY 2004Valid till stock exhaustion
from £592.85
from £592.85
# 010
MPN: 216605
COMPLETE RH LOWER LEVER
Valid for MY 2005
# 010
MPN: 216606
COMPLETE LH LOWER LEVER
Valid for MY 2005
# 011
MPN: 15541521
SCREW
from £2.69
from £2.69
# 012
MPN: 14496721
WASHER
from £0.48
from £0.48
# 013
MPN: 15503811
NUT
from £1.18
from £1.18
# 014
MPN: 196071
SCREW
from £4.63
from £4.63
# 016
MPN: 15503915
NUT
from £1.78
from £1.78
# 017
MPN: 189137
SCREW
from £19.68
from £19.68
# 018
MPN: 13579861
WASHER
from £15.39
from £15.39
# 019
MPN: 386600441
NUT
from £2.67
from £2.67
# 020
MPN: 377030378
WASHER
Thickness mm. 0,5
from £3.45
from £3.45
# 020
MPN: 377030379
WASHER
Tickness mm. 0,75
from £4.20
from £4.20
# 020
MPN: 377030380
WASHER
THICKNESS MM. 1
from £18.76
from £18.76
# 020
MPN: 377030381
WASHER
Tickness mm. 1,75
from £4.20
from £4.20
# 020
MPN: 377030382
WASHER
Tickness mm. 3
from £4.97
from £4.97
# 021
MPN: 386600416
JOINT UPPER PROTECTION
from £3.95
from £3.95
# 022
MPN: 1600019
JOINT LOWER PROTECTION
# 023
MPN: 386600403
WASHER
from £6.57
from £6.57
# 024
MPN: 197442
ANTI-ROLL BAR KIT
from £3,473.44
from £3,473.44
# 025
MPN: 197445
SUPPORT
from £286.16
from £286.16
# 026
MPN: 14496825
WASHER
from £1.29
from £1.29
# 027
MPN: 197446
BUSHING
from £170.20
from £170.20
# 028
MPN: 216612
HEAT PROTECTION
Valid for MY 2005
# 029
MPN: 216619
NUT
Valid for MY 2005
# 030
MPN: 386600403
WASHER
Valid for MY 2003Valid for MY 2004
from £6.57
from £6.57
