maserati trofeo engine bonnet parts diagram

0111 - Engine Bonnet

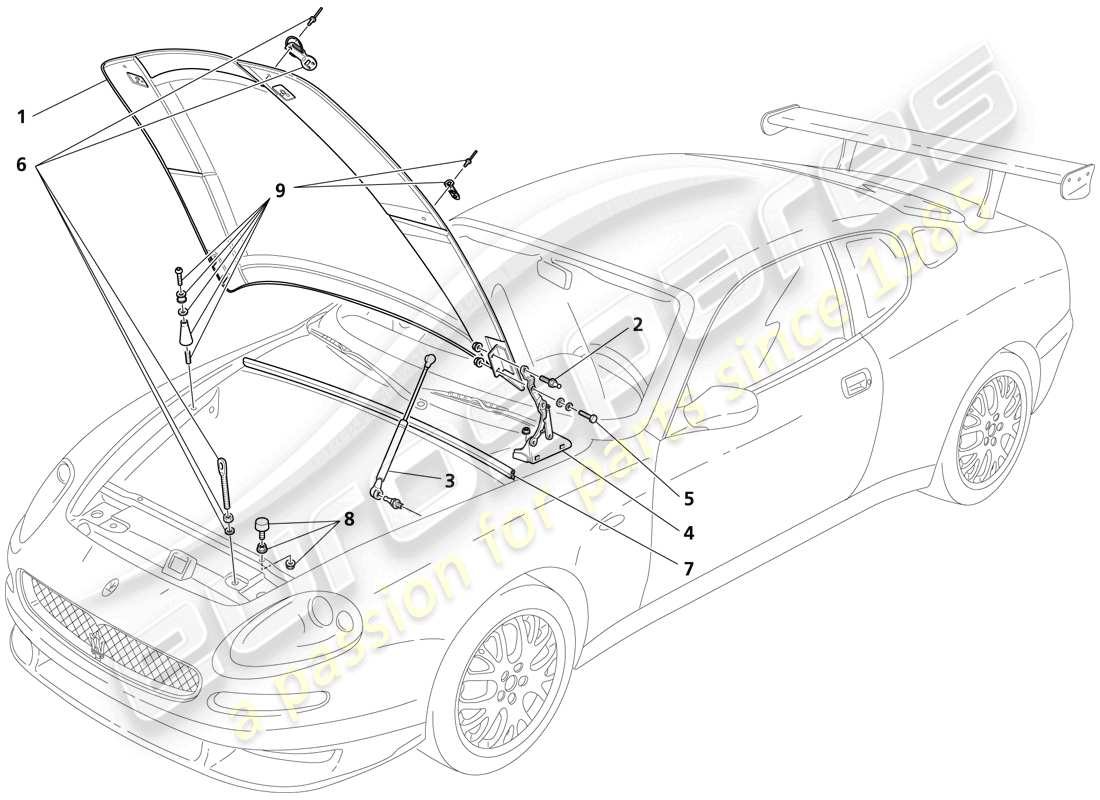

Maserati Trofeo ENGINE BONNET Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 67734800
      ENGINE HOOD BONNET
      Version with light hood
      from £12,449.03
      from £12,449.03
      # 001
      MPN: 980138588
      ENGINE HOOD BONNET
      Standard (Included the Part. N. 67533700 pos. 6 and 68362900 pos. 9)
      from £4,451.43
      from £4,451.43
      This part replaces part number 67651900
      # 002
      MPN: 384300322
      BALL PIN
      STANDARD
      from £8.78
      from £8.78
      # 003
      MPN: 384300122
      GAS SPRING
      STANDARD
      from £50.32
      from £50.32
      # 004
      MPN: 384300115
      LH HINGE
      STANDARD
      from £136.35
      from £136.35
      # 004
      MPN: 384300116
      RH HINGE
      STANDARD
      from £136.35
      from £136.35
      # 005
      MPN: 18770424
      SCREW
      STANDARD
      Supersession
      Supersession
      This part replaces part number 14300924
      # 006
      MPN: 67533700
      FRONT HOOD FIXINGS SUPPORT
      STANDARD
      from £74.88
      from £74.88
      # 007
      MPN: 384300410
      GASKET
      Supersession
      Supersession
      # 009
      MPN: 68362900
      FRONT HOOD FIXINGS KIT
      Valid for MY 2004 Valid for MY 2005
      from £105.85
      from £105.85
