maserati trofeo glasses - gaskets and inner rearview mirror parts diagram

0116 - Glasses - Gaskets and Inner Rearview Mirror

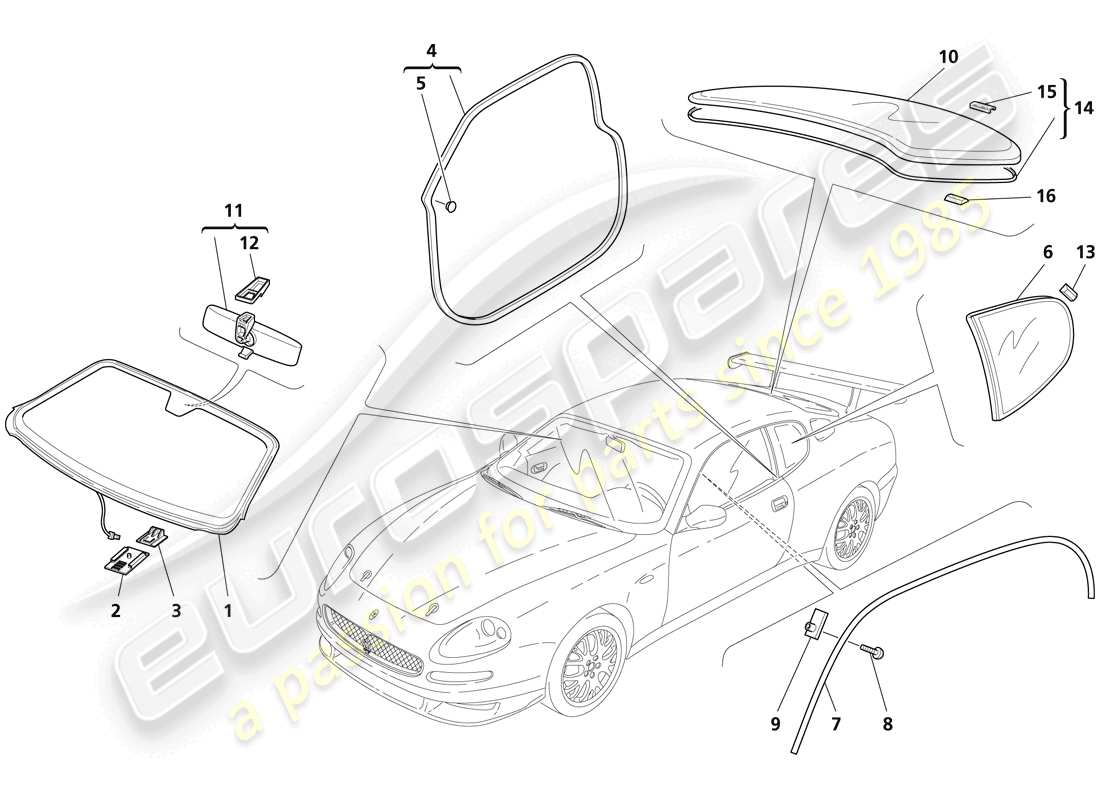

Maserati Trofeo GLASSES - GASKETS AND INNER REARVIEW MIRROR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 387700050
                          COMPLETE RH DEVICE FOR GLASS LIFT
                          STANDARD
                          from £919.64
                          from £919.64
                          This part replaces part number 387700040
                          COMPLETE RH DEVICE FOR GLASS LIFT Genuine Maserati Part - New (to order)
                          # 001
                          MPN: 387700051
                          COMPLETE LH DEVICE FOR GLASS LIFT
                          STANDARD
                          from £569.19
                          from £569.19
                          This part replaces part number 387700041
                          LH Window Power Device Genuine Maserati Part - New (to order)
                          # 002
                          MPN: 980001800
                          MICRO-SWITCH
                          STANDARD
                          from £126.81
                          from £126.81
                          POWER WINDOW MICROSWITCH Genuine Maserati Part - New (to order)
                          # 003
                          MPN: 67535600
                          RH DOOR POLYCARBONATE
                          STANDARD
                          This part replaces part number 68761200
                          Maserati PART 67535600 Genuine Maserati Part - New (to order)
                          # 003
                          MPN: 67535700
                          LH DOOR POLYCARBONATE
                          StandardValid for MY 2003Valid till stock exhaustion
                          from £416.34
                          from £416.34
                          Maserati PART 67535700 Genuine Maserati Part - New (to order)
                          POLYCARBONATE SIDE DOOR Genuine Ferrari Part - New (to order)
                          # 003
                          MPN: 67733100
                          RH DOOR POLYCARBONATE
                          Light doors version
                          Maserati PART 67733100 Genuine Maserati Part - New (to order)
                          POLYCARBONATE SIDE DOOR Genuine Ferrari Part - New (to order)
                          # 003
                          MPN: 67733200
                          LH DOOR POLYCARBONATE WITH DOOR OPENING
                          Light doors version
                          Maserati PART 67733200 Genuine Maserati Part - New (to order)
                          POLICARBONATO PORTA LAT.SX C Genuine Ferrari Part - New (to order)
                          # 003
                          MPN: 68398000
                          LH DOOR POLYCARBONATE
                          For cars with air intakeValid for MY 2004Valid till stock exhaustion
                          LH DOOR POLYCARBONATE Genuine Maserati Part - New (to order)
                          LH DOOR POLYCARBONATE Genuine Ferrari Part - New (to order)
                          # 003
                          MPN: 68761300
                          LH DOOR POLYCARBONATE
                          With slide openingValid for MY 2005
                          LH DOOR POLYCARBONATE Genuine Maserati Part - New (to order)
                          LH DOOR POLYCARBONATE Genuine Ferrari Part - New (to order)
                          # 004
                          MPN: 980138923
                          LH OUTER REAR VIEW MIRROR
                          from £480.36
                          from £480.36
                          EXT LH MIRROR KITPRIMER-COAT Genuine Maserati Part - New (to order)
                          # 004
                          MPN: 980138924
                          RH OUTER REAR VIEW MIRROR
                          from £245.18
                          from £245.18
                          EXT RH MIRROR KITPRIMER-COAT Genuine Maserati Part - New (to order)
                          EXT RH MIRROR KITPRIMER-COAT Genuine Maserati Part - Used In stock
                          # 005
                          MPN: 980000945
                          GLASS FOR LH MIRROR
                          from £48.41
                          from £48.41
                          LH MIRROR COMPONENT 0196338 Genuine Maserati Part - New (to order)
                          # 005
                          MPN: 980000946
                          GLASS FOR RH MIRROR
                          from £64.96
                          from £64.96
                          RH MIRROR COMPONENT 0196338 Genuine Maserati Part - New (to order)
                          # 006
                          MPN: 980000961
                          DRIVER SIDE OUTER TEMPERATURE SENSOR
                          from £17.69
                          from £17.69
                          This part replaces part number 980000931
                          SENSORE TEMP.EST. 019 Genuine Maserati Part - New (to order)
                          # 007
                          MPN: 14305424
                          SCREW
                          from £0.51
                          from £0.51
                          SCREW Genuine Maserati Part - New (to order)
                          SCREW Genuine Ferrari Part - New In stock
                          # 008
                          MPN: 14305124
                          SCREW
                          from £0.53
                          from £0.53
                          SCREW FOR OUTER MIRROR GA Genuine Maserati Part - New (to order)
                          SCREW Genuine Ferrari Part - New In stock
                          # 009
                          MPN: 67243400
                          RH MIRROR GASKET
                          Supersession
                          Supersession
                          This part replaces part number 66708000
                          Genuine Maserati Part (no longer available to order)
                          # 009
                          MPN: 67243500
                          LH MIRROR GASKET
                          Supersession
                          Supersession
                          This part replaces part number 66708100
                          Genuine Maserati Part (no longer available to order)
                          # 010
                          MPN: 980000949
                          O.R. GASKET
                          from £1.64
                          from £1.64
                          O.R. RUBBER WASHER MIRRORS 0 Genuine Maserati Part - New (to order)
                          # 011
                          MPN: 135100064
                          WASHER
                          from £1.14
                          from £1.14
                          RONDELLA D 6,4X12X1 Genuine Maserati Part - New (to order)
                          # 012
                          MPN: 386100666
                          RUBBER WASHER
                          from £1.14
                          from £1.14
                          RUBBER WASHER FOR OUTER MIRR Genuine Maserati Part - New In stock
                          # 013
                          MPN: 312520511
                          GASKET
                          from £1.72
                          from £1.72
                          RUBBER BUSHING FOR GLASS Genuine Maserati Part - New (to order)
                          # 014
                          MPN: 136110110
                          WASHER
                          from £2.30
                          from £2.30
                          WASHER 10X30X2.5 Genuine Maserati Part - New In stock
                          # 015
                          MPN: 14040711
                          NUT
                          from £0.53
                          from £0.53
                          This part replaces part number 14576780
                          NUT FOR GLASS GUIDE ASSEM Genuine Maserati Part - New In stock
                          NUT Genuine Ferrari Part - New In stock
                          # 016
                          MPN: 67535800
                          AIR INTAKE
                          Valid for MY 2004Valid till stock exhaustion
                          AIR INTAKE Genuine Maserati Part - New (to order)
                          AIR INTAKE Genuine Ferrari Part - New (to order)
