0126 - FRONT PASSENGERS AND ENGINE COMPARTMENT CONTROL STATIONS

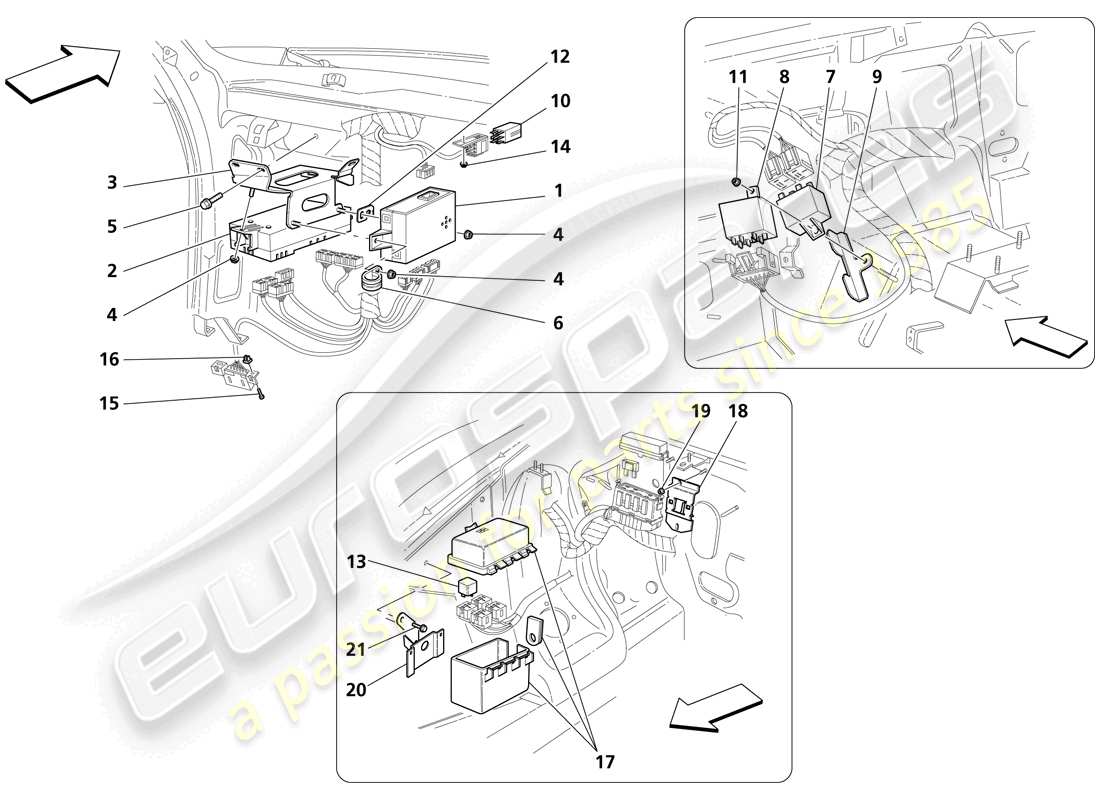

Maserati Trofeo FRONT PASSENGERS AND ENGINE COMPARTMENT CONTROL STATIONS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 195551

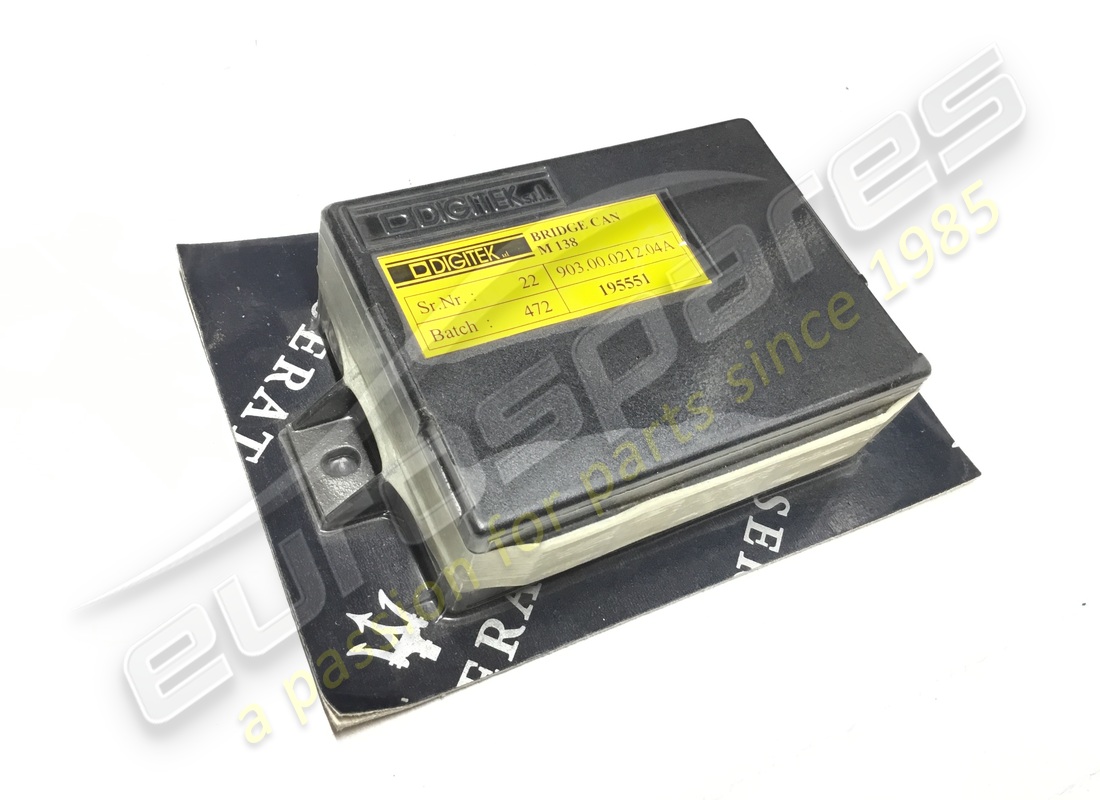

DIGITEK ELECTRONIC CONTROL STATION
from £577.50
from £577.50
This part replaces part number 182232
# 002
MPN: 195742
IGE ELECTRONIC MODULE
from £258.93
from £258.93
# 003
MPN: 185961
BRACKET
from £23.88
from £23.88
# 004
MPN: 13831811
NUT
from £0.53
from £0.53
# 005
MPN: 10711227
SCREW
from £1.69
from £1.69
# 006
MPN: 10441790
BRACKET WITH SHEATH
from £0.54
from £0.54
# 007
MPN: 184956
WINDSHIELD WIPER INTERMITTER
from £50.17
from £50.17
# 008
MPN: 184391
LOCK/UNLOCK DOORS MODULE
from £56.24
from £56.24
This part replaces part number 166851
# 009
MPN: 185962
BRACKET
from £3.95
from £3.95
# 010
MPN: 170762
DIRECTION-EMERGENCY LIGHT RELAY
from £132.12
from £132.12
# 011
MPN: 13831811
NUT
from £0.54
from £0.54
# 012
MPN: 162606
CLIP
from £0.45
from £0.45
# 013
MPN: 184951
RELAY 50 A.
from £5.85
from £5.85
# 014
MPN: 13831811
NUT
from £0.54
from £0.54
# 015
MPN: 15783377
SCREW
from £1.69
from £1.69
# 016
MPN: 14201980
BLOCK
from £0.54
from £0.54
# 017
MPN: 980001168
COMPLETE RELE' BOX
from £61.31
from £61.31
# 018
MPN: 66312900
BRACKET
from £5.04
from £5.04
# 019
MPN: 14059211
NUT
from £0.53
from £0.53
This part replaces part number 675000181
# 020
MPN: 191074
BRACKET
from £15.22
from £15.22
This part replaces part number 189278
# 021
MPN: 16296924
SCREW
from £0.53
from £0.53
