003 - Cylinder Heads

Maserati 2.24v Cylinder Heads Parts Diagram

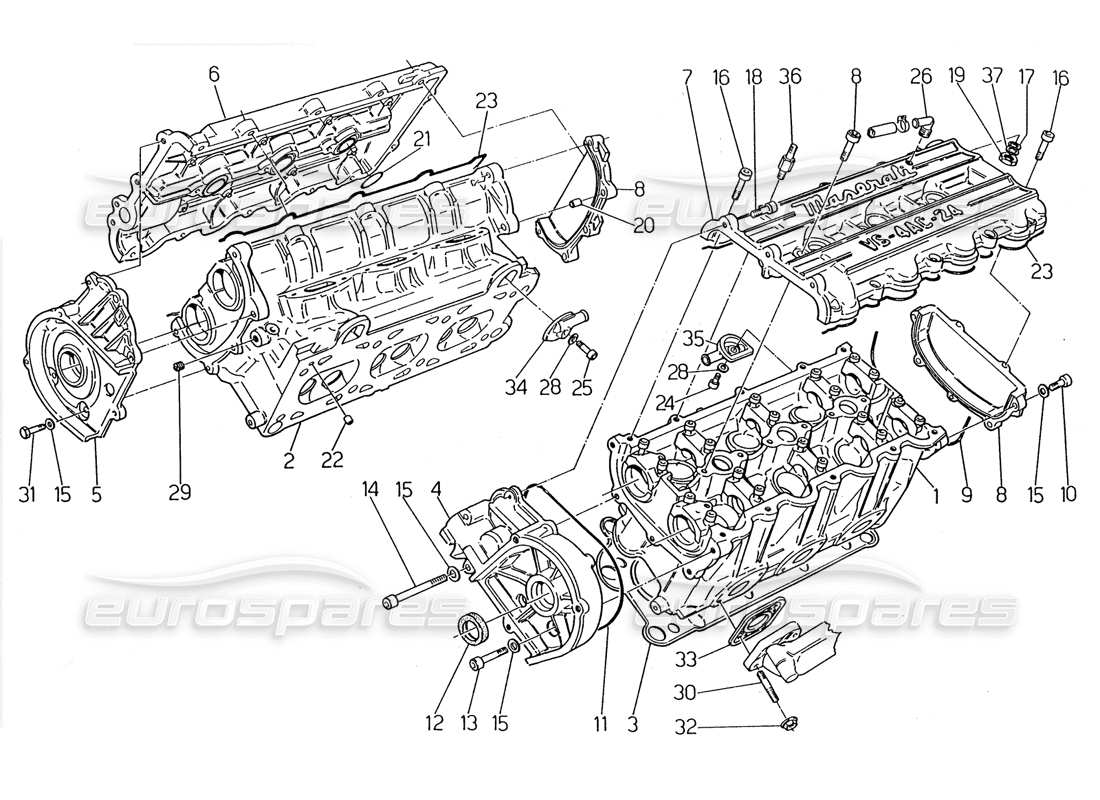

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 310653007
                                                                  LH cylinder head
                                                                  Supersession
                                                                  Supersession
                                                                  # 002
                                                                  MPN: 490003200
                                                                  RH cylinder head
                                                                  from £2,804.52
                                                                  from £2,804.52
                                                                  This part replaces part number 310653006
                                                                  # 003
                                                                  MPN: 470006002
                                                                  CYLINDER HEAD GASKET X 2000 C.C.
                                                                  from £131.46
                                                                  from £131.46
                                                                  This part replaces part number 310650418 - and 1 more. Click to view details
                                                                  # 004
                                                                  MPN: 310653457
                                                                  LH FRONT COVER
                                                                  from £26.29
                                                                  from £26.29
                                                                  # 005
                                                                  MPN: 311053000
                                                                  RH FRONT COVER
                                                                  from £108.09
                                                                  from £108.09
                                                                  # 006
                                                                  MPN: 311053328
                                                                  LH UPPER COVER
                                                                  from £156.35
                                                                  from £156.35
                                                                  # 007
                                                                  MPN: 311053329
                                                                  RH UPPER COVER
                                                                  from £147.90
                                                                  from £147.90
                                                                  # 009
                                                                  MPN: 97470
                                                                  RUBBER GASKET
                                                                  from £43.68
                                                                  from £43.68
                                                                  This part replaces part number 311053321 - and 1 more. Click to view details
                                                                  # 010
                                                                  MPN: 311053391
                                                                  SCREW
                                                                  from £3.16
                                                                  from £3.16
                                                                  # 011
                                                                  MPN: 97470
                                                                  RUBBER GASKET
                                                                  from £43.68
                                                                  from £43.68
                                                                  This part replaces part number 311053321 - and 1 more. Click to view details
                                                                  # 012
                                                                  MPN: 310653437
                                                                  FRONT OILGUARD
                                                                  Supersession
                                                                  Supersession
                                                                  # 013
                                                                  MPN: 311053390
                                                                  SCREW
                                                                  from £6.04
                                                                  from £6.04
                                                                  # 015
                                                                  MPN: 311053307
                                                                  WASHER
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 017
                                                                  MPN: 310420334
                                                                  UPPER GASKET
                                                                  pre.modif.
                                                                  # 018
                                                                  MPN: 311053394
                                                                  SCREW
                                                                  Supersession
                                                                  Supersession
                                                                  # 019
                                                                  MPN: 311053385
                                                                  NUT
                                                                  pre.modif.
                                                                  # 020
                                                                  MPN: 311053312
                                                                  DOWEL
                                                                  from £1.93
                                                                  from £1.93
                                                                  # 021
                                                                  MPN: 14458080
                                                                  RUBBER PAD
                                                                  from £0.69
                                                                  from £0.69
                                                                  This part replaces part number 310653424
                                                                  # 022
                                                                  MPN: 310653365
                                                                  OIL CALIBRATION DOWEL
                                                                  # 023
                                                                  MPN: 97470
                                                                  RUBBER GASKET
                                                                  from £43.68
                                                                  from £43.68
                                                                  This part replaces part number 311053321 - and 1 more. Click to view details
                                                                  # 025
                                                                  MPN: 14305924
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 14305921 - and 1 more. Click to view details
                                                                  # 026
                                                                  MPN: 311053384
                                                                  OIL BLOWER
                                                                  after.modif.
                                                                  # 026
                                                                  MPN: 311053384
                                                                  OIL BLOWER
                                                                  pre.modif.
                                                                  # 028
                                                                  MPN: 310620364
                                                                  GASKET
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 029
                                                                  MPN: 600009700
                                                                  PLUG
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 030
                                                                  MPN: 310620370
                                                                  EXHAUST STUD BOLT
                                                                  from £14.77
                                                                  from £14.77
                                                                  # 031
                                                                  MPN: 311453300
                                                                  SCREW
                                                                  from £3.24
                                                                  from £3.24
                                                                  # 032
                                                                  MPN: 312020309
                                                                  NUT
                                                                  # 033
                                                                  MPN: 473362201
                                                                  EXHAUST MANIFOLD GASKET
                                                                  from £7.30
                                                                  from £7.30
                                                                  This part replaces part number 310650465
                                                                  # 034
                                                                  MPN: 452009901
                                                                  UNION
                                                                  from £2.32
                                                                  from £2.32
                                                                  # 035
                                                                  MPN: 470009900
                                                                  UNION
                                                                  from £9.66
                                                                  from £9.66
                                                                  # 036
                                                                  MPN: 310653435
                                                                  CABLES REPLACEMENT STUD BOH
                                                                  # 037
                                                                  MPN: 311053379
                                                                  LOWER GASKET
                                                                  pre.modif.
