maserati 2.24v crankshaft - pistons, connecting rods and flywheel parts diagram

006 - Crankshaft - Pistons, Connecting Rods and Flywheel

Maserati 2.24v Crankshaft - Pistons, Connecting Rods and Flywheel Parts Diagram

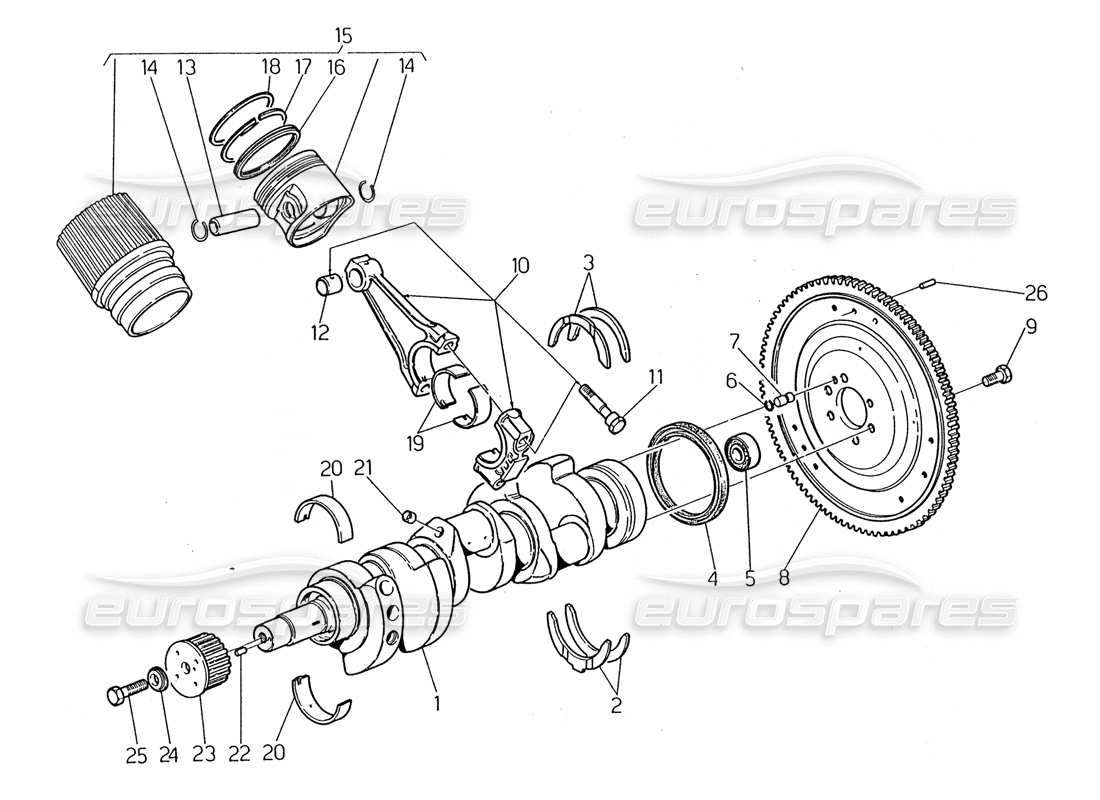

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 310853002
                                      crankshaft
                                      On the spare parts request, it is necessary to specify the class it is stamped on the connecting rod uppewr side in alternatives to specify the crankshaft balancing it is stamped on crankshaft counterweighht
                                      from £776.50
                                      from £776.50
                                      This part replaces part number 310820002
                                      # 002
                                      MPN: 310820305
                                      Lower spacer washer, cl.A
                                      Standard class
                                      Supersession
                                      Supersession
                                      # 002
                                      MPN: 310820306
                                      LOWER SPACER WASHER, CL.B
                                      Light class
                                      # 002
                                      MPN: 310820307
                                      LOWER SPACER WASHER, CL.C
                                      Heavy class
                                      # 003
                                      MPN: 310820311
                                      UPPER SPACER WASHER, CL.B
                                      Light class
                                      # 003
                                      MPN: 310820312
                                      UPPER SPACER WASHER, CL.C
                                      Heavy class
                                      # 003
                                      MPN: 479021302
                                      UPPER SPACER WASHER, CL.A
                                      from £11.06
                                      from £11.06
                                      This part replaces part number 310820310 - and 1 more. Click to view details
                                      # 004
                                      MPN: 585412800

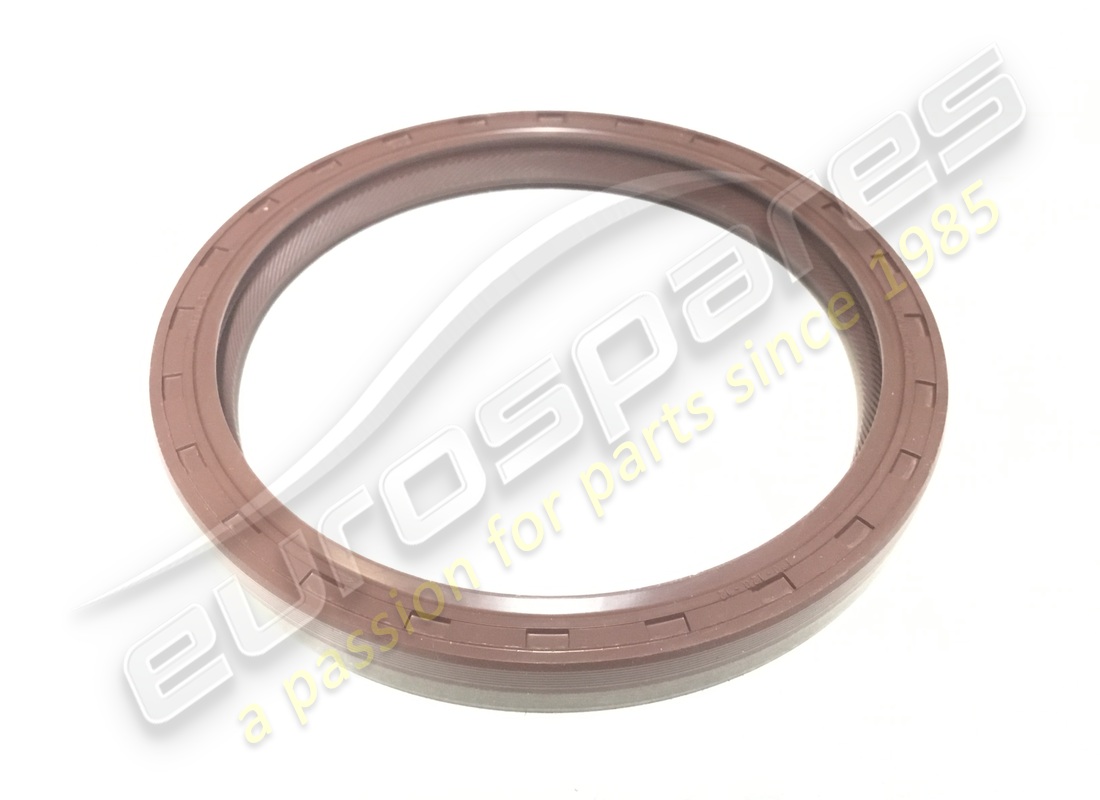

                                      SEAL RING
                                      from £28.15
                                      from £28.15
                                      This part replaces part number 311420104
                                      # 005
                                      MPN: 178003015

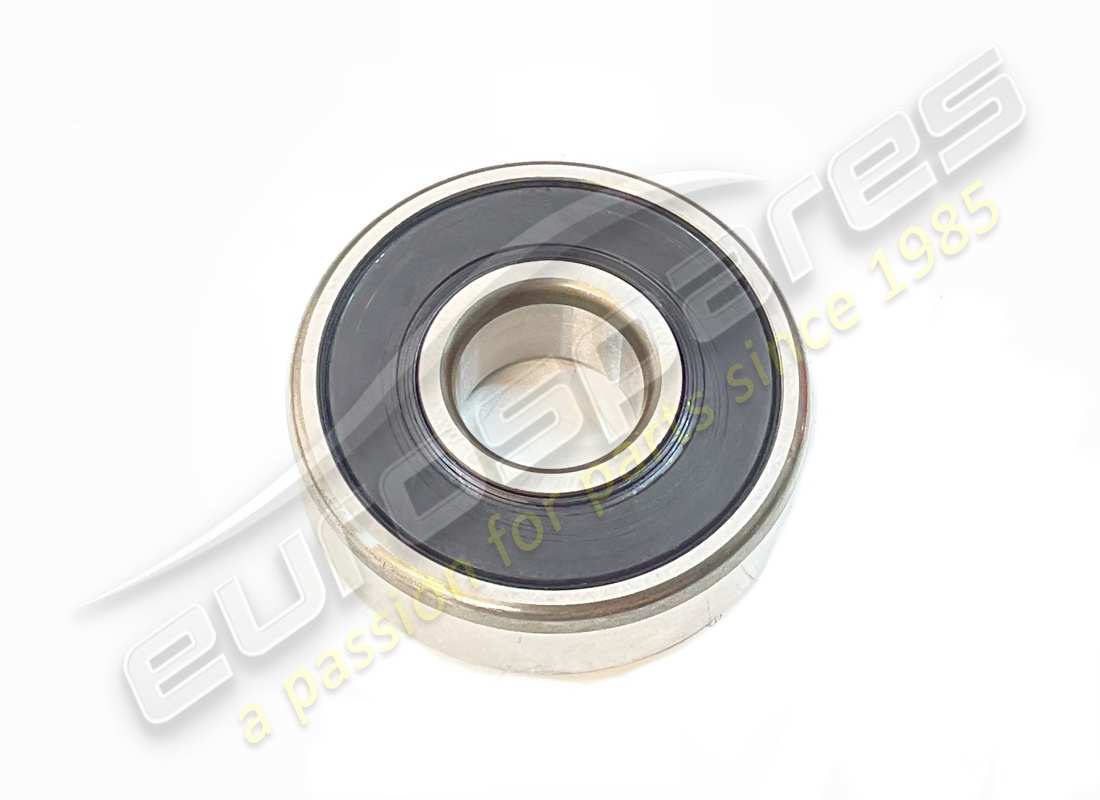

                                      BEARING
                                      from £15.92
                                      from £15.92
                                      # 006
                                      MPN: 310820302

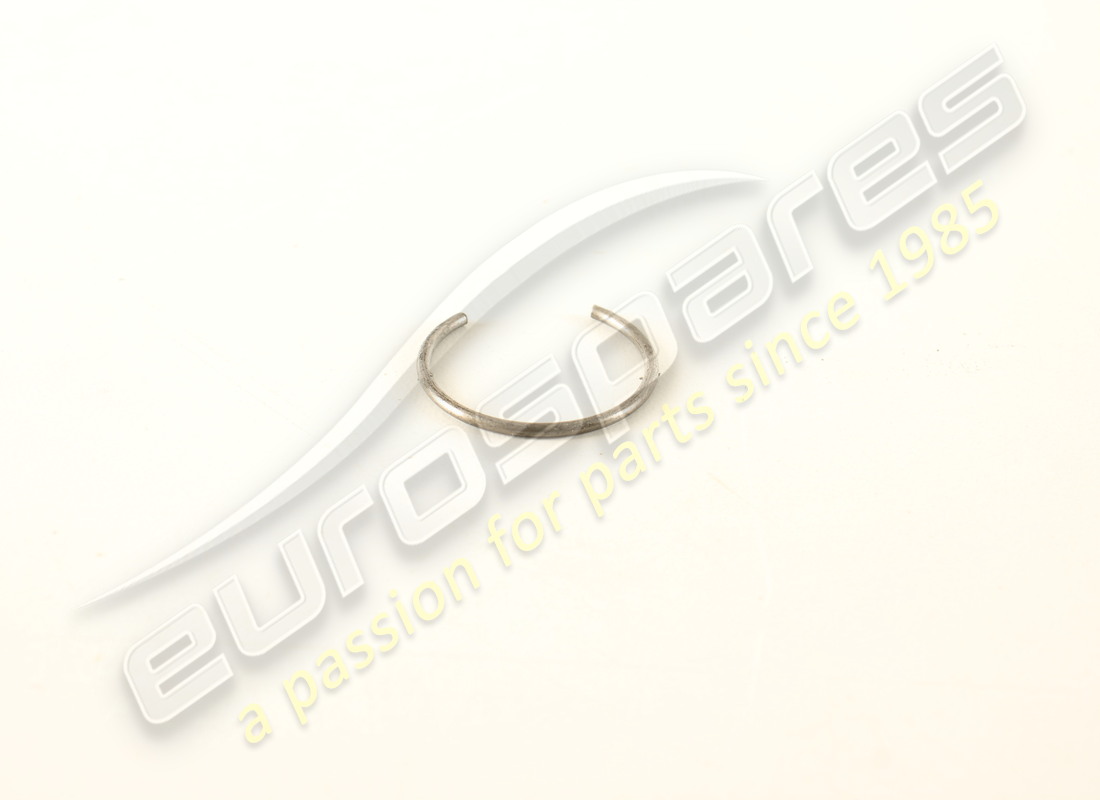

                                      RETAINING RING
                                      from £1.11
                                      from £1.11
                                      # 007
                                      MPN: 310820301
                                      DOWEL
                                      from £2.93
                                      from £2.93
                                      # 008
                                      MPN: 311453100
                                      FLYWHEEL ASSY
                                      # 009
                                      MPN: 311420300
                                      BOLT
                                      Supersession
                                      Supersession
                                      # 010
                                      MPN: 310820004
                                      CONNECTING ROD, ASSY
                                      On the spare parts request, it is necessary to specify the class it is stamped on the connecting rod uppewr side in alternatives to specify the crankshaft balancing it is stamped on crankshaft counterweighht
                                      from £54.59
                                      from £54.59
                                      # 011
                                      MPN: 310820343
                                      BOLT
                                      Single part not supplied
                                      from £2.38
                                      from £2.38
                                      # 012
                                      MPN: 310820314
                                      BUSHING
                                      Single part not supplied
                                      # 013
                                      MPN: 311220316
                                      PISLON RING
                                      Single part not supplied
                                      # 014
                                      MPN: 311220312
                                      RETAINING RING
                                      from £0.71
                                      from £0.71
                                      This part replaces part number 311225312
                                      # 015
                                      MPN: 475014902
                                      LEVER AND PISTON UNIT
                                      from £263.61
                                      from £263.61
                                      This part replaces part number 475014901
                                      # 016
                                      MPN: 571022600
                                      OIL SCRAPER
                                      from £10.78
                                      from £10.78
                                      This part replaces part number 311220102 - and 1 more. Click to view details
                                      # 017
                                      MPN: 311220323
                                      LOWER PISTON RING
                                      Supersession
                                      Supersession
                                      # 018
                                      MPN: 311220321
                                      UPPER PISTON RING
                                      Supersession
                                      Supersession
                                      # 019
                                      MPN: 452020901
                                      STANDARD CONN, ROD BEARING
                                      Supersession
                                      Supersession
                                      # 019
                                      MPN: 452020901/A
                                      STANDARD CON ROD BEARING (COMPLETE SET)
                                      from £969.83
                                      from £969.83
                                      This part replaces part number 452020901
                                      # 020
                                      MPN: 390450327
                                      STANDARD MAIN BEARING
                                      from £37.60
                                      from £37.60
                                      This part replaces part number 310420327
                                      # 021
                                      MPN: 310820300
                                      CRANKSHAFT OIL PLUG
                                      # 022
                                      MPN: 311020324
                                      DOWEL
                                      use : 470023100
                                      from £1.79
                                      from £1.79
                                      # 023
                                      MPN: 311053311
                                      TOOTHED PULLEY
                                      from £114.52
                                      from £114.52
                                      # 026
                                      MPN: 311453303
                                      DOWEL
                                      from £9.91
                                      from £9.91
