maserati 2.24v timing control parts diagram

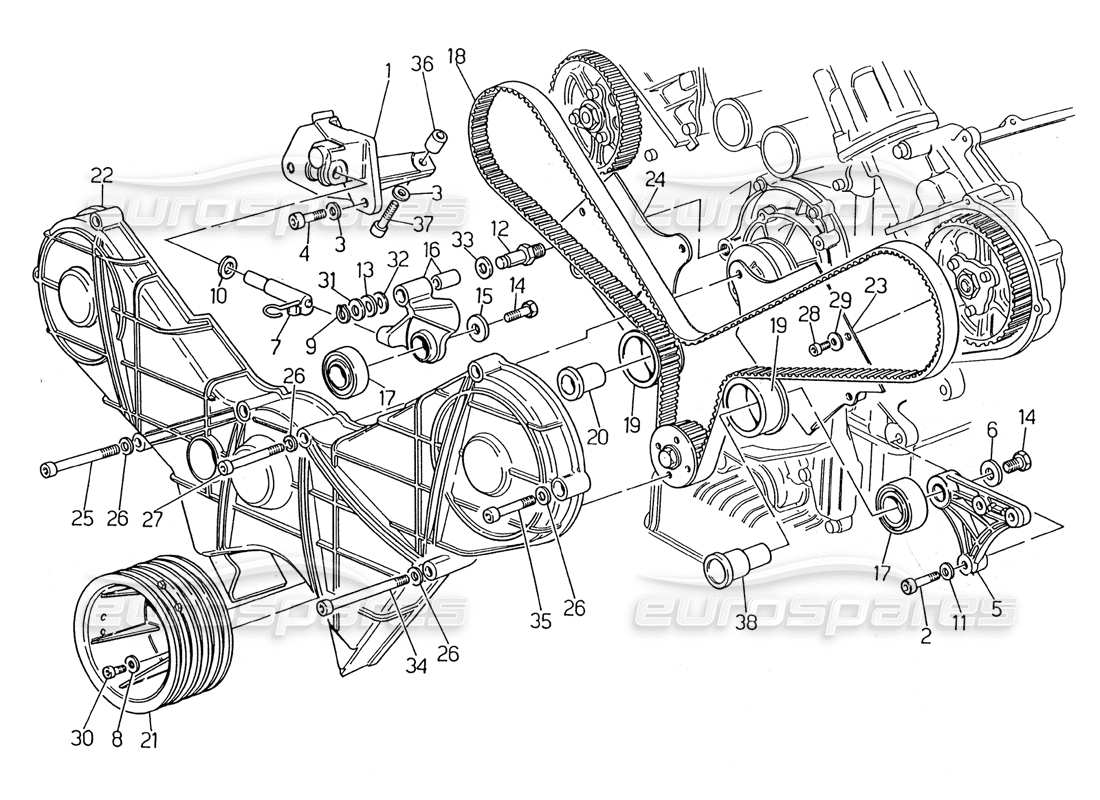

008 - timing control

Maserati 2.24v Timing Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 317853396
                                                                              SUPPORT
                                                                              # 002
                                                                              MPN: 311020320
                                                                              SCREW
                                                                              from £1.31
                                                                              from £1.31
                                                                              # 003
                                                                              MPN: 138410080
                                                                              WASHER
                                                                              from £2.28
                                                                              from £2.28
                                                                              # 004
                                                                              MPN: 14306424
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 14306421
                                                                              # 005
                                                                              MPN: 311053346
                                                                              SUPPORT
                                                                              # 006
                                                                              MPN: 319055315
                                                                              WASHER
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 007
                                                                              MPN: 311053363
                                                                              HYDRAULIC TENSIONER
                                                                              # 008
                                                                              MPN: 312220411
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 010
                                                                              MPN: 311053365
                                                                              THRUST WASHER
                                                                              from £10.35
                                                                              from £10.35
                                                                              # 012
                                                                              MPN: 470037600
                                                                              PIN
                                                                              from £27.55
                                                                              from £27.55
                                                                              This part replaces part number 311020343
                                                                              # 013
                                                                              MPN: 311020334
                                                                              WASHER
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 016
                                                                              MPN: 311053110
                                                                              BELT ADJUSTER SUPPORT
                                                                              from £0.62
                                                                              from £0.62
                                                                              # 017
                                                                              MPN: 311020107
                                                                              TIMING BEARING
                                                                              from £99.75
                                                                              from £99.75
                                                                              # 018
                                                                              MPN: 97776
                                                                              TIMING BELT
                                                                              from £29.95
                                                                              from £29.95
                                                                              This part replaces part number 311053349
                                                                              # 019
                                                                              MPN: 311020350
                                                                              BEARING COVER
                                                                              from £56.75
                                                                              from £56.75
                                                                              # 020
                                                                              MPN: 311020353
                                                                              PIN
                                                                              from £131.87
                                                                              from £131.87
                                                                              # 021
                                                                              MPN: 311050113
                                                                              ELECTRONIC INJECTION CENTRAL PULLEY
                                                                              from £26.42
                                                                              from £26.42
                                                                              # 022
                                                                              MPN: 311653300
                                                                              FRONT TIMING CASE
                                                                              # 027
                                                                              MPN: 14304821
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 029
                                                                              MPN: 311620303
                                                                              WASHER
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 031
                                                                              MPN: 311020352
                                                                              WASHER
                                                                              from £1.20
                                                                              from £1.20
                                                                              # 032
                                                                              MPN: 311020354
                                                                              WASHER
                                                                              from £1.20
                                                                              from £1.20
                                                                              # 033
                                                                              MPN: 311020362
                                                                              WASHER
                                                                              from £1.31
                                                                              from £1.31
                                                                              # 038
                                                                              MPN: 311053343
                                                                              PIN FOR SUPPORT
                                                                              Supersession
                                                                              Supersession
