Maserati 2.24v Boost Control System Parts Diagram

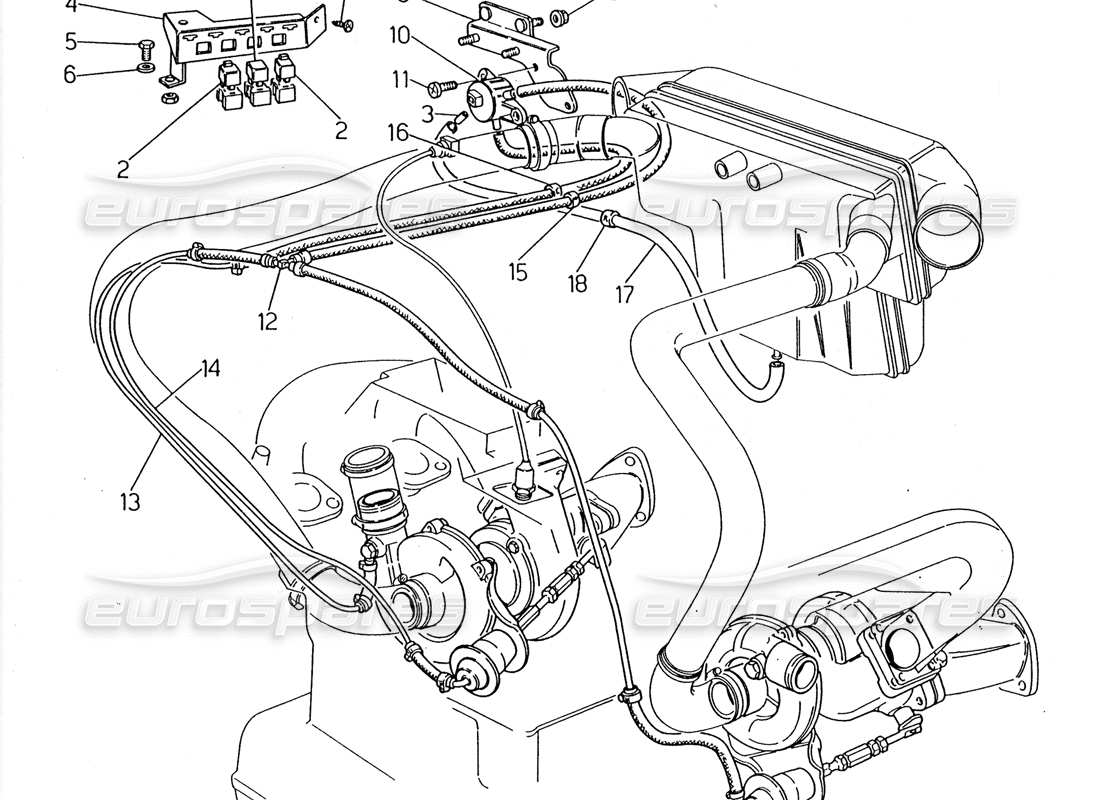

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313320134
IGNITION CONTROL RELAY
from £18.71
from £18.71
This part replaces part number 184101
# 002
MPN: 313353106
INJECTOR AND FUEL PUMP CONTROL RELAY
from £8.75
from £8.75
This part replaces part number 313320106
# 004
MPN: 313753109
RELAY SUPPORT
from £3.74
from £3.74
# 007
MPN: 119142160
SCREW
from £0.87
from £0.87
# 008
MPN: 313753110
SOLENOID SUPPORT
from £15.15
from £15.15
# 010
MPN: 452089801
SOLENOID VALVE
from £117.41
from £117.41
# 011
MPN: 119148130
SCREW
from £0.87
from £0.87
# 012
MPN: 312020399
3 WAYS UNION
from £0.94
from £0.94
# 013
MPN: 312053025
COMPLETE RH TURBO CONNECTION PIPE
Supersession
Supersession
# 014
MPN: 312053020
COMPLETE LH AND RH TURBO WASTEGATE CONNECTION PIPE
Supersession
Supersession
This part replaces part number 312020511
# 015
MPN: 312020397
CLAMP
from £0.71
from £0.71
# 016
MPN: 312020396
CLAMP
from £0.71
from £0.71
# 017
MPN: 312020508
SLEEVE
Supersession
Supersession
# 018
MPN: 312020395
CLAMP
from £0.71
from £0.71
