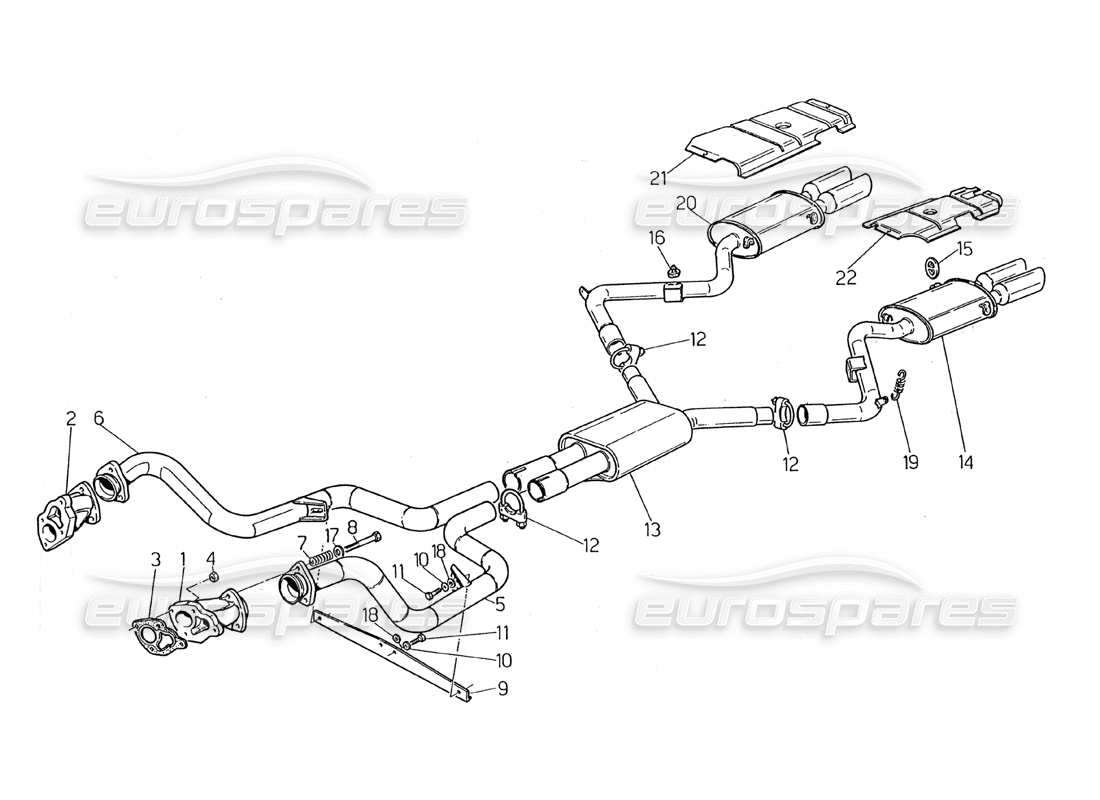

012 - Exhaust System

Maserati 2.24v Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 312020301
                                              LH MANIFOLD
                                              from £89.73
                                              from £89.73
                                              # 002
                                              MPN: 312020302
                                              RH MANIFOID
                                              from £89.73
                                              from £89.73
                                              # 003
                                              MPN: 312020303
                                              GASKET
                                              from £0.83
                                              from £0.83
                                              # 004
                                              MPN: 312020309
                                              NUT
                                              # 005
                                              MPN: 319053101
                                              LH FRONT EXHAUST PIPE
                                              from £26.72
                                              from £26.72
                                              # 006
                                              MPN: 319053102
                                              RH FRONT EXHAUST PIPE
                                              from £29.02
                                              from £29.02
                                              # 007
                                              MPN: 319020303
                                              SHORT SPRING TO FIX. EXHAUST MANIFOLD
                                              from £3.05
                                              from £3.05
                                              # 008
                                              MPN: 349000301
                                              SCREW TO FIX. EXHAUST MANIFOLD
                                              from £3.16
                                              from £3.16
                                              # 009
                                              MPN: 319020107
                                              SUPPORT, ASSY
                                              from £1.40
                                              from £1.40
                                              # 012
                                              MPN: 329056008
                                              CLAMP
                                              from £2.31
                                              from £2.31
                                              # 013
                                              MPN: 319153106
                                              CENTRAL PIPE, ASSY
                                              # 014
                                              MPN: 319053109
                                              LH MUFFLER, ASSY
                                              from £220.92
                                              from £220.92
                                              # 015
                                              MPN: 319020300
                                              SUPPORT
                                              from £1.61
                                              from £1.61
                                              # 016
                                              MPN: 312120300
                                              BUFFER
                                              from £2.14
                                              from £2.14
                                              # 018
                                              MPN: 163020080
                                              WASHER
                                              from £1.08
                                              from £1.08
                                              # 019
                                              MPN: 319030312
                                              SPRING
                                              from £1.40
                                              from £1.40
                                              # 020
                                              MPN: 319053110
                                              RH MUFFLER, ASSY
                                              from £315.00
                                              from £315.00
                                              # 021
                                              MPN: 319053116
                                              RH SHIELD
                                              from £10.95
                                              from £10.95
                                              # 022
                                              MPN: 319053115
                                              LH SHIELD
                                              from £12.17
                                              from £12.17
                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
