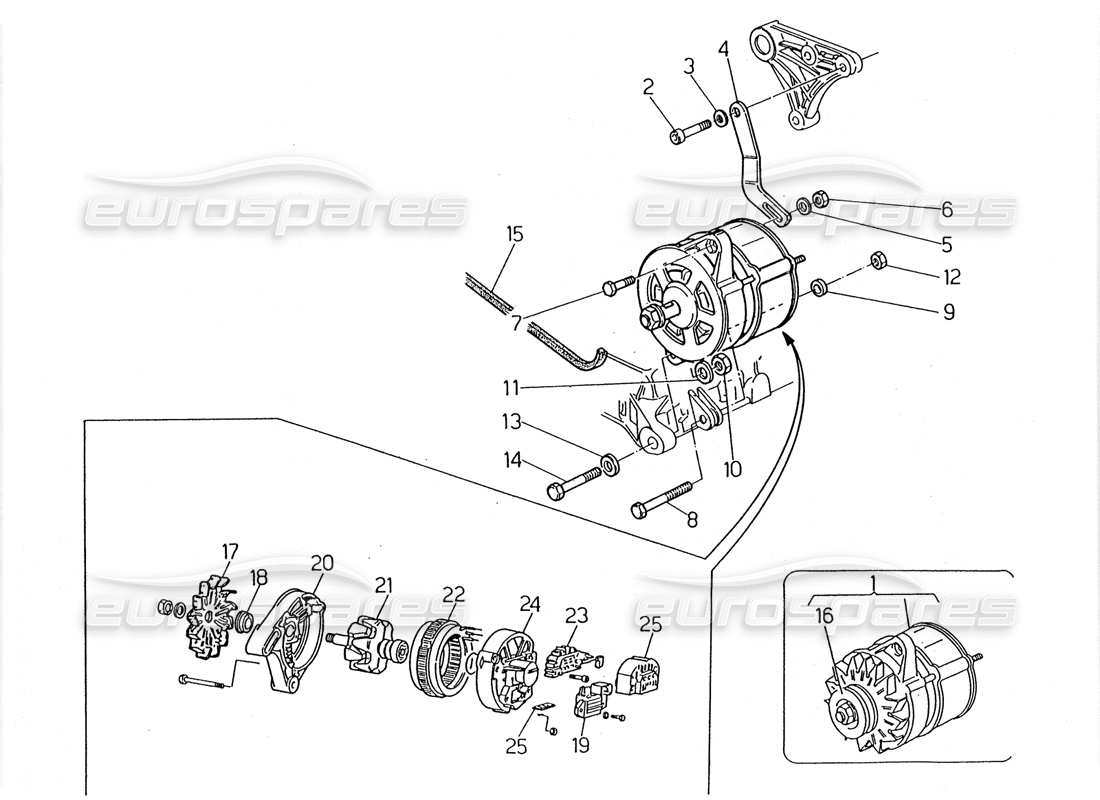

maserati 2.24v alternator and bracket parts diagram

016 - Alternator and Bracket

Maserati 2.24v Alternator and Bracket Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 470948301
                                                    ALTERNATOR Ø17 (1 6-1 7-1 8 PARTS COMP.)
                                                    from £483.91
                                                    from £483.91
                                                    This part replaces part number 313050214
                                                    # 001
                                                    MPN: 470948301
                                                    ALTERNATOR Ø17 (1 6-1 7-1 8 PARTS COMP.)
                                                    from £483.91
                                                    from £483.91
                                                    This part replaces part number 313050214
                                                    # 003
                                                    MPN: 135500080
                                                    WASHER
                                                    from £0.77
                                                    from £0.77
                                                    # 005
                                                    MPN: 313020414
                                                    WASHER
                                                    from £11.28
                                                    from £11.28
                                                    # 007
                                                    MPN: 100710035
                                                    BOLT
                                                    # 008
                                                    MPN: 313020416
                                                    BOLT
                                                    from £1.93
                                                    from £1.93
                                                    # 011
                                                    MPN: 313020411
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 012
                                                    MPN: 125300120
                                                    NUT
                                                    from £1.08
                                                    from £1.08
                                                    # 013
                                                    MPN: 313020415
                                                    WASHER
                                                    from £9.66
                                                    from £9.66
                                                    # 015
                                                    MPN: 313020421

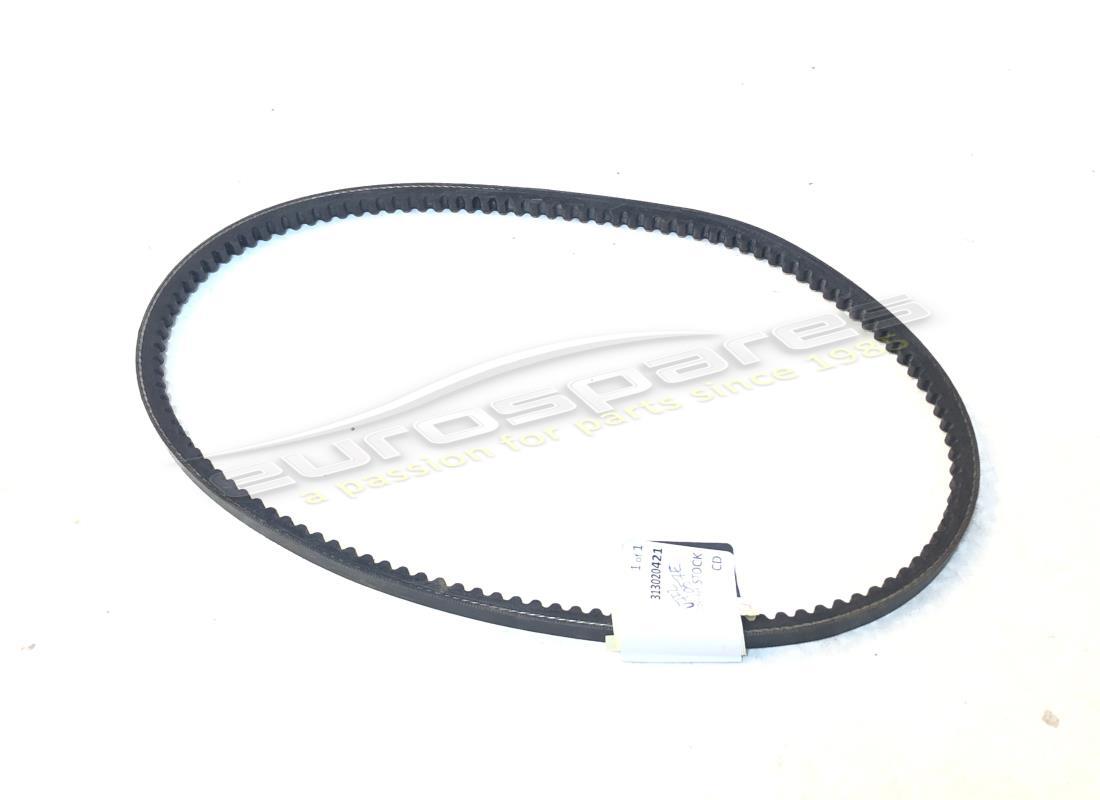

                                                    ALTERNATOR BELT
                                                    from £9.95
                                                    from £9.95
                                                    # 016
                                                    MPN: 313050215
                                                    ALTERNATOR PULLEY
                                                    from £8.20
                                                    from £8.20
                                                    # 017
                                                    MPN: 313050418
                                                    ALTERNATOR FAN
                                                    from £10.97
                                                    from £10.97
                                                    # 018
                                                    MPN: 313050419
                                                    SPACER
                                                    from £10.51
                                                    from £10.51
                                                    # 019
                                                    MPN: 313050208
                                                    VOLTAGE REGULATOR
                                                    from £9.73
                                                    from £9.73
                                                    # 020
                                                    MPN: 313050217
                                                    BRACKET
                                                    from £50.24
                                                    from £50.24
                                                    # 021
                                                    MPN: 313050216
                                                    ROTOR (SHAFT Ø 17 MM)
                                                    from £129.84
                                                    from £129.84
                                                    # 022
                                                    MPN: 313050205
                                                    STATOR
                                                    from £96.61
                                                    from £96.61
                                                    # 023
                                                    MPN: 313050209
                                                    RECTIFIER
                                                    from £53.26
                                                    from £53.26
                                                    # 024
                                                    MPN: 313050220
                                                    SUPPORT
                                                    # 025
                                                    MPN: 313050221
                                                    OVERHAULING SET
                                                    from £8.20
                                                    from £8.20
