023 - FUEL TANK

Maserati 2.24v Fuel Tank Parts Diagram

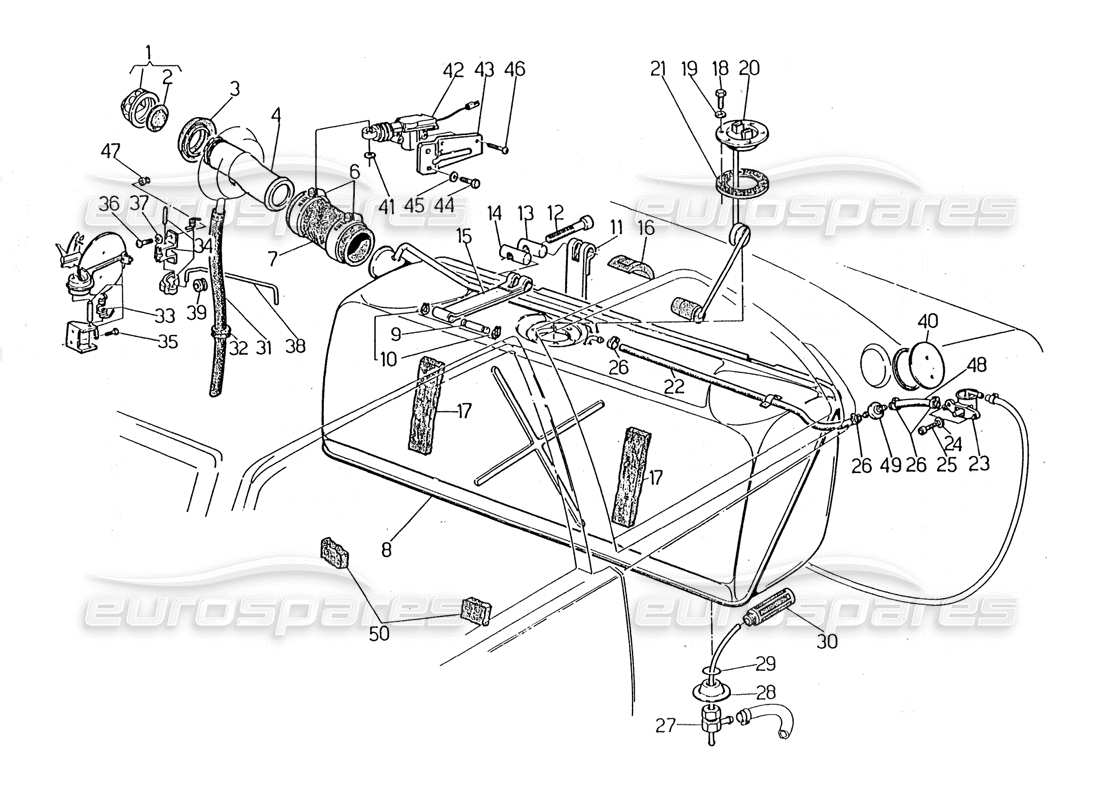

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 319220354
                                                                                                    TANK PLUG
                                                                                                    from £9.62
                                                                                                    from £9.62
                                                                                                    This part replaces part number 319220007
                                                                                                    # 002
                                                                                                    MPN: 329232355
                                                                                                    GASKET
                                                                                                    from £10.22
                                                                                                    from £10.22
                                                                                                    # 003
                                                                                                    MPN: 319250411
                                                                                                    GASKET
                                                                                                    from £3.95
                                                                                                    from £3.95
                                                                                                    This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                                    # 004
                                                                                                    MPN: 329232118
                                                                                                    UNION PIPE
                                                                                                    from £16.29
                                                                                                    from £16.29
                                                                                                    This part replaces part number 319220115
                                                                                                    # 006
                                                                                                    MPN: 186404087
                                                                                                    CLAMP
                                                                                                    Supersession
                                                                                                    Supersession

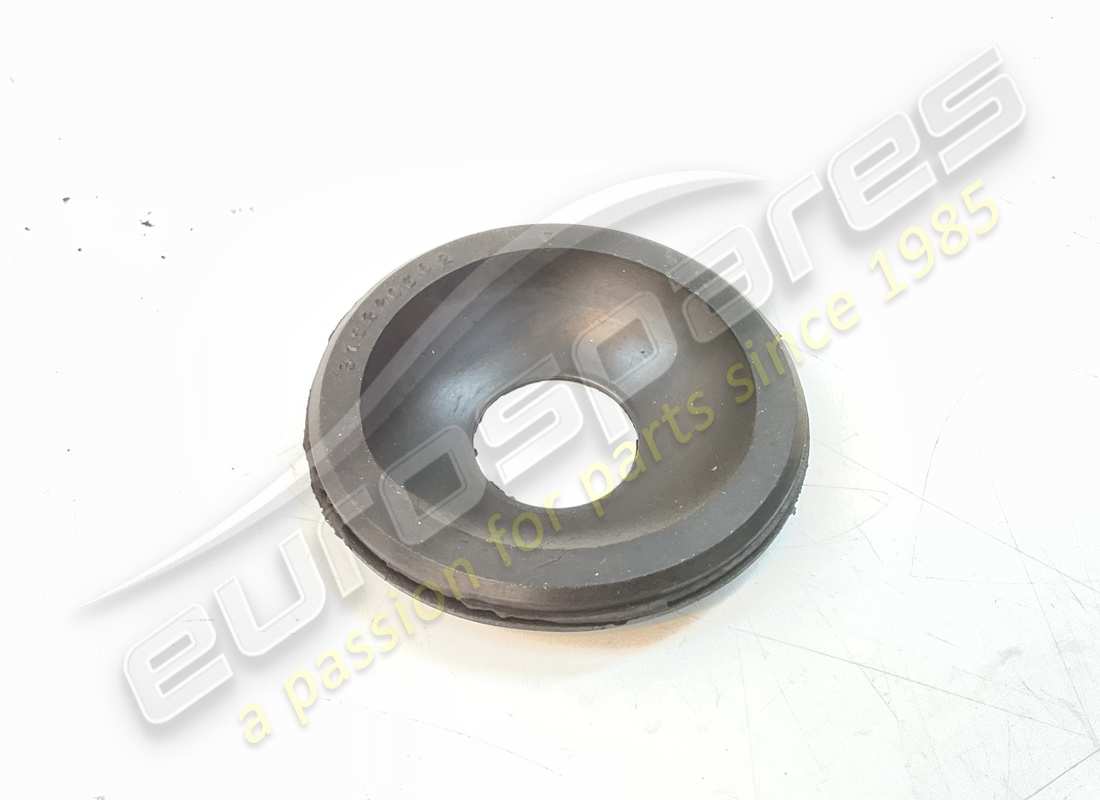

                                                                                                    # 007
                                                                                                    MPN: 319220383
                                                                                                    SLEEVE FOR FUEL INLET
                                                                                                    from £4.16
                                                                                                    from £4.16
                                                                                                    This part replaces part number 319220382
                                                                                                    # 008
                                                                                                    MPN: 319220103
                                                                                                    FUEL TANK
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 009
                                                                                                    MPN: 30921336
                                                                                                    PIN
                                                                                                    from £3.64
                                                                                                    from £3.64
                                                                                                    # 010
                                                                                                    MPN: 150800050
                                                                                                    SEEGER RING
                                                                                                    # 011
                                                                                                    MPN: 319220106
                                                                                                    LOWER STRIP TO FIX. TANK
                                                                                                    from £7.73
                                                                                                    from £7.73
                                                                                                    # 012
                                                                                                    MPN: 53921333
                                                                                                    SCREW
                                                                                                    from £1.85
                                                                                                    from £1.85
                                                                                                    # 013
                                                                                                    MPN: 53921331
                                                                                                    PIN FOR STRIP
                                                                                                    from £1.55
                                                                                                    from £1.55
                                                                                                    # 014
                                                                                                    MPN: 53921332
                                                                                                    PIN FOR STRIP
                                                                                                    from £2.31
                                                                                                    from £2.31
                                                                                                    # 015
                                                                                                    MPN: 319220385
                                                                                                    UPPER STRIP TO FIX. TANK
                                                                                                    from £6.81
                                                                                                    from £6.81
                                                                                                    # 016
                                                                                                    MPN: 319220337
                                                                                                    BLOCK
                                                                                                    from £1.93
                                                                                                    from £1.93
                                                                                                    # 017
                                                                                                    MPN: 310220398
                                                                                                    GASKET
                                                                                                    # 018
                                                                                                    MPN: 53361308
                                                                                                    SCREW
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 019
                                                                                                    MPN: 136220043
                                                                                                    WASHER
                                                                                                    # 020
                                                                                                    MPN: 313620111
                                                                                                    FUEL FLOAT GANGE
                                                                                                    from £53.21
                                                                                                    from £53.21
                                                                                                    # 021
                                                                                                    MPN: 33331300
                                                                                                    GASKET
                                                                                                    from £1.93
                                                                                                    from £1.93
                                                                                                    # 022
                                                                                                    MPN: 319220389
                                                                                                    PIPE TO CONN, TANK TO RELIEF VALVE
                                                                                                    from £5.43
                                                                                                    from £5.43
                                                                                                    # 023
                                                                                                    MPN: 319220102
                                                                                                    TIP CONTROL VALVE
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 025
                                                                                                    MPN: 119142160
                                                                                                    SCREW
                                                                                                    from £0.84
                                                                                                    from £0.84
                                                                                                    # 026
                                                                                                    MPN: 30921110
                                                                                                    CLAMP
                                                                                                    # 027
                                                                                                    MPN: 319220017
                                                                                                    EXHAUST FUEL CONNECTOR
                                                                                                    from £7.89
                                                                                                    from £7.89
                                                                                                    # 028
                                                                                                    MPN: 319220362
                                                                                                    GASKET
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    # 029
                                                                                                    MPN: 319220315
                                                                                                    GASKET
                                                                                                    from £0.70
                                                                                                    from £0.70
                                                                                                    # 030
                                                                                                    MPN: 319220107
                                                                                                    CONN, FILTER
                                                                                                    from £1.14
                                                                                                    from £1.14
                                                                                                    # 031
                                                                                                    MPN: 319220360
                                                                                                    Drainpipe
                                                                                                    # 032
                                                                                                    MPN: 319220361
                                                                                                    WIRE INLET
                                                                                                    from £2.31
                                                                                                    from £2.31
                                                                                                    # 033
                                                                                                    MPN: 312550143
                                                                                                    FUEL FILTER FLOP
                                                                                                    from £2.96
                                                                                                    from £2.96
                                                                                                    This part replaces part number 312550516
                                                                                                    # 034
                                                                                                    MPN: 312520144
                                                                                                    OPERING DEVICE
                                                                                                    from £5.56
                                                                                                    from £5.56
                                                                                                    # 035
                                                                                                    MPN: 167570512
                                                                                                    SCREW
                                                                                                    from £1.55
                                                                                                    from £1.55
                                                                                                    # 036
                                                                                                    MPN: 119142160
                                                                                                    SCREW
                                                                                                    from £0.84
                                                                                                    from £0.84
                                                                                                    # 037
                                                                                                    MPN: 135900043
                                                                                                    WASHER
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    This part replaces part number 14496207
                                                                                                    # 038
                                                                                                    MPN: 312550520
                                                                                                    CONTROL TIE ROD.
                                                                                                    from £1.77
                                                                                                    from £1.77
                                                                                                    # 039
                                                                                                    MPN: 30211310
                                                                                                    WIRE INLET
                                                                                                    from £1.05
                                                                                                    from £1.05
                                                                                                    # 040
                                                                                                    MPN: 312550515
                                                                                                    MARQUE SEATING
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    This part replaces part number 312520515
                                                                                                    # 041
                                                                                                    MPN: 53451389
                                                                                                    SPRING
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    # 042
                                                                                                    MPN: 313320195
                                                                                                    ACTUATOR
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 043
                                                                                                    MPN: 313320196
                                                                                                    ACTUATOR BRACKET
                                                                                                    from £1.55
                                                                                                    from £1.55
                                                                                                    # 045
                                                                                                    MPN: 135700050
                                                                                                    WASHER
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    # 047
                                                                                                    MPN: 312520499
                                                                                                    BLOCK TO BIX OPERING DEVICE
                                                                                                    from £0.70
                                                                                                    from £0.70
                                                                                                    # 048
                                                                                                    MPN: 310220390
                                                                                                    SLEEVE TO CONN, RELIEF VALVE TO TIP CONTROL VALVE
                                                                                                    # 049
                                                                                                    MPN: 319220134
                                                                                                    PRESSURE RELIEF VALVE
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 050
                                                                                                    MPN: 319220399
                                                                                                    SHORT FELT
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
