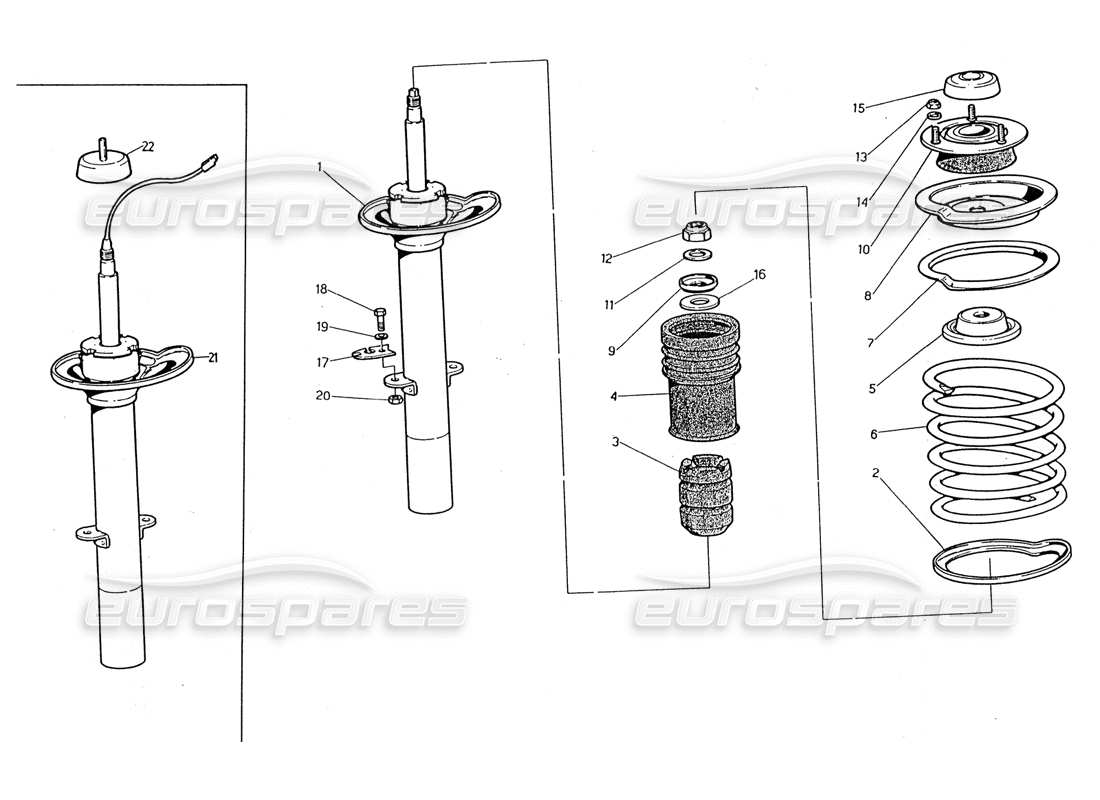

036 - FRONT SHOCK ABSORBER

Maserati 2.24v Front Shock Absorber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 316653104
                                          FRONT TELESCOPIC STRUT
                                          from £513.80
                                          from £513.80
                                          This part replaces part number 396600104
                                          # 002
                                          MPN: 316620322
                                          LOWER RING
                                          from £2.31
                                          from £2.31
                                          # 003
                                          MPN: 326656327
                                          BUFFER
                                          from £1.92
                                          from £1.92
                                          This part replaces part number 326656328 - and 1 more. Click to view details
                                          # 004
                                          MPN: 316620329
                                          BELLOW
                                          from £34.56
                                          from £34.56
                                          # 005
                                          MPN: 316620330
                                          SPRING CAP
                                          from £28.96
                                          from £28.96
                                          # 006
                                          MPN: 396600333
                                          SPRING
                                          Supplied two pieces
                                          from £45.16
                                          from £45.16
                                          # 007
                                          MPN: 316620324
                                          UPPER SPRING
                                          from £13.60
                                          from £13.60
                                          # 008
                                          MPN: 316620325
                                          UPPER SPRING CAP
                                          from £6.40
                                          from £6.40
                                          # 009
                                          MPN: 316620331
                                          CAP
                                          from £0.69
                                          from £0.69
                                          # 010
                                          MPN: 316620107
                                          ELASTIC SUPPORT
                                          from £10.00
                                          from £10.00
                                          # 011
                                          MPN: 316620335
                                          WASHER
                                          from £1.08
                                          from £1.08
                                          # 012
                                          MPN: 127800180
                                          SELF LOCKING NUT
                                          # 013
                                          MPN: 128300080
                                          SELF LOCKING NUT
                                          # 015
                                          MPN: 316620334
                                          PLUG
                                          from £1.08
                                          from £1.08
                                          # 016
                                          MPN: 316620345
                                          SPACER
                                          from £1.08
                                          from £1.08
                                          # 017
                                          MPN: 326656370
                                          CLAMP
                                          from £4.26
                                          from £4.26
                                          # 021
                                          MPN: 316653103
                                          TELESCOPIC STRUT
                                          pre modif.
                                          # 021
                                          MPN: 316653108
                                          TELESCOPIC STRUT
                                          After modif.
                                          from £784.96
                                          from £784.96
                                          # 022
                                          MPN: 316653334
                                          BELLOW
                                          from £3.24
                                          from £3.24
