maserati 2.24v body shell: front panel, roof panel, doors, bonnet, boot lid, parts diagram

045 - Body Shell: Front Panel, Roof Panel, Doors, Bonnet, Boot Lid,

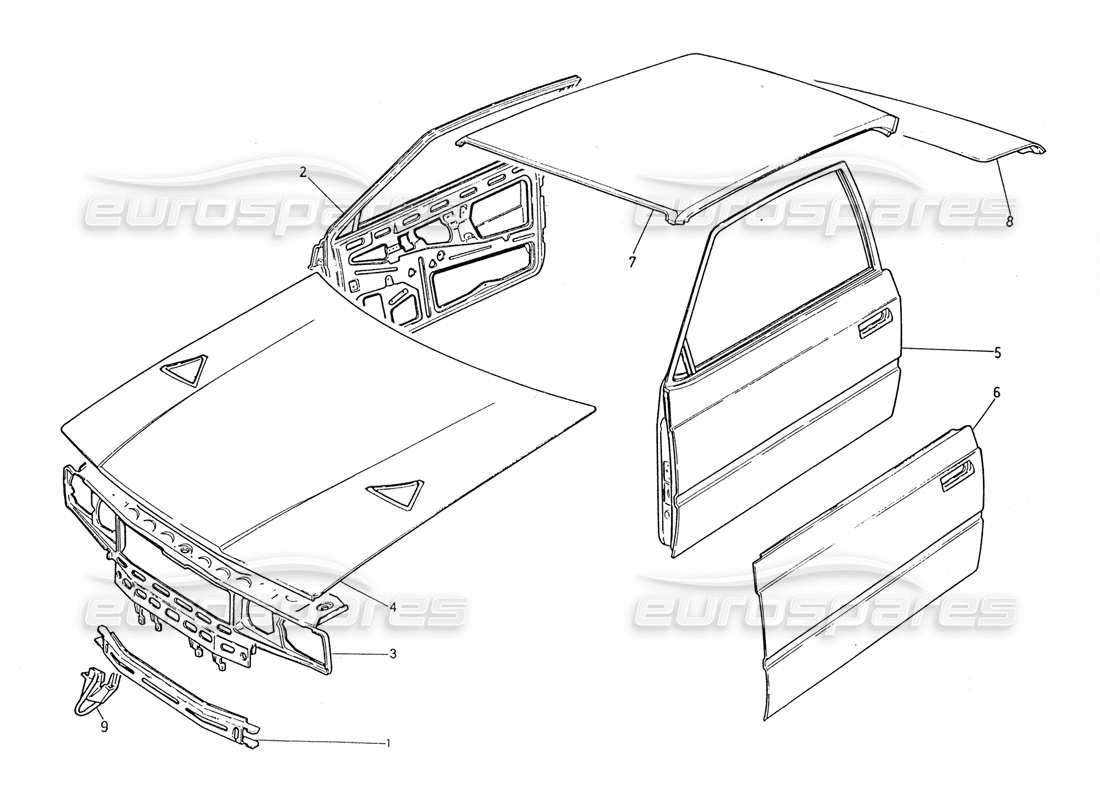

Maserati 2.24v Body Shell: Front Panel, Roof Panel, Doors, Bonnet, Boot Lid, Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 311320300
                    FRONT INSIDE BODY PANEL
                    from £62.66
                    from £62.66
                    # 002
                    MPN: 314520104
                    RH SIDE DOOR, ASSY
                    from £407.38
                    from £407.38
                    This part replaces part number 314520302 - and 1 more. Click to view details
                    # 003
                    MPN: 311322103
                    FRONT PANEL, ASSY
                    from £371.34
                    from £371.34
                    This part replaces part number 311320103
                    # 004
                    MPN: 314353100
                    ENGINE HOOD ASSY
                    from £1,479.48
                    from £1,479.48
                    # 005
                    MPN: 314520103
                    LH SIDE DOOR, ASSY
                    from £407.38
                    from £407.38
                    This part replaces part number 314520301
                    # 006
                    MPN: 314520301
                    OUTSIDE BODY PANEL FOR LH SIDE DOOR (IN DEPLETION)
                    Supersession
                    Supersession
                    # 006
                    MPN: 314520302
                    OUTSIDE BODY PANEL FOR RH SIDE DOOR (IN DEPLETION)
                    Supersession
                    Supersession
                    # 007
                    MPN: 312520465
                    OUTSIDE BODY PANEL FOR ROOF
                    from £116.47
                    from £116.47
                    # 008
                    MPN: 314753100
                    LUGGAGE HOOD, ASSY
                    from £430.68
                    from £430.68
                    # 009
                    MPN: 311353127
                    FRONT HOOK
                    from £7.19
                    from £7.19
