047 - Boot Lid: Hinges Boot Lid Release

Maserati 2.24v Boot Lid: Hinges Boot Lid Release Parts Diagram

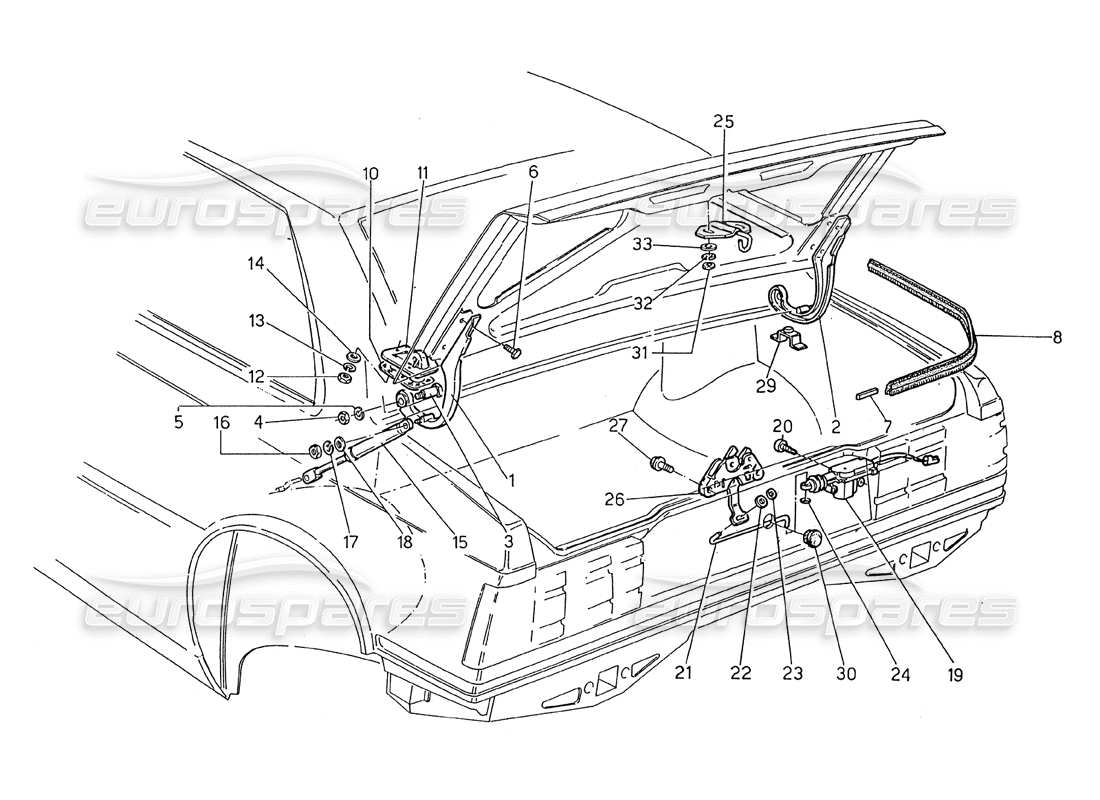

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 314722113
                                                          LH HINGE
                                                          Supersession
                                                          Supersession
                                                          # 002
                                                          MPN: 314722114
                                                          RH HINGE
                                                          Supersession
                                                          Supersession
                                                          # 003
                                                          MPN: 314720328
                                                          PIN FOR JOINT PIN
                                                          from £3.97
                                                          from £3.97
                                                          # 004
                                                          MPN: 125100060
                                                          NUT FOR JOINT PIN
                                                          # 005
                                                          MPN: 135300064
                                                          SPRING WASHER FOR JOINT PIN
                                                          # 006
                                                          MPN: 314320345
                                                          SCREW
                                                          from £42.73
                                                          from £42.73
                                                          # 007
                                                          MPN: 314520443
                                                          INSERT
                                                          from £1.59
                                                          from £1.59
                                                          # 008
                                                          MPN: 314720350
                                                          LUGGAGE HOOD MOULDING
                                                          Supersession
                                                          Supersession
                                                          # 010
                                                          MPN: 314720327
                                                          HINGE GASKET
                                                          from £0.71
                                                          from £0.71
                                                          # 011
                                                          MPN: 314720325
                                                          LH HINGE SUPPORT
                                                          from £2.24
                                                          from £2.24
                                                          # 011
                                                          MPN: 314720326
                                                          RH HINGE SUPPORT
                                                          from £2.24
                                                          from £2.24
                                                          # 014
                                                          MPN: 136200064
                                                          HINGE WASHER
                                                          # 015
                                                          MPN: 314720118

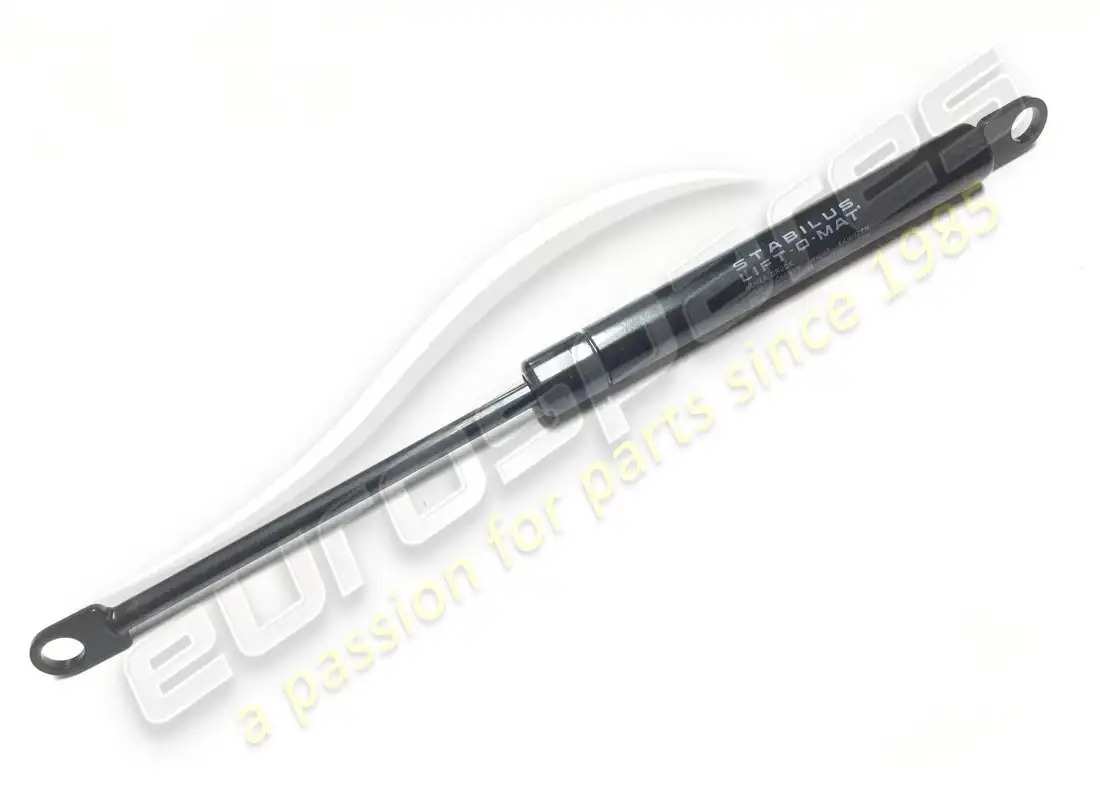

                                                          TRUNK GAS HOIST
                                                          from £51.76
                                                          from £51.76
                                                          # 018
                                                          MPN: 135900064
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 019
                                                          MPN: 323320195
                                                          MOTOR ACTUATOR
                                                          from £28.31
                                                          from £28.31
                                                          This part replaces part number 313320195
                                                          # 021
                                                          MPN: 324720337
                                                          TIE ROD
                                                          from £0.51
                                                          from £0.51
                                                          # 022
                                                          MPN: 30471338
                                                          WASHER
                                                          from £1.11
                                                          from £1.11
                                                          # 023
                                                          MPN: 30451423
                                                          CONTROL CABLE SPRING
                                                          # 024
                                                          MPN: 53451389
                                                          WASHER
                                                          from £1.11
                                                          from £1.11
                                                          # 025
                                                          MPN: 314720110
                                                          STRIKER
                                                          from £12.53
                                                          from £12.53
                                                          # 026
                                                          MPN: 30471104
                                                          LUGGAGE HOOD KEY LOCK
                                                          from £15.38
                                                          from £15.38
                                                          # 027
                                                          MPN: 324520704
                                                          KEY LOCK BOLT
                                                          from £1.18
                                                          from £1.18
                                                          This part replaces part number 314320325
                                                          # 029
                                                          MPN: 314720331
                                                          BUMPER
                                                          from £0.71
                                                          from £0.71
