053 - Spare Wheel Lifting Device

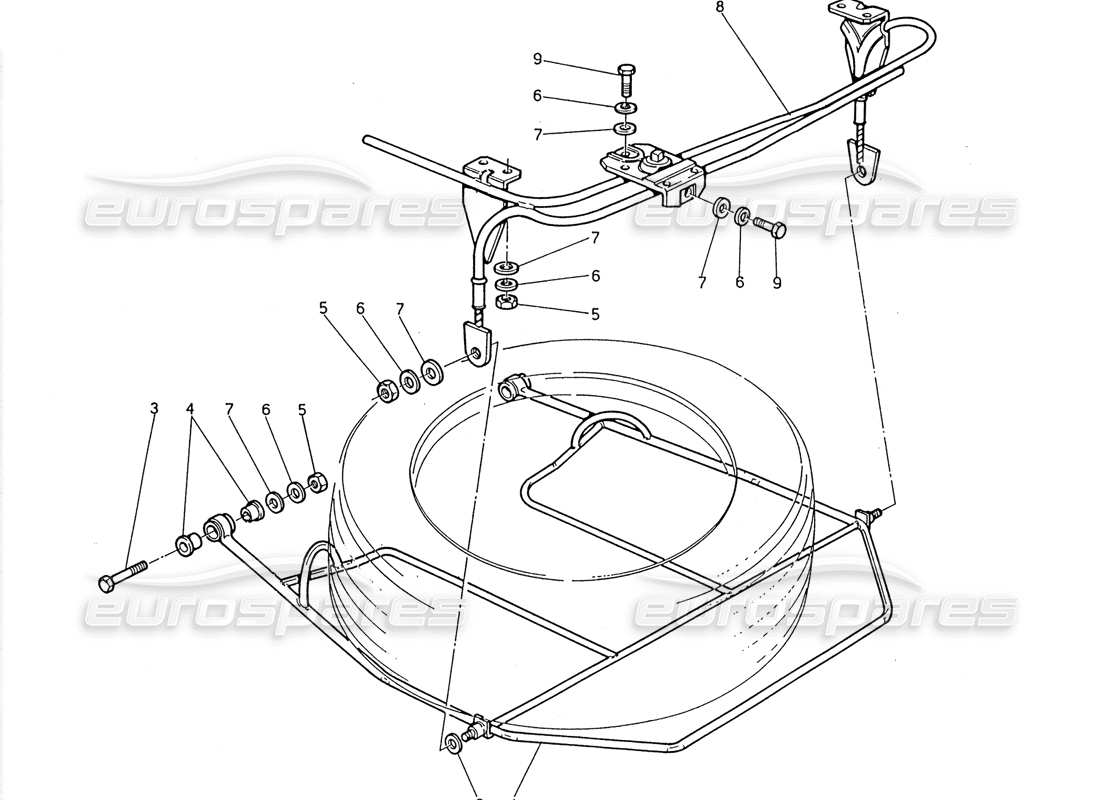

Maserati 2.24v Spare Wheel Lifting Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 318153182
SPARE WHEEL HOUSING
from £31.75
from £31.75
# 002
MPN: 138420100
WASHER
# 003
MPN: 318120420
PIN
from £3.86
from £3.86
# 004
MPN: 318120421
BUSH
from £0.69
from £0.69
# 005
MPN: 125100060
NUT
# 006
MPN: 135300064
SPRING WASHER
# 007
MPN: 169020406
WASHER
from £0.77
from £0.77
# 008
MPN: 318120177
LIFTING DEVICE
from £11.40
from £11.40
# 009
MPN: 101206012
SCREW
