064 - TRIM

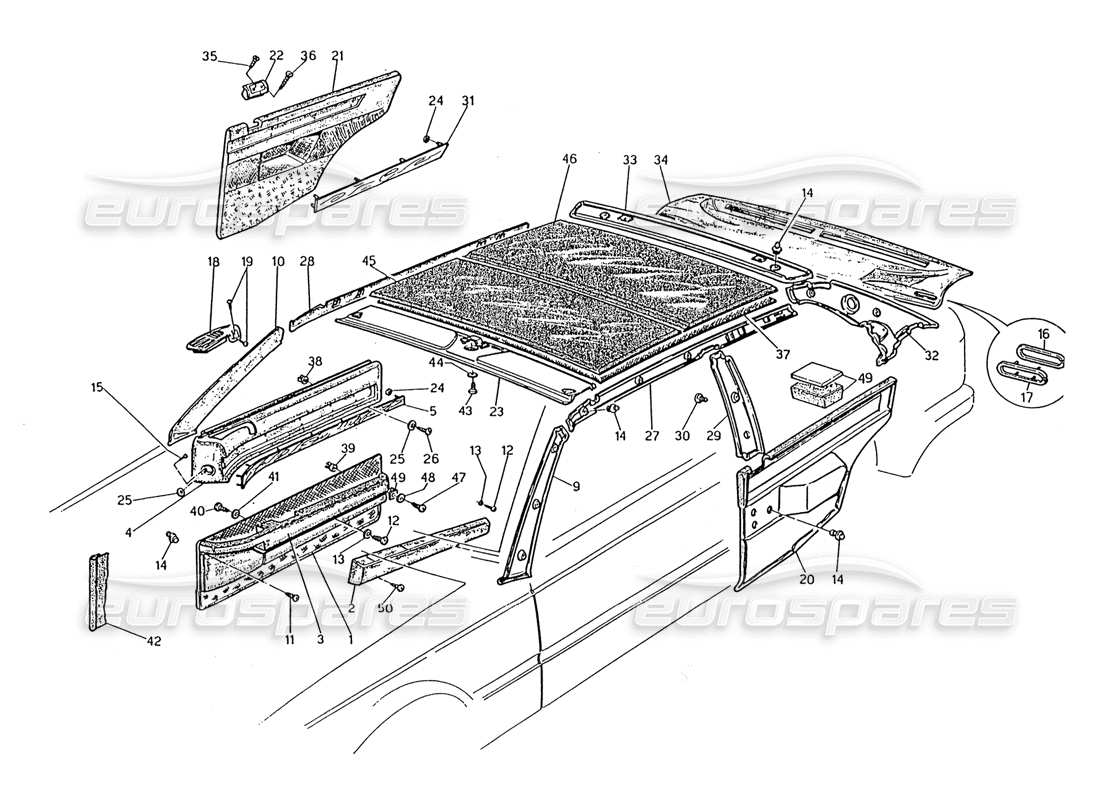

Maserati 2.24v Trim Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 319353271
LH CENTRAL LINER (AVIO PELT AND DARK LIGHT BLUE ALCANTARA)
# 001
MPN: 319353272
RH CENTRAL LINER (AVIO PELT AND DARK LIGHT BLUE ALCANTARA)
# 001
MPN: 319953321
LH CENTRAL LINER (LIGHT GREY PELT AND LIGHT GREY ALCANTARA)
from £357.05
from £357.05
# 001
MPN: 319953322
RH CENTRAL LINER (LIGHT GREY PELT AND LIGHT GREY AICANTARA)
from £250.16
from £250.16
# 001
MPN: 319953341
LH CENTRAL LINER (BLACK PELT AND DARK GREY ALCANTARA)
from £257.63
from £257.63
# 001
MPN: 319953342
RH CENTRAL LINER (BLACK PELT AND DARK GREY ALCANTARA)
from £251.86
from £251.86
# 002
MPN: 319353159
LH UNDER-ARMREST PANEL (AVIO PELT)
# 002
MPN: 319353160
RH UNDER-ARMREST PANEL (AVIO PELT)
# 002
MPN: 319953159
LH UNDER-ARMREST PANEL (GREY PELT)
from £43.64
from £43.64
# 002
MPN: 319953160
RH UNDER-ARMREST PANEL (GREY PELT)
from £43.64
from £43.64
# 002
MPN: 319953223
LH UNDER-ARMREST PANEL (BLACK PELT)
from £86.72
from £86.72
# 002
MPN: 319953224
RH UNDER-ARMREST PANEL (BLACK PELT)
from £65.09
from £65.09
# 003
-
SUPPLIED WITH POS. 1
# 004
MPN: 319353287
LH UPPER PANEL DOOR FINISHER (AVIO PELT)
# 004
MPN: 319353288
RH UPPER PANEL DOOR FINISHER (AVIO PELT)
# 004
MPN: 319953337
LH UPPER PANEL FRONT DOOR FINISHER (LIGHT GREY PELT)
from £102.11
from £102.11
# 004
MPN: 319953338
RH UPPER PANEL FRONT DOOR FINISHER (LIGHT GREY PELT)
from £43.64
from £43.64
# 004
MPN: 319953357
LH UPPER PANEL FRONT DOOR FINISHER (BLACK PELT)
from £57.40
from £57.40
# 004
MPN: 319953358
RH UPPER PANEL FRONT DOOR FINISHER (BLACK PELT)
from £59.18
from £59.18
# 005
MPN: 318320231
LH BRIAR TRIM
from £212.93
from £212.93
# 005
MPN: 318320232
RH BRIAR TRIM
from £212.93
from £212.93
# 009
MPN: 319353163
LH FRONT PILLAR TRIM (AVIO PELT)
# 009
MPN: 319953163
LH FRONT PILLAR TRIM (LIGHT GREY PELT)
from £43.64
from £43.64
# 009
MPN: 319953225
LH FRONT PILLAR TRIM (BLACK PELT)
from £51.40
from £51.40
# 010
MPN: 319353164
RH front pillar trim (avio pelt)
# 010
MPN: 319953164
RH FRONT PILLAR TRIM (LIGHT GREY PELT)
from £43.64
from £43.64
# 010
MPN: 319953226
RH FRONT PILLAR TRIM (BLACK PELT)
from £11.78
from £11.78
# 011
MPN: 119148220

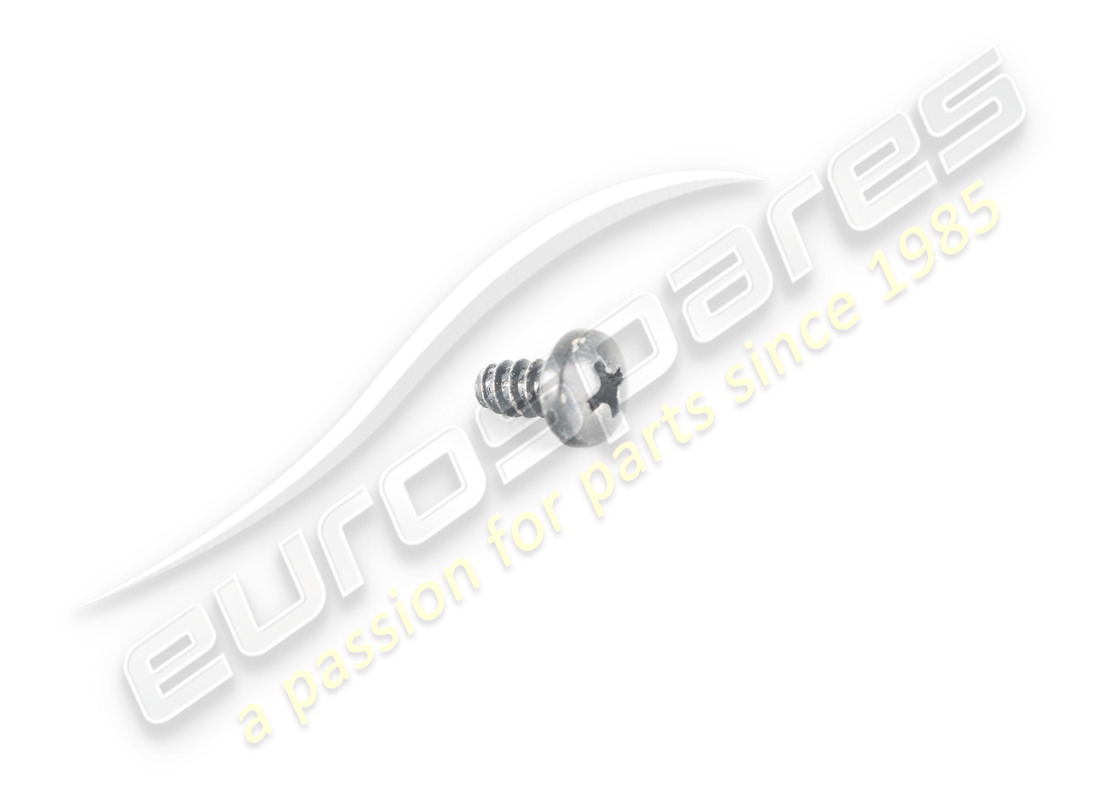

SCREW
from £1.09
from £1.09
# 012
MPN: 119148250
SCREW
# 013
MPN: 136110055
WASHER
from £0.78
from £0.78
# 014
MPN: 53833471
SPRING
from £0.70
from £0.70
# 015
MPN: 119142220
SCREW
# 016
MPN: 318353457
LH REAR FINISHER (ANTRACITE COL.)
from £0.47
from £0.47
# 016
MPN: 318353458
RH REAR FINISHER (ANTRACITE COL.)
from £0.54
from £0.54
# 017
MPN: 318353456
RH FRONT FINISHER (ANTRACITE COL.)
from £0.54
from £0.54
# 017
MPN: 31853455
LH FRONT FINISHER (ANTRACITE COL.)
# 018
MPN: 318353371
LH FINISHER
from £1.54
from £1.54
# 018
MPN: 318353372
RH FINISHER
from £0.62
from £0.62
# 019
MPN: 119529130
SCREW
from £1.09
from £1.09
# 020
MPN: 319353155
LH REAR LINER TRIM (AVIO PELT - LIGHT BLUE ALCANTARA)
# 020
MPN: 319953155
LH REAR LINER TRIM (LIGHT GREY ALCANTARA)
from £298.18
from £298.18
# 020
MPN: 319953276
LH REAR LINER TRIM (BLACK PELT - DARK GREY ALCANTARA)
# 021
MPN: 319353156
RH REAR LINER TRIM (AVIO PELT - LIGHT BLUE ALCANTARA)
# 021
MPN: 319953156
RH REAR LINER TRIM (LIGHT GREY PELT)
from £298.18
from £298.18
# 021
MPN: 319953268
RH REAR LINER TRIM (BLACK PELT - DARK GREY ALCANTARA)
# 022
MPN: 318353406
Finisher
from £0.76
from £0.76
# 023
MPN: 319353283
FRONT CROSS MEMBER FINISHER (AVIO PELT)
from £195.41
from £195.41
# 023
MPN: 319953333
FRONT CROSS MEMBER FINISHER (BLACK PELT)
from £298.18
from £298.18
# 023
MPN: 319953353
FRONT CROSS MEMBER FINISHER (LIGHT GREY PELT)
from £146.80
from £146.80
# 024
MPN: 312320387
SPRING
from £0.70
from £0.70
# 025
MPN: 135000043
WASHER
from £1.09
from £1.09
# 026
MPN: 161600510
SCREW
from £4.91
from £4.91
# 027
MPN: 319353279
LH SIDE FINISHER (AVIO PELT)
# 027
MPN: 319953329
LH SIDE FINISHER (LIGHT GREY PELT)
from £70.34
from £70.34
# 027
MPN: 319953349
LH SIDE FINISHER (BLACK PELT)
from £70.34
from £70.34
# 028
MPN: 319353280
RH SIDE FINISHER (AVIO PELT)
# 028
MPN: 319953330
RH SIDE FINISHER (LIGHT GREY PELT)
from £55.18
from £55.18
# 028
MPN: 319953350
RH SIDE FINISHER (BLACK PELT)
from £70.34
from £70.34
# 029
MPN: 319353167
LH CENTRAL PILLAR FINISHER (AVIO PELT)
# 029
MPN: 319353168
RH CENTRAL PILLAR FINISHER (AVIO PELT)
# 029
MPN: 319953167
LH CENTRAL PILLAR FINISHER (LIGHT GREY PELT)
from £31.25
from £31.25
# 029
MPN: 319953168
RH CENTRAL PILLAR FINISHER (LIGHT GREY PELT)
from £30.39
from £30.39
# 029
MPN: 319953229
LH CENTRAL PILLAR FINISHER (BLACK PELT)
from £30.39
from £30.39
# 029
MPN: 319953230
RH CENTRAL PILLAR FINISHER (BLACK PELT)
from £30.39
from £30.39
# 030
MPN: 314720362
PLUG
from £0.70
from £0.70
# 031
MPN: 318320231
LH BRIAR TRIM
from £212.93
from £212.93
# 031
MPN: 318320232
RH BRIAR TRIM
from £212.93
from £212.93
# 032
MPN: 319353169
LH REAR PILLAR FINISHER (AVIO PELT)
# 032
MPN: 319353170
RH REAR PILLAR FINISHER (AVIO PELT)
# 032
MPN: 319953169
LH REAR PILLAR FINISHER (LIGHT GREY PELT)
from £117.66
from £117.66
# 032
MPN: 319953170
RH REAR PILLAR FINISHER (LIGHT GREY PELT)
from £117.66
from £117.66
# 032
MPN: 319953231
LH REAR PILLAR FINISHER (BLACK PELT)
from £117.66
from £117.66
# 032
MPN: 319953232
RH REAR PILLAR FINISHER (BLACK PELT)
from £117.66
from £117.66
# 033
MPN: 319353171
CROSS MEMBER REAR FINISHER CEILING (AVIO PELT)
# 033
MPN: 319953171
CROSS MEMBER REAR FINISHER CEILING (LIGHT GREY PELT)
from £101.27
from £101.27
# 033
MPN: 319953271
CROSS MEMBER REAR FINISHER CEIL NG (BLACK PELT)
from £82.74
from £82.74
# 034
MPN: 319353172
PARCEL SHELF (LIGHT BLUE ALCANTARA)
# 034
MPN: 319953172
Parcel shelf (grey Alcantara)
# 035
MPN: 119542250
SHORT SCREW
# 036
MPN: 119542450
LONG SCREW
# 037
MPN: 319353173
CEILING FINISHER (LIGHT BLUE ALCANTARA)
# 037
MPN: 319950175
CEILING FINISHER (GREY ALCANTARA)
from £233.27
from £233.27
# 038
MPN: 318320341
NUT
from £0.70
from £0.70
This part replaces part number 14229280
# 039
MPN: 53831380
NUT
from £0.70
from £0.70
# 040
MPN: 119148190
SCREW
# 041
MPN: 163020060
WASHER
from £2.58
from £2.58
# 042
MPN: 319353187
LH TRIM (AVIO PELT)
# 042
MPN: 319353188
RH TRIM (AVIO PELT)
# 042
MPN: 319953187
LH TRIM (LIGHT GREY PELT)
from £2.88
from £2.88
# 042
MPN: 319953188
RH TRIM (LIGHT GREY PELT)
from £2.88
from £2.88
# 042
MPN: 319953239
LH TRIM (BLACK PELT)
from £1.09
from £1.09
# 042
MPN: 319953240
RH TRIM (BLACK PELT)
from £1.09
from £1.09
# 043
MPN: 119142130
SCREW
# 044
MPN: 135900043
WASHER
from £1.09
from £1.09
This part replaces part number 14496207
# 045
MPN: 318320464
FRONT CEILING PADDING
from £8.47
from £8.47
# 046
MPN: 318320466
REAR CEILING PADDING
from £11.54
from £11.54
# 047
MPN: 119142220
SCREW
# 048
MPN: 30831442
WASHER
# 049
MPN: 311520137
RH BLOCK
from £8.27
from £8.27
# 049
MPN: 311520138
LH BLOCK
from £8.27
from £8.27
