Maserati 222 / 222E Biturbo Timing Parts Diagram

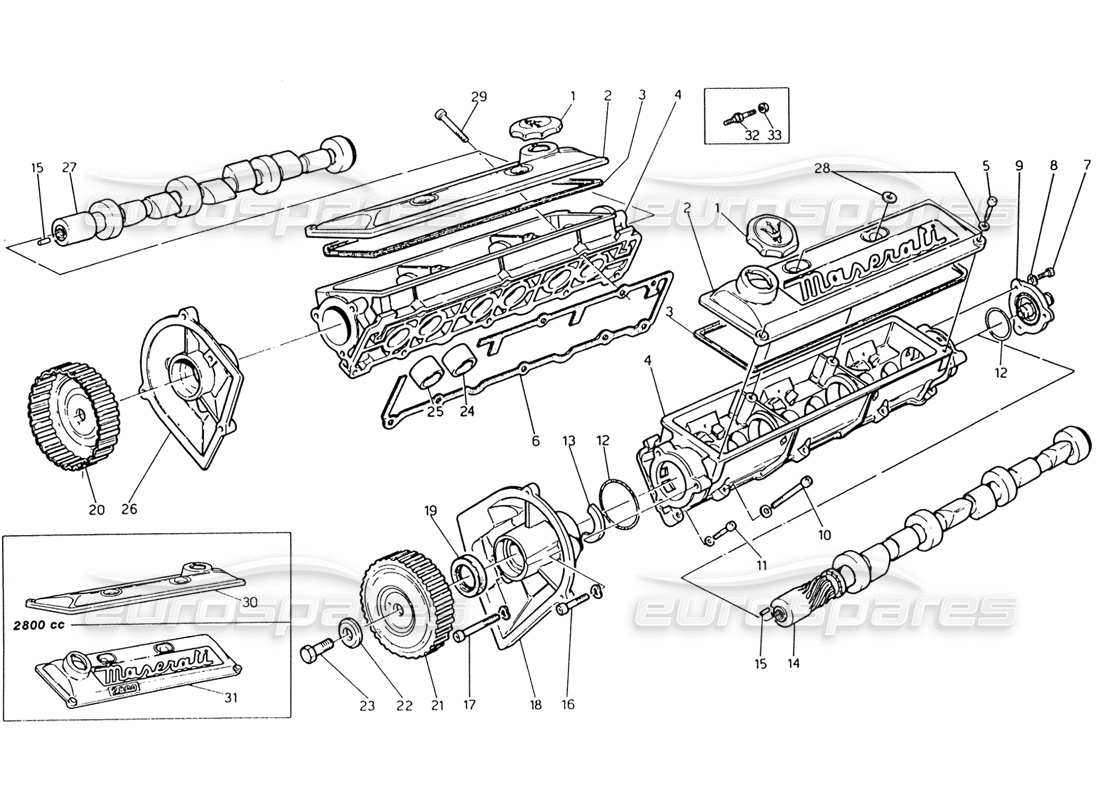

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 000
                                                            MPN: 311020007
                                                            CAMSHAFT HOUSING
                                                            from £458.45
                                                            from £458.45
                                                            # 000
                                                            MPN: 341000006
                                                            CAMSHAFT HOUSING
                                                            from £484.44
                                                            from £484.44
                                                            # 002
                                                            MPN: 311022328
                                                            COVER
                                                            Valid for 51
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 311020328
                                                            # 003
                                                            MPN: 311020321
                                                            RUBBER GASKET
                                                            from £13.60
                                                            from £13.60
                                                            # 004
                                                            MPN: 311020319
                                                            CAMSHAFT HOUSING
                                                            # 006
                                                            MPN: 310650421
                                                            FLAT GASKET
                                                            from £10.45
                                                            from £10.45
                                                            # 009
                                                            MPN: 311025329
                                                            OIL BLOWER COVER
                                                            from £1.77
                                                            from £1.77
                                                            This part replaces part number 311020329
                                                            # 010
                                                            MPN: 311020320
                                                            SCREW
                                                            from £1.32
                                                            from £1.32
                                                            # 012
                                                            MPN: 14459880
                                                            RUBBER
                                                            from £0.70
                                                            from £0.70
                                                            # 013
                                                            MPN: 311020313
                                                            STOP PLATE FOR CAMSHAFT
                                                            # 014
                                                            MPN: 311020317
                                                            LH CAMSHAFT
                                                            from £143.13
                                                            from £143.13
                                                            # 015
                                                            MPN: 311020312
                                                            DOWEL
                                                            from £0.70
                                                            from £0.70
                                                            # 016
                                                            MPN: 14306424
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 14306421
                                                            # 018
                                                            MPN: 311020305
                                                            LH CYLINDER HEAD COVER
                                                            from £223.50
                                                            from £223.50
                                                            # 019
                                                            MPN: 311020368
                                                            SEAL RING
                                                            from £8.25
                                                            from £8.25
                                                            This part replaces part number 190400351
                                                            # 020
                                                            MPN: 311020300
                                                            RH CAMSHAFT PULLEY
                                                            # 021
                                                            MPN: 311020301
                                                            LH CAMSHAFT PUILEY
                                                            # 023
                                                            MPN: 311420300
                                                            BOLT
                                                            Supersession
                                                            Supersession
                                                            # 024
                                                            MPN: 311020325
                                                            INLET VALVE COLLAR TOP
                                                            from £12.27
                                                            from £12.27
                                                            # 025
                                                            MPN: 311020326
                                                            EXHAUST VALVE COLLAR TOP
                                                            from £11.49
                                                            from £11.49
                                                            # 026
                                                            MPN: 311020327
                                                            RH CYLINDER HEAD COVER
                                                            from £68.65
                                                            from £68.65
                                                            This part replaces part number 311020306
                                                            # 027
                                                            MPN: 311020316
                                                            RH CAMSHAFT
                                                            from £134.77
                                                            from £134.77
                                                            # 028
                                                            MPN: 311020323
                                                            SNAP RING
                                                            from £1.08
                                                            from £1.08
                                                            # 029
                                                            MPN: 311020320
                                                            OUTSIDE SCREW
                                                            from £1.32
                                                            from £1.32
                                                            # 030
                                                            MPN: 311022328
                                                            RH COVER
                                                            Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 311020328
                                                            # 031
                                                            MPN: 341000329
                                                            LH COVER
                                                            Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                                            from £136.45
                                                            from £136.45
                                                            This part replaces part number 311022328
                                                            # 032
                                                            MPN: 312032446
                                                            COLUMN
                                                            Valid for 55, 61, 71, 75
                                                            # 033
                                                            MPN: 125100080
                                                            NUT
                                                            x
                                                            from £0.86
                                                            from £0.86
