maserati 222 / 222e biturbo intake manifold throttle valve body parts diagram

010 - intake manifold throttle valve body

Maserati 222 / 222E Biturbo Intake Manifold Throttle Valve Body Parts Diagram

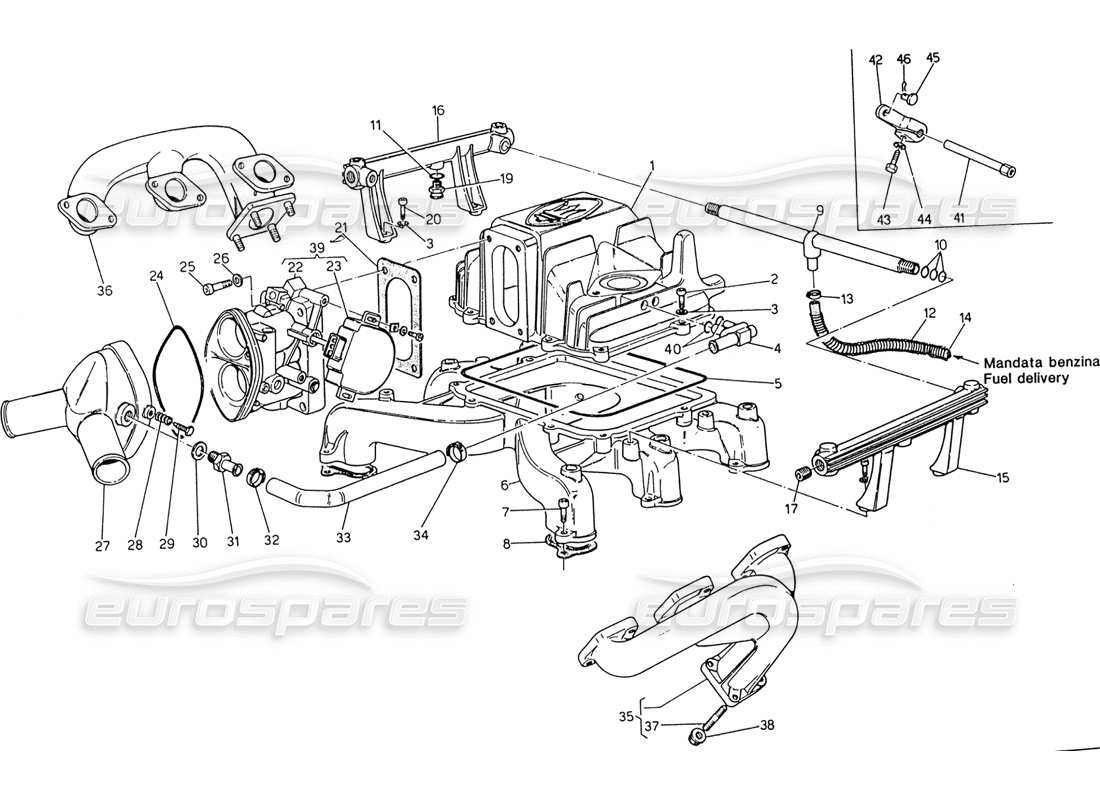

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 312220368
                                                                      THROTTLE BODY COVER
                                                                      Valid for 51, 54, 55, 60, 61, 70, 71, 74, 75
                                                                      from £157.50
                                                                      from £157.50
                                                                      # 005
                                                                      MPN: 312220309
                                                                      COVER RUBBER RING
                                                                      # 006
                                                                      MPN: 312020027
                                                                      INTAKE MANIFOLD
                                                                      from £262.50
                                                                      from £262.50
                                                                      # 007
                                                                      MPN: 14306424
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 14306421
                                                                      # 008
                                                                      MPN: 312020329
                                                                      GASKET
                                                                      from £10.98
                                                                      from £10.98
                                                                      # 009
                                                                      MPN: 312020135
                                                                      PIPE TO CONN. FUEL MANIFOLDS
                                                                      from £17.28
                                                                      from £17.28
                                                                      # 011
                                                                      MPN: 14453381
                                                                      RUBBER RING
                                                                      from £0.64
                                                                      from £0.64
                                                                      # 012
                                                                      MPN: 319237524
                                                                      PIPE L 500 MM
                                                                      from £3.11
                                                                      from £3.11
                                                                      # 014
                                                                      MPN: 312237485
                                                                      SLEEVE LS550 MM
                                                                      from £23.71
                                                                      from £23.71
                                                                      # 015
                                                                      MPN: 312020493
                                                                      LH FUEL MANIFOLD
                                                                      from £66.44
                                                                      from £66.44
                                                                      # 016
                                                                      MPN: 312020494
                                                                      R.H, FUEL MANIFOLD
                                                                      from £72.23
                                                                      from £72.23
                                                                      # 017
                                                                      MPN: 312020495
                                                                      PLUG
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 021
                                                                      MPN: 470063601
                                                                      GASKET
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 022
                                                                      MPN: 312222101
                                                                      Throttle valve body
                                                                      Valid for 51 / *Sinchronizing throttle valve body
                                                                      Supersession
                                                                      Supersession
                                                                      # 022
                                                                      MPN: 342200101
                                                                      Throttle valve body
                                                                      Valid for 54, 55, 60, 61, 70, 71, 74, 75 / *Sinchronizing throttle valve body
                                                                      from £729.75
                                                                      from £729.75
                                                                      # 023
                                                                      MPN: 470079901
                                                                      THROTTLE VALVE POTENTIOMETER
                                                                      from £192.86
                                                                      from £192.86
                                                                      This part replaces part number 313720114
                                                                      # 024
                                                                      MPN: 470062500
                                                                      SEAL RING
                                                                      from £2.97
                                                                      from £2.97
                                                                      # 025
                                                                      MPN: 311020320
                                                                      SCREW
                                                                      from £1.35
                                                                      from £1.35
                                                                      # 027
                                                                      MPN: 312220477
                                                                      AIR CONVEYOR
                                                                      from £155.18
                                                                      from £155.18
                                                                      # 029
                                                                      MPN: 312220479
                                                                      STOP RING
                                                                      from £1.90
                                                                      from £1.90
                                                                      # 031
                                                                      MPN: 312220481
                                                                      CONNECTOR
                                                                      Supersession
                                                                      Supersession
                                                                      # 032
                                                                      MPN: 30551117
                                                                      CLAMP
                                                                      # 034
                                                                      MPN: 312420317
                                                                      CLAMP
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 035
                                                                      MPN: 312020325
                                                                      LH EXHAUST MANIFOLD
                                                                      Valid for 51
                                                                      from £27.62
                                                                      from £27.62
                                                                      # 035
                                                                      MPN: 571362000
                                                                      LH EXHAUST MANIFOLD
                                                                      from £1,069.10
                                                                      from £1,069.10
                                                                      This part replaces part number 342000325
                                                                      # 036
                                                                      MPN: 312020326
                                                                      RH EXHAUST MANIFOLD
                                                                      Valid for 51
                                                                      # 036
                                                                      MPN: 342000326
                                                                      RH EXHAUST MANIFOLD
                                                                      Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                                                      # 037
                                                                      MPN: 312020327
                                                                      BOLT
                                                                      from £5.71
                                                                      from £5.71
                                                                      # 038
                                                                      MPN: 312020309
                                                                      NUT
                                                                      # 039
                                                                      MPN: 312222001
                                                                      COMPLEX THROTTLE VALVE AND POTENTIOMETER
                                                                      Valid for 51 / * sinchronizing throttle valve body
                                                                      from £239.31
                                                                      from £239.31
                                                                      This part replaces part number 312222101
                                                                      # 040
                                                                      MPN: 14456880
                                                                      RUBBER
                                                                      from £0.80
                                                                      from £0.80
                                                                      # 041
                                                                      MPN: 314638110
                                                                      SPINDLE
                                                                      Valid for 55, 61, 71, 75
                                                                      # 042
                                                                      MPN: 312232472
                                                                      ROD
                                                                      Valid for 55, 61, 71, 75
                                                                      # 043
                                                                      MPN: 101206016
                                                                      BOLT
                                                                      Valid for 55, 61, 71, 75
                                                                      # 044
                                                                      MPN: 135600060
                                                                      WASHER
                                                                      Valid for 55, 61, 71, 75
                                                                      from £0.79
                                                                      from £0.79
                                                                      # 045
                                                                      MPN: 312232471
                                                                      Dowel Ø 5X10
                                                                      Valid for 55, 61, 71, 75
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 046
                                                                      MPN: 146501210
                                                                      PIN
                                                                      Valid for 55, 61, 71, 75
