maserati 222 / 222e biturbo evaporation system (rh steering with lambda feeler) parts diagram

010.4 - Evaporation System (RH Steering With Lambda Feeler)

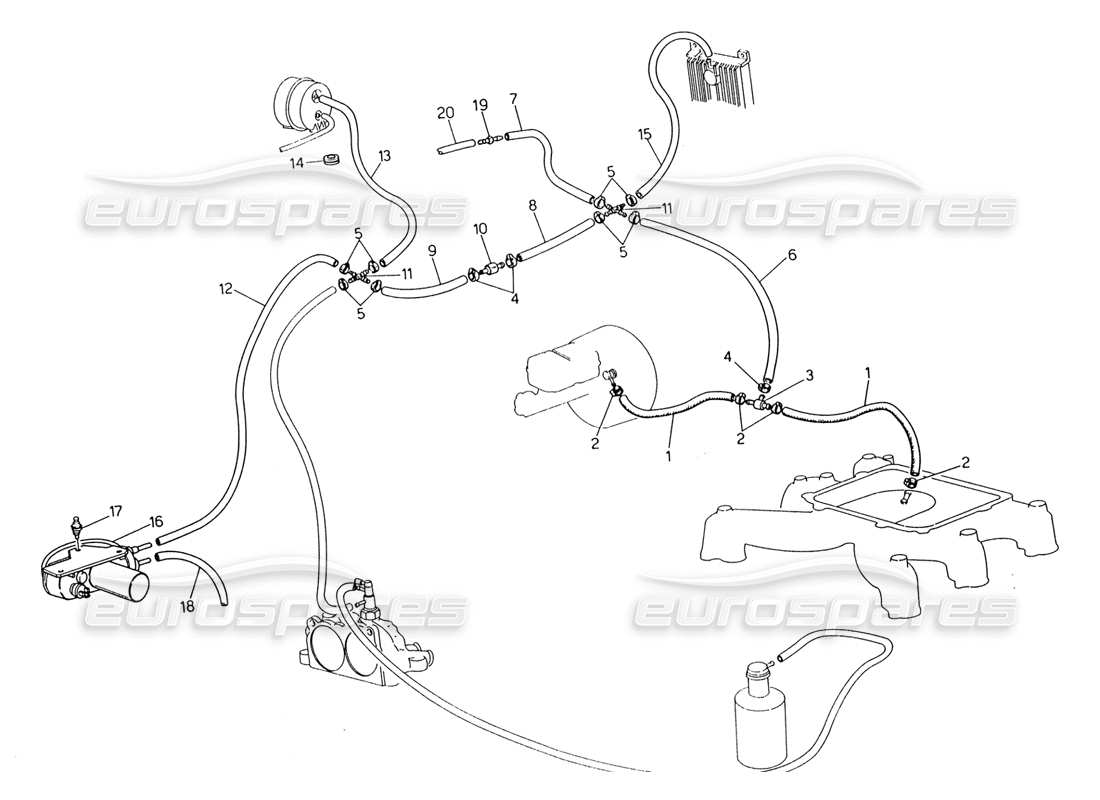

Maserati 222 / 222E Biturbo Evaporation System (R.H. Steering With Lambda Feeler) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 312048302
SLEEVE L=250 MM
Valid for 74, 75
Supersession
Supersession
# 002
MPN: 312020404
CLAMP
Valid for 74, 75
from £4.16
from £4.16
# 003
MPN: 312027337
THREE WAY CONNECTOR
Valid for 74, 75
# 004
MPN: 312050310
CLAMP
Valid for 74, 75
from £1.08
from £1.08
# 006
MPN: 312020507
SLEEVE L=220 MM
Valid for 74, 75
from £0.91
from £0.91
# 007
MPN: 313620304
SLEEVE
Valid for 74, 75
Supersession
Supersession
# 008
MPN: 312053506
SLEEVE L=70 MM
Valid for 74, 75
# 010
MPN: 315520169
NOT RETURN VALVE
Valid for 74, 75
from £6.92
from £6.92
# 011
MPN: 312030422
FOUR WAY CONNECTOR
Valid for 74, 75
from £0.98
from £0.98
# 012
MPN: 325520447
SLEEVE L=1300 MM
Valid for 74, 75
Supersession
Supersession
# 013
MPN: 312020479
SLEEVE L=1200 MM
Valid for 74, 75
# 014
MPN: 165010100
WIRE INLET
Valid for 74, 75
from £0.98
from £0.98
# 015
-
SLEEVE L=2600 MM (NOT SUPPLIED)
Valid for 74, 75
# 016
MPN: 325520172
VACUUM PUMP
Valid for 74, 75
from £99.75
from £99.75
# 017
MPN: 325520345
RUBBER
Valid for 74, 75
from £1.08
from £1.08
# 018
MPN: 325520348
SLEEVE L=200 MM
Valid for 74, 75
from £0.56
from £0.56
# 019
MPN: 313620303
CONNECTOR
Valid for 74, 75
from £0.77
from £0.77
# 020
MPN: 313620304
SLEEVE
Valid for 74, 75
Supersession
Supersession
