maserati 222 / 222e biturbo boost control system parts diagram

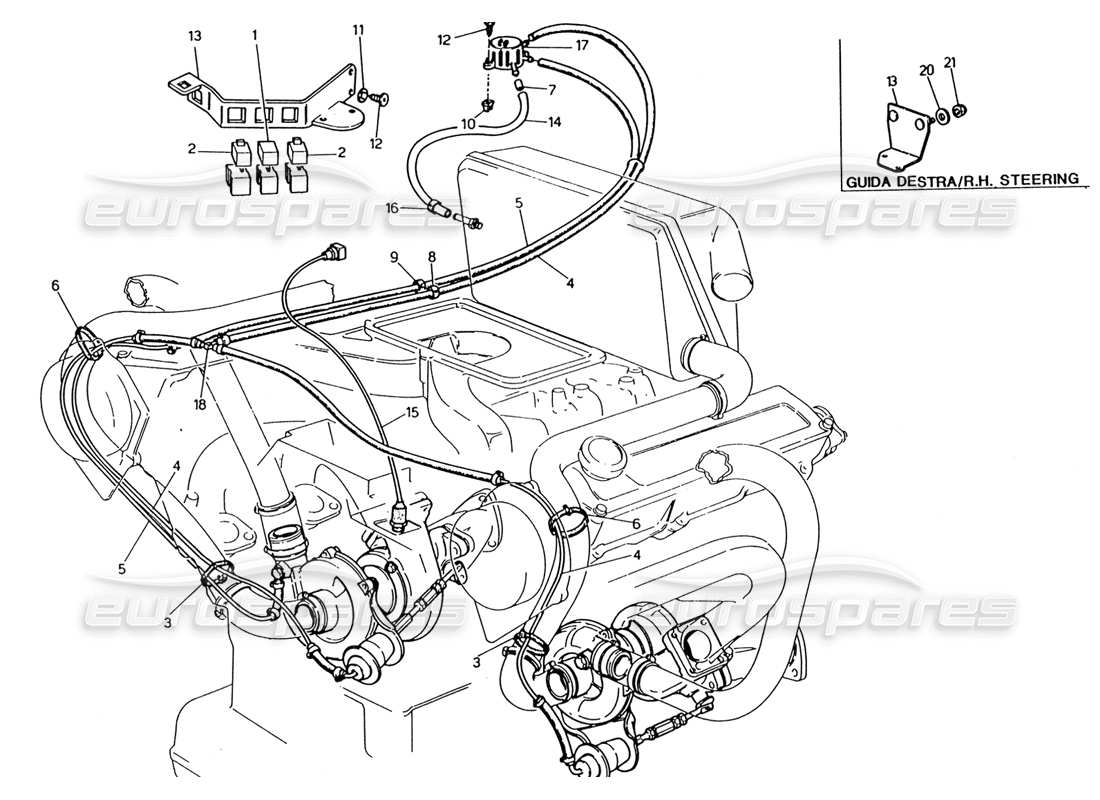

011.1 - Boost Control System

Maserati 222 / 222E Biturbo Boost Control System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 313320134
                                  IGNITION RELAY
                                  from £19.39
                                  from £19.39
                                  This part replaces part number 184101
                                  # 002
                                  MPN: 313353106
                                  RELAY
                                  from £9.08
                                  from £9.08
                                  This part replaces part number 313320106
                                  # 004
                                  MPN: 312053020
                                  PIPE TO CONN. LH AND RH TURBOB. WASTEGATE CC
                                  Supersession
                                  Supersession
                                  This part replaces part number 312020511
                                  # 005
                                  MPN: 312053025
                                  PIPE TO CONN. RH TURBOB. COMPLETE
                                  Supersession
                                  Supersession
                                  # 006
                                  MPN: 312020382
                                  CLAMP
                                  from £0.74
                                  from £0.74
                                  # 007
                                  MPN: 312020375
                                  RESTRICTION ON R OUTLET SOLENOID
                                  Valid for 51
                                  # 007
                                  MPN: 342000375
                                  RESTRICTION ON R OUTLET SOLENOID
                                  Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                  # 008
                                  MPN: 312020397
                                  IDENTIFICATION CLAMP (W)
                                  from £0.74
                                  from £0.74
                                  # 009
                                  MPN: 312020396
                                  IDENTIFICATION CLAMP (C)
                                  from £0.74
                                  from £0.74
                                  # 010
                                  MPN: 319220324
                                  SCREW
                                  from £0.68
                                  from £0.68
                                  This part replaces part number 82457087
                                  # 011
                                  MPN: 169020005
                                  WASHER
                                  from £1.17
                                  from £1.17
                                  # 012
                                  MPN: 119148130
                                  SCREW
                                  from £0.91
                                  from £0.91
                                  # 013
                                  MPN: 313347168
                                  SUPPORT ELEMENT RH STEERING
                                  Valid for 70, 71, 74, 75
                                  # 013
                                  MPN: 313720102
                                  SUPPORT ELEMENT
                                  Valid for 51, 54, 55, 60, 61
                                  from £7.31
                                  from £7.31
                                  # 014
                                  MPN: 312020508
                                  SLEEVE TO CONN. R SOLENOID VALVE TO LOWER COVE
                                  Supersession
                                  Supersession
                                  # 015
                                  MPN: 470089701
                                  ACCELERATING SENSOR
                                  from £126.51
                                  from £126.51
                                  # 016
                                  MPN: 312020395
                                  IDENTIFICATION CLAMP (R)
                                  from £0.83
                                  from £0.83
                                  # 017
                                  MPN: 452089801
                                  SOLENOID VALVE
                                  from £122.90
                                  from £122.90
                                  # 018
                                  MPN: 312020399
                                  Y-CONNECTOR
                                  from £1.09
                                  from £1.09
                                  # 020
                                  MPN: 135900064
                                  WASHER
                                  Valid for 70, 71, 74, 75
                                  from £0.47
                                  from £0.47
                                  # 021
                                  MPN: 122600060
                                  NUT
                                  Valid for 70, 71, 74, 75
