maserati 222 / 222e biturbo exhaust system without paint catalyst parts diagram

012 - Exhaust System Without Paint Catalyst

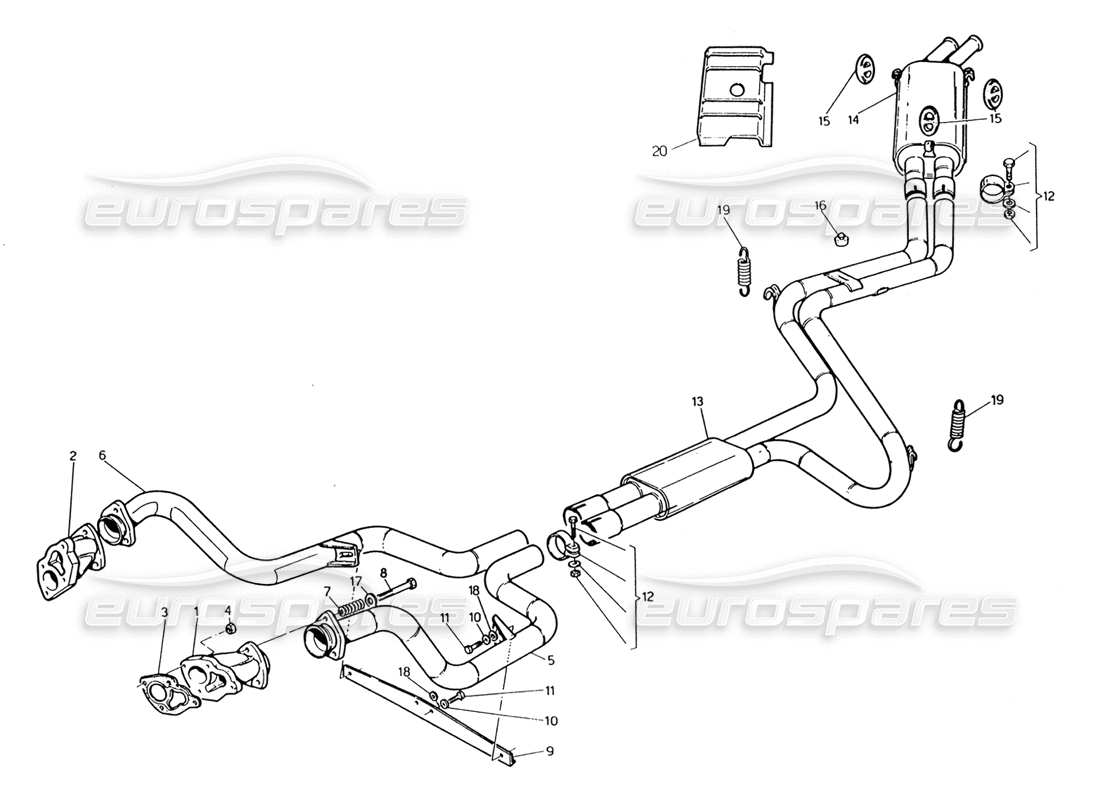

Maserati 222 / 222E Biturbo Exhaust System Without Paint Catalyst Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 312020301
    LH MANIFOLD
    Valid for 51and Singapore
    from £90.40
    from £90.40
    SLEEVE BETWEEN TURBO AND EXH. PIPE Genuine Maserati Part - New (to order)
    # 002
    MPN: 312020302
    RH MANIFOLD
    Valid for 51and Singapore
    from £90.40
    from £90.40
    RH TURBO MANIFOLD Genuine Maserati Part - New (to order)
    # 003
    MPN: 312020303
    GASKET
    from £10.98
    from £10.98
    GASKET Genuine Maserati Part - New In stock
    GASKET Original Equipment - New In stock
    # 004
    MPN: 312020309
    NUT
    Valid for 51and Singapore
    NUT Genuine Maserati Part - New (to order)
    # 005
    MPN: 319021101
    LH FRONT EXHAUST PIPE
    Valid for 51and Singapore
    from £76.88
    from £76.88
    PIPE Genuine Maserati Part - New (to order)
    # 006
    MPN: 319021102
    RH FRONT EXHAUST PIPE
    Valid for 51and Singapore
    from £76.88
    from £76.88
    Maserati PART 319021102 Genuine Maserati Part - New (to order)
    # 007
    MPN: 319020303
    SHORT SPRING TO FIX EXHAUST MANIFOLD
    Valid for 51and Singapore
    from £4.46
    from £4.46
    SHORT SPRING Genuine Maserati Part - New (to order)
    # 008
    MPN: 319020301
    SCREW TO FIX. EXHAUST MANIFOLD
    Valid for 51and Singapore
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 009
    MPN: 319020107
    SUPPORT, ASSY
    Valid for 51and Singapore
    from £1.41
    from £1.41
    SUPPORT Genuine Maserati Part - New (to order)
    # 010
    MPN: 138200080
    SPRING WASHER
    Valid for 51and Singapore
    Maserati PART 138200080 Genuine Maserati Part - New (to order)
    # 011
    MPN: 101208016
    SCREW
    Valid for 51and Singapore
    Maserati PART 101208016 Genuine Maserati Part - New (to order)
    # 012
    MPN: 319021003
    CLAMP
    Valid for 51and Singapore
    from £7.19
    from £7.19
    This part replaces part number 319020003
    PIPE TIGHTENING CLAMP,MS 435 Genuine Maserati Part - New In stock
    # 013
    MPN: 319021106
    CENTRAL PIPE, ASSY
    Valid for 51and Singapore
    from £237.88
    from £237.88
    CENTRAL SILENCER 2000SI MS1815 Genuine Maserati Part - New (to order)
    # 014
    MPN: 319021109
    MUFFLER, ASSY
    Valid for 51and Singapore
    from £383.04
    from £383.04
    MUFFLER Genuine Maserati Part - New (to order)
    # 015
    MPN: 319020300
    SUPPORT
    Valid for 51and Singapore
    from £1.61
    from £1.61
    RUBBER MOUNT Genuine Maserati Part - New In stock
    # 016
    MPN: 312120300
    BUFFER
    Valid for 51and Singapore
    from £2.14
    from £2.14
    RUBBER BUSHING Genuine Maserati Part - New (to order)
    # 017
    MPN: 135900084
    WASHER
    Valid for 51and Singapore
    Maserati PART 135900084 Genuine Maserati Part - New (to order)
    # 018
    MPN: 163020080
    WASHER
    Valid for 51and Singapore
    from £1.08
    from £1.08
    FLAT WASHER Genuine Maserati Part - New In stock
    # 019
    MPN: 319030312
    SPRING
    Valid for 51and Singapore
    from £2.12
    from £2.12
    CATALYST TEN. SPRING Genuine Maserati Part - New (to order)
    # 020
    MPN: 319050117
    SCREEN
    Valid for 51and Singapore
    SCREEN Genuine Maserati Part - New (to order)
