![maserati 222 / 222e biturbo air compressor and brackets parts diagram](/img/CxEAAMTaOW5_L8WyWJZL35UUQRmiUWiQ6XycSz8uckHjUcBTtbFlAAM%3D/maserati-222-_-222e-biturbo-part-diagram-017.webp)

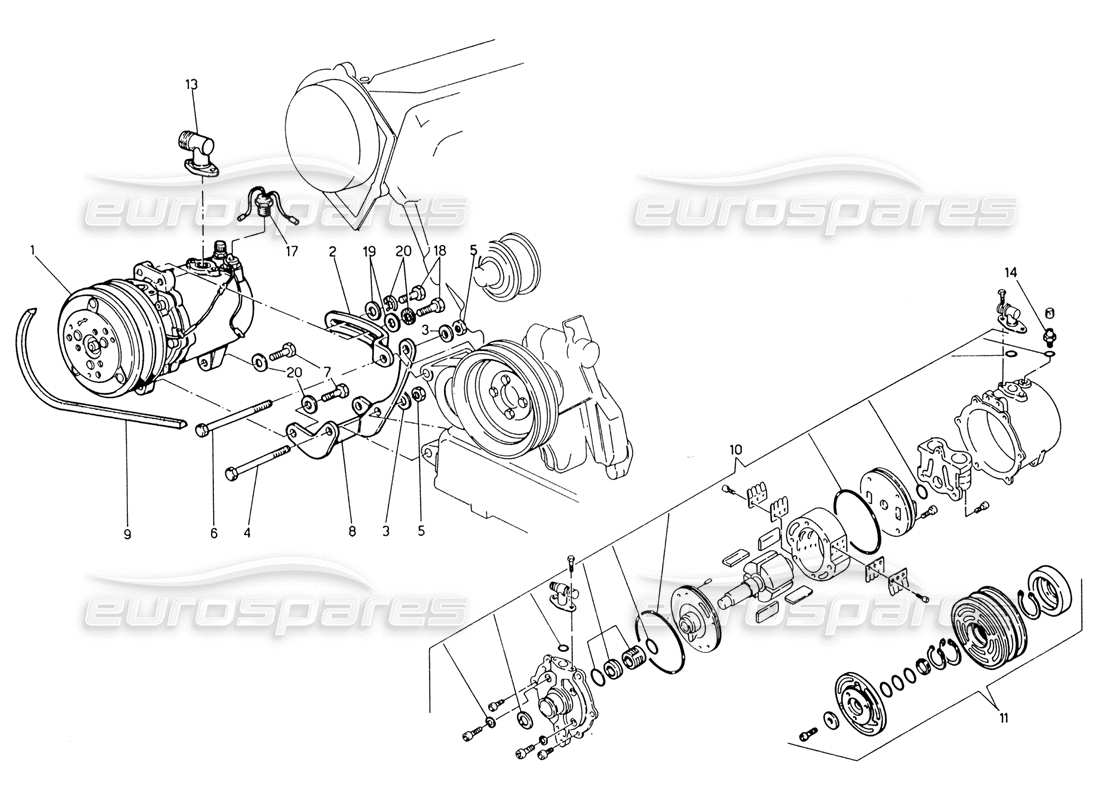

017 - Air Compressor and Brackets
Maserati 222 / 222E Biturbo Air Compressor and Brackets Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315522016
AIR COND. COMPRESSOR (PULLEY Ø 116)
# 002
MPN: 315520125
THRUST PAD
from £3.06
from £3.06
# 003
MPN: 14496601
WASHER
Supersession
Supersession
# 004
MPN: 100710075
BOFT
# 005
MPN: 128300100
NUT
# 006
MPN: 100710085
BOLT
# 007
MPN: 101210025
BOLT
# 008
MPN: 315520126
SUPPORT
# 009
MPN: 315522342
BELT
from £7.99
from £7.99
# 010
MPN: 315520008
OVERHAUL KIT
from £26.78
from £26.78
# 011
MPN: 315520024
MAGNETIC CLUTCH KIT
from £317.96
from £317.96
# 013
MPN: 315532128
EXHAUST VALVE
from £6.32
from £6.32
# 014
MPN: 315520124
SERVICE VALVE
from £21.89
from £21.89
# 017
MPN: 315520131
THERMAL SWITCH
from £6.09
from £6.09
# 018
MPN: 101210030
BOLT
from £1.56
from £1.56
# 019
MPN: 315520442
WASHER
# 020
MPN: 135500100
SPRING WASHER
from £0.78
from £0.78
