018 - Air Conditioning System LH Steering (Pre Modif.)

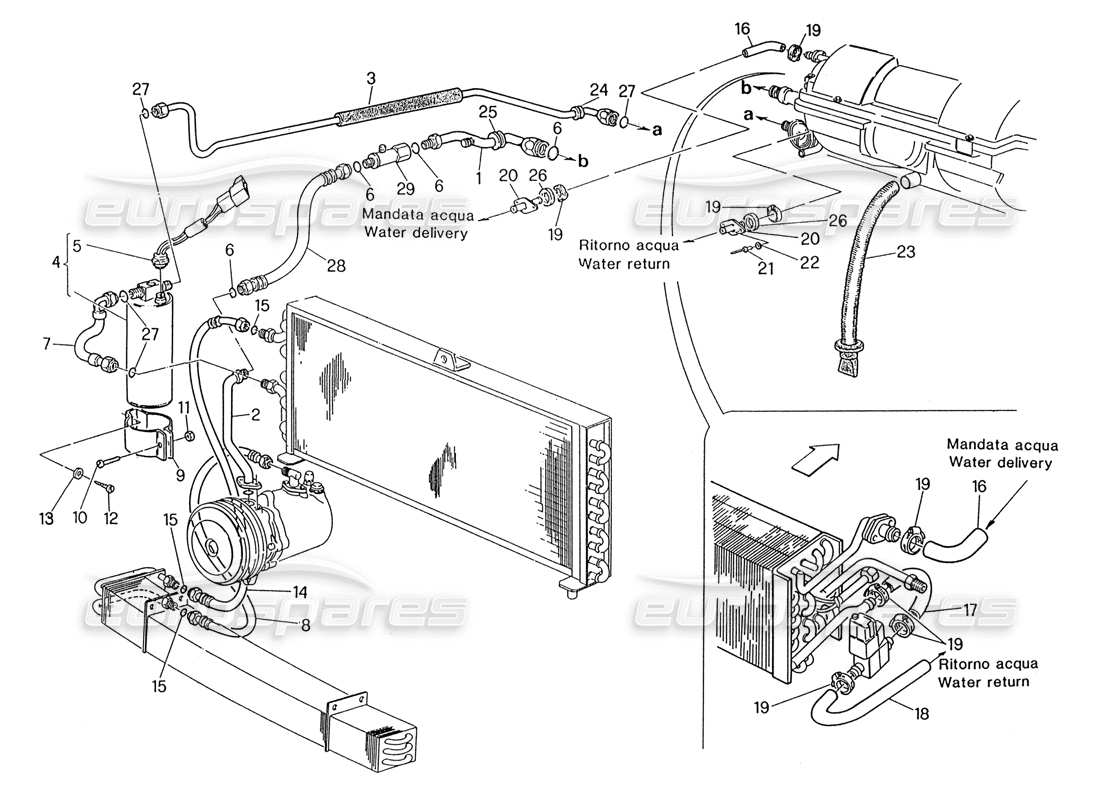

Maserati 222 / 222E Biturbo Air Conditioning System L.H. Steering (Pre Modif.) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315520211
UPPER FREON RETURN LINE
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
This part replaces part number 315522202
# 002
MPN: 345500185
FREON RETURN LINE
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
# 003
MPN: 315521182
FREON DELIVERY LINE
Valid for 51, 54, 55, 60, 61
from £10.30
from £10.30
# 004
MPN: 365502174
FREON FILTER
from £107.03
from £107.03
This part replaces part number 315520174
# 005
MPN: 315520175
MAX. AND MIN. CAPACITY PRESSURE SWITCH
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
# 006
MPN: 315520445
O-RING 1/2 FREON LINE
Valid for 51, 54, 55, 60, 61
from £0.72
from £0.72
# 007
MPN: 315521181
FREON DELIVERY LINE
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
# 008
MPN: 315521179
FREON DELIVERY LINE
Valid for 51, 54, 55, 60, 61
from £26.25
from £26.25
# 009
MPN: 315520301
CLAMP
Valid for 51, 54, 55, 60, 61
from £17.73
from £17.73
# 010
MPN: 101206025
SCREW
Valid for 51, 54, 55, 60, 61
# 011
MPN: 128300060
NUT
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
# 012
MPN: 119148160
SCREW
Valid for 51, 54, 55, 60, 61
# 013
MPN: 169020005
SCREW
Valid for 51, 54, 55, 60, 61
from £1.12
from £1.12
# 014
MPN: 315521180
FREON DELIVERY LINE
Valid for 51, 54, 55, 60, 61
from £7.76
from £7.76
# 015
MPN: 315520444
O-RING 5/8 FREON LINE
Valid for 51, 54, 55, 60, 61
from £0.72
from £0.72
# 016
MPN: 315520479
WATER LINE
Valid for 51, 54, 55, 60, 61
from £8.41
from £8.41
# 017
MPN: 315520480
WATER LINE
Valid for 51, 54, 55, 60, 61
from £2.11
from £2.11
# 018
MPN: 315520481
WATER LINE
Valid for 51, 54, 55, 60, 61
from £8.05
from £8.05
# 019
MPN: 186402028
CLAMP
Valid for 51, 54, 55, 60, 61
from £1.60
from £1.60
# 020
MPN: 315520370
CONNECTION
Valid for 51, 54, 55, 60, 61
from £0.73
from £0.73
# 021
MPN: 164323413
POP RIVET
Valid for 51, 54, 55, 60, 61
# 022
MPN: 169020005
WASHER
Valid for 51, 54, 55, 60, 61
from £1.12
from £1.12
# 023
MPN: 315520017
EXHAUST LINE
Valid for 51, 54, 55, 60, 61
from £1.82
from £1.82
# 024
MPN: 31331303
GROMMET
Valid for 51, 54, 55, 60, 61
from £1.09
from £1.09
# 025
MPN: 315520371
GROMMET
Valid for 51, 54, 55, 60, 61
from £0.65
from £0.65
# 026
MPN: 315520372
GASKET
Valid for 51, 54, 55, 60, 61
from £0.72
from £0.72
# 027
MPN: 315520443
O-RING 3/8 FREON LINE
Valid for 51, 54, 55, 60, 61
from £0.72
from £0.72
# 028
MPN: 315520212
LOWER FREON RETURN LINE
Valid for 51, 54, 55, 60, 61
# 029
MPN: 315520186
VALVE
Valid for 51, 54, 55, 60, 61
